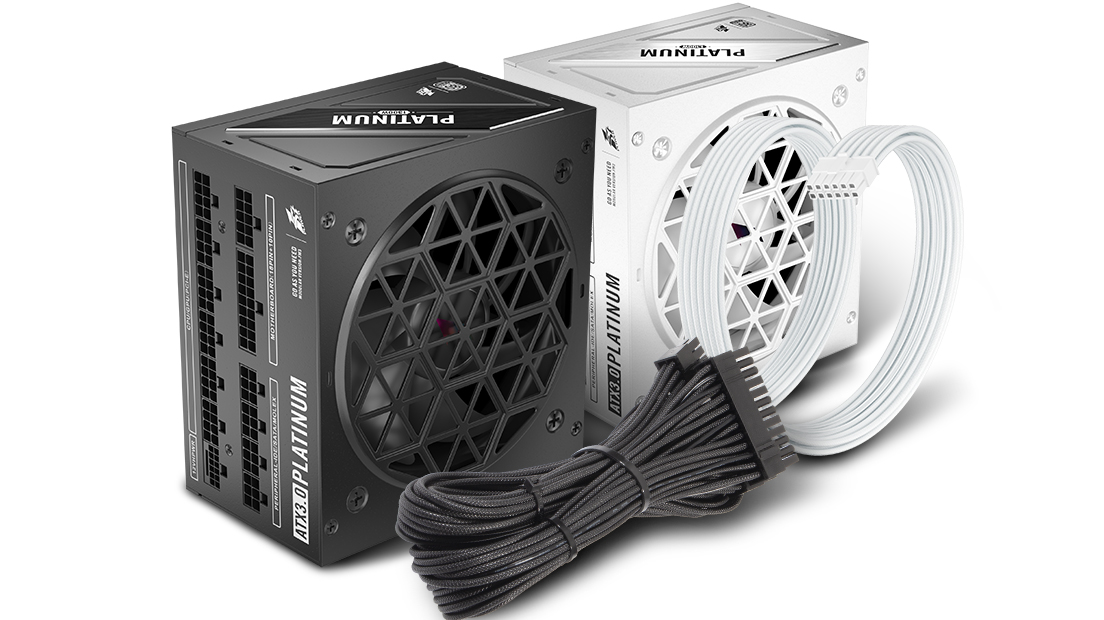

NGDP ATX 3.0
-
POWER SUPPLY 1000W / 1300W
- PC POWER SUPPLY
- PLATINUM
- FULL-MODULAR
Fully Modular PSU
Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.

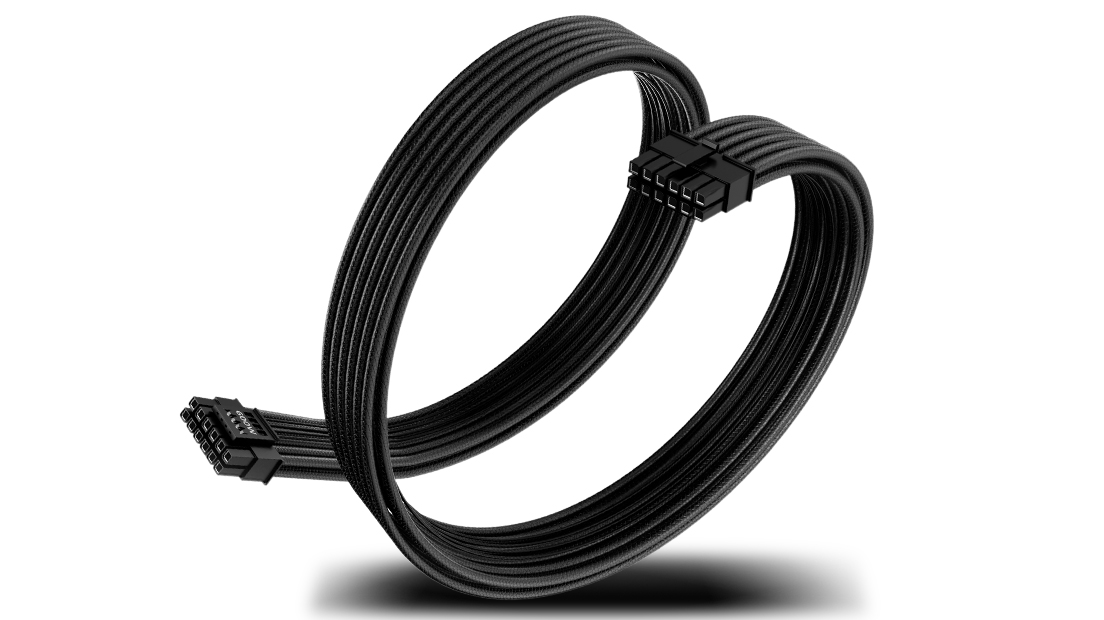

Embossed Cables
Customized embossed cable set, beautiful and soft, in line with UL safety certification. 12V uses 16AWG high specification wire diameter.
ATX 3.0 Standard & PCIe 5.0

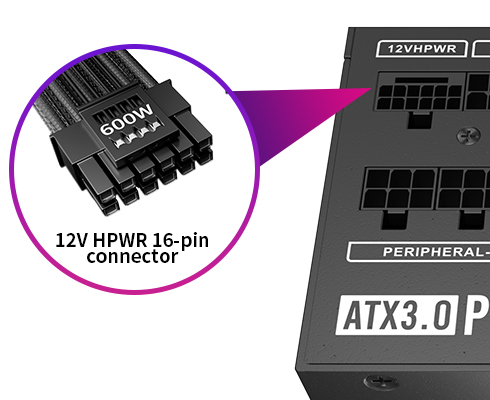

Comes with a 12VHPWR 16pin connector to provide up to 600W for power hungry Graphics card.The power supply can sustain up to 2x total power excursion and 3x GPU power excursion, fully ready for future high performing components.
Specs:
Dimensions(L*W*H)
140*150*86MM
Modular
FULL-Modular
Certifications
80 PLUS PLATINUM
Input Voltage
100-240Vac
Input Current
15-7.5A
Efficiency
93.28%at typical loading(1000W)/93.15 %at typical loading(1300W) (Date from 80 PLUS Verifification and Testing Report）
Output Capacity
1000W
Input Frequency
50-60Hz
PFC
Active PFC
Fan size
120MM FDB
Protections
UVP,OVP,OPP, SCP,Lightning Protection,OTP
Protection Temperature
0-40℃
MTBF
100,000hours
Circuit Structure
LLC+DC-DC
Regulatory
CE/FCC/C-Tik/ROHS/CCC/cTUVus/IEC/EAC
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри 1stPlayer
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
| Изходна мощност: | 1000 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
