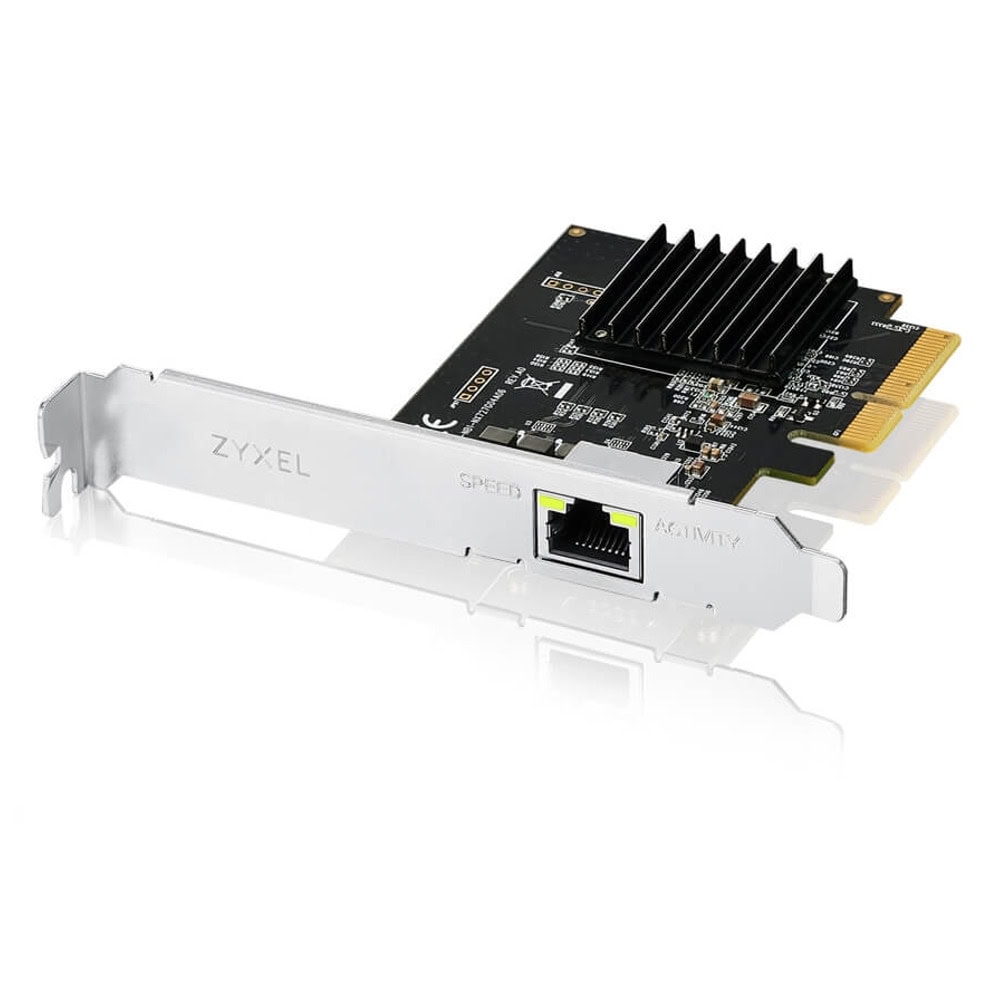

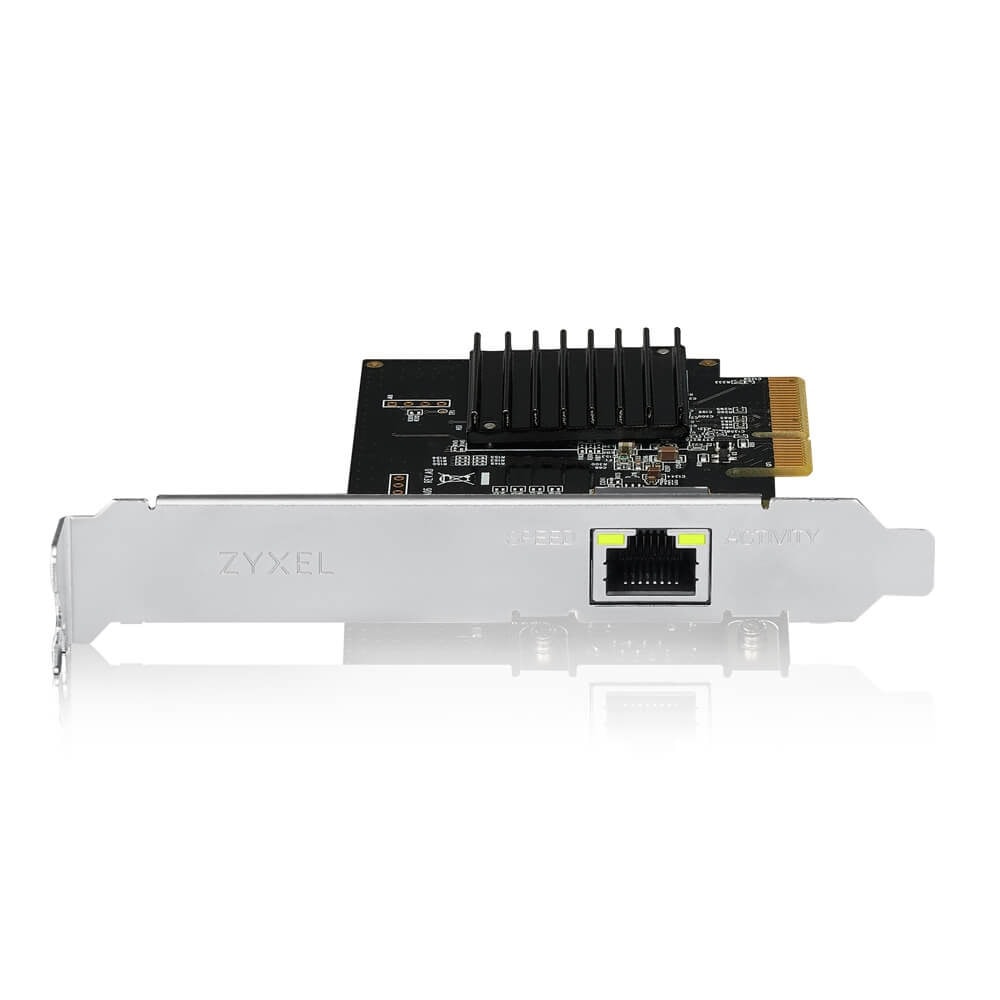

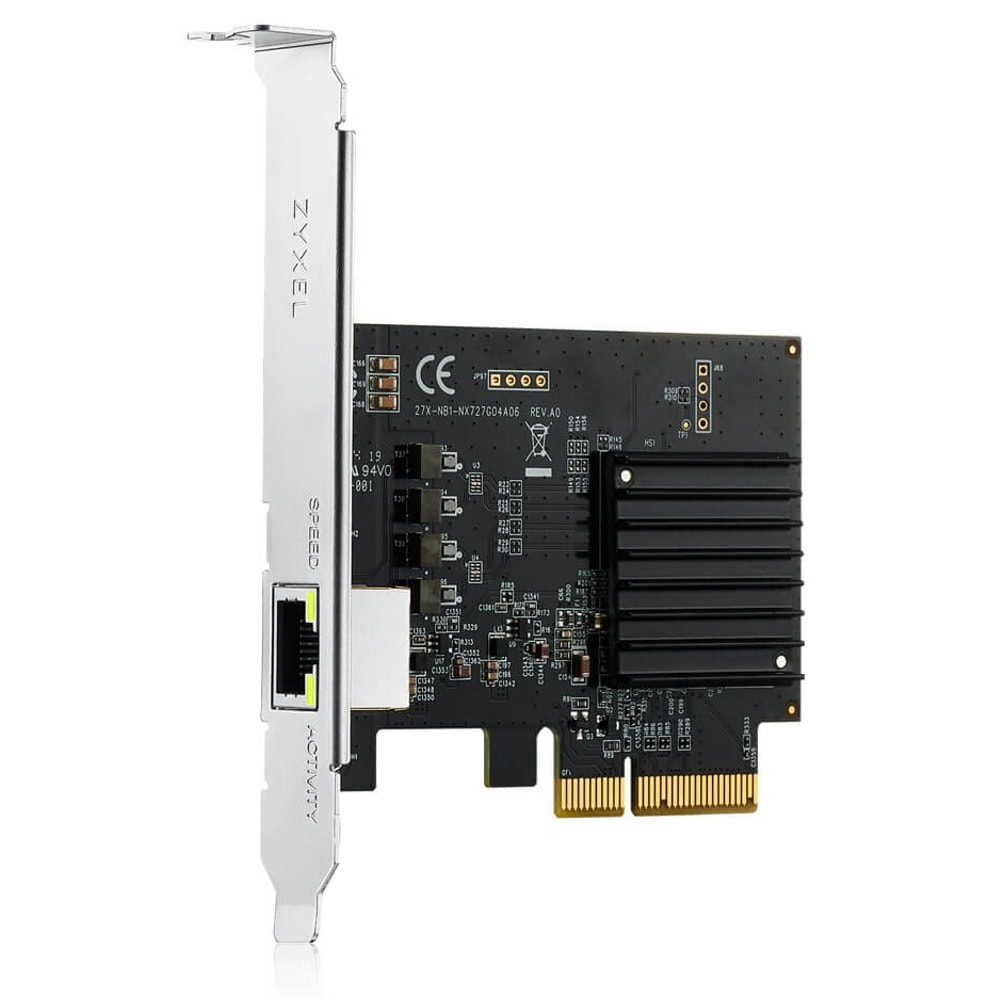

Мрежови адаптер Zyxel XGN100CV3, от PCI-E към 10/100/10000 RJ-45(ж)

Ultra-fast, future-proof
multi-gig connectivity.

The XGN100Cv3 upgrades any available PCI-Express Gen-3 slot into a blazing-fast 10GbE port – delivering multi-gigabit performance across 10G/5G/2.5G/1G/100M speeds.

With full backward compatibility for standard Gigabit and Fast Ethernet networks, it’s ideal for demanding tasks such as large file transfers, NAS media work, video editing, 8K streaming and hosting servers in home, SOHO or SMB environments.

With robust multi-gig bandwidth, you can future-proof your setup and take full advantage of high-speed internet or local network infrastructure, making it perfect for content creators, gamers, or anyone needing reliable, high-throughput performance.

Flexible compatibility
and easy installation.

Designed with versatility in mind, the XGN100Cv3 supports a wide array of operating systems, including Windows 10/11, Windows Server variants and Linux, making it a plug-and-play upgrade for most desktops and servers.

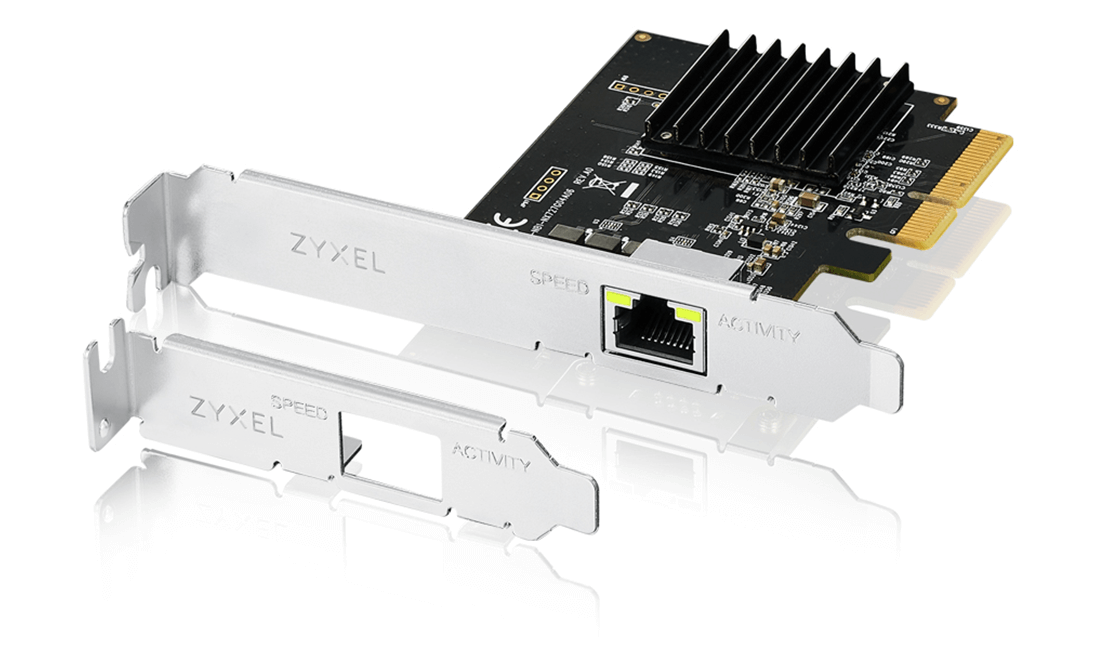

Installation is straightforward thanks to the PCIe Gen-3 x2 interface and interchangeable brackets – both full-height and low-profile mounts are included – to fit full-size desktop towers and compact, small form factor PCs.

A built-in heatsink ensures stable operation under load, keeping temperatures in check during sustained high-speed transfers.

Standard

• IEEE 802.3an 10G BASE-T Ethernet
• IEEE 802.3bz 2.5GBASE-T/5GBASE-T
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE802.3x flow control
• IEEE 802.3az Energy Efficient Ethernet

Performance

• Quality of Service
• Jumbo frame support up to 16KB

Features

• Compatibility with current network standards, including 10/5/2.5/1Gbps and 100/10Mbps
• IEEE 802.1Q VLAN tagging
• IEEE 802.1ad Double VLAN
• Standard and low profile brackets included
• Compatible with Windows® and Linux®
• Built-in Quality of Service (QoS) technology
• Support WoL
• IPv4, IPv6, TCP and UDP checksum offload
• Support protocol offload (ARP & NS)

Supported OS

• Windows 11, 10 (64-bit)
• Windows Server 2016, 2019, 2022, 2025
• Linux kernels up to 6.15

Interface

• PCI Express Gen-3 x 2 Host Bus Interface
• 1 x 10Gbps RJ-45 Ethernet port (Supported Speeds: 10/5/2.5/1Gbps and 100Mbps)
• Pre-installed with full height bracket, also includes low profile bracket

LED Indicator

• Speed
  • Green: 10G
  • Amber: 5G/2.5G/1G/100M
• Link/Activity
  • Green
    • Steady: 10G/5G/2.5G/1G/100M connected
    • Blink: Data transmission
    • Off: Disconnected or fail

• Item dimensions (WxDxH)(mm/in):
  • 120.59 x 88 x 21.59 / 4.75 x 3.46 x 0.85
• Item weight (g/lb):
  • 53 / 0.12
