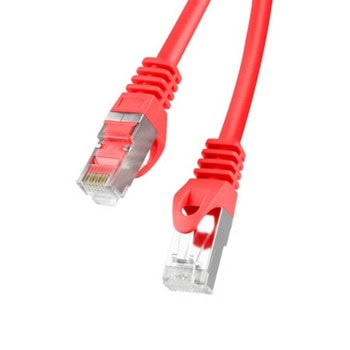

Точка за достъп ZyXEL WAX300H-EU0101F в комплект с пач кабел Lanberg CAT.6 FTP (PCF6-10CC-0300-R) 3m, red, 2.4GHz (575Mbps)/ 5GHz (2400Mbps), 4x 10/100/1000 RJ-45

ZyXEL WAX300H-EU0101F

Empowering your guests with seamless in-room WiFi

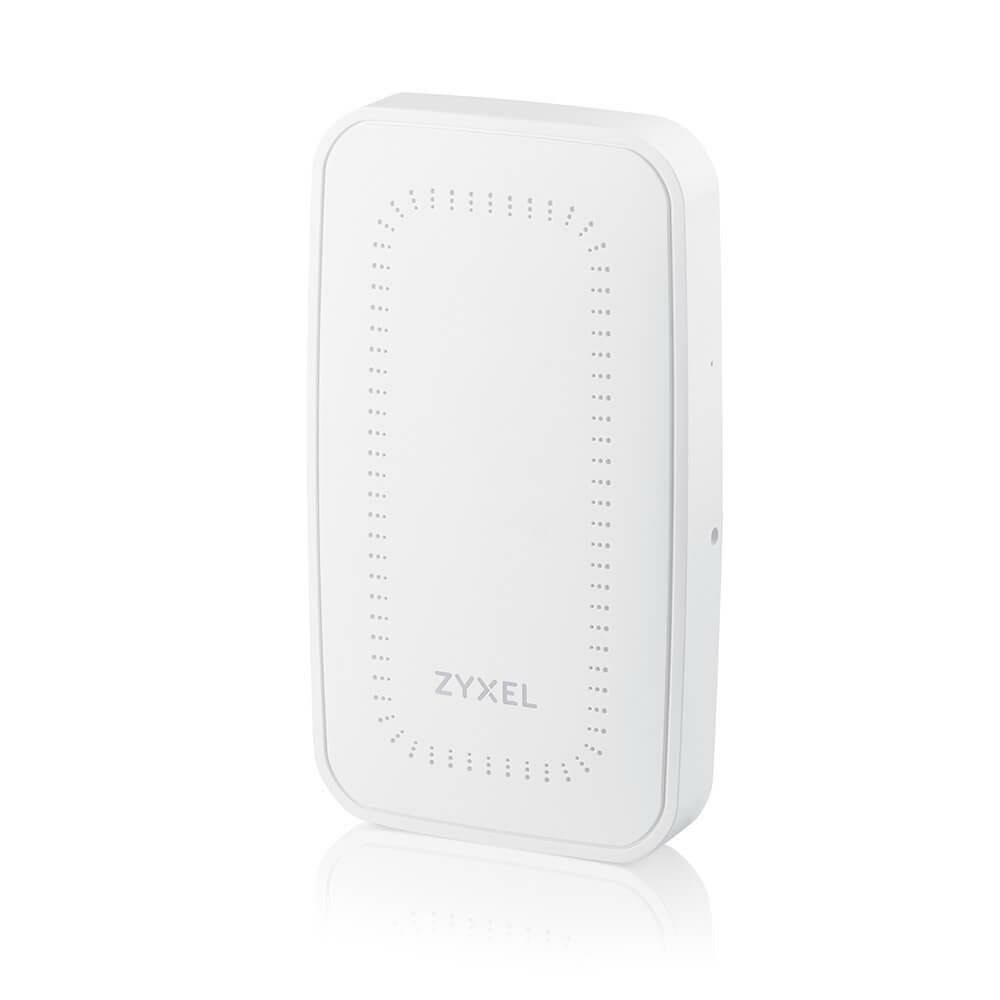

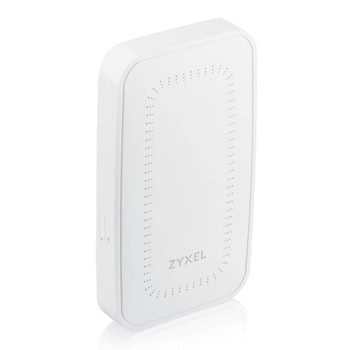

Zyxel WAX300H
AX3000 Dual-Radio Wall-Plate Unified Access Point

Guaranteed strong Wi-Fi connection in every corner of your hotel room

Greet every guest with easy log-in and flicker-free WiFi is as important as warm smiles. Designed for hotel guest rooms, the Zyxel WAX300H features the latest WiFi 6 technology to provide a superb performance for in-room guests connecting online.

The access point also supports the use of 160MHz channels, doubling the throughput compared to 80MHz channels to accommodate more bandwidth-hungry applications and provide faster speeds.

Extending modern in-room services with a box

Zyxel WAX300H is not only a wireless AP, but also a switch which can support a wide range of in-room services from wired to wireless without the need for extra electrical power ports.

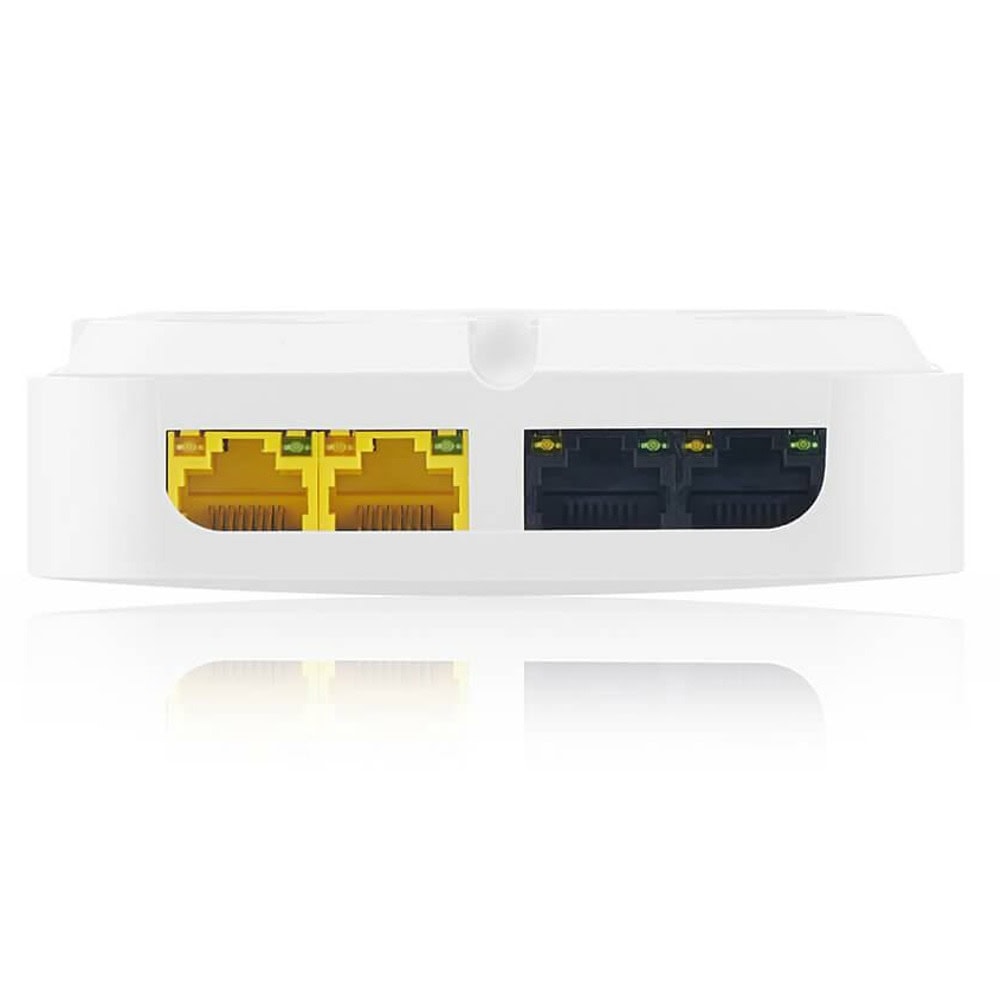

The four Ethernet ports (1 uplink + 3 downlinks) transfer data at Gigabit speeds, allowing you to connect multiple devices to your network. One of the downlink ports provides PoE power for wired services like VoIP phones to keep the budget and cabling effort to the minimum.

Specifications:

Wireless

Standard

IEEE802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 575 Mbps

5GHz: 2400 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80- and 160-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

23/23 dBm

EU (2.4GHz/5GHz):

19/23 dBm

RF Design

Antenna type

Internal Antenna

Antenna gain

2.4 GHz: 3 dBi, 2X2:2SS

5 GHz: 4 dBi, 2x2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Feature

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

No

Advanced Cellular Coexistence

Yes

Security

Encryption

WEP

WPA

WPA2

WPA3

Authentication

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Nebula cloud managed

Controller-managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

No

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
173 x 97 x 29 / 6.81 x 3.82 x 1.14

Weight (g/lb.)
310/0.68

Packing

Dimensions (WxDxH)(mm/in.)
195 x 120 x 53 / 7.68 x 4.72 x 2.09

Weight (g/lb.)
483/1.06

Physical Interfaces

Ethernet port

1x 10/100/1000M uplink

3x 10/100/1000M downlink(including one PoE PSE)

Power

PoE (802.3at): power draw 19 W(include 5W for PoE PSE)

PoE modes

IEEE802.3af: Not supported

IEEE802.3at: Unrestricted

IEEE802.3bt: -
