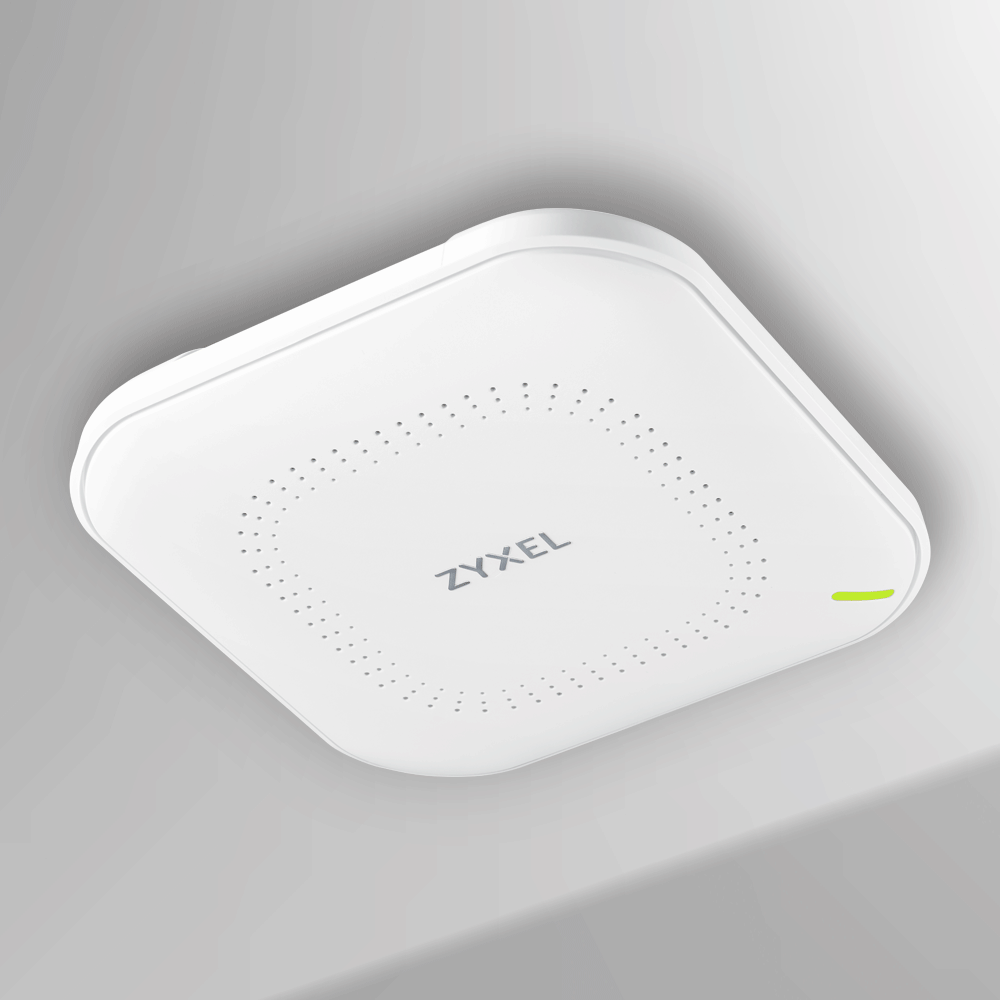

ZyXEL NWA90AXPRO
Multi-gig WiFi 6 access point for small businesses
AX3000 Dual-Radio Multi-gig PoE Access Point with secure authentication support

 |
Multi-gig WiFi 6 access point for small businesses
Delivering AX3000 WiFi speed with 2.5G Ethernet uplink port, the Zyxel NWA90AX Pro provides the powerful and fastest WiFi 6 speed for small businesses, SoHo, and home offices.
Small business owners looking for an affordable WiFi 6 access point with multi-gig connectivity, Zyxel’s NWA90AX Pro is no doubt the ideal choice for them to support more connected devices and applications with the fastest speeds.
|
5Ghz extended range for small biz
AX3000 (3x3:2 in 5Ghz; 2x2:2 in 2.4Ghz) AP provides maximum data rate of 3000 Mbps, and the 2.5G uplink port enables multi-gig connectivity for small biz networks
Multi-gig WiFi with connection stabilization design
Obtain the multi-gigabit performance with a 2.5Gbps PoE port to support the most demanding wireless requirements
The Multi-gig Connection Stabilization Pad secures the connection between the Cat 5E cable and the RJ45 connector to ensure the 2.5G speed is linked for maximum throughput.
|
|
|
Boost your WiFi performance
To better leverage the faster speeds in 5Ghz band, Zyxel NWA90AX Pro equips with 3x high-gain antennas to boost WiFi signals and extend coverage, especially to previously hard-to-reach areas.
In addition to the WiFi boost, NWA90AX Pro also comes with the premium multi-gig Ethernet connections. As it can run on the common-type Cat5e cabling, a 2.5G uplink port breaks through the 1.0G bottleneck without re-cabling, making it easy to create an affordable high-speed network environment for your business or home.
|
Secure authentication to protect business networks
With the support of captive portal and IEEE802.1x authentication, the NWA90AX Pro not only offers small business users the enterprise-level security to protect their networks, but also the flexible opportunity to customize wireless network usage login for marketing and business recognition.

Tech specs
Wireless
Standard
IEEE802.11 ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 575 Mbps
5GHz: 2400 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
20-, 40- and 80-MHz
Conducted typical transmit output power*1
US (2.4GHz/5GHz):
23/28 dBm
EU (2.4GHz/5GHz):
20/28 dBm
RF Design
Antenna type
3x3 + 2x2 MIMO Embedded Antenna
Antenna gain
2.4GHz: 3 dBi
5GHz: 4 dBi
Minimum receive sensitivity
Min. Rx sensitivity up to -99 dBm
WLAN Feature
Band steering
Yes
WDS/Mesh
Yes
Fast roaming
Yes
DCS
Yes
Load balancing
No
Security
Encryption
WEP
WPA
WPA2-PSK
WPA3
Authentication
WPA
WPA2-Enterprise
EAP
IEEE 802.1X
RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Management
Operating mode
Nebula cloud managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
Yes
SNMP
NO
Physical Specifications
Dimensions (WxDxH)(mm)
140 x 140 x 37.5
Weight (g)
352
MTBF (hr)
420,539
Physical Interfaces
Ethernet port
1 x 1/2.5Gbps LAN
Power
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
PoE (802.3at): power draw 20.5 W
PoE modes
IEEE802.3af: Not supported
IEEE802.3at: Unrestricted
IEEE802.3bt: Unrestricted
