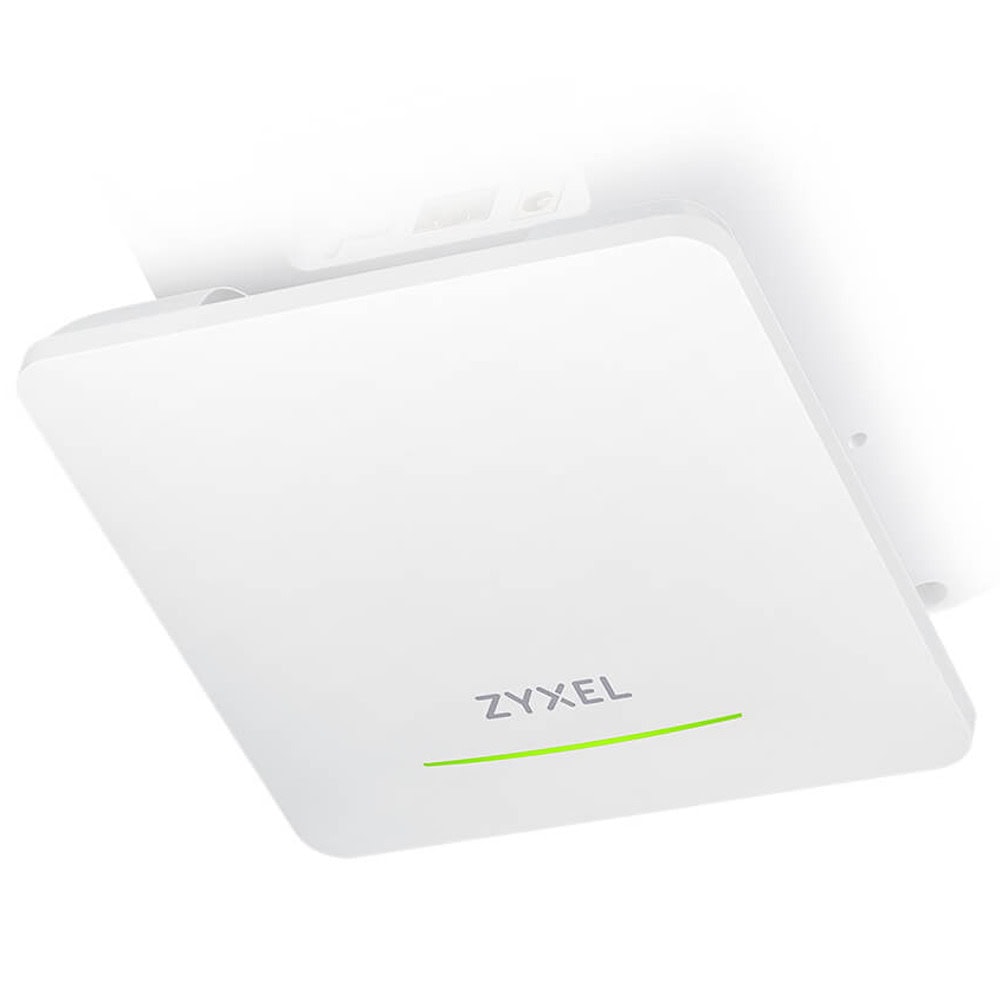

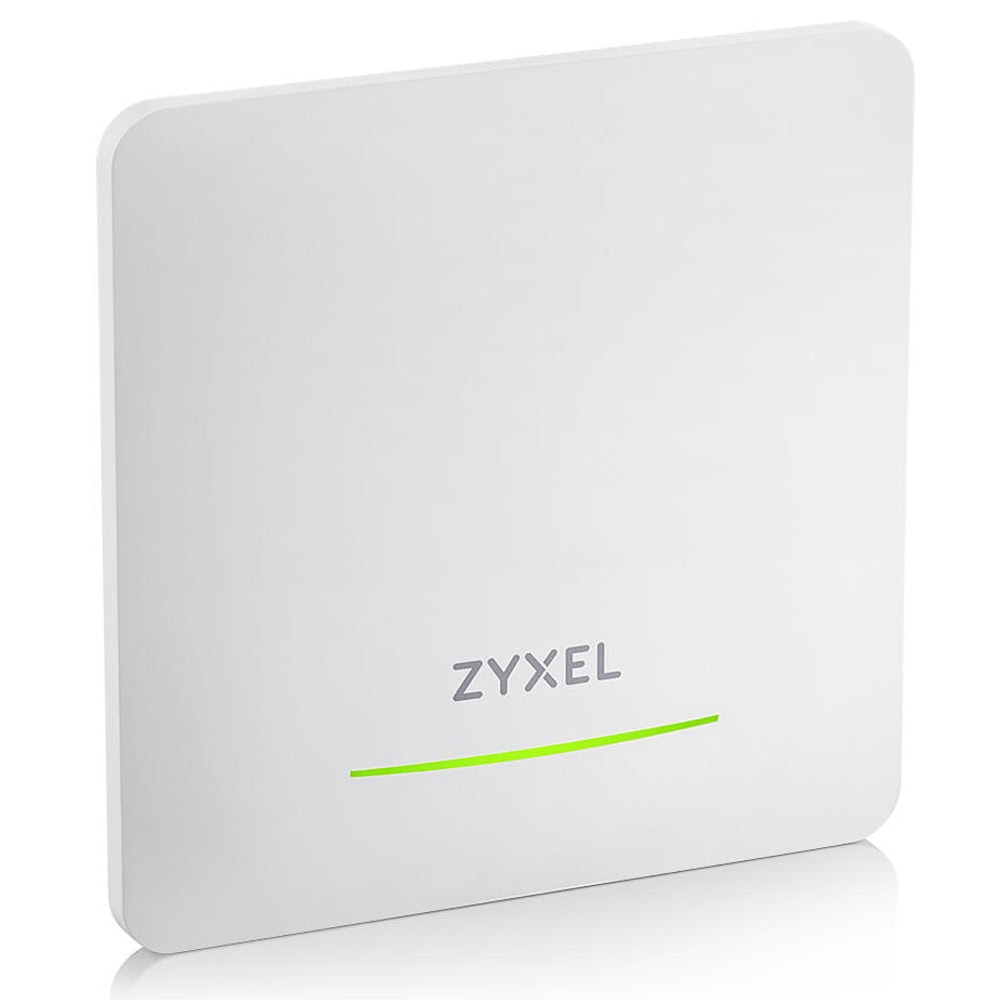

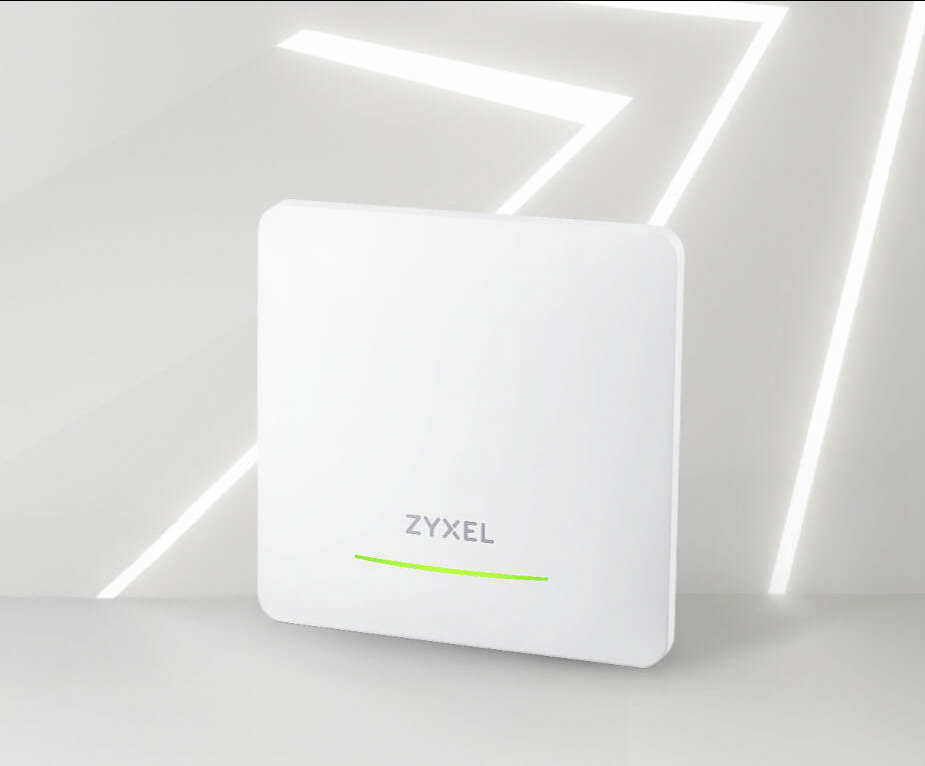

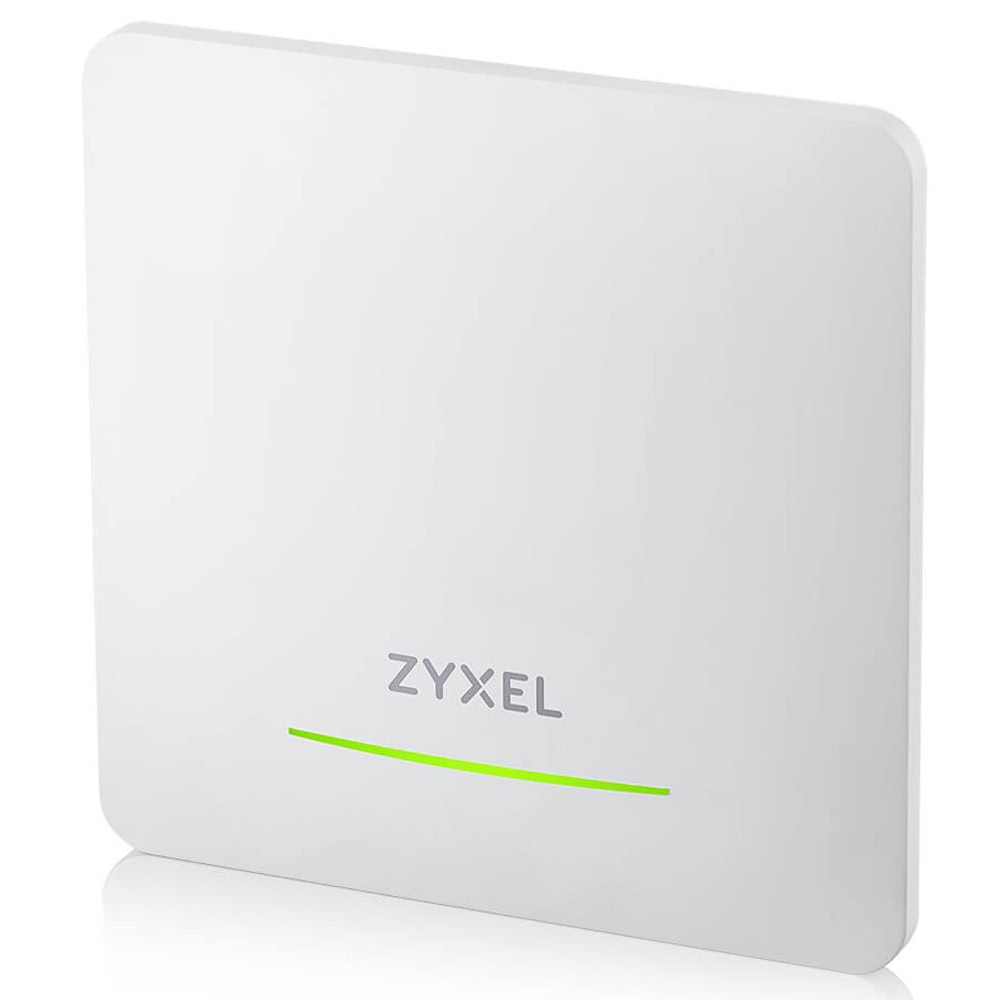

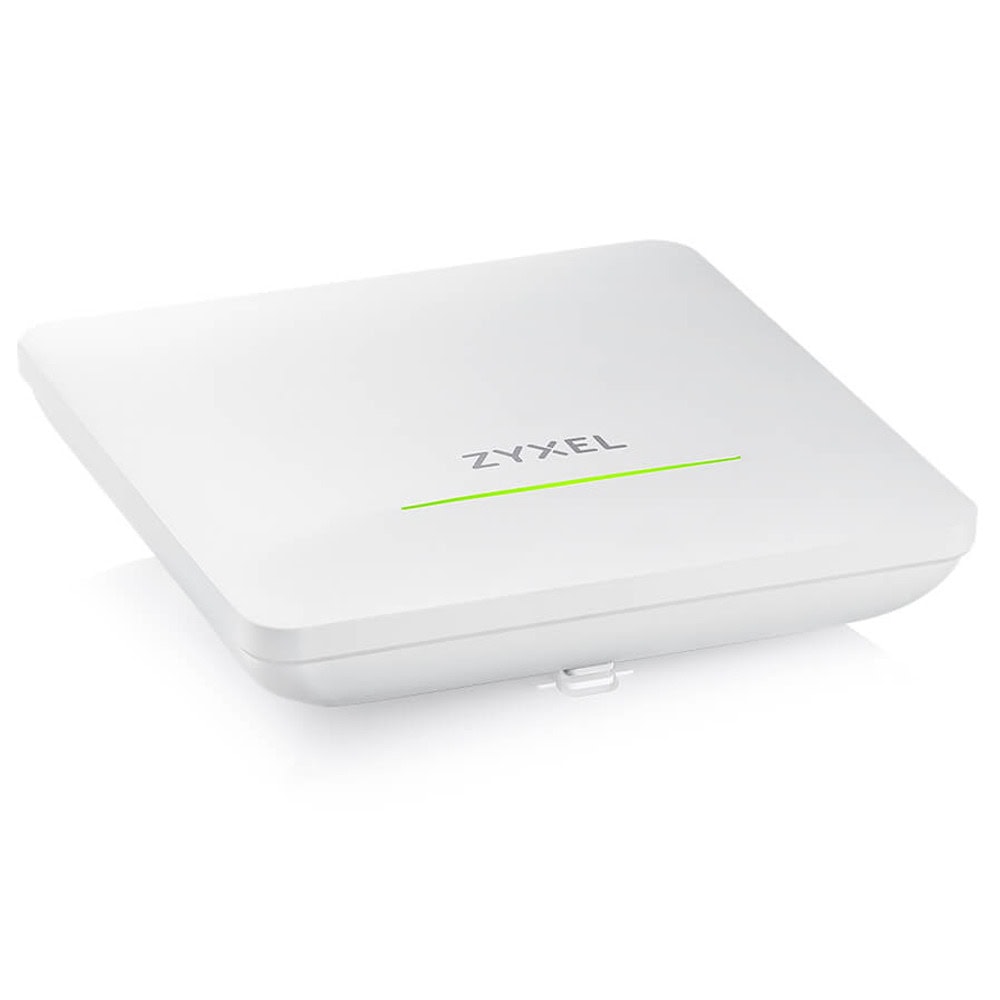

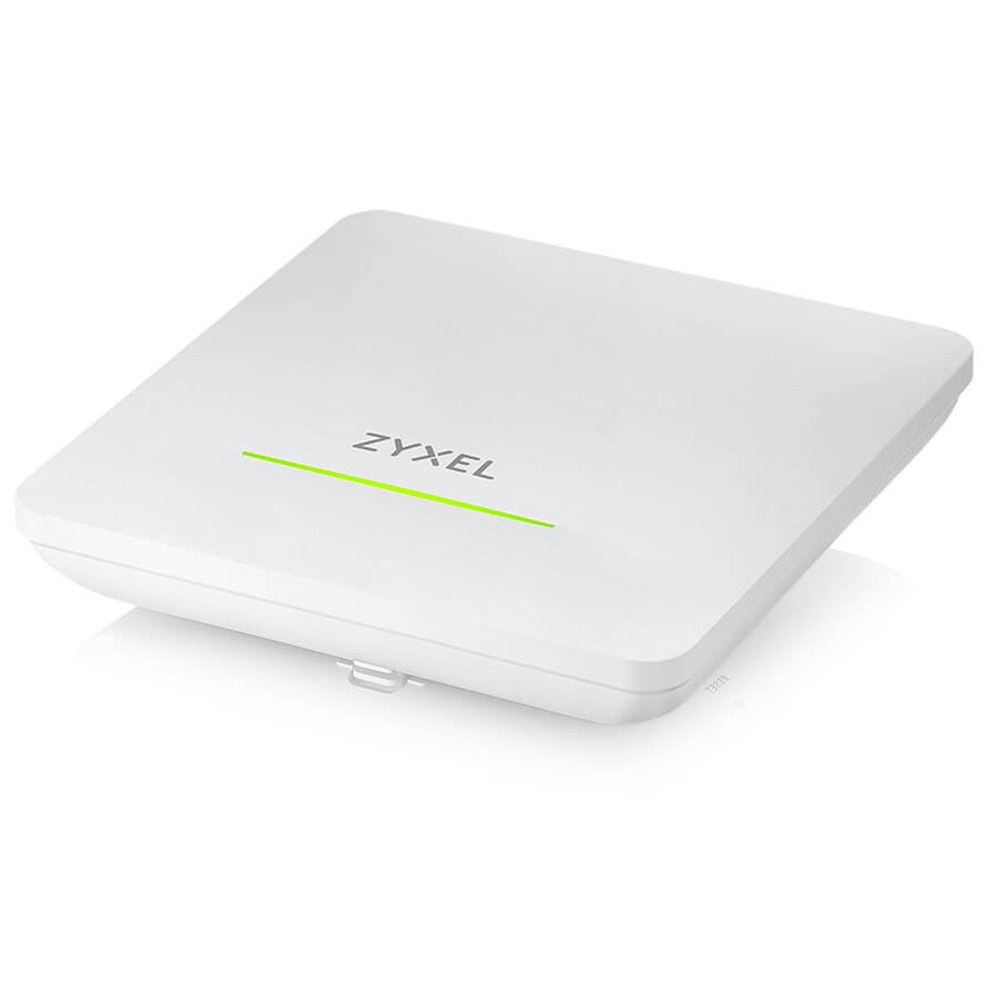

Точка за достъп ZyXEL NWA90BE, 5100Mbps, 2.4GHz (688Mbps)/ 5 GHz (4324Mbps), 1x 10/100/1000/2500Mbps LAN PoE, 4x вътрешни антени

BE5100 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point

Powerful. Secure. Wireless.

Smart WiFi 7 for Small Spaces– Easy Setup, Big Performance.

Smart WiFi 7 for Small Spaces

The Zyxel NWA90BE is a WiFi 7 access point designed to provide an ideal feature set for small businesses, SoHo users, and small spaces seeking an affordable upgrade to WiFi 7. Built for home offices, compact workplaces, and homes, it offers an effortless path to WiFi 7 with faster speeds and reliable, wide-area coverage.

NWA90BE – Easy Setup, Big Performance

Powered by a Qualcomm quad-core CPU, the BE5100 (2.4GHz: 2x2:2, 5GHz: 2x2:2) dual-radio access point delivers ultra-fast WiFi 7 speeds of up to 5.1Gbps, ensuring enterprise-grade performance in a compact design. Its 2.5GbE uplink unlocks the full potential of WiFi 7 for high-speed connectivity.

With a straightforward setup via Nebula Cloud Networking, you can quickly configure the access point, set up separate networks for work and family use, and start enjoying ultra-fast WiFi 7 speeds.

Wireless

Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 688Mbps

5GHz: 4324Mbps

Frequency band

2.4GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80-, 160- and 240-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

26/25dBm

EU (2.4GHz/5GHz):

20/25dBm

RF Design

Antenna type

Internal Antenna

Antenna gain

2.4GHz:

2 dBi, 2x2:2SS

5GHz:

3 dBi, 2x2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Feature

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

No

Advanced cellular coexistence

Yes

Security

Encryption

WEP

WPA

WPA2

WPA3

Authentication

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

No

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)
150 x 150 x 35 / 5.91 x 5.91 x 1.38

Weight (g/lb.)
412 / 0.91

Packing

Dimensions (WxDxH)(mm/in.)
244 x 168 x 60 / 9.61 x 6.61 x 2.36

Weight (g/lb.)
785 / 1.73

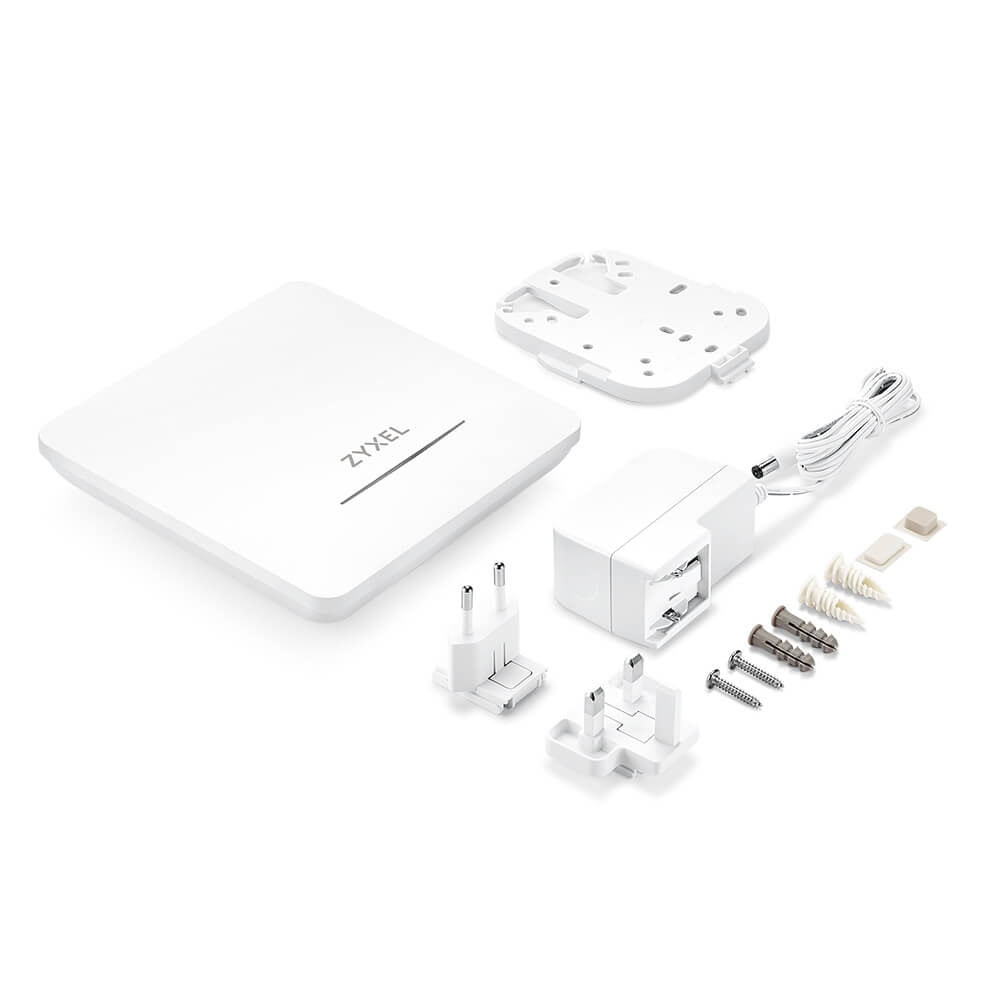

Included accessories

Power adapter

Mount plate

Mounting screws

MTBF (hr)

870,551

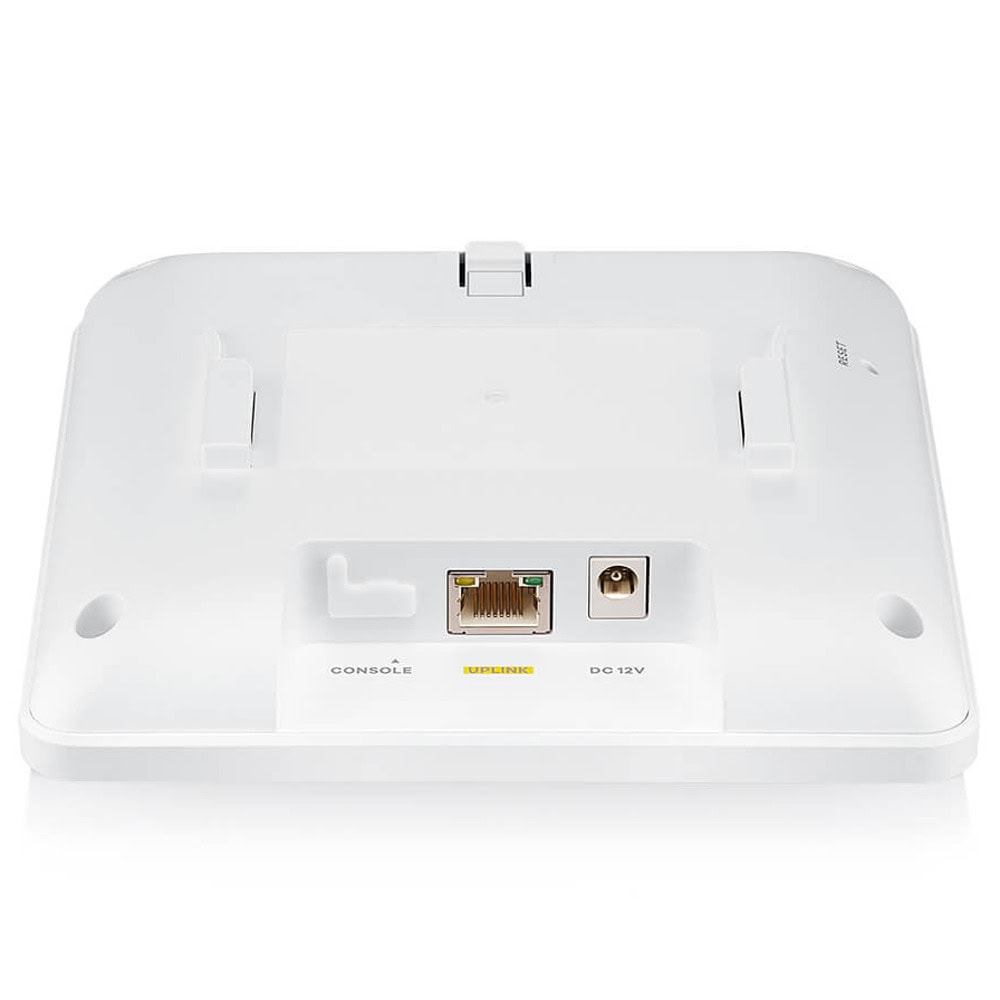

Physical Interfaces

Ethernet port

1 x 1/2.5GbE LAN

Power

Power Adapter:
AC100 - 240V - 50/60Hz 0.3A
Output: DC +12V 1.5A

PoE (802.3at): power draw 16W

PoE modes

IEEE 802.3af: Not supported

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications

Operating

Temperature
0°C to 50°C / 32°F to 122°F

Humidity
10% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C / -40°F to 158°F

Humidity
10% to 90% (non-condensing)
