Рутер ZyXEL Nebula FWA510 FWA510-EUZNN1F, 4G LTE, 3600 Mbps, 2.4GHz (1200 Mbps)/ 5GHz (2400 Mbps), Wireless ax, 2x LAN2500Mbps, 4x вътрешни антени

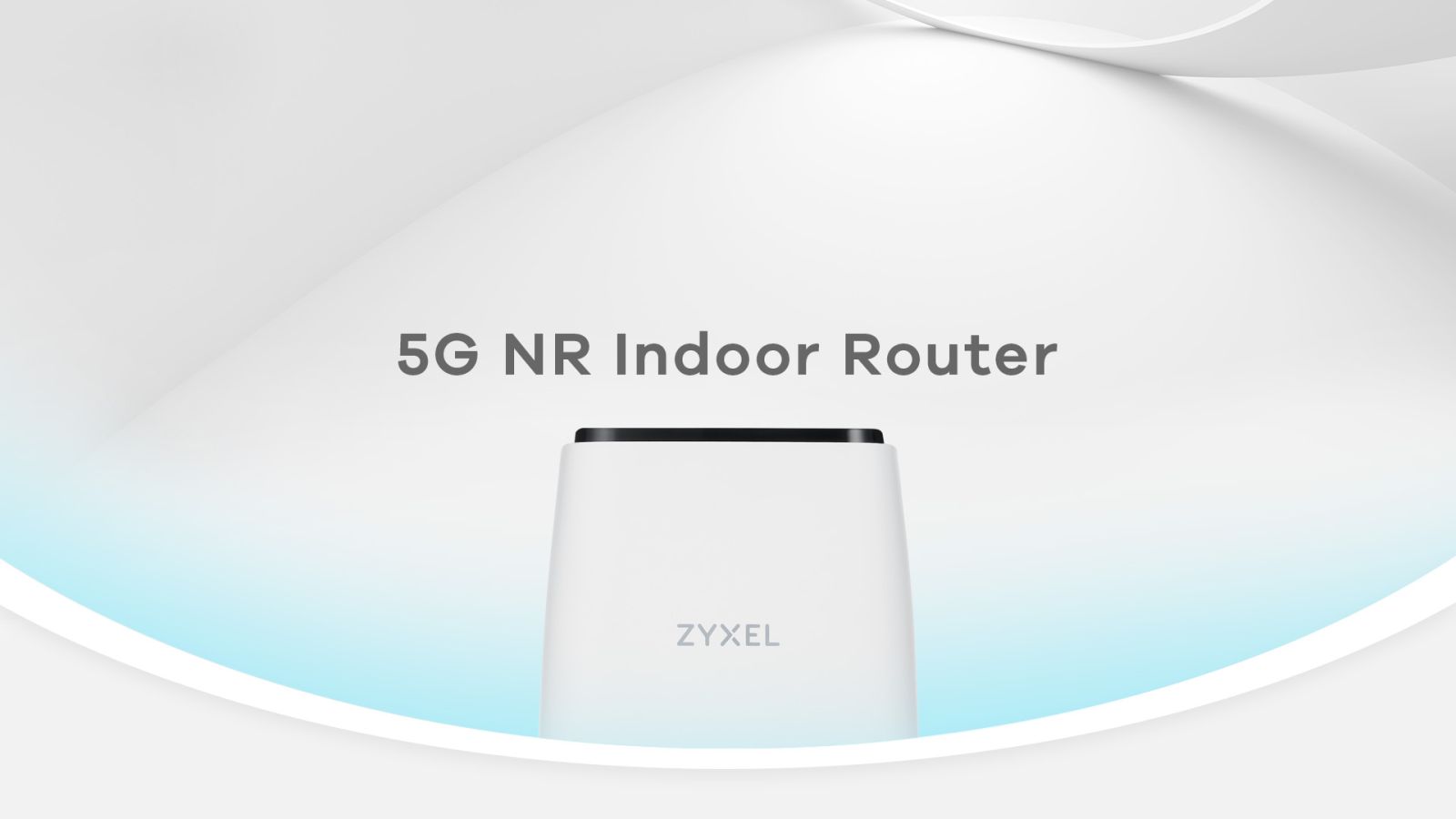

Nebula 5G NR Indoor Router

Nebula FWA510

Unlock Broadband via 5G Fixed Wireless Access
The most powerful 5G NR indoor router ever is here.
Unlock the speed with a professional 5G FWA router.
Integrated design that's ready for the future.
Get more done with pro-quality assistance!

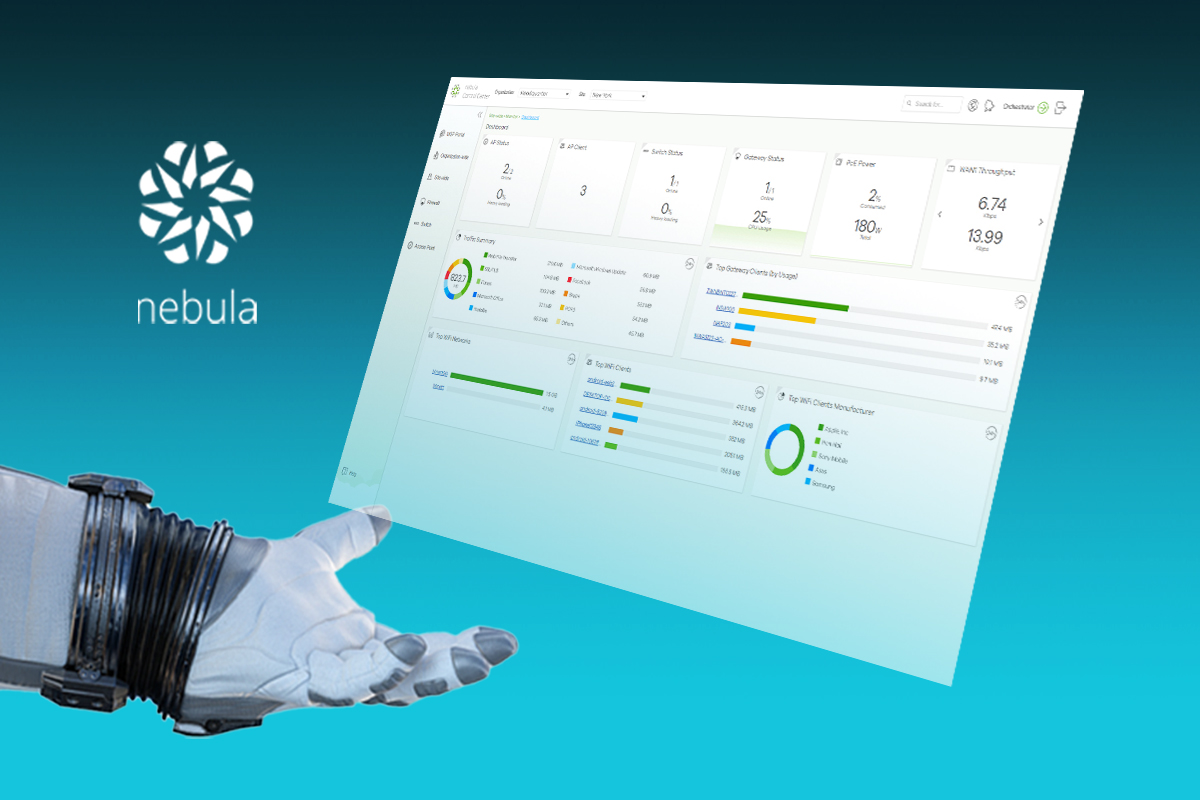

Nebula Cloud
Manage Devices Anywhere
Managing mobile routers behind carrier grade NAT can be challenging and expensive as you need to buy VPN service or lease extra landline from ISP. This is where Nebula Cloud comes to help!
Nebula Cloud platform provides real-time network management anytime anywhere with ease. Centrally provisioning and seamlessly manage all networking devices, including access points, switches and firewalls within your organization that are across distributed locations from the Nebula platform, while keeping your network aware of constantly changing devices.
Get the richest collaboration with everything you need on a simplified and unified Nebula Could platform. Get started now!

5 Gbps
Powerful Chip, 5G Unleashed
Thanks to the mind-blowingly fast chip, which is designed with an integrated quad-core Arm CPU, it provides 5G speeds of up to an impressive 5 Gbps* right out of the box. Along with the two integrated 2.5 Gbps Gigabit Ethernet interfaces, allowing it a wide range of LAN port configurations for ultra-fast speed for connection to servers, workstations, or high-end gaming devices.
Get groundbreaking performance in both speed and wide-spectrum bandwidth for multi-streaming data access and reduce network latency for premium and time-sensitive internet services now!

24/7
Non-stop Connectivity
Nebula FWA510 ensures that you’ll have internet access even during a fixed line network outage with the WAN failover capability, which allows Nebula FWA510 to either serve as a primary or backup option for internet access according to your needs. It is equipped with four external TS9 antenna ports***, allowing you to improve mobile broadband reception when you are in a weak-signal area.
Strong and stable connection work together to give you the power and flexibility to achieve greater productivity!

System specifications

IP networking

Supports IPv4/IPv6 dual stack (NDP IPv6)

DHCP server

Virtual Private Network (VPN) pass-through

Supports NAT/NAPT

Supports DMZ

Multiple APNs

Supports port forwarding

Supports ALG

Routing

Supports bridge and router modes

Supports dynamic DNS for first APN

Supports remote management under bridge mode

Static/dynamic routing settings for RIP v1/v2

IP firewall

DoS attack detection

Supports SPI (Stateful Packet Inspection)

Application-level firewall (LAN to WAN such as HTTP, Telnet, Ping)

Filters LAN MAC address

Filters LAN IP address

Filters URLs

Management

Supports local/remote device management and firmware upgrade via Nebula Cloud and web GUI

SMS management

PIN/PUK manage ment

APN management

Operating frequency band selection

Supports Zyxel Air app (iOS and Android) for easy installation and local management only

WLAN feature

Auto channel selection

WiFi Protected Setup (WPS)

WiFi Multimedia (WMM)

WiFi-enabled devices: up to 64

Security: none, WPA2-Personal, WPA+WPA2, WPA2+WPA3, WPA3

MAC address filtering with 64 address supported

Multiple SSIDs/hide SSIDs

WLAN scheduling

Hardware Specifications

5G NR interface

3GPP Release 15 standard-compliant

Supports both NSA and SA modes

Supports Sub-6 NR DL 2xCA (TDD/FDD)

Supports frequencies:

FDD: n1, n3, n5, n7, n8, n20, n28

TDD: n38, n40, n41, n77, n78

Supports DL 4×4 MIMO:

FDD: n1, n3, n5, n7

TDD: n38, n40, n41, n77, n78

Data rates:

5G SA: DL 4.67 Gbps*; UL: 2.5 Gbps*

5G NSA: DL 3.74 Gbps*; UL: 1.46 Gbps*

Output power:

Class 2 (26 dBm) for 5G NR n41/n78

Class 3 (23 dBm) for all 5G NR bands

4G LTE interface

3GPP UE Category 19 standard-compliant

Supports frequencies:

LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

LTE-TDD: B38/B40/B41/B42

Supports DL 4×4 MIMO:

LTE-FDD: B1/B3/B7

LTE-TDD: B38/B40/B41/B42

Peak data rates:

Max. DL 1.6 Gbps/UL 200 Mbps**

Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM

Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM

Output power:

Class 2 (26 dBm) for LTE B41

Class 3 (23 dBm) for FDD/TDD LTE bands

WiFi air interface

Wireless standard:

IEEE 802.11 b/g/n/a/ac/ax

Wireless speeds:

Link rates up to 1.2 Gbps** for 2.4 GHz

Link rates up to 2.4 Gbps** for 5 GHz

WiFi antenna gain:

~3 dBi for 2.4 GHz

~5 dBi for 5 GHz

5G NR/4G LTE antennas

Four TS9 connectors for external antennas***

Four embedded omni-directional antennas

Ultra-high band:

Up to 5 dBi peak gain

High band and middle band:

Up to 5 dBi peak gain

Low band:

Up to 4 dBi peak gain

Hardware interface

Two 100/1000/2500 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port

LED indicators:

Power indication

SMS status

Signal strength

Internet connection status

Radio access technology status

WiFi AP status

WPS status

Four external antenna connectors (TS9 type)***

One 3FF/Micro SIM card slot

One power on/off button

One WPS/WiFi on/off button

One reset button

One Int/Ext antenna switch

One USB 3.0 host port for file sharing

Power consumption

48 W (peak)

Physical Specifications

Item

dimensions (WxDxH):
132.5 x 134 x 230 mm (5.22” x 5.28” x 9.06”)

weight:
1,006 g (2.22 lb.)

Packing

dimensions (WxDxH):
250 x 200 x 140 mm (9.84” x 7.87” x 5.51”)

weight:
1,504 g (3.32 lb.)

Environmental Specifications

Operating Environment

Temperature:
0°C to 40°C (32°F to 104°F)

Humidity:
10% to 90% (non-condensing) Storage Environment

Storage Environment

Temperature:
-30°C to 70°C (-22°F to 158°F)

Humidity:
5% to 95% (non-condensing)
