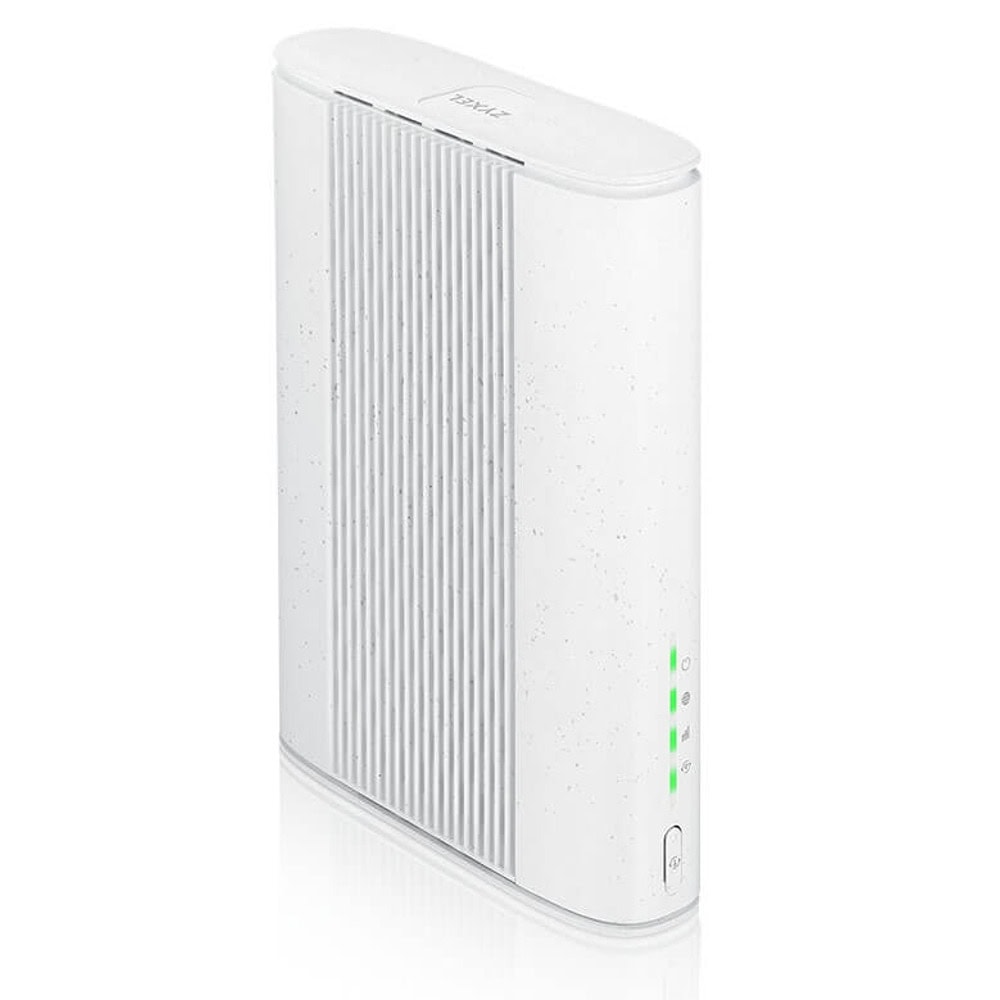

ZyXEL FWA505V2 FWA505V2-EU0102F
Икона нов продукт
ZyXEL FWA505V2 FWA505V2-EU0102FZyXEL FWA505V2 FWA505V2-EU0102FZyXEL FWA505V2 FWA505V2-EU0102FZyXEL FWA505V2 FWA505V2-EU0102F

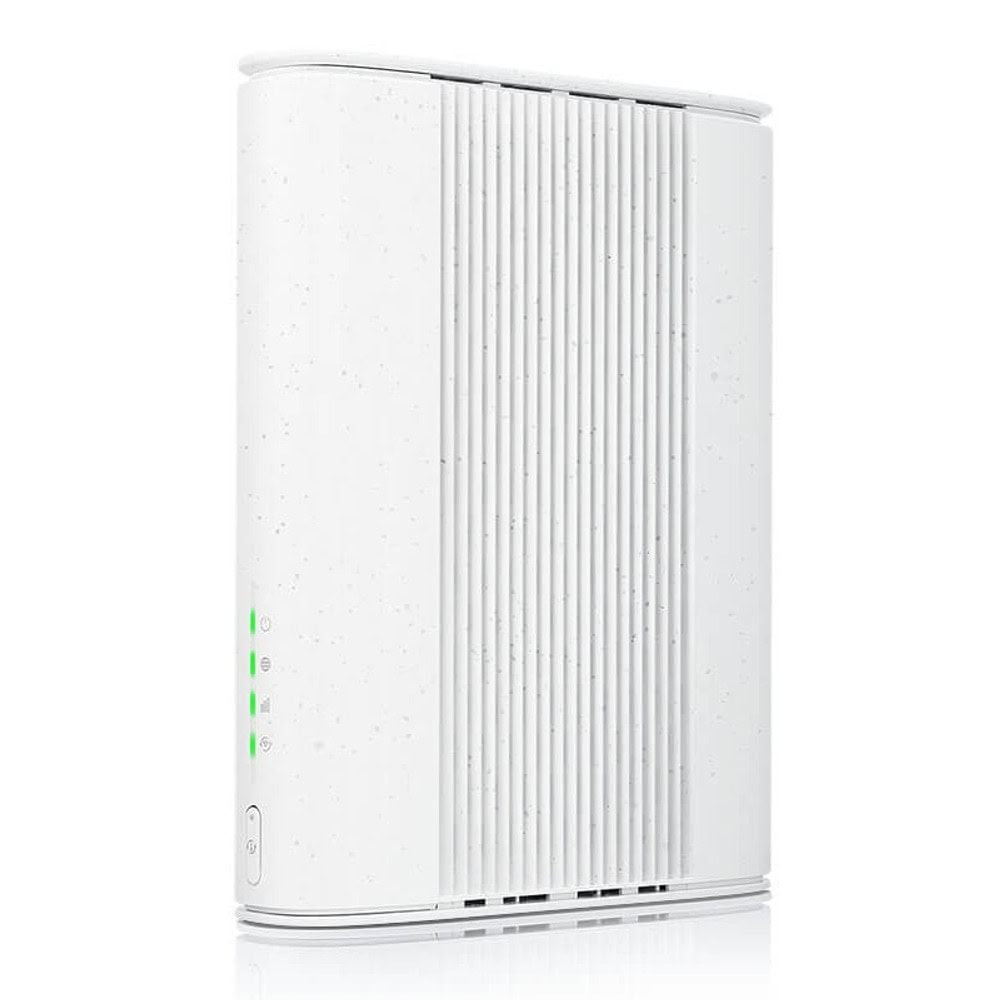

Рутер ZyXEL FWA505V2, 4G/5G, 3000Mbps, 2.4GHz/ 5GHz, Wireless AX, 2x 10/100/1000Mbps LAN (1x WAN), 1x Nano SIM, 3x вътрешни антени

id 307265 Код: NTWRZYXELFWA505V2EU0102F

244.25

/

477.70 лв

ОписаниеХарактеристикиРевюта / ВъпросиДокументация



Unlock multi-gigabit 5G
with intelligent connectivity.

Experience ultra-fast 5G NR speeds of up to 4.67Gbps. The FWA505v2 combines 5G and WiFi 6 AX3000 technology powered by four high-gain omni-directional antennas to deliver reliable 360-degree signal reception and fiber-class aggregate bandwidth for up to 64 connected devices. Whether connecting through its versatile gigabit ethernet ports or ultra-fast wireless, users benefit from a smooth, low-latency experience that feels just like fiber.





Multi-layered security
for reliable connectivity.

Protect your network with a robust, multi-layered security architecture designed to ensure stable and reliable connectivity. Advanced protection features help defend against common network threats while enabling secure remote access and granular traffic control for better visibility and management.




  • SPI (Stateful Packet Inspection) firewall for advanced traffic monitoring
  • DoS attack detection to help prevent service disruptions
  • LAN-to-WAN application-level firewall for enhanced network protection
  • VPN pass-through support for PPTP, IPSec and L2TP secure connections
  • MAC, IP and URL filtering for granular access control





Effortless setup with
simple cloud management.

With the FWA505v2 you can achieve instant connectivity with zero wiring by simply inserting a Nano SIM card, eliminating the need for professional IT expertise. Network management is made easy with the Nebula mobile app, offering cloud-based control, remote monitoring and quick setup. Intuitive LED indicators also allow you to easily track device status at a glance.





SpecificationDetails
IP NetworkingSupports IPv4/IPv6 dual stack, IPv6 only
DHCPDHCP client/server
ICMPICMP supported (LAN and/or WAN, disable)
VPN Pass-throughPPTP/IPSec and L2TP pass-through
Multiple APNAt least 2 APNs
NAT/NAPTSupports NAT/NAPT
NAT Enable/DisableSupported
Port ForwardingSupported
DMZSupported
Bridge/Router ModeSupported, remote login available in bridge mode
Dynamic DNSSupported for first APN
Static/Dynamic RoutesSupported
ARPAddress Resolution Protocol supported
Firewall GUI ControlEnable/disable via GUI
SPI FirewallStateful Packet Inspection supported
DoS DetectionSupported
Application-Level FirewallHTTP, Telnet, Ping filtering
MAC FilteringBlacklist/Whitelist supported
IP FilteringSupported
URL FilteringSupported
Management AccessLocal/Remote management via HTTP/HTTPS
Firmware UpgradeLocal/Remote firmware upgrade
TR-069/TR-369Remote firmware upgrade supported
TR-111 STUNSupported for TR-069 NAT pass-through
TR-143 TestingUDP/TCP, DL/UL, HTTP/HTTPS
S-NSSAI MappingSST/SD supported
FOTAManual/Auto
SMS ManagementSupported
SMS ApplicationSupported
APN ManagementSupported
PIN/PUK ManagementSupported
Roaming ControlEnable/Disable
Network SelectionSupported
Network PreferenceSupported
Frequency Band SelectionSupported
CLI/SSHLocal and remote SSH access
UPNP IGDSupported
Ethernet over IPL2 over L3 pass-through
SSH Key AccessSupported
Certificate ManagementSupported
Web Server APIAPP support
Language SupportMultiple languages
Multiple SSIDSupported
Hide SSIDSupported
WPSWireless Protection Setup supported
WMM QoSSupported
WiFi EncryptionNone, WPA2-Personal, WPA/WPA2
WiFi AuthenticationAES, TKIP, Hybrid AES/TKIP
Channel SelectionAuto/Fixed
WLAN SchedulingSupported
Max WiFi DevicesUp to 64
Band SteeringEnable/Disable
EasyMeshCompliant to EasyMesh R2
5G NR Standard3GPP Release 15 compliant
5G ModesNSA and SA
5G FDD Bandsn1/n3/n7/n8/n20/n28
5G TDD Bandsn38/n40/n41/n75/n76/n77/n78
5G MIMODL 4×4 MIMO
5G SA SpeedsDL 4.67 Gbps / UL 1.25 Gbps
5G NSA SpeedsDL 4.67 Gbps / UL 836 Mbps
5G DL ModulationQPSK, 16-QAM, 64-QAM, 256-QAM
5G UL ModulationQPSK, 16-QAM, 64-QAM, 256-QAM
5G Output PowerClass 2: 26 +2/-3 dBm (n41/n77/n78); Class 3: 23 ±2.7 dBm (other bands)
4G LTE Standard3GPP Release 16 compliant
4G FDD BandsB1/B3/B5/B7/B8/B20/B28/B32
4G TDD BandsB38/B40/B41/B42/B43
4G LTE MIMODL 4×4 MIMO supported
4G Peak SpeedsDL 1.6 Gbps / UL 211 Mbps
4G DL ModulationQPSK, 16-QAM, 64-QAM, 256-QAM
4G UL ModulationQPSK, 16-QAM, 64-QAM, 256-QAM
4G Output PowerClass 3: 23 dBm; Class 2: 26 dBm for B41
5G/4G AntennasFour embedded omni-directional antennas
Antenna Gain (Low Band)< 2 dBi
Antenna Gain (Middle Band)< 3 dBi
Antenna Gain (High Band)3–5 dBi
Antenna Gain (Ultra-high Band)< 5 dBi
WiFi StandardIEEE 802.11 a/b/g/n/ac/ax
WiFi Max SpeedUp to 3,000 Mbps
WiFi Antenna ConfigurationDual-band concurrent 2.4G 2x2 + 5G 3x3 (2ss)
WiFi Antenna Gain 2.4 GHz~3.5 dBi
WiFi Antenna Gain 5 GHz~4.5 dBi

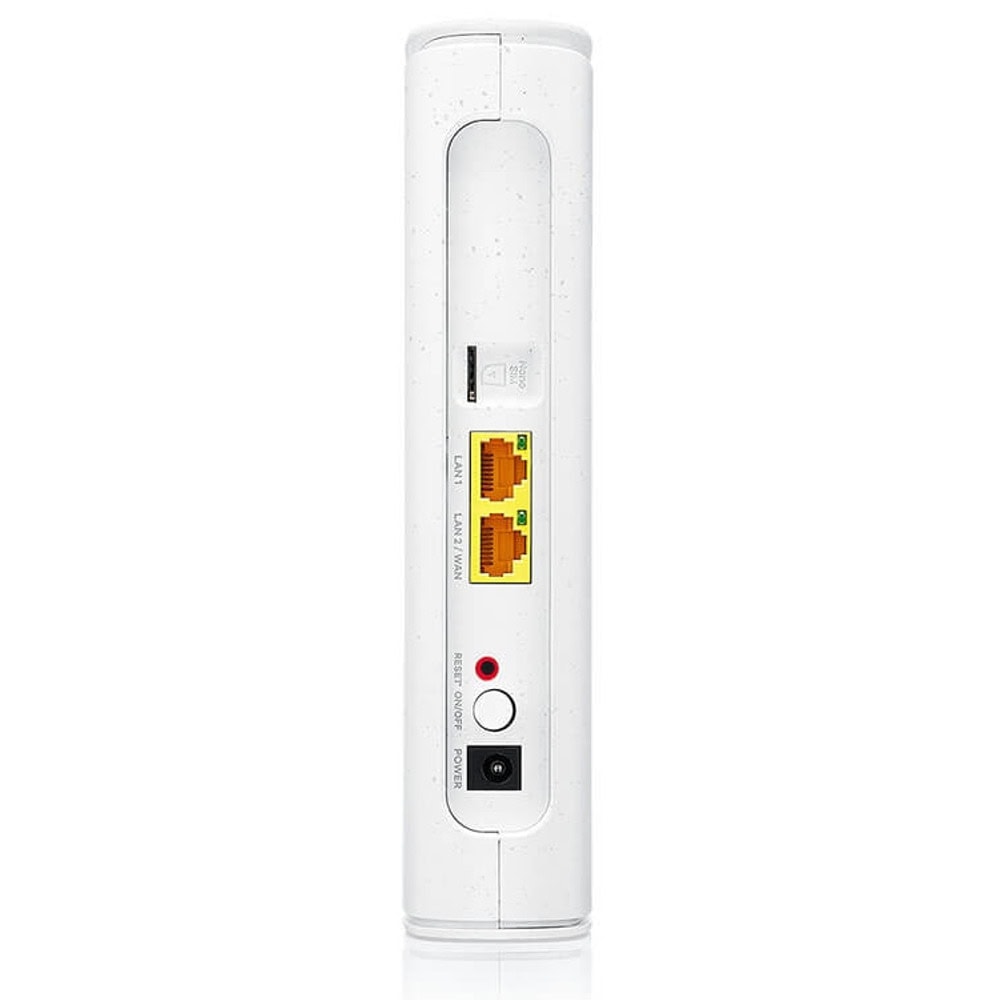

Ethernet PortsTwo 100/1000 Mbps RJ-45 LAN ports
WAN PortLAN2 configurable as Ethernet WAN

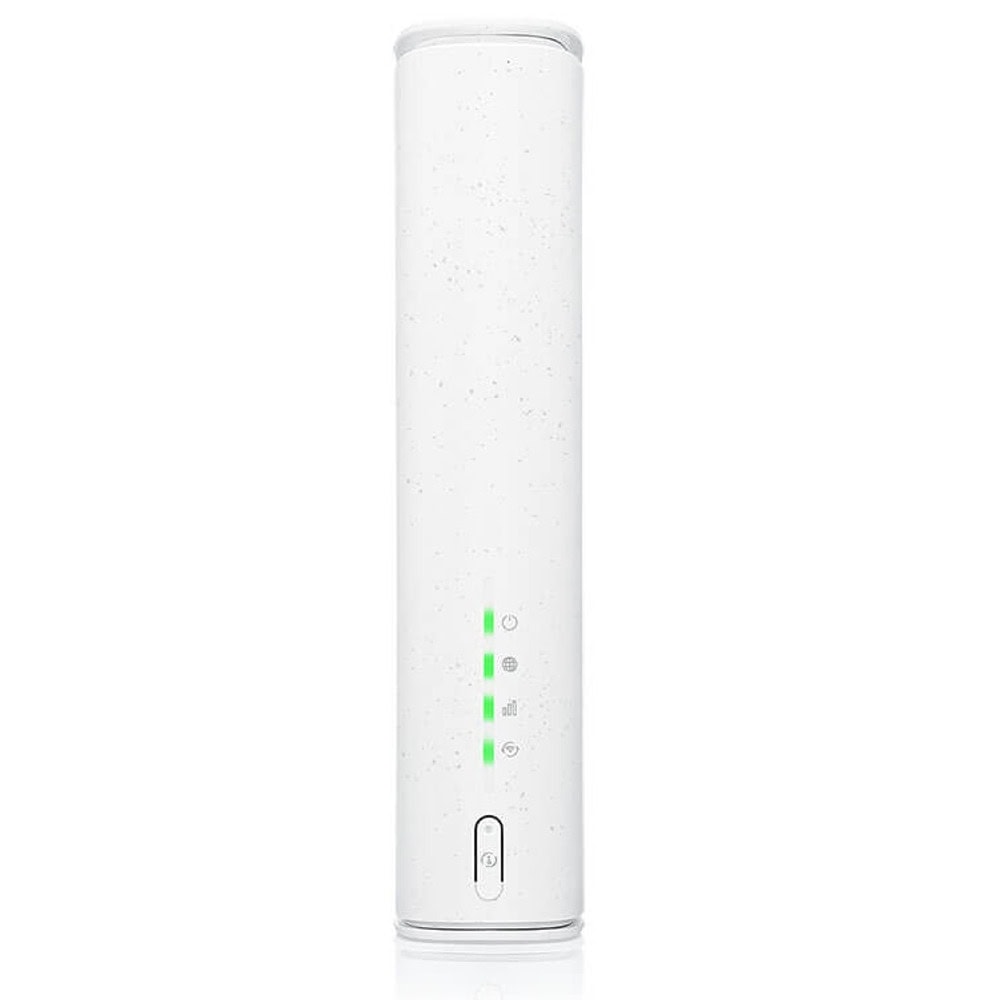

LED IndicatorsPower/System, WAN/Internet, 5G/4G LTE, WiFi/WPS
WPS Button1
SIM Slot1 × 4FF Nano SIM
Reset Button1
Power Button1
Power JackIncluded
Peak Consumption< 15 W
Device Dimensions149 × 41 × 194 mm (5.87” × 1.61” × 7.64”)
Device Weight468 g (1.03 lb.)
Package Dimensions262 × 58 × 236 mm (10.31” × 2.28” × 9.29”)
Package Weight903 g (1.99 lb.)




    Виж още Рутери Безжични ZyXEL
    Виж всички Рутери Безжични в категорията
    Документация
    Технически характеристики
    Безжична скорост:  3000 Mbps
    Wi-Fi Стандарт:  Wi-Fi 6 (802.11ax)
    Честота:  2.4 + 5 GHz
    LAN портове:  2 x 1000 Mbps
    WAN портове:  1 x 1000 Mbps
    Антени:  3 Вътрешни
    USB портове:  Няма
    3G/4G:  4G/5G
    Преносим:  Не
    Други:  Слот за SIM карта
    Жична скорост:  10/100/1000 Mbps
