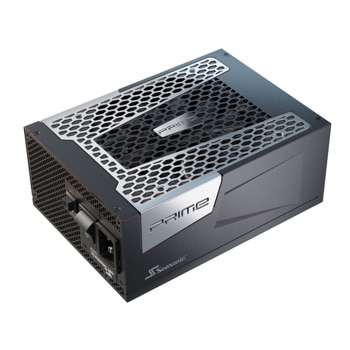

Захранване Seasonic Prime TX-1300, Active PFC, 80Plus Titanium, 135mm вентилатор

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 15 - 10 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	133.3 A	0.5 A	3 A
		125 W		1600 W	6 W	15 W
	Total Continuous Power	1300 W 100-240 Vac



Technical Specifications
80PLUS®		Titanium
Cybenetics Efficiency Level		Titanium
Cybenetics Noise Level		Lambda A
Form Factor		Intel ATX 12 V
Dimensions		210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Digital Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
