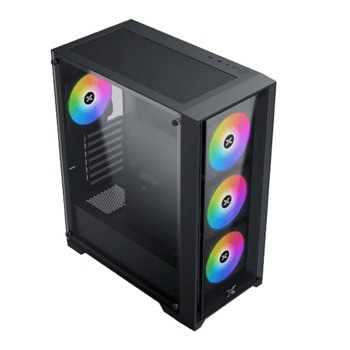

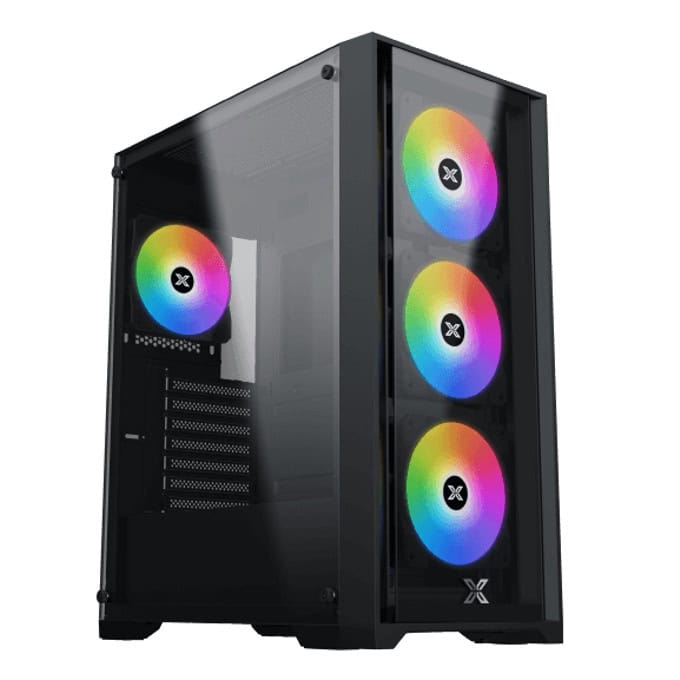

Кутия Xigmatek Quantum, EATX/ATX/microATX/Mini-ITX, 2x USB 2.0, 3x 120mm вентилатора, с прозорец, черна, без захранване

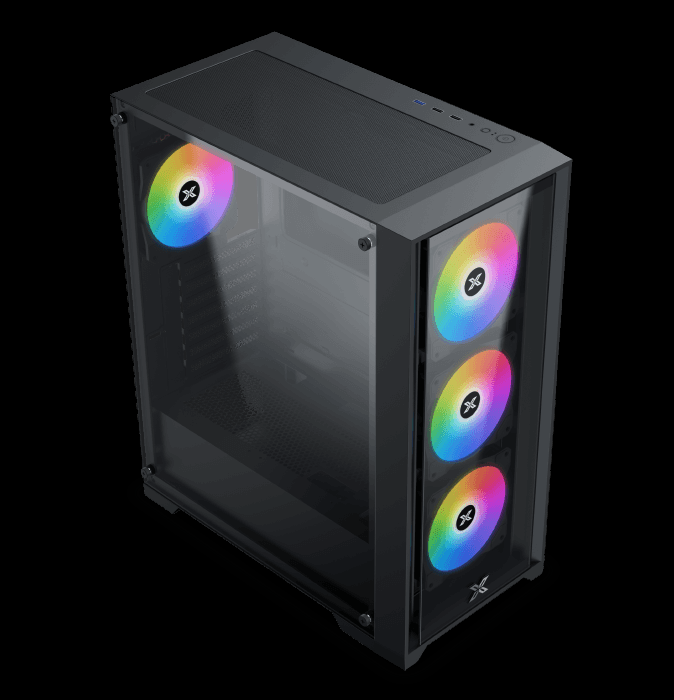

Xigmatek Quantum

2 Tempered Glass Panel
Design

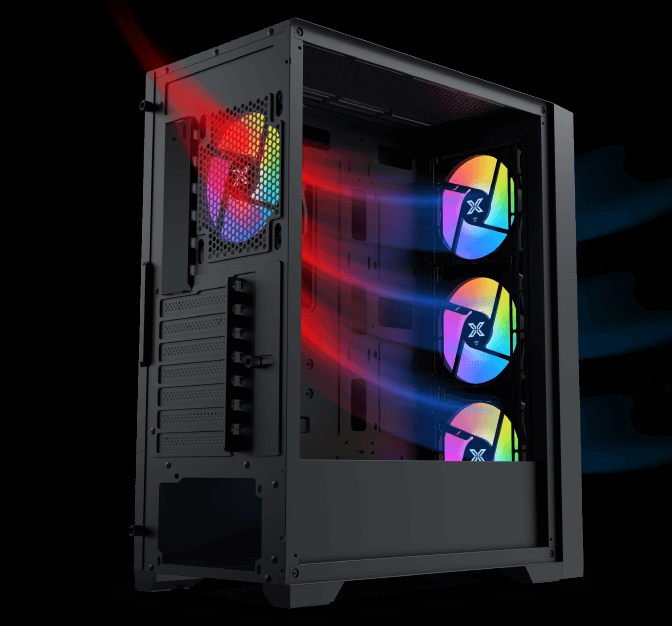

Superior Airflow and
Ventilation Design

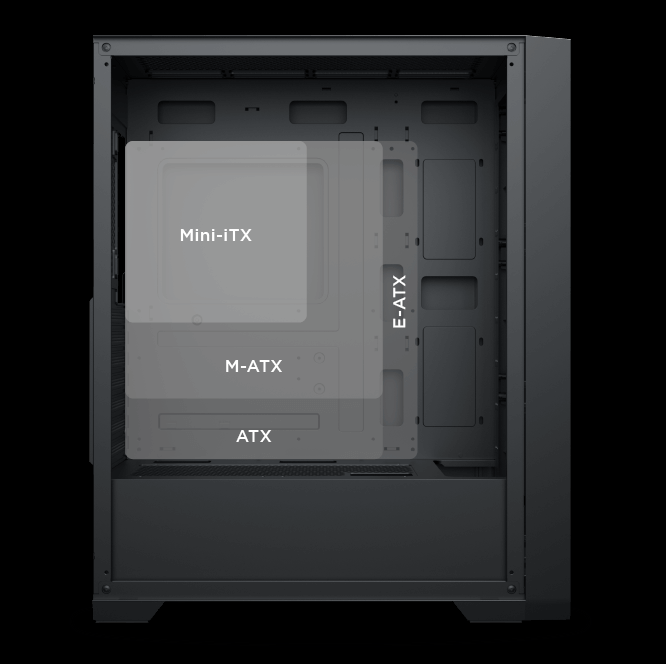

Support Motherboard
up to E-ATX

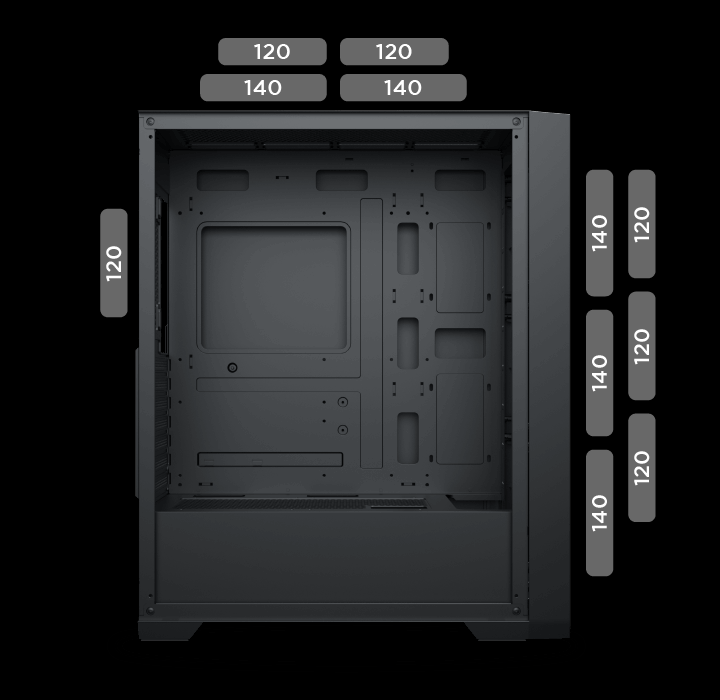

Fan Support

Top: 120mm x2 or 140mmx2
MB Panel: 120mm x3 or 140mmx3
Rear: 120mm x1

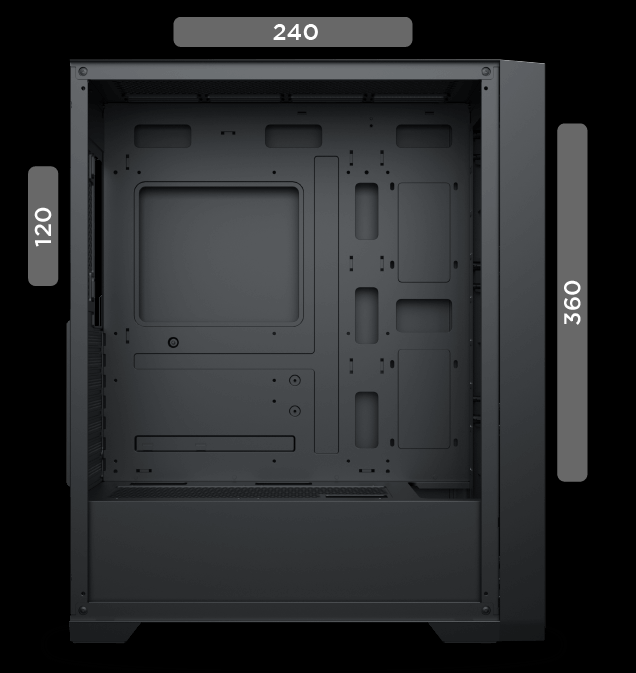

Radiator Support

Frnot: 360
Top: 240
Rear: 12

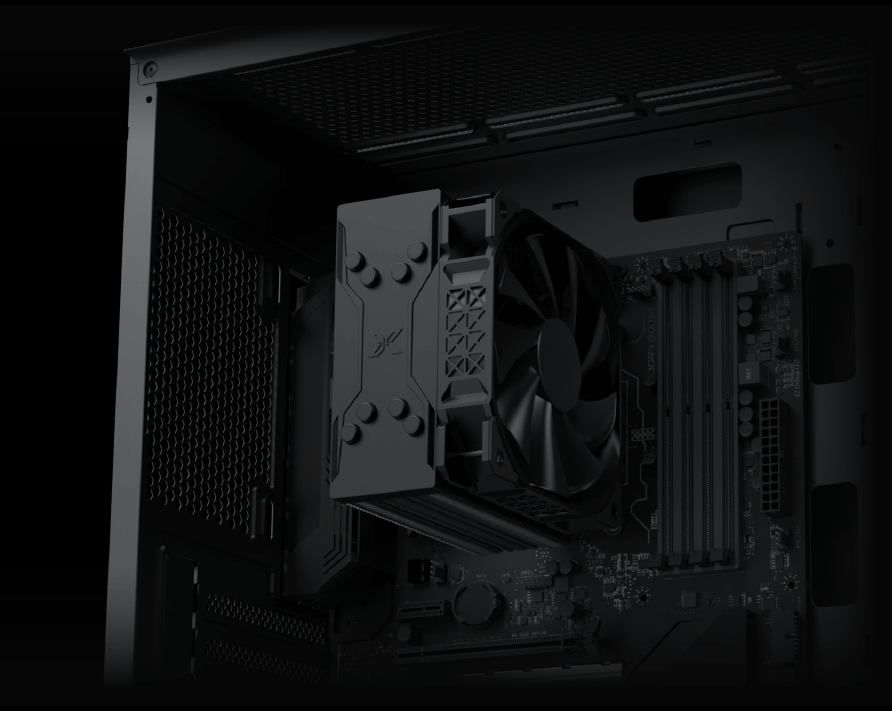

CPU Cooler Clearance

up to 165mm

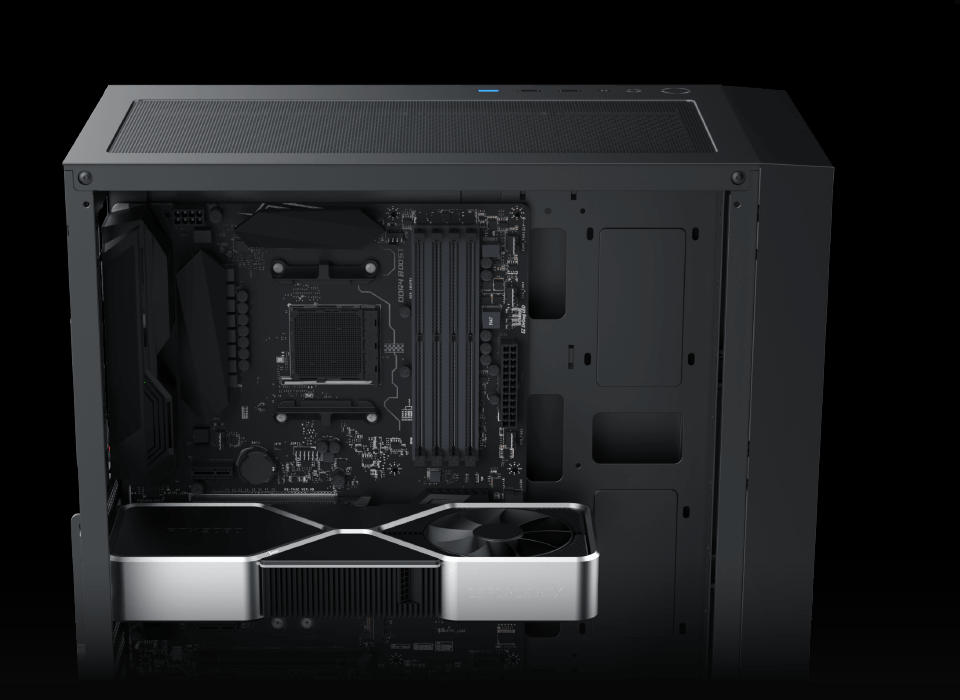

GPU Length Limitation
350mm

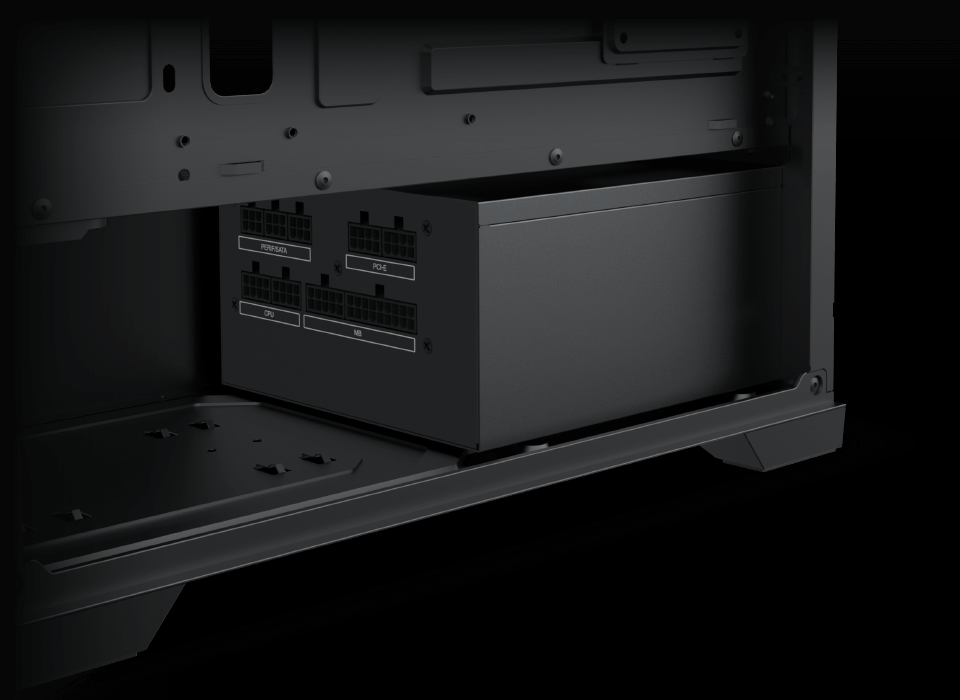

PSU Limitation
up to 180mm

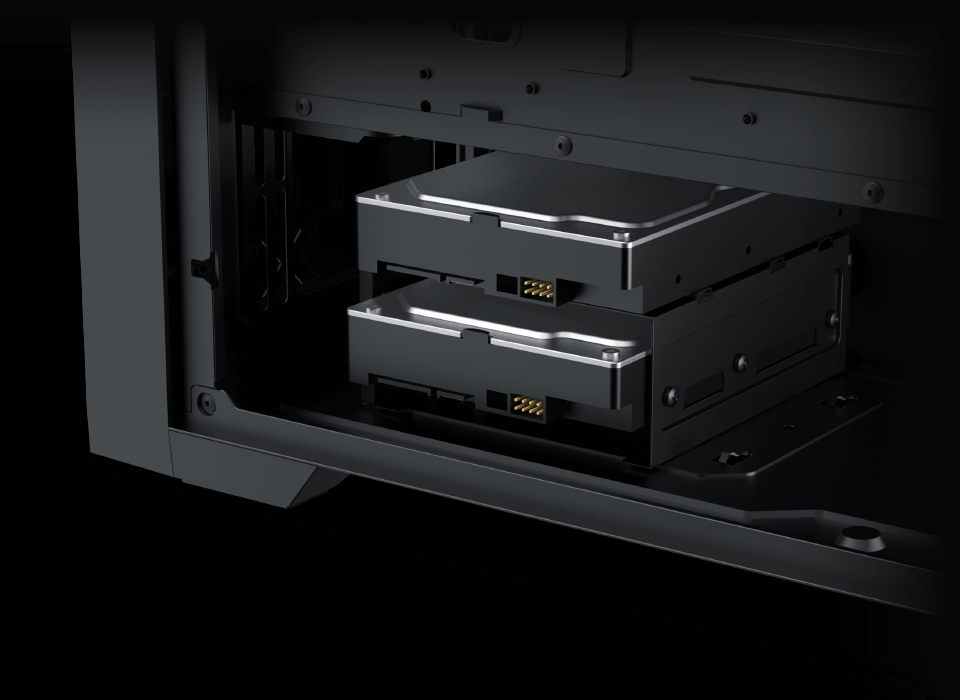

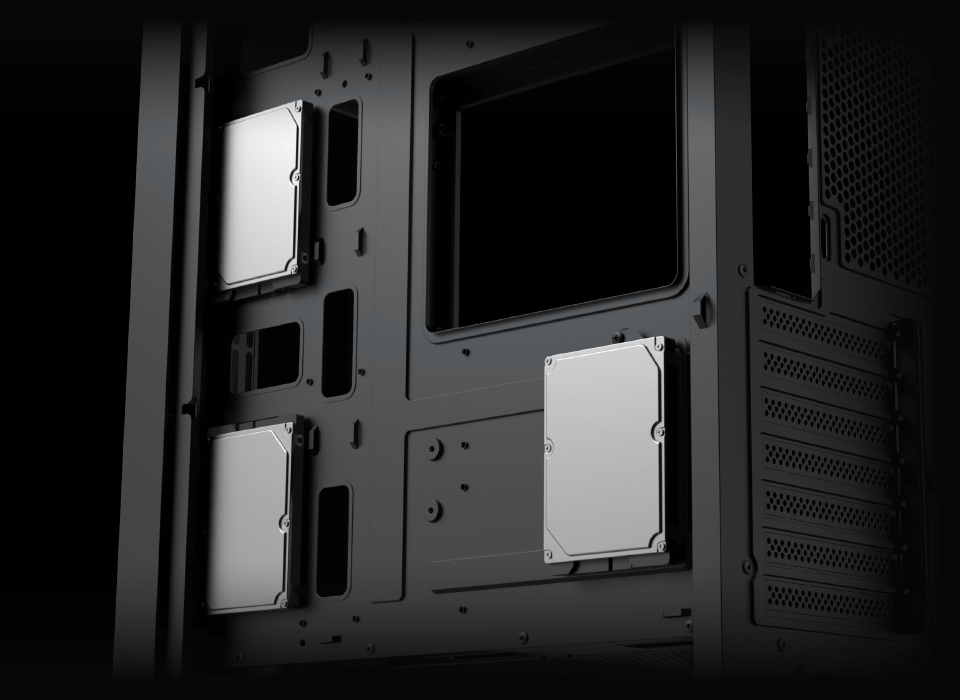

Drive Support

HDD Cage (Bottom): 3.5″ x1
HDD Cage (Top): 3.5″ & 2.5″ Combo x1

Drive Support

SSD Bay: 2.5″ x2
SSD Bracket: 2.5″ x1

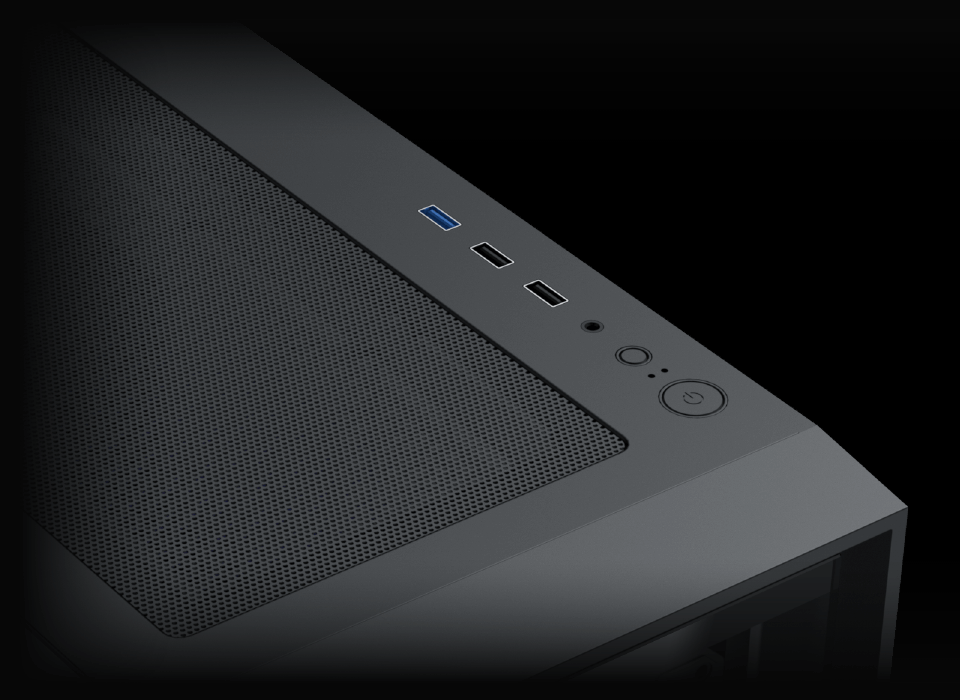

Top Mount I/O Ports

• Power Button
• Reset Button
• HD Audio Jack
• USB 2.0 x2
• USB 3.0 x1

Specifications

Dimensions

Dimensions (L × W × H): 400 × 215 × 488 mm

Motherboard Support

Motherboard Support: E-ATX, ATX, M-ATX, Mini-ITX

Drive Bays

HDD Cage (Bottom): 1 × 3.5"

HDD Cage (Top): 1 × 3.5" & 2.5" Combo

SSD Bay: 2 × 2.5"

SSD Bracket: 1 × 2.5"

Fan Support

Top: 2 × 120 mm or 2 × 140 mm

Front: 3 × 120 mm or 3 × 140 mm

Rear: 1 × 120 mm

Compatibility & Expansion

PSU Length Limitation: 180 mm

CPU Cooler Clearance: 165 mm

GPU Length Limitation: 350 mm

Expansion Slots: 7 Standard Slots

General

• Material: Steel
• Power Supply: Standard PS2 ATX PSU

I/O Panel

• USB 3.0: 1 ×
• USB 2.0: 2 ×
• Audio: HD Audio

Radiator Support

• Front: 360 mm
• Top: 240 mm
• Rear: 120 mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
