Суич TP-Link TL-SG116P, 1000 Mbps, 16 порта, 16x 10/100/1000Mbps RJ45 PoE

TP-Link TL-SG116P

16-Port Gigabit Desktop Switch with 16-Port PoE+

• 120 W PoE Budget : 16 × 802.3af/at-compliant PoE+ ports with a total power supply of 120 W*.
• Gigabit Ethernet Ports: 16 x gigabit PoE+ RJ45 ports provide high-speed connections.
• Extended Distance Transmission: Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode: Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
• Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance.
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and Play: Plug and play with no configuration required



Professional 16-Port Gigabit Desktop Switch with
16-Port PoE+

Plug and Play, with PoE Transmission for Surveillance up to 250 m

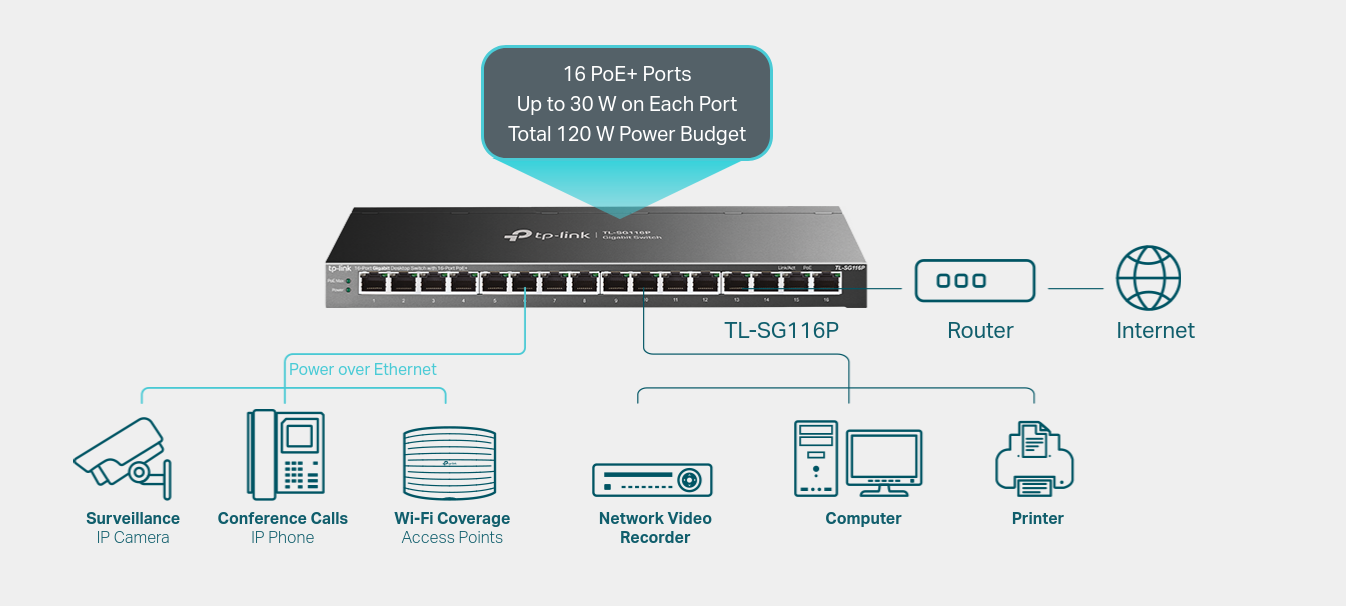

Dedicated 16 PoE+ Ports (120 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 16× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

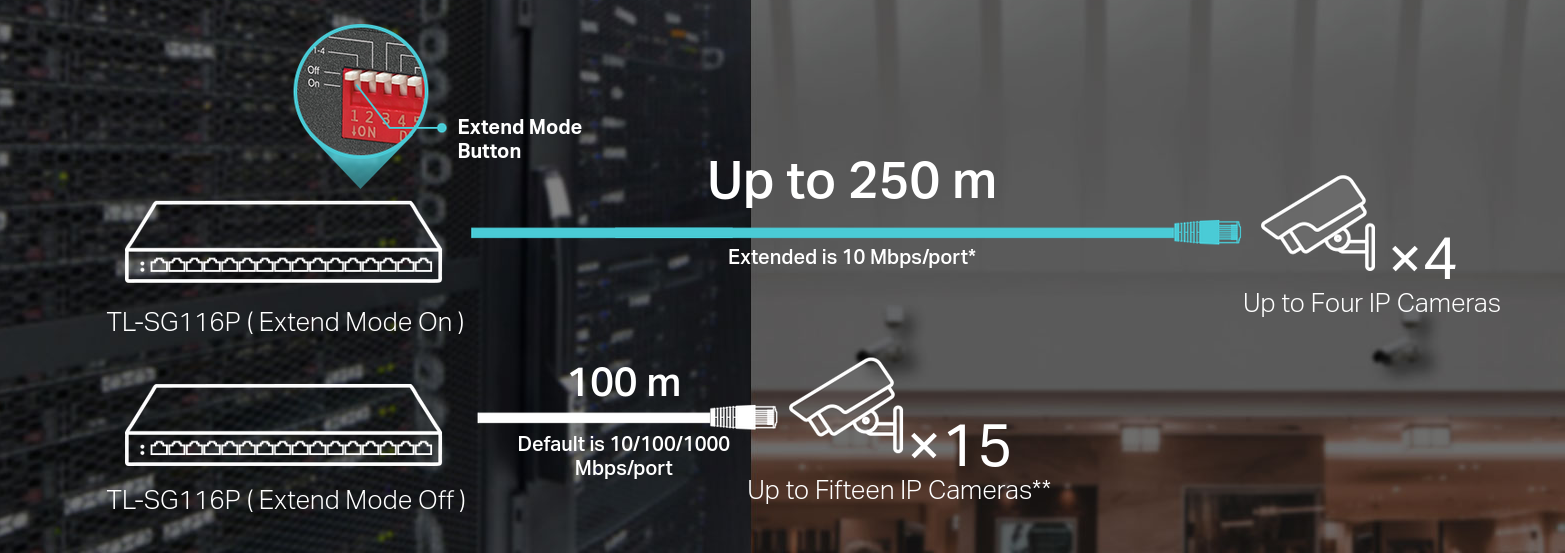

Ideal for IP Surveillance
—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
** In actual use, at least one port will be used to connect to NVR or Router device.

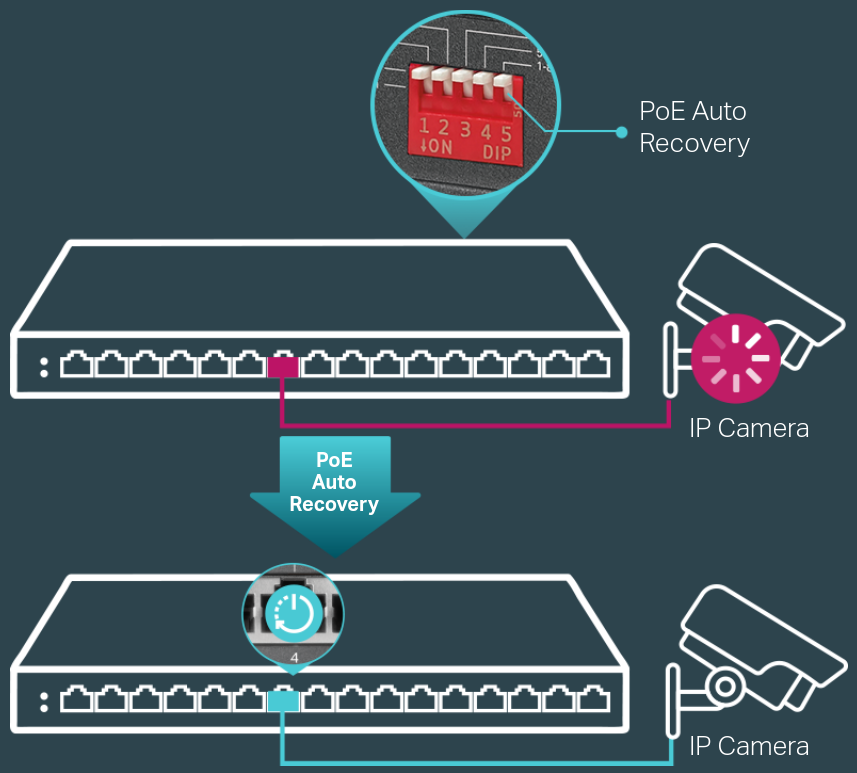

System Self-Healing
with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

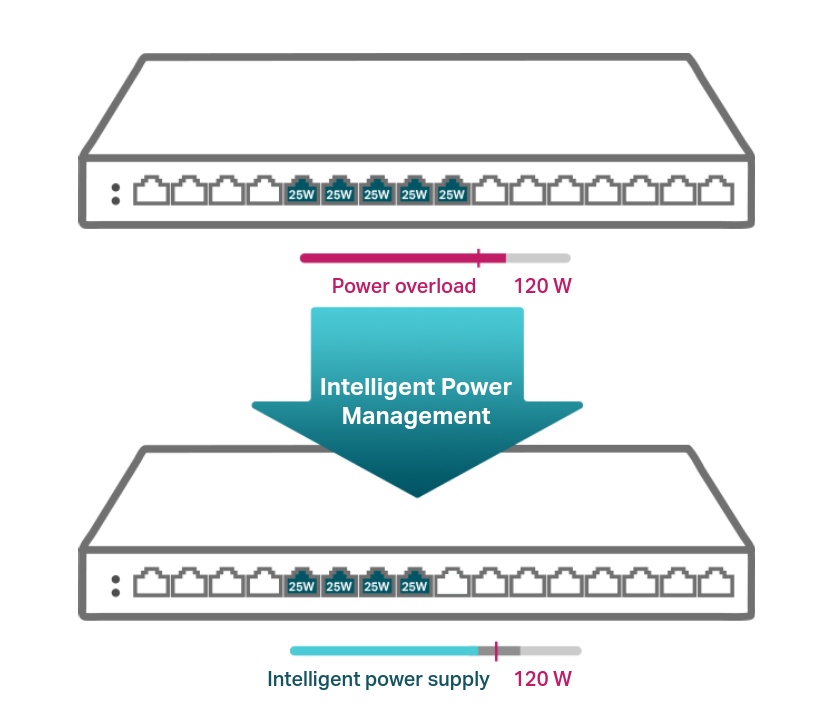

Intelligent Power Management

When total power consumption exceeds 120 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Specifications:



HARDWARE FEATURES
Interface	• 16× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate	23.8 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–16 • Power Supply: 120 W
Mac Address Table	8K, Auto-learning, Auto-aging
Switching Capacity	32 Gbps
Dimensions ( W x D x H )	11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
Max Power Consumption	• 11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected) • 142.51 W (220 V / 50 Hz with 120 W* PD connected) /  144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation	• 39.85 BTU/h (220 V / 50 Hz no PD connected) /  39.31 BTU/h (110 V / 60 Hz no PD connected) • 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /  490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–4) • Isolation Mode Button (Ports 1–7 / 8-14) • PoE Auto Recovery (Ports 1-16) • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
Transfer Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SG116P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
