Точка за достъп TP-Link Omada EAP613, 1800 Mbps, 2.4 GHz (574 Mbps)/ 5GHz (1201 Mbps), 1x RJ-45, 2x външни антени





EAP613

AX1800 Ceiling Mount WiFi 6 Access Point

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†

• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

• Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.

• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§

• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§

• PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.

• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

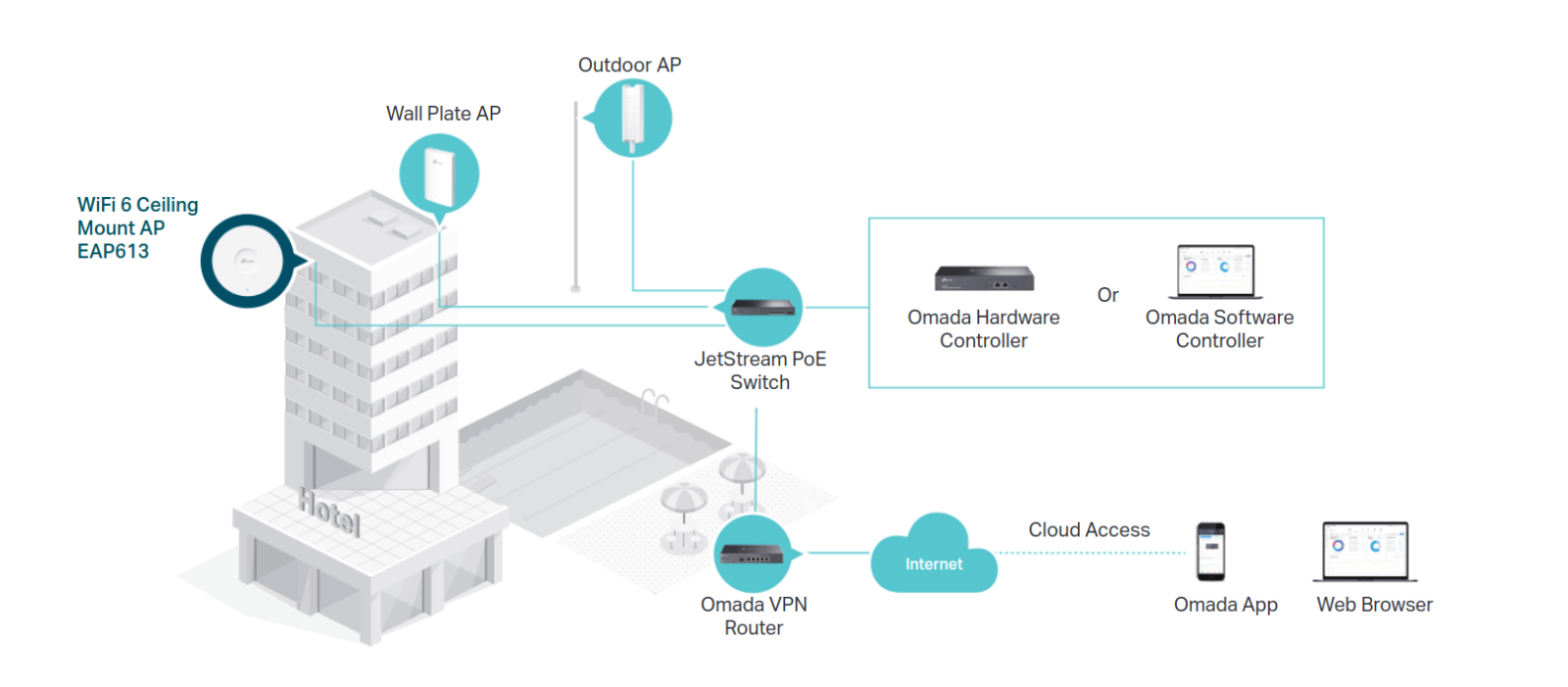

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

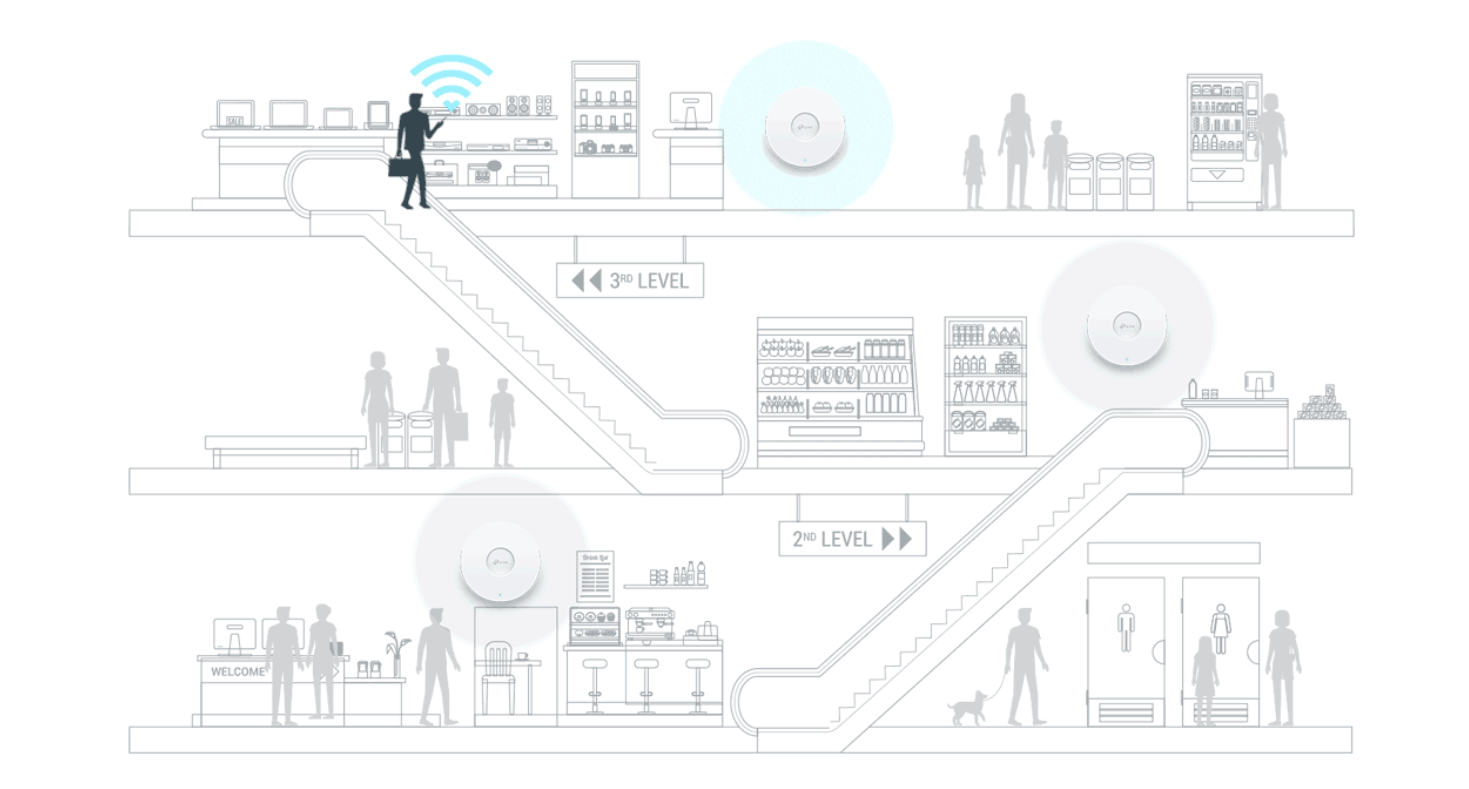

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.













Ultra-Slim Design Brings More Agility

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.





















ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Интерфейс	1× Gigabit Ethernet (RJ-45) Port
Бутон	Reset
Захранване	• 802.3at PoE • 48 V Passive PoE • 12 V / 1 A DC (Power Adapter IS NOT included)
Консумирана енергия	11.0W (For PoE); 9.9W (For DC)
Размери (Ш x Д x В )	V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Тип антена	Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Монтаж	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
Безжични стандарти	IEEE 802.11ax/ac/n/g/b/a
Честотa	2.4 GHz and 5 GHz
Скорост на сигнала	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Безжични функции	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Безжична сигурност	• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Предавателна мощност	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller
Сигнали по електронна поща	Yes
Управление Вкл/Изкл на LED	Yes
Управление на контрола на достъпа по МАС адрес	Yes
SNMP	v1, v2c, v3
Влизане в системата Локално/Отдалечение	Local/Remote Syslog
SSH	Yes
Уеб-базирано управление	HTTP/HTTPS
L3 управление	Yes
Управление на множество сайтове	Yes
Управление на VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller

ДРУГИ
Сертификати	CE, FCC, RoHS
Съдържание на пакета	• EAP613 • Ceiling/ Wall Mounting Kits • Installation Guide
Системни изисквания	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Околна среда	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
