Точка за достъп Ruijie RG-RAP72, 2.4GHz (688Mpbs)/ 5GHz (2882Mbps), 1x 10/100/1000/2500Mbps RJ45(PoE), 5x вътрешни антени

Ruijie RG-RAP72

Highlight Features

• AI-powered Wi-Fi 7 ceiling-mount AP with dual-radio performance
• Support AI Optimization (WIO 3.0)
• Easy installation, compact size

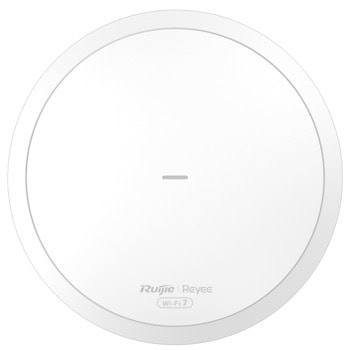

• New circular design, seamlessly blending with different decoration styles
• Tailored for business needs with Reyee Mesh, standalone portal, and AI roaming features

Hardware Specifications

Wi-Fi Radio

Radio design

• Dual-radio
  4 spatial streams
  ● 2.4 GHz: 2 x 2, MU-MIMO
  ● 5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate

• 3570 Mbps

6 GHz wireless data rate

• No

5 GHz wireless data rate

• 2882 Mbps

2.4 GHz wireless data rate

• 688 Mbps

Antenna

Antenna

• 2.4 GHz: 2 built-in omnidirectional antennas
  5 GHz: 3 built-in omnidirectional antennas

Dimensions and Weight

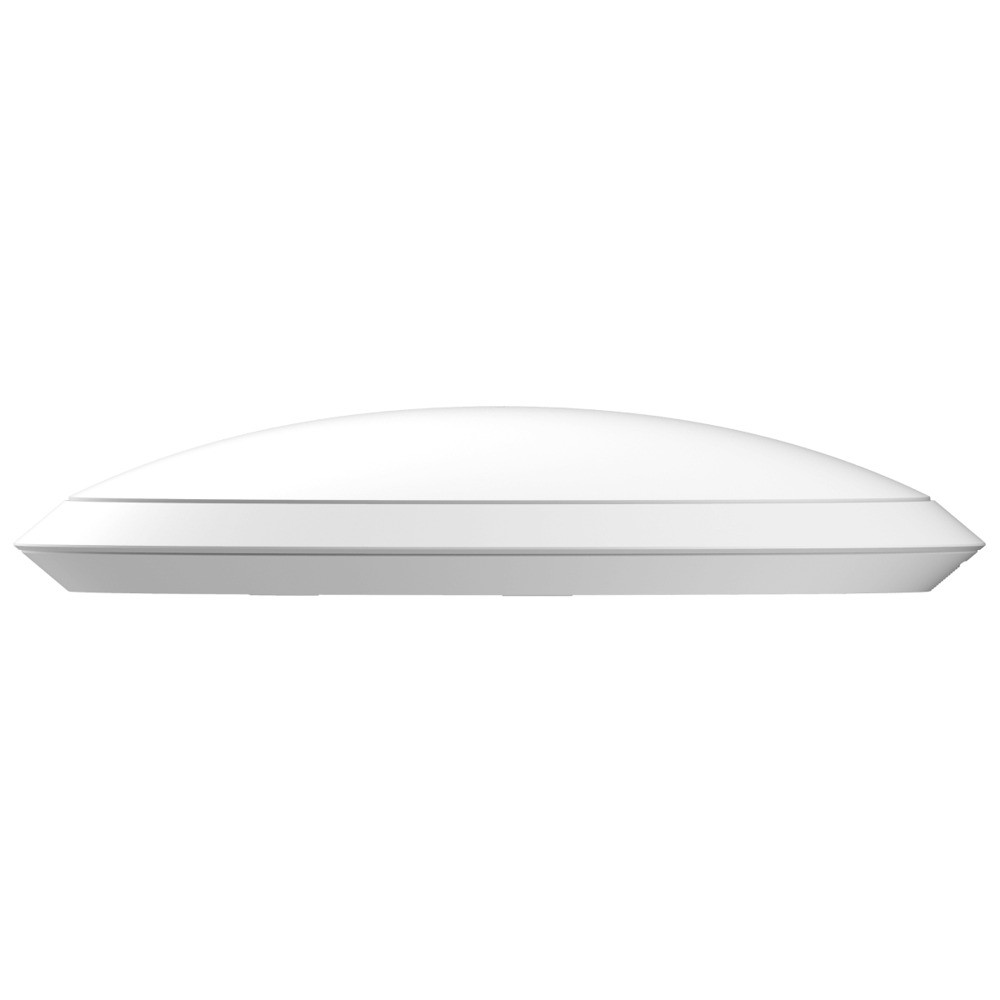

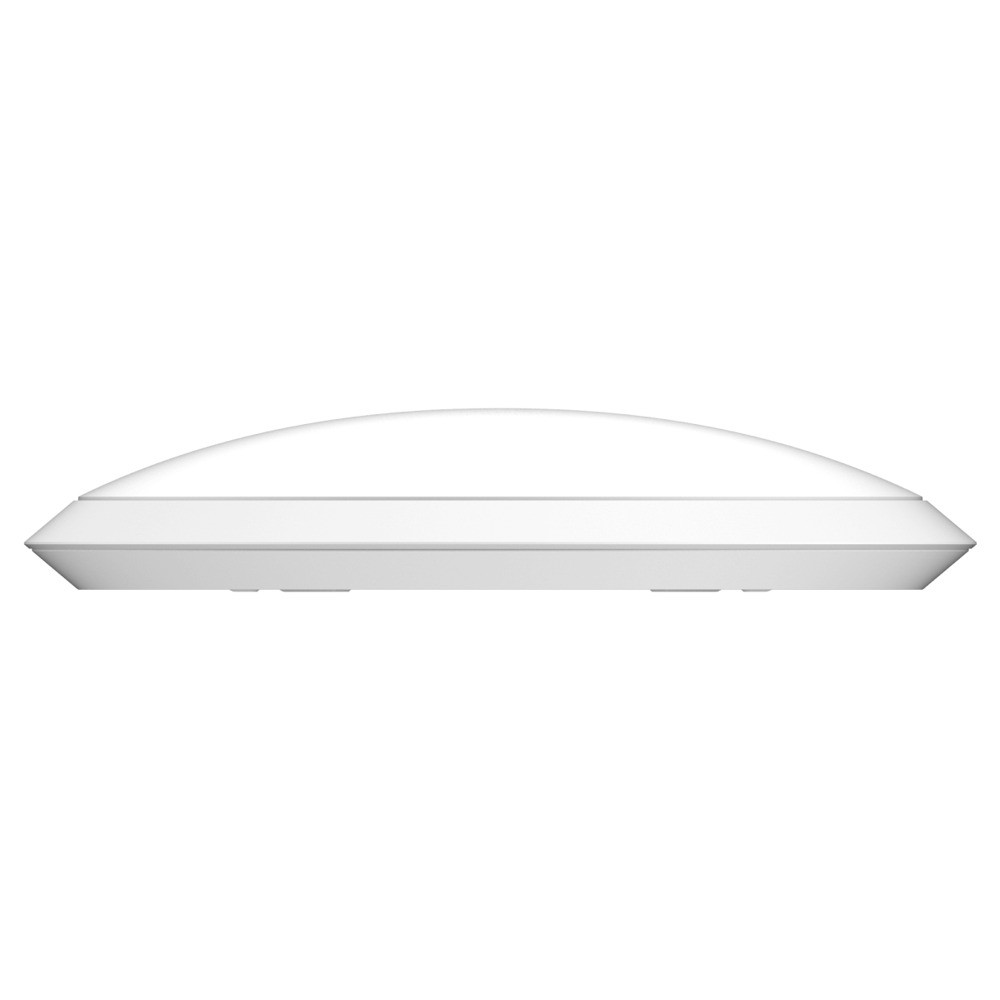

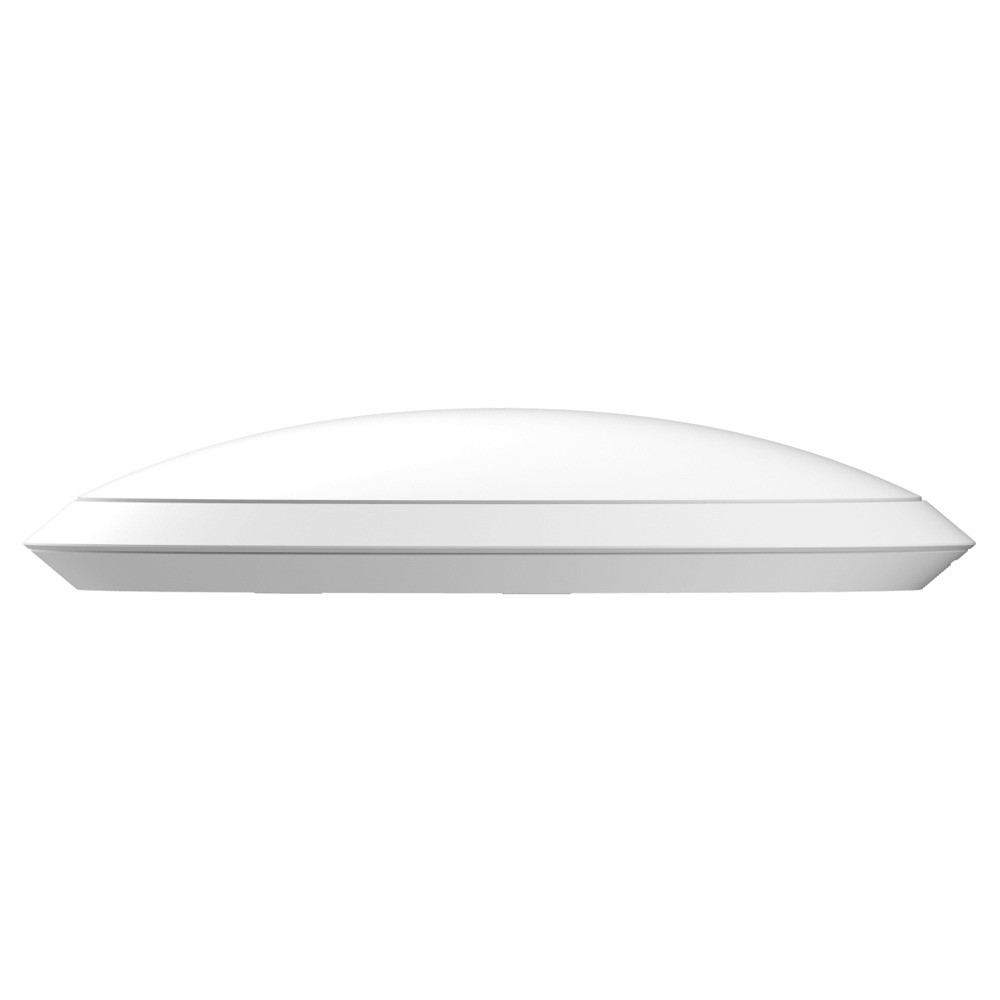

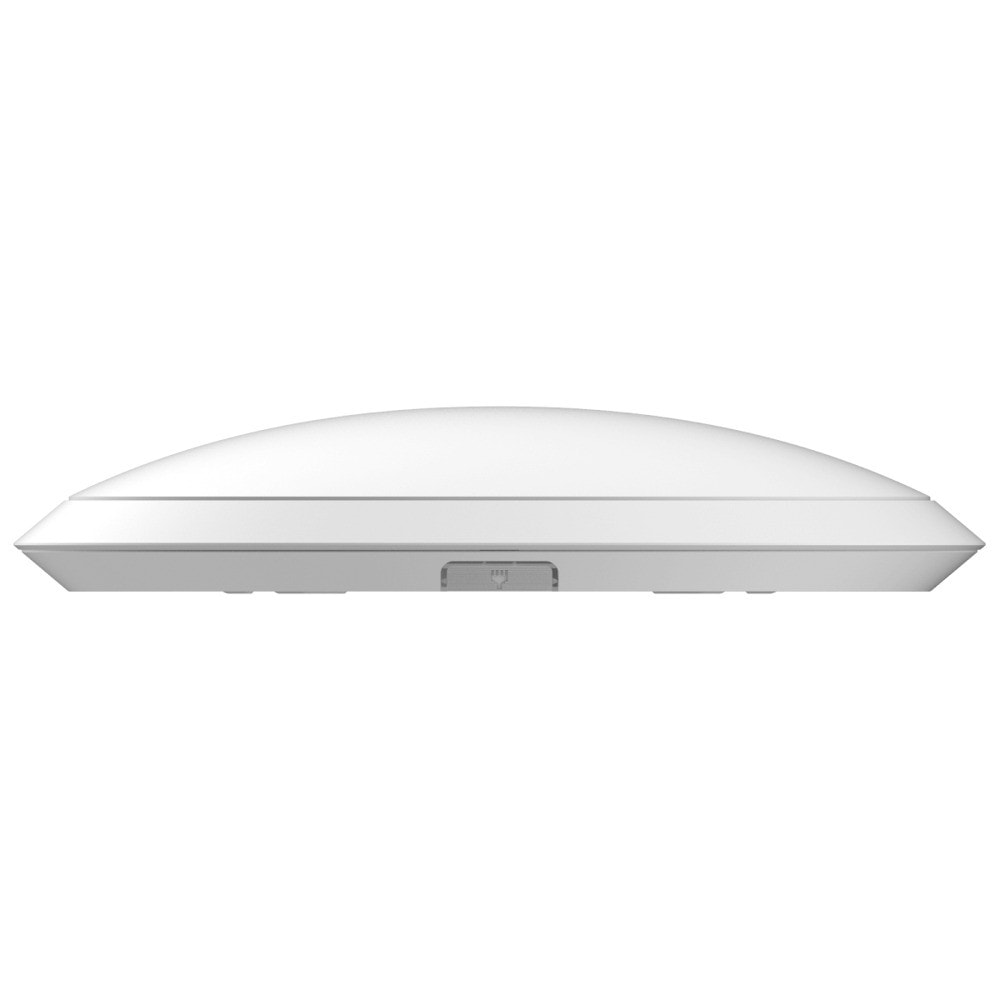

Product dimensions (diameter x height)

• Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)

Color

• White

Weight

• ≤ 0.6 kg (1.32 lbs.) (without packaging materials)

Port Specifications

Number of 10/100/1000/2500BASE-T ports

• 1

Power Supply and Consumption

Power supply

• ● DC power adapter
  ● PoE/PoE+
  Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.

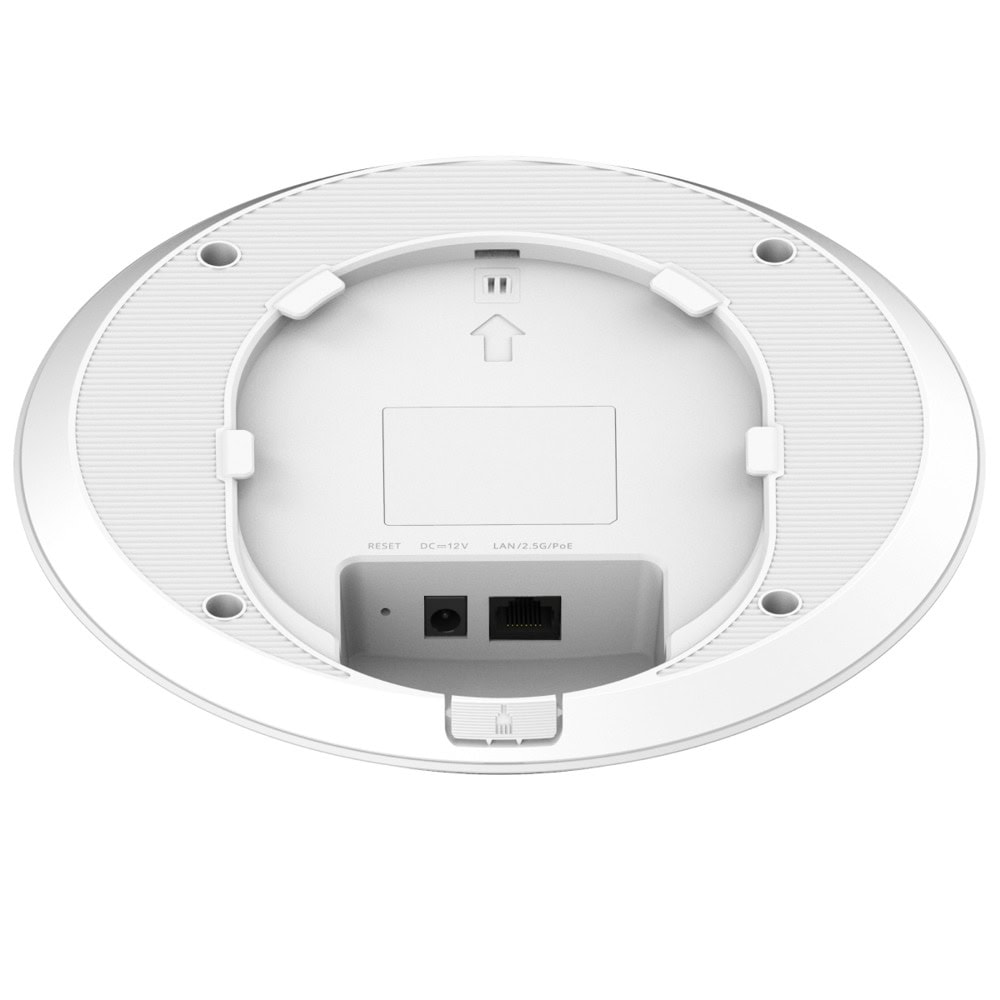

Local power supply

• Yes, one DC power connector (12 V, 1.5 A)

Dimensions of the DC connector

• Outer diameter: 5.5 mm (0.22 in.)
  Inner diameter: 2.1 mm (0.08 in.)
  Depth: 10 mm (0.39 in.)

PoE budget

• No

Maximum power consumption

• 14 W

Environment and Reliability

Operating temperature

• 0°C to 40°C (32°F to 104°F)

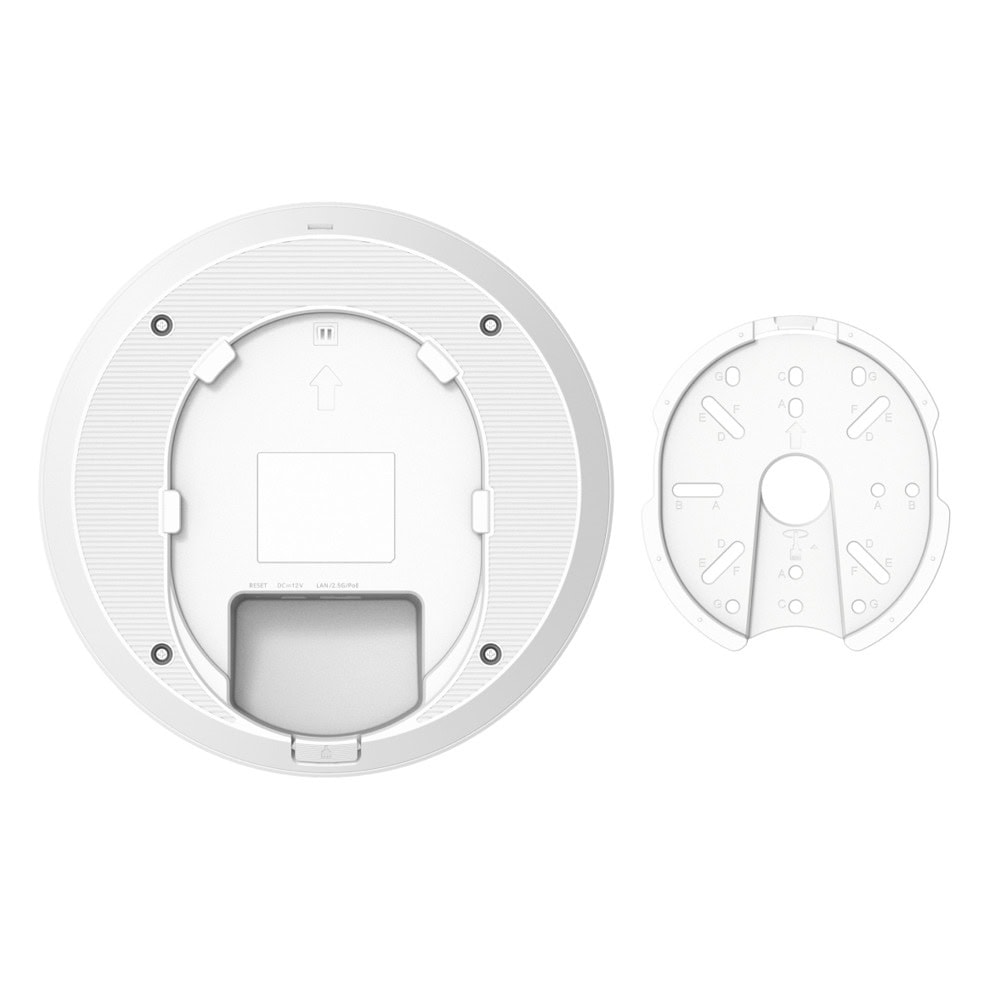

Mounting options

• Ceiling/Wall

IP rating

• IP41

Software Specifications

WLAN

Maximum number of associated wireless clients

• 64 (2.4 GHz)
  511 (5 GHz)
  511 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed

• 300

IP Service

IPv6

• Yes
