Рутер Asus RT-BE90U, 9400Mbps, 2.4GHz (688Mbps)/ 5GHz (2882Mbps)/6GHz (5764Mbs), Wireless BE, 3x 10/100/1000/2500Mbps LAN, 1x10/100/1000/2500Mbps WAN, 1x USB-A, 6 външни антени

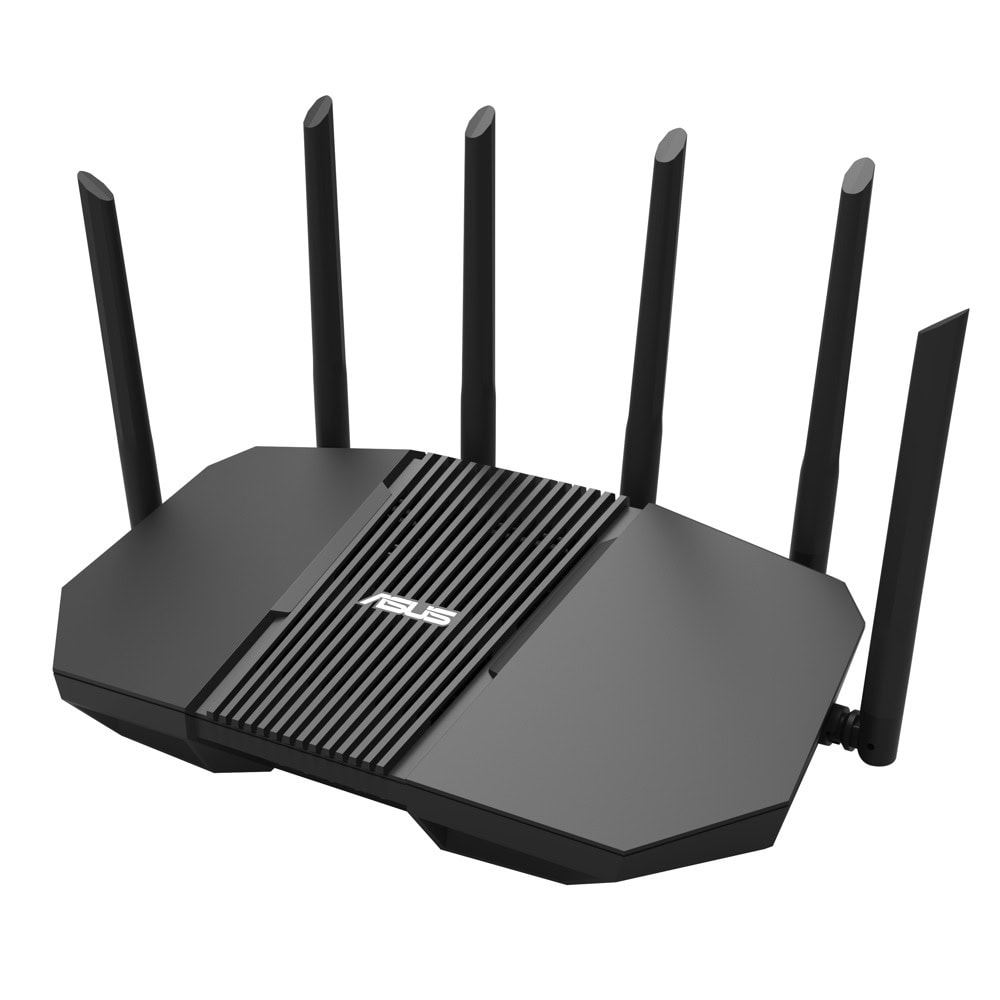

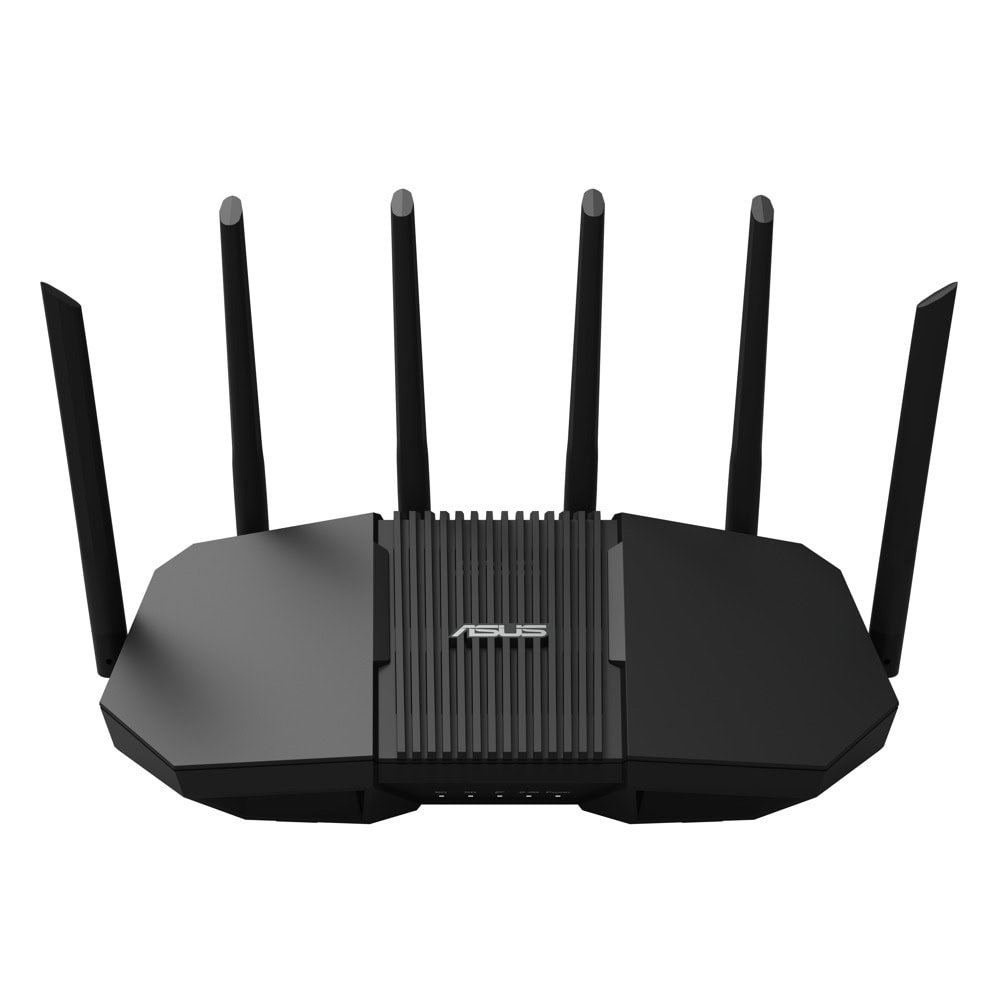

Asus RT-BE90U

BE9400 Tri-band WiFi 7 (802.11be) AiMesh Extendable Router, 320MHz, 4K-QAM, MLO, Quad 2.5G ports, Commercial-Grade Network Security, Smart Home Master

• Ultrafast WiFi 7 – WiFi 7 (802.11be) tri-band extendable router boosts speeds up to 9400 Mbps, with 320MHz and 4096-QAM increasing a single frequency band’s transmission speed by 2.4 times
• Unleashing Multi-link operation (MLO) for Ultra-Smooth Connectivity – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
• Quad 2.5G Ports – Traffic via 2.5G ports has top priority, supported by flexible WAN/LAN port configurations to maximize wired connectivity
• Smart Home Master – Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls
• Hassle-free AiMesh Extendable Network – AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
• Commercial-Grade Network Security – Network security with commercial-grade AiProtection, plus a one-tap security scan and Safe Browsing
• 4G LTE/5G mobile tethering – Supports 4G LTE/5G mobile tethering for always-on internet

Next-Level Smart Home WiFi 7

Elevate your smart home with blazing-fast tri-band WiFi 7 speeds of up to 9400 Mbps, boosted range with ASUS RF and AI-boosted Smart AiMesh technology.The ASUS RT-BE90U unleashes superior 6 GHz WiFi and ultra-fast 2.5G networking. With next-gen ASUS Network Security and a suite of advanced network technologies such as IoT Network, the RT-BE90U safeguards your network end-to-end, 24/7.

Faster, Smarter Home WiFi 7

The ASUS RT-BE90U boasts cutting-edge WiFi 7 technology with superior 6 GHz band. Enjoy next-generation speeds and connected experiences and cloud computing, including 8K streaming, HDR gaming, content creation and AI networking.

AI-Boosted Smart AiMesh

The RT-BE90U harnesses the power of WiFi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.

Engineered for Always-On Connections

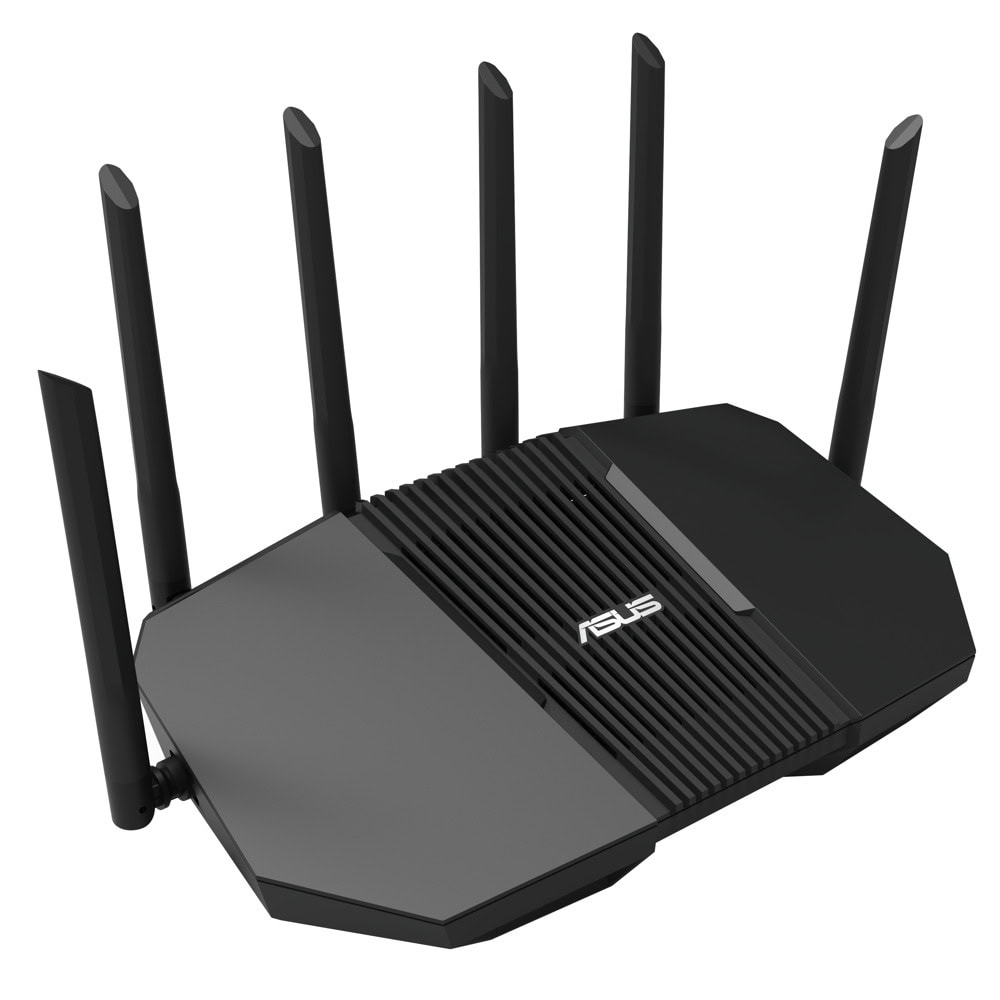

The robust design of the ASUS RT-BE90U delivers next-level WiFi and network performance and superior reliability. With six external antennas and six high-power front-end modules, it eliminates WiFi dead zones, delivering reliable signals in all directions.

Connectivity

Enjoy versatile and ultrafast multi-gigabit smart home networking with the RT-BE90U.

Safeguard Everyone and Every
Connected Device

In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection and secure connections.

Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

BE9400 ultimate BE performance : 688+2882+5764 Mbps

WiFi Data Rate

WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna

External antenna x 6

Transmit / Receive

6GHz 2x2
5GHz 2x2
2.4GHz 2x2

Processor

1.5GHz quad-core processor

Memory

256 MB Flash and 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Operating Frequency

6 GHz
5 GHz
2.4 GHz

Operating Mode

Repeater Mode
Media Bridge Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode

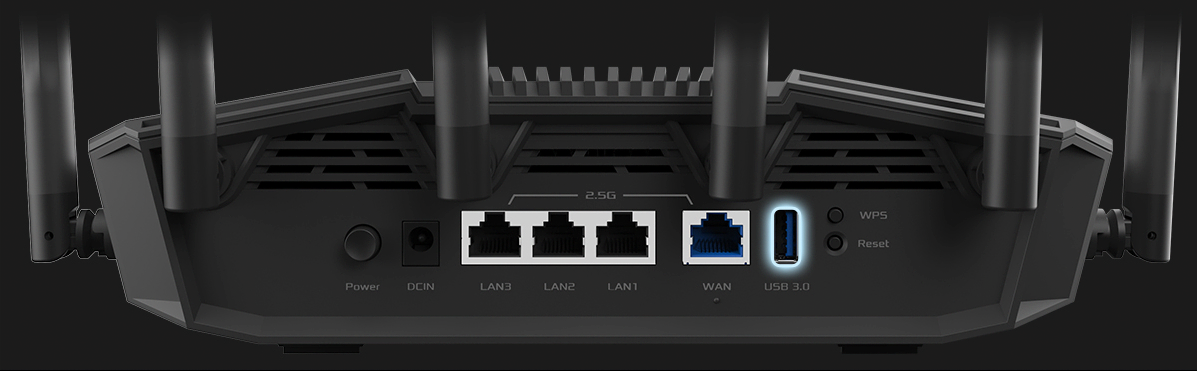

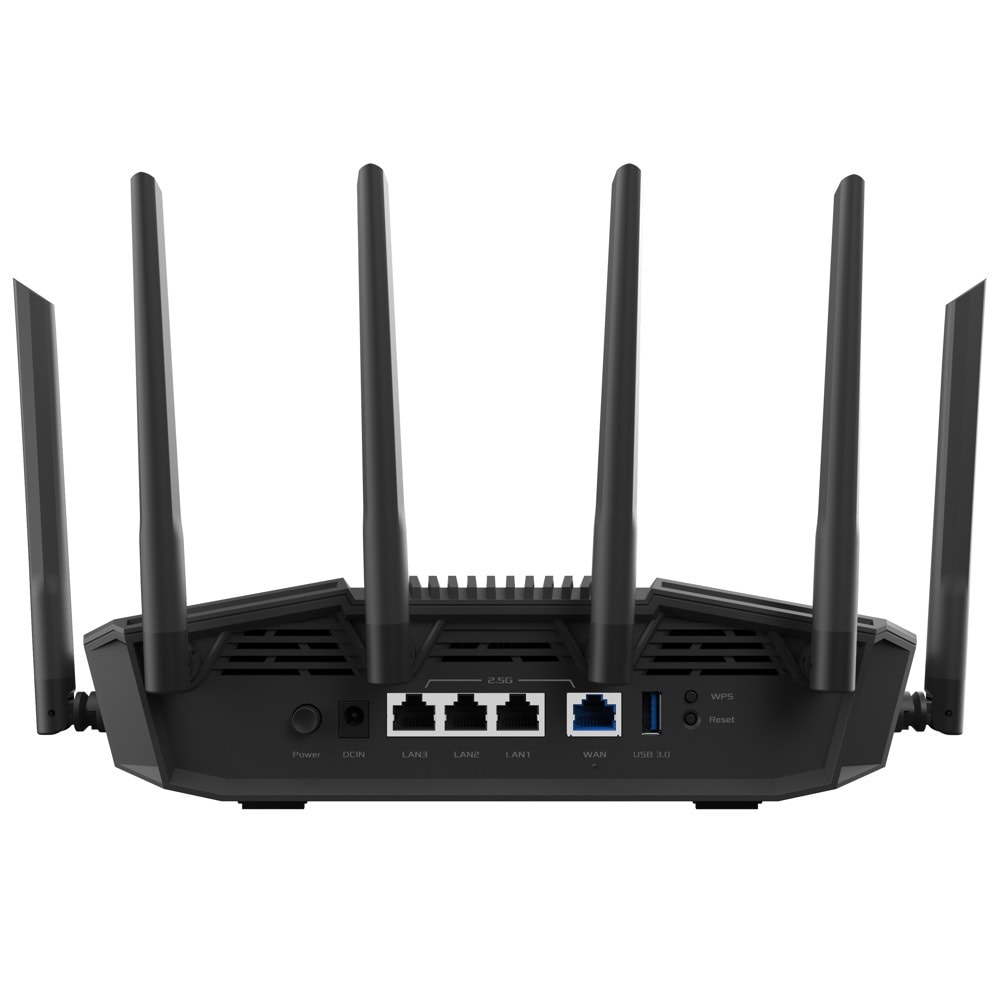

I/O Ports

1 x 2.5 Gbps for WAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1

Buttons

WPS Button, Reset Button, Power Button

LED Indicator

WAN(Internet) x1
6GHz x 1
5GHz x 1
2.4GHz x1
Power x1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current

Product Weight (g)

761 g

Product Dimensions

320 x 180 x 191 mm

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3, Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal

Security

AiProtection, VPN, WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

AiProtection, • Router Security Assessment, • Two-Way IPS

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

• IPSec
• Static IP
• Automatic IP
• L2TP
• PPTP
• PPPoE
Internet Connection Type :, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay
• SIP Pass-Through
• H.323 Pass-Through
• RTSP Pass-Through
• IPSec Pass-Through
• L2TP Pass-Through
• PPTP Pass-Through
NAT Passthrough :

LAN

DHCP Server, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client

USB application

4G / 5G Auto Mobile Tethering, • FAT32
• ext4
• ext3
• ext2
• vFAT
• NTFS
• HFS+
File System :, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
