Name: Точка за достъп Mimosa C5c-EF, 5GHz (700 Mbps), 1x 10/100/1000Mbps LAN PoE - 0.00 лв. (≈ 0.00 EUR)
Brand: Mimosa
SKU: NTWBMIMOSA1000001801
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

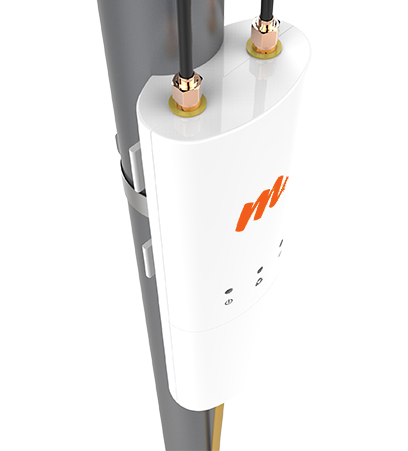

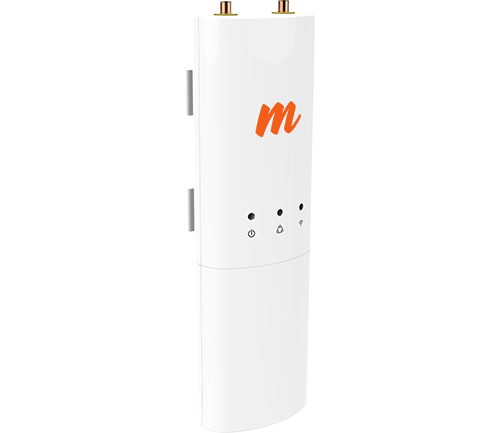

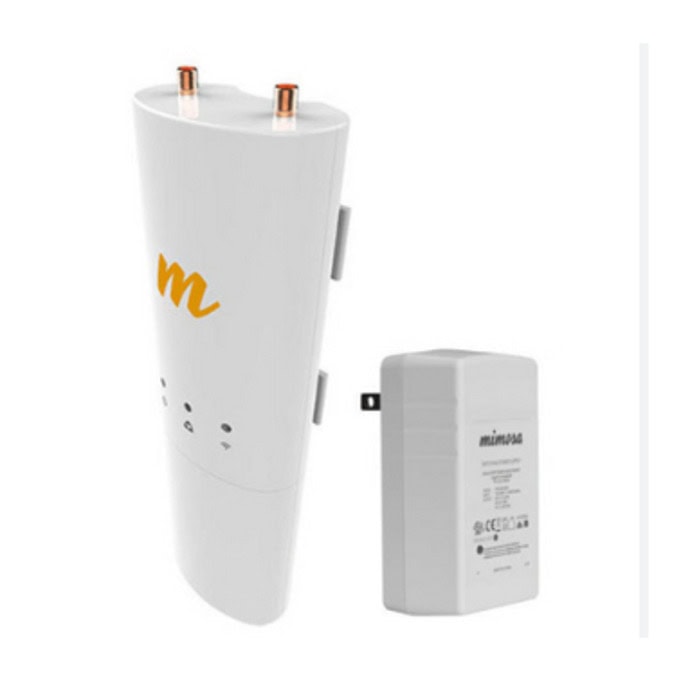

C5c

Unmatched Price Performance for Global Fixed Wireless Markets

C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c works with many popular antennas, delivering up to 500 Mbps (PTMP)/700 Mbps (PTP) of TCP throughput.

Ultimate Flexibility and Speed

The Mimosa C5c provides incredible flexibility and scalability for wireless access, offering the fastest speeds and seamless connectivity for both short and long-range applications in either a Point-to-Point (PTP) or Point-to-Multipoint solution. The C5c is not available in the United States

Performance
Max Throughput	PTP/PTMP: 700 Mbps IP (866 Mbps PHY)
Wireless Protocols	WiFi Interop
Wireless Protocols	Mimosa SRS
Modes	PTMP Client
Modes	PTP Backhaul
Radio
MIMO & Modulation	2x2:2 MIMO OFDM up to 256 QAM
Bandwidth*	20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;
Bandwidth*	Tunable to standard WiFi channels for WiFi Interop
Frequency Range	PTMP: 4900-6400 MHz***
	PTP: 4900-6400 MHz
	Restricted by country of operation
	new US/FCC 5600-5650 MHz support
	FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power	27 dBm
Sensitivity ( MCS 0 )	-87 dBm @ 80 MHz
	-90 dBm @ 40 MHz
	-93 dBm @ 20 MHz
Power
Max Power Consumption	9.2 W
System Power Method	Passive PoE (24-56 VDC)
PoE Power Supply	Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included)
Physical
Dimensions	Depth 44 mm (1.73")
	Width 65 mm (2.56")
	Height 188.4 mm (7.42")
Weight	295 grams (10.4 oz)
Mounting	Single pole strap
Connector Type	RP-SMA (x2)
Environmental
Outdoor Ingress Protection Rating	IP55
Operating Temperature	-40°C to +55°C (-40°F to 131°F)
Operating Humidity	5 to 100% condensing
Operating Altitude	4420 m (14501') maximum
Shock & Vibration	ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet	10/100/1000-BASE-T
Management Services	Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management	Active scan monitors/logs ongoing RF interference across channels (no service impact)
Smart Spectrum Management	Dynamic auto-optimization of channel and bandwidth use
Security	WPA2 + Mimosa 802.1x Client**
QoS	Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals	FCC Part 15.407 and Part 90Y, IC RSS210,
Approvals	CE, ETSI 301 893/302 502
Other National Regulations
RoHS Compliance	Yes
Safety	UL/EC/EN/ 60950-1 + CSA-22.2

Виж още Аксеспойнт/Репитер Безжични Mimosa
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	700 Mbps
Wi-Fi Стандарт:	Не е указано
Честота:	5 GHz
Антени:	Не е указано
dBi на антена/и:	Не е указано
PoE:	In & Out
Интерфейс:	1x 1000
Други:	До 50+км
