AX7800 Tri-Band 8-Stream Wi-Fi 6 Router
- WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
- AXE5400 Tri-Band: Delivers Wi-Fi speeds up to 5.4 Gbps, enabling your devices to run at full speed.
- SuperSpeed USB 3.0: Enables easy media sharing and private cloud building, up to 10× faster than USB 2.0.
- Extensive Coverage: 6× antennas and Beamforming ensure broad coverage.
- OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Connect More Devices: OFDMA, MU-MIMO, and a powerful CPU increase capacity by 4 times to enable simultaneous stable transmission to more devices.
- HomeShield: Customize your home network with enhanced security and control.
- Great Compatibility: Works with all Wi-Fi devices and all internet providers, and is compatible with Amazon Alexa.

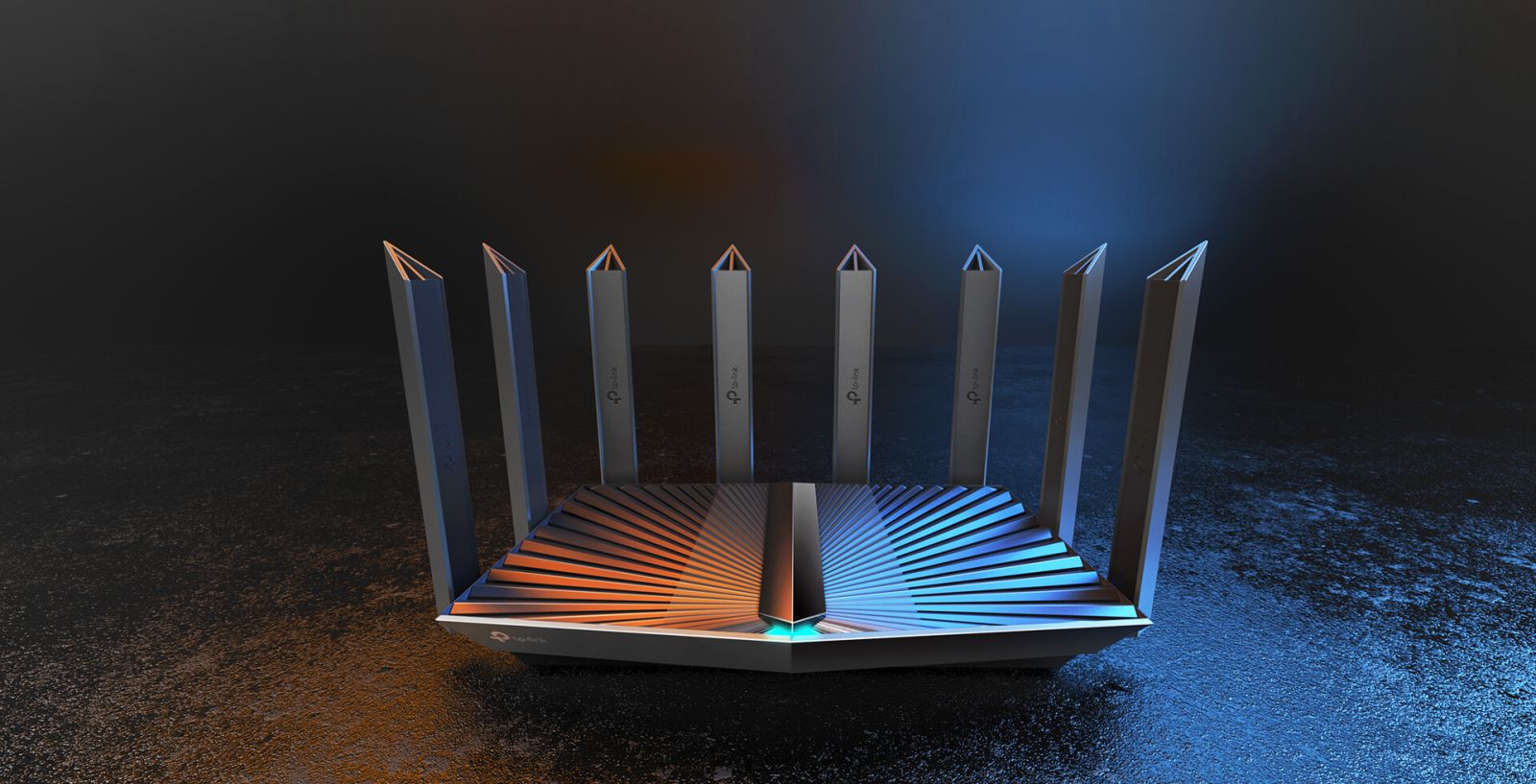

Hello Tri-Band AX7800, Goodbye Congestion
Combining tri-band WiFi with high-tech WiFi 6, Archer AX95 provides eight simultaneous data streams to deliver speeds up to 7.8 Gbps, achieving higher efficiency and lower congestion.

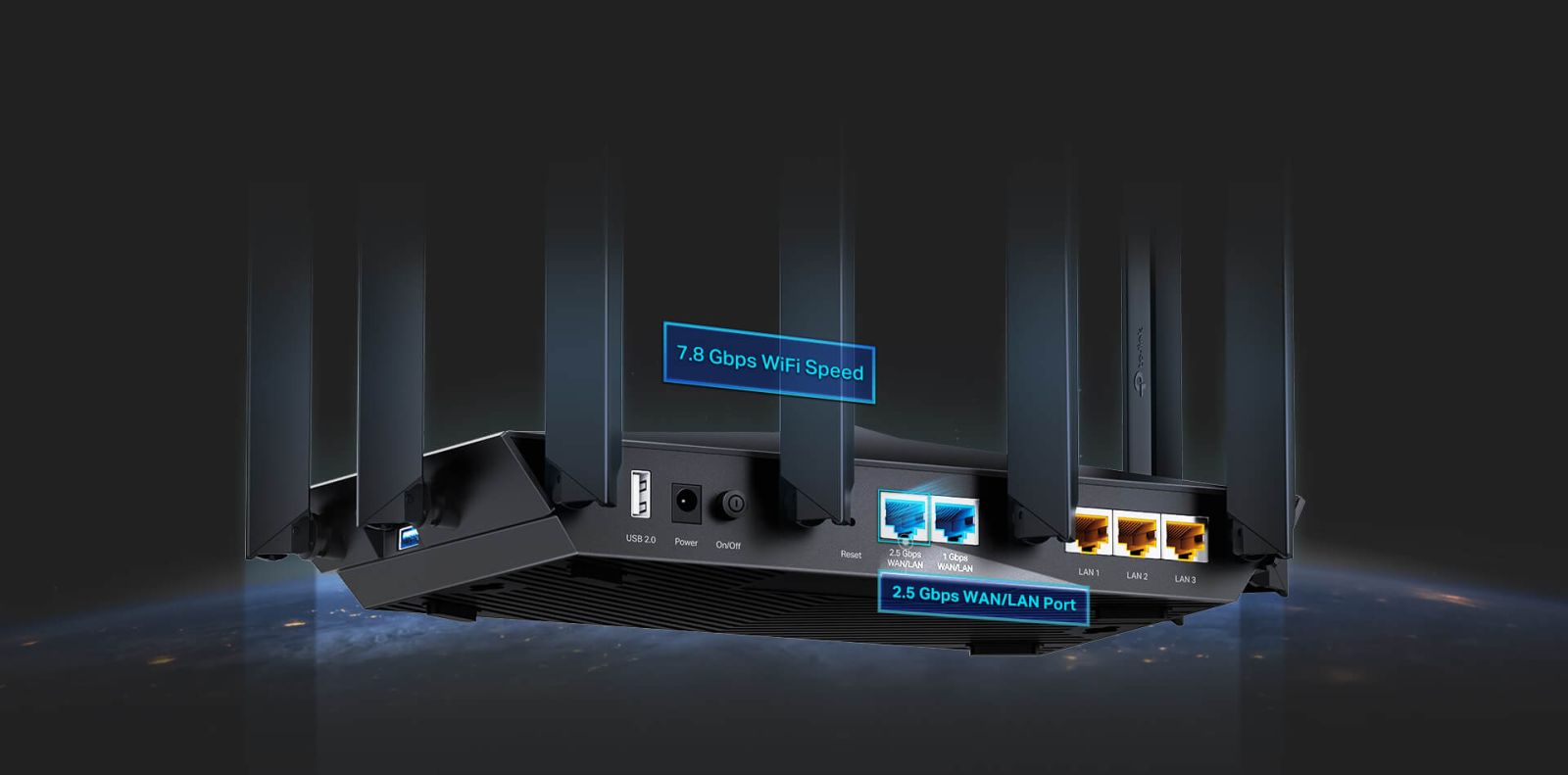

Go Faster — Multi-Gig Wired Connections
In addition to stunning wireless speeds of more than 7.8 Gbps, AX95 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.

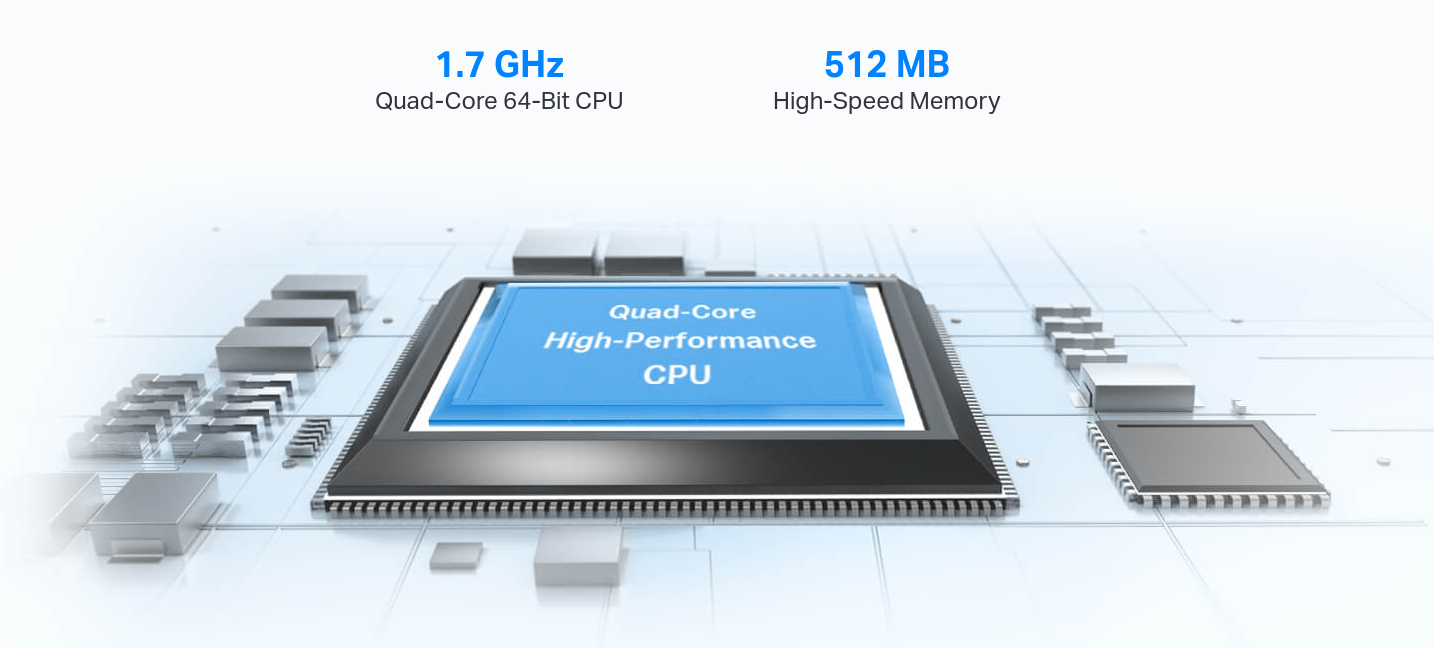

Powerful Processing with High RAM
An advanced Broadcom™ chipset and high memory empowers AX95’s tri-band structure. Enjoy fast connections and minimal latency even under the heaviest of transmission loads.

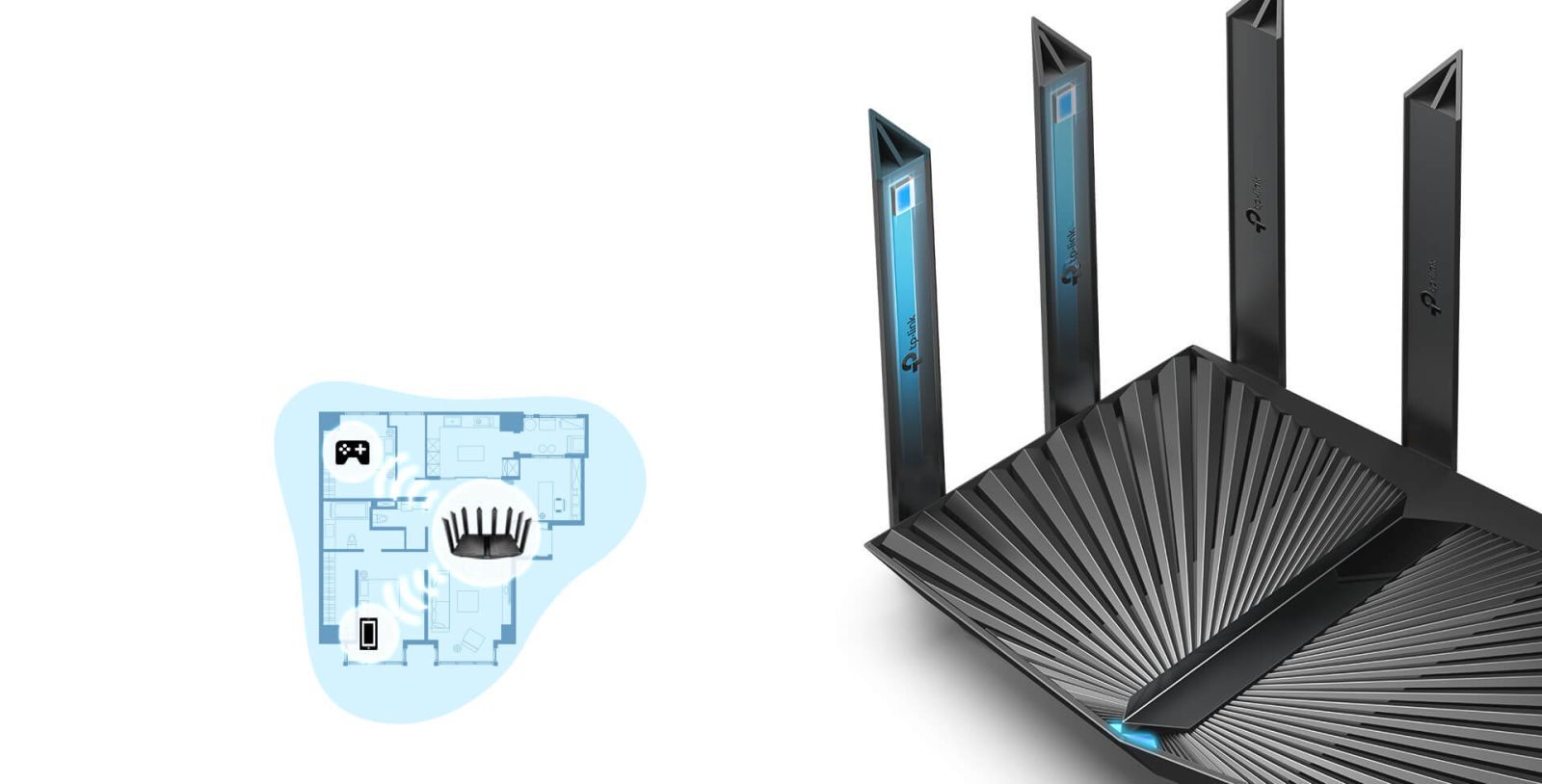

Boosted WiFi Coverage Throughout Your Home
8× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially in hard-to-reach areas.

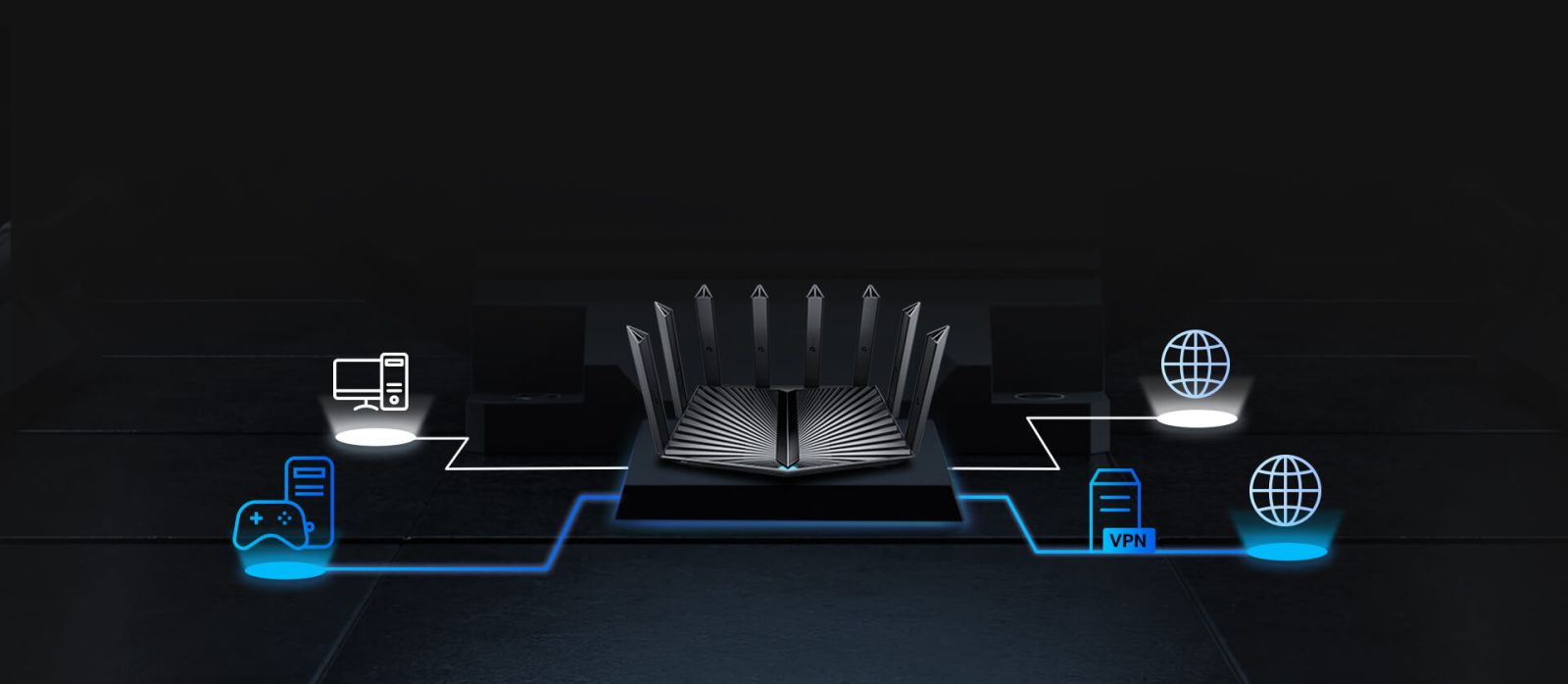

VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AX95 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

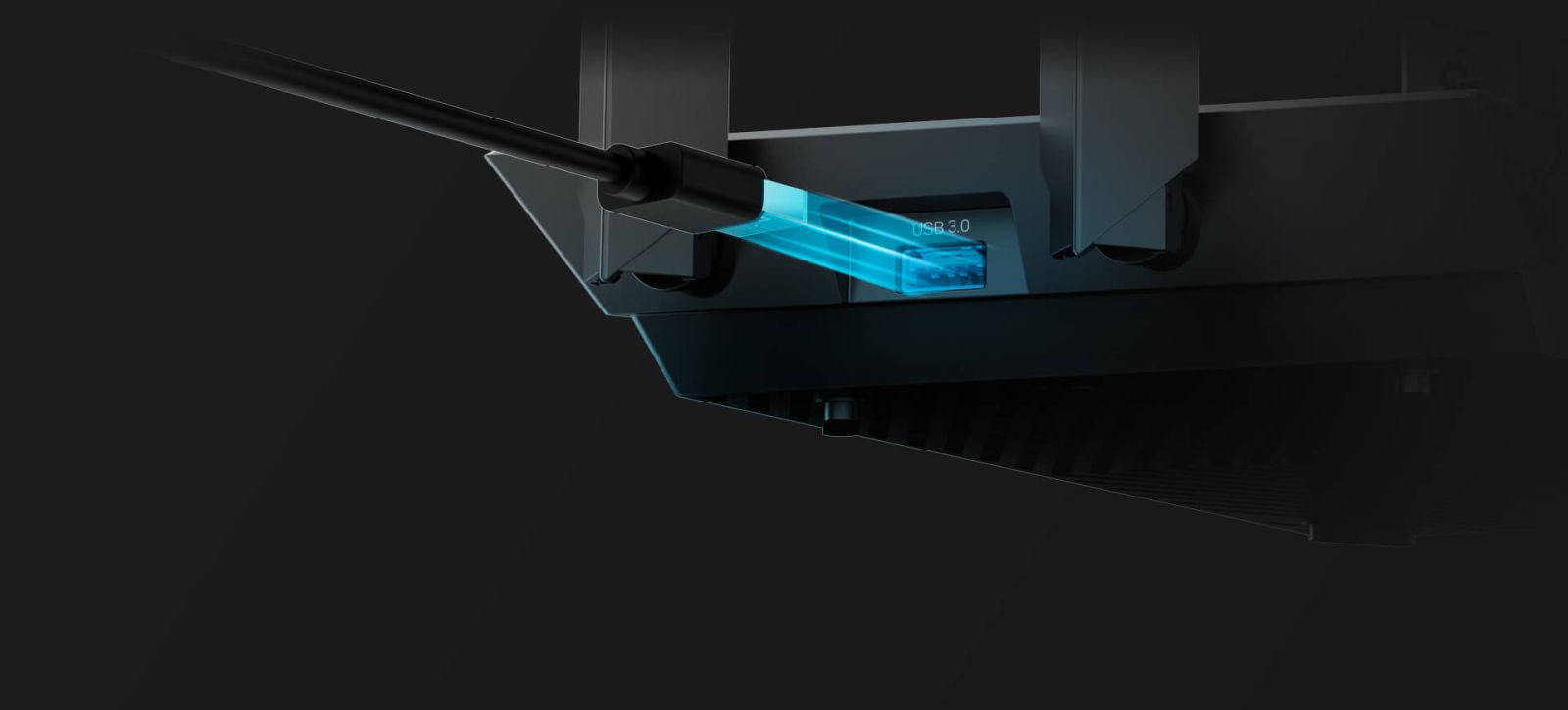

USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
Спецификации:
| HARDWARE | |
|---|---|
| Processor | 1.7 GHz Quad-Core CPU |
| Ethernet Ports | • 1× 2.5 Gbps WAN/LAN Port • 1× 1 Gbps WAN/LAN Port • 3× 1 Gbps LAN Ports |
| USB Support | • 1× USB 3.0 Port • 1× USB 2.0 Port • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Бутони | • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
| Power | 12 V ⎓ 3.3 A |
| СИГУРНОСТ | |
|---|---|
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | • FCC: ≤30dBm (5.17GHz~5.25GHz); ≤23dBm (5.25GHz~5.35GHz); ≤23dBm (5.49GHz~5.725GHz); ≤28dBm (5.725GHz~5.825GHz); ≤28dBm (2.4GHz) • CE: ≤23dBm EIRP (5.17GHz~5.35GHz); ≤30dBm EIRP (5.47GHz~5.725GHz); ≤20dBm EIRP (2.4GHz) |
| WiFi Reception Sensitivity | • 2.4 GHz: 11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm, 11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm • 5 GHz: 11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm, 11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm, 11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm, 11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm, 11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm, 11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm, 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm) |
| Package Contents | • Wi-Fi Router Archer AX95 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Standards | Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | •AX7800 • 5 GHz-1: 4804 Mbps (802.11ax, HE160) • 5 GHz-2: 2402 Mbps (802.11ax) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity | Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
Виж още Рутери Безжични TP-Link
Виж всички Рутери Безжични в категорията
Технически характеристики
| Безжична скорост: | 7800 Mbps |
|---|---|
| Wi-Fi Стандарт: | Wi-Fi 6E (802.11ax) |
| Честота: | 2.4 + 5 + 5 GHz |
| LAN портове: | 3 x 1000 Mbps |
| WAN портове: | 1 x 2500 Mbps |
| Антени: | 8 Външни |
| USB портове: | 1 x 2.0 + 1 x 3.0 |
| 3G/4G: | Не |
| Преносим: | Не |
| Други: | Няма |
| Жична скорост: | 10/100/1000/2500 Mbps |
