Рутер TP-Link Archer Air R5, 3000Mbps, 2.4GHz(574 Mbps) & 5GHz(2402 Mbps), Wireless AX, 1x LAN 10/100/1000Mbps RJ45, 1x WAN 10/100/1000Mbps RJ45, 4 вътрешни антени

Archer Air R5

AX3000 Dual-Band Wi-Fi 6 Air Router

• Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.1
• Smart Antennas – Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals.
• Ultra-Low Latency—Enables more responsive gaming and video chatting.
• TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
• EasyMesh-Compatible - Works with EasyMesh-compatible routers to create a whole home seamless mesh network.3
• Flexible Installation – Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket.

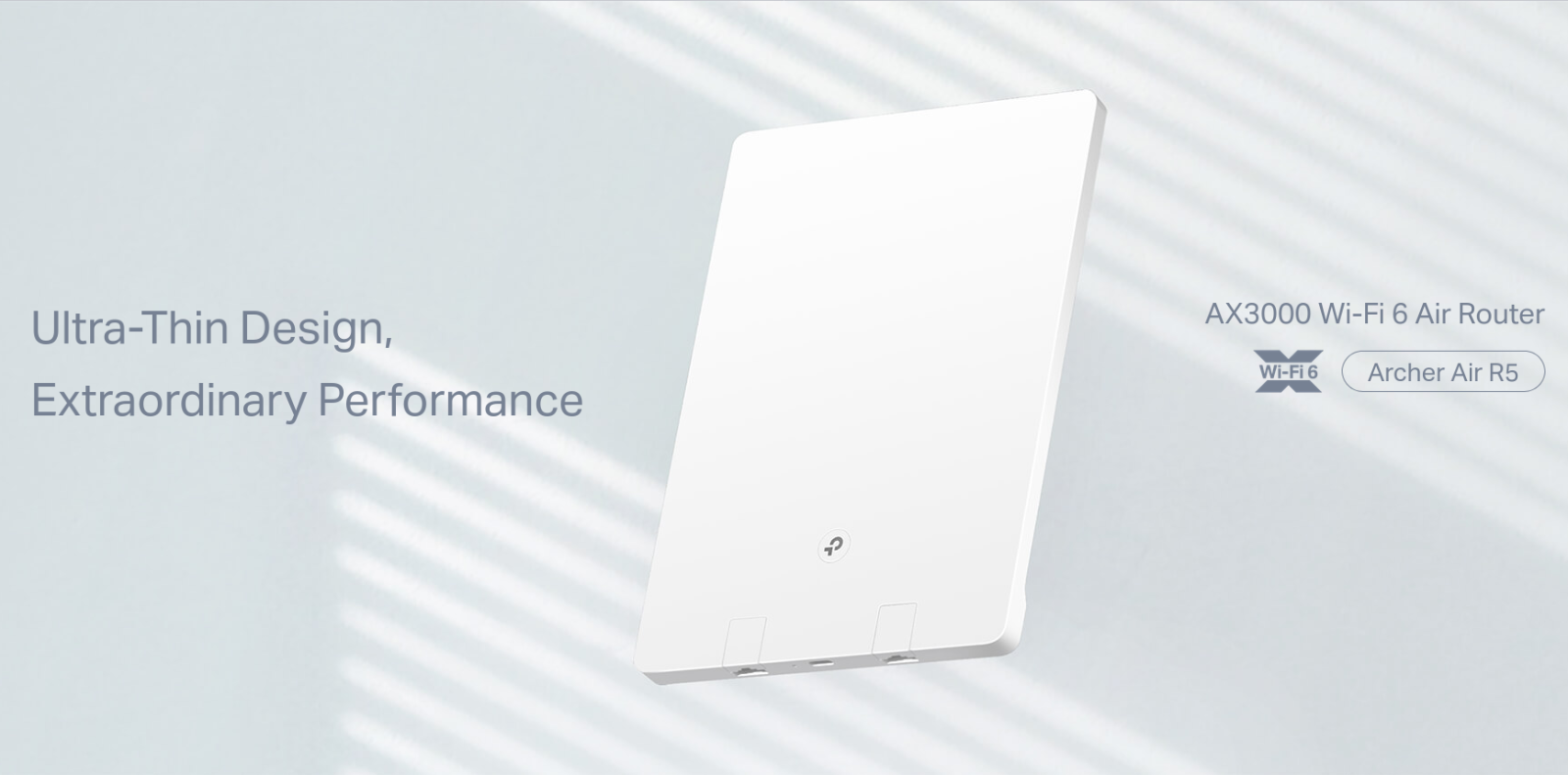

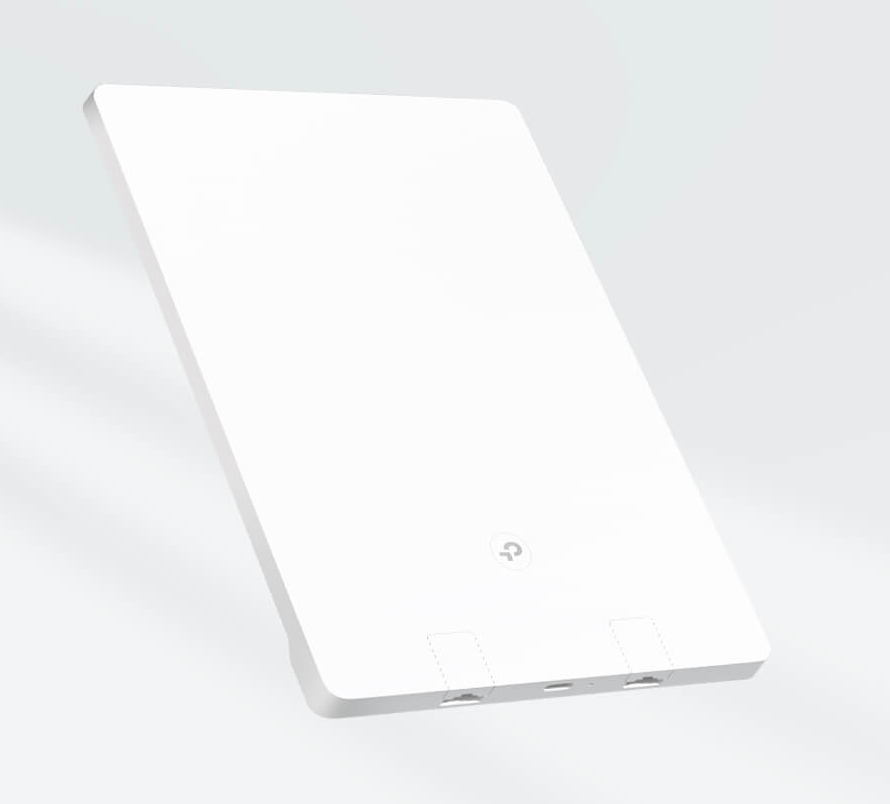

Ultra-Thin and Minimalist Design

Archer Air R5 has a compact size of 210×148×10.8mm and is even thinner than a wall outlet.



The pure white shell, minimalist lines and rounded corners form an elegant appearance and make Archer Air R5 better integrated with modern home interiors.



The LED and WPS 2-in-1 button on the front and the Type-C power port on the bottom further simplify Archer Air R5’s look.





Live in the Fast Lane with WiFi 6

Armed with AX3000 WiFi 6, Air R5 is built to deliver a huge boost in speed, capacity, and coverage.

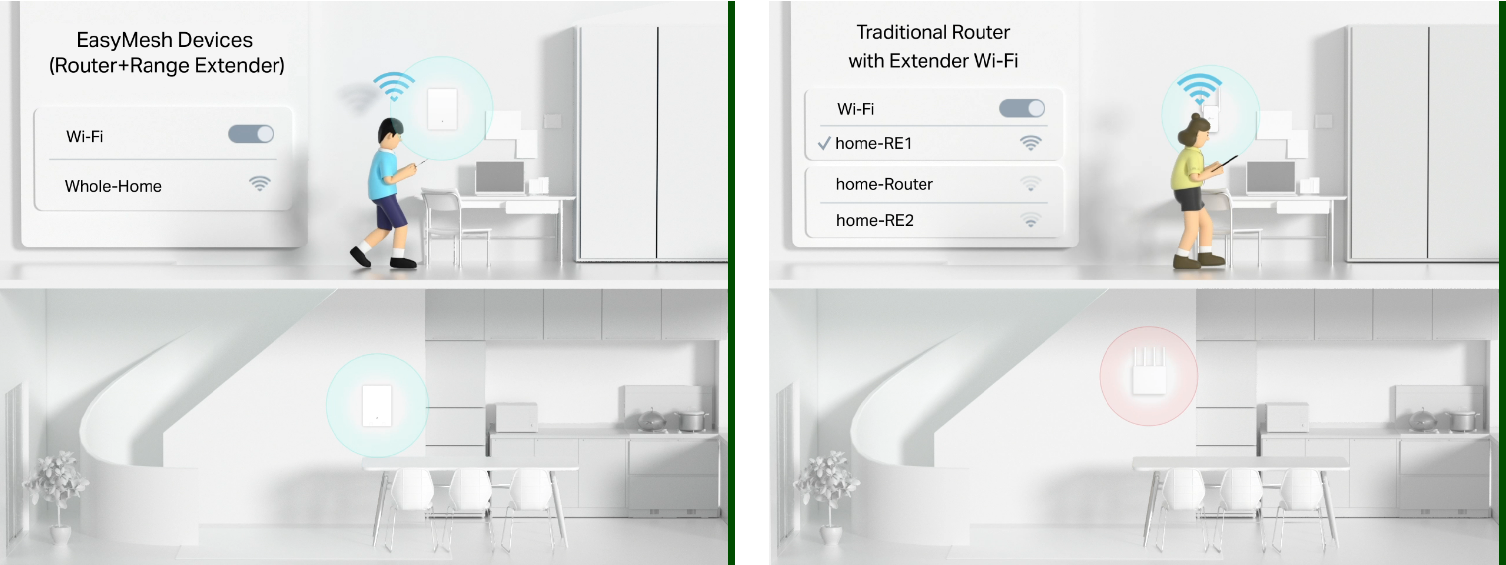

Flexibly Create Whole Home Mesh WiFi

Archer Air R5 is EasyMesh-compatible. If you have any dead zones at home, simply add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection. For a better network experience, we recommend combining with Archer Air E5.

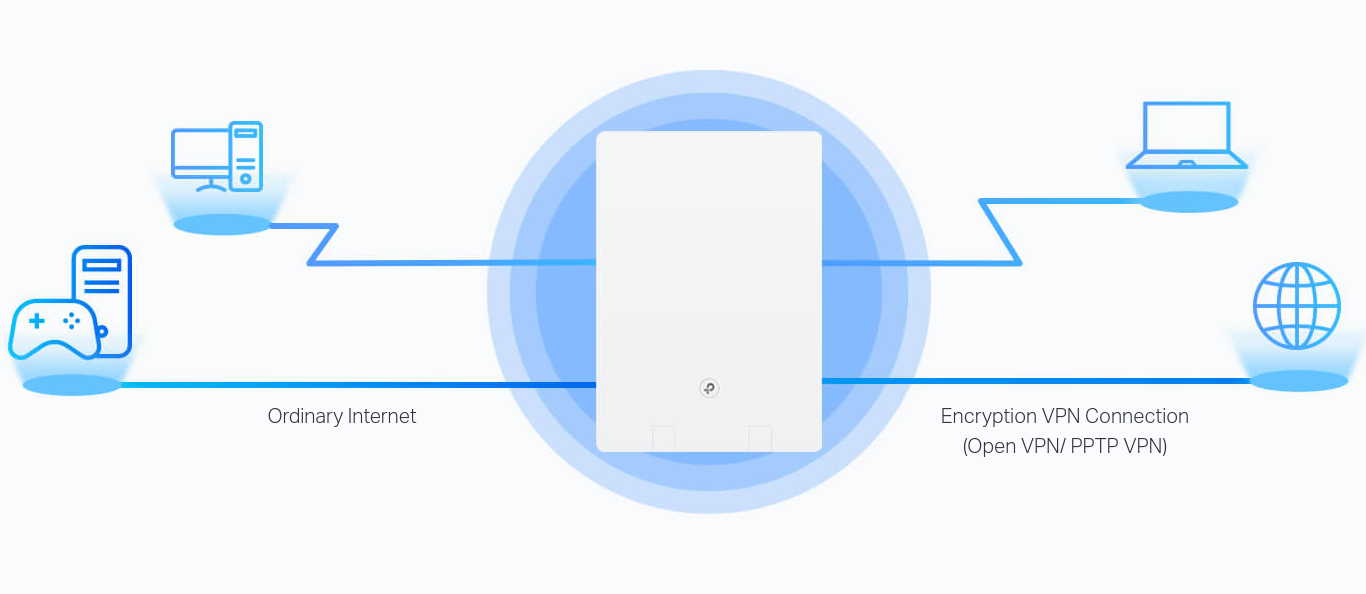

VPN Server: More Granular VPN Function Usage

When using the VPN Server function, external devices can access the VPN server, including remote desktops, NAS, printers, cameras, and other devices in the home network. Archer Air R5 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.





Specifications:

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	HighDual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode AP Mode

СИГУРНОСТ
Network Security	HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	PPTP ServerN OpenVPN ServerN
WiFi Encryption	WPA/WPA2 WPA3 WPA/WPA2-PSK

HARDWARE
Ethernet Ports	1× Gigabit WAN Port 1× Gigabit LAN Port
Бутони	WPS Button Reset Button

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPPoE + Dynamic IP  PPPoE + Static IP  L2TP + Dynamic IP  L2TP + Static IP  PPTP + Dynamic IP  PPTP + Static IP
Quality of Service	QoS by Device
Cloud Service	FOTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Fowarding Port Triggering DMZ UPnP
IPTV	Profile Bridge Custom Allowed range of VLAN ID
DHCP	DHCP Server Address Reservation DHCP Client List
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40~60℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90%

TEST DATA
WiFi Transmission Power	CE:  <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity	5GHz-band1: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 5GHz-band2: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 5GHz-band3: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm

PHYSICAL
Dimensions (W×D×H)	8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm)
