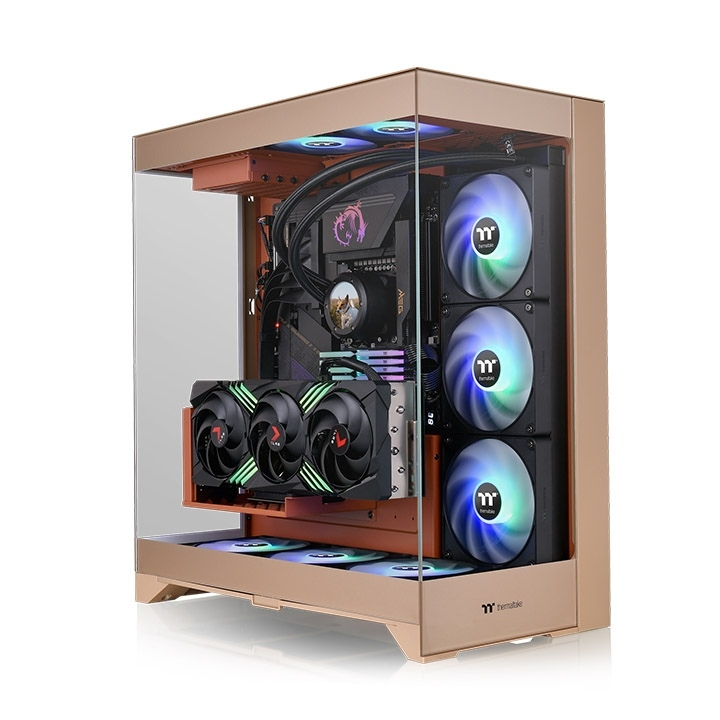

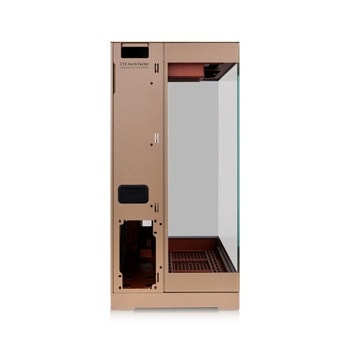

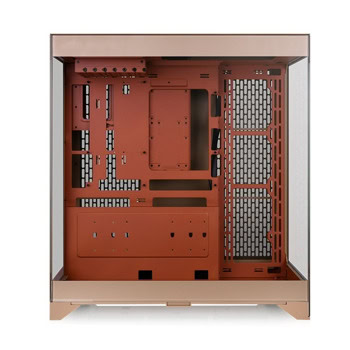

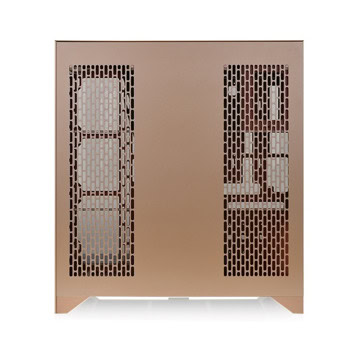

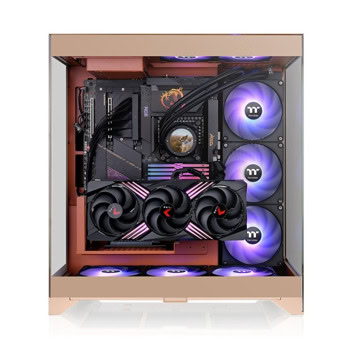

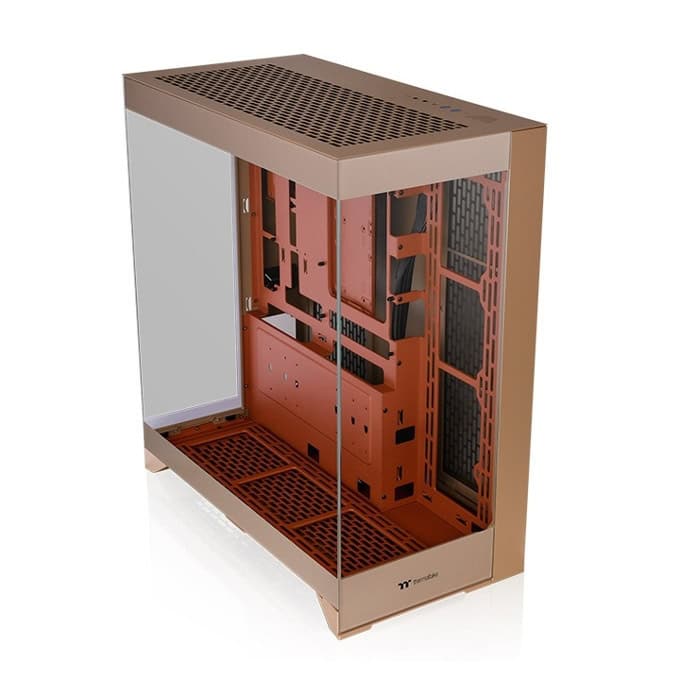

CTE E550 TG Mid Tower Chassis
Designed for an exceptional view, The CTE E550 TG is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.
Visual Perfection
The CTE E550 TG is a panoramic mid tower with tempered glass panels on the front, rear and left side. These crystal-clear panels offer an ultra-wide viewing angle normally only available with an open-frame chassis, providing an unparalleled visual display of your internal components.
Compatible with Hidden-Connector Motherboards
Created for next-generation motherboards, the CTE E550 TG features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
| Series | CTE |
|---|---|
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch) |
| NET WEIGHT | 14.5 kg / 31.97 lbs. |
| PANEL | 4mm Tempered Glass x 3 |
| Color | Brown |
| MATERIAL | SPCC |
| COOLING SYSTEM | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| I/O Port | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: 166mm VGA max length: 415mm (with radiator) 443.8mm (without radiator) PSU max length: 220mm |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Thermaltake
Виж всички Компютърни кутии в категорията
| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Бронз |
