TP-Link Omada IES208G
Omada 8-Port Gigabit Industrial Easy Managed Switch
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design


Industrial-Grade Protection Built for Harsh Environments

| Category | Specification | Details |
|---|---|---|
| Hardware Features | Interface | 6× 10/100/1000 Mbps RJ45 Ports; 2× Gigabit SFP/RJ45 Combo Slots; Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless | |
| Installation | DIN-rail mounting; Wall mounting | |

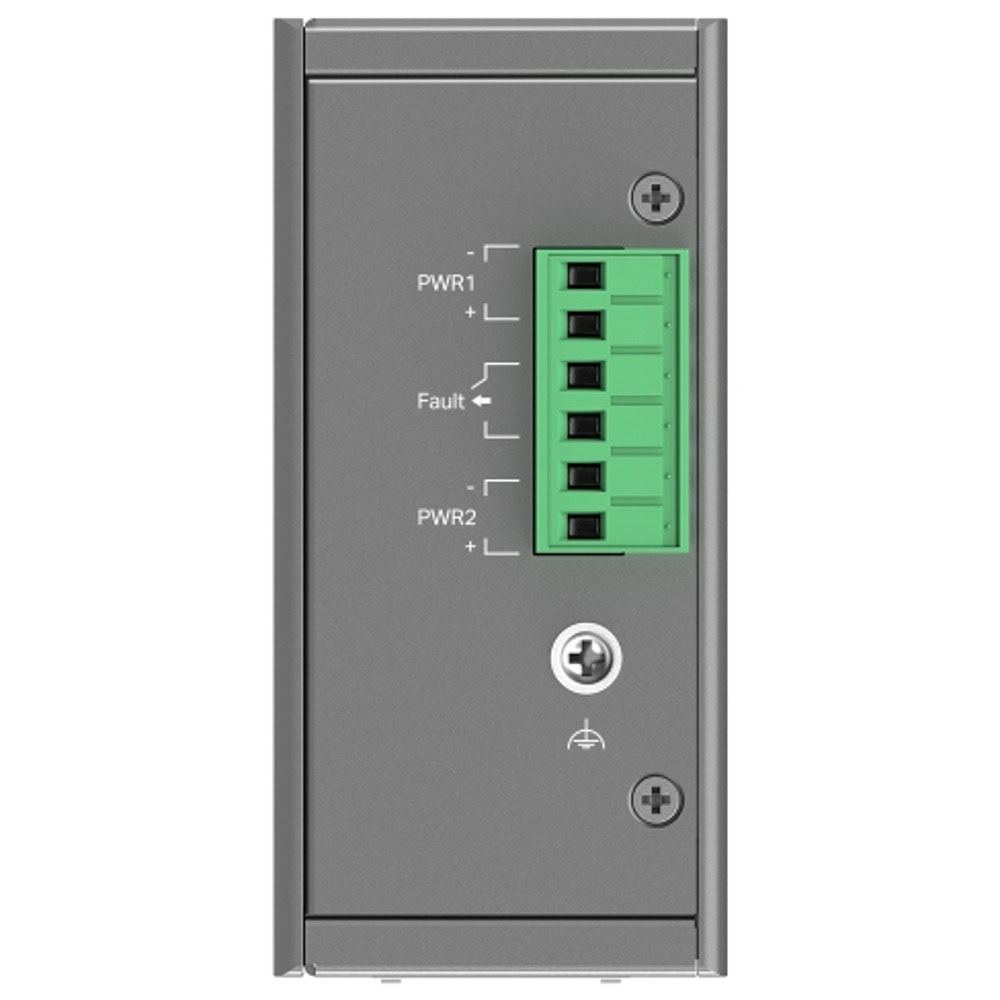

| Power Supply | 9.6-60V 1+1 Redundant DC Power Input | |
| Dimensions (W × D × H) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) | |
| Surge Protection | ±6 kV in common mode for Ethernet ports; ±4 kV in common mode for DC power input ports | |
| Performance | Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps | |
| MAC Address Table | 8K | |
| Packet Buffer Memory | 4 Mbit | |
| Jumbo Frame | 15 KB | |
| Software Features | Quality of Service | 802.1p DSCP Priority; 8 Priority Queues; Priority Schedule Mode - WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control - Port-Based Rate Limit; Storm Control - Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | Link Aggregation - Static Link Aggregation (Up to 2 aggregation groups and up to 4 ports per group); Loopback Detection; Flow Control - 802.3x Flow Control; Mirroring - Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both); Port Statistics - Port Mirror Status, Traffic Statistics; 802.1ab LLDP; Spanning Tree - STP (802.1d), RSTP (802.1w) | |
| L2 Multicast | IGMP Snooping - IGMP v1/v2/v3 Snooping, Fast Leave | |
| VLAN | MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN - Max 32 VLAN Groups, 4K VID | |
| Transmission Method | Store-And-Forward | |
| Management Features | Omada App | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller | |
| Cloud Access | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller | |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller | |
| Management Features | Web-based GUI; DHCP Client; Cable Diagnostics; Digital Diagnostic Monitoring (DDM); Automatic Device Discovery†; Batch Configuration†; Batch Firmware Upgrading†; Unified Configuration† | |
| Others | Certification | FCC, CE, RoHS |
| Package Content | IES208G; DIN-Rail Mounting Bracket; Wall-Mounting Plates; Installation Guide | |
| Environment | Operating Temperature: -40℃~75℃ (-40℉~167℉); Storage Temperature: -40℃~85℃ (-40℉~185℉); Operating Humidity: 5%~95% non-condensing; Storage Humidity: 5%~95% non-condensing |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
| Брой портове: | 8 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | Не е указано |
| Управляем: | Да |
