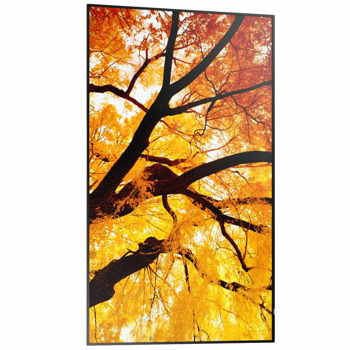

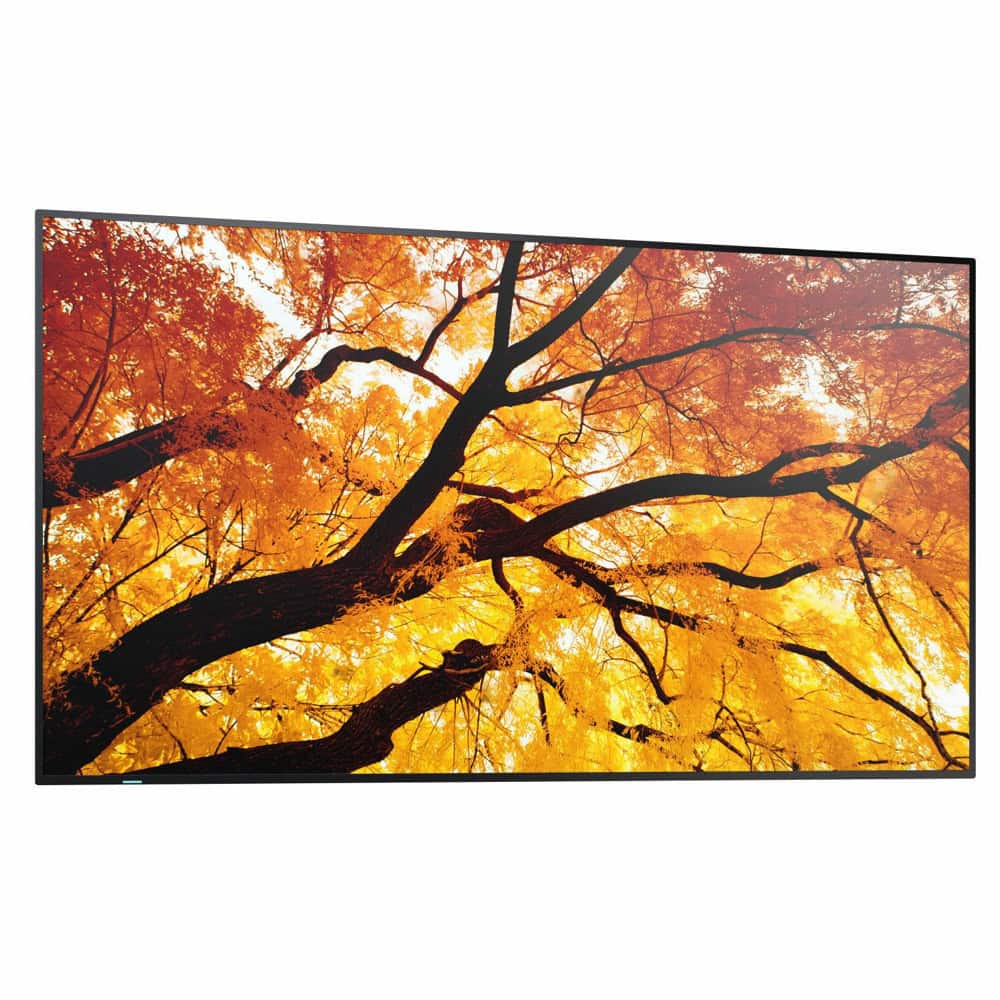

Публичен дисплей Sharp 60006055 M552, 55" (139.7 cm) 4K/UHD дисплей, DisplayPort, HDMI, USB, USB-C, RS232, LAN

id 301710 Код: MNSPSHARP60006055
ОписаниеХарактеристикиРевюта / ВъпросиДокументация

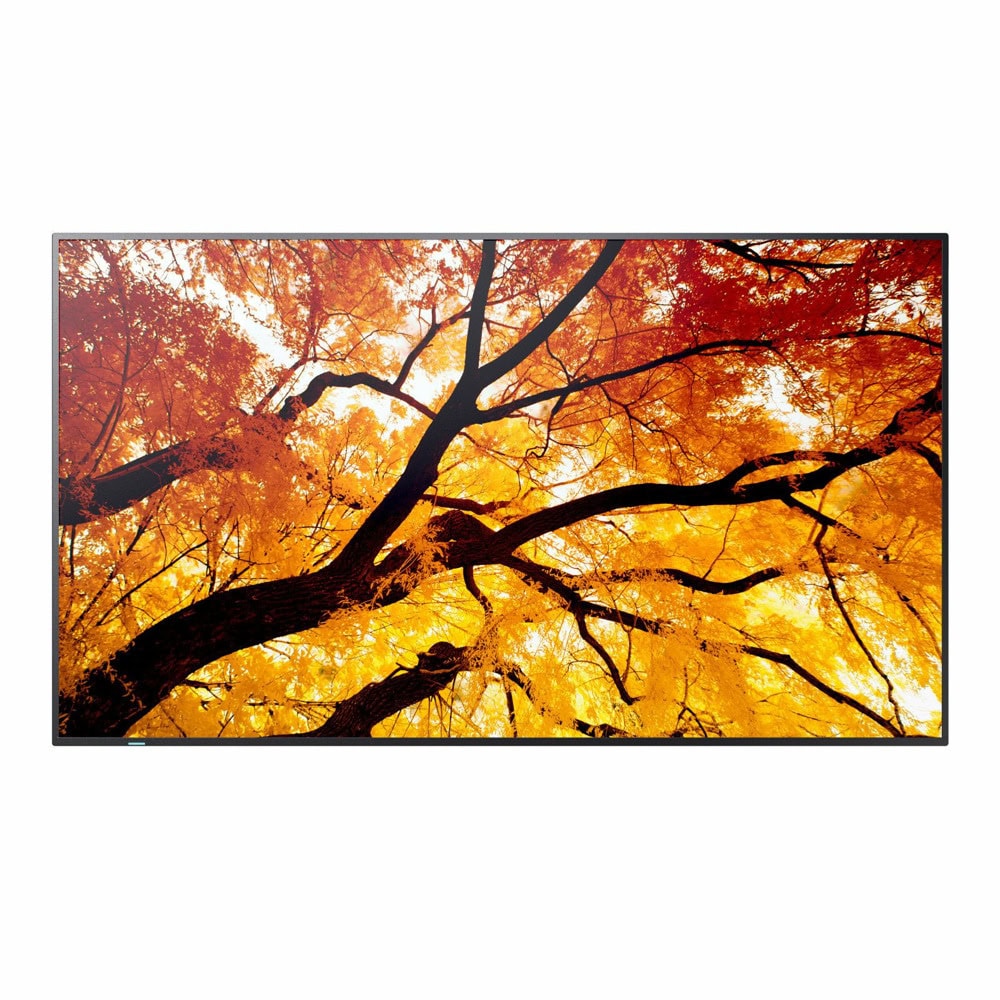

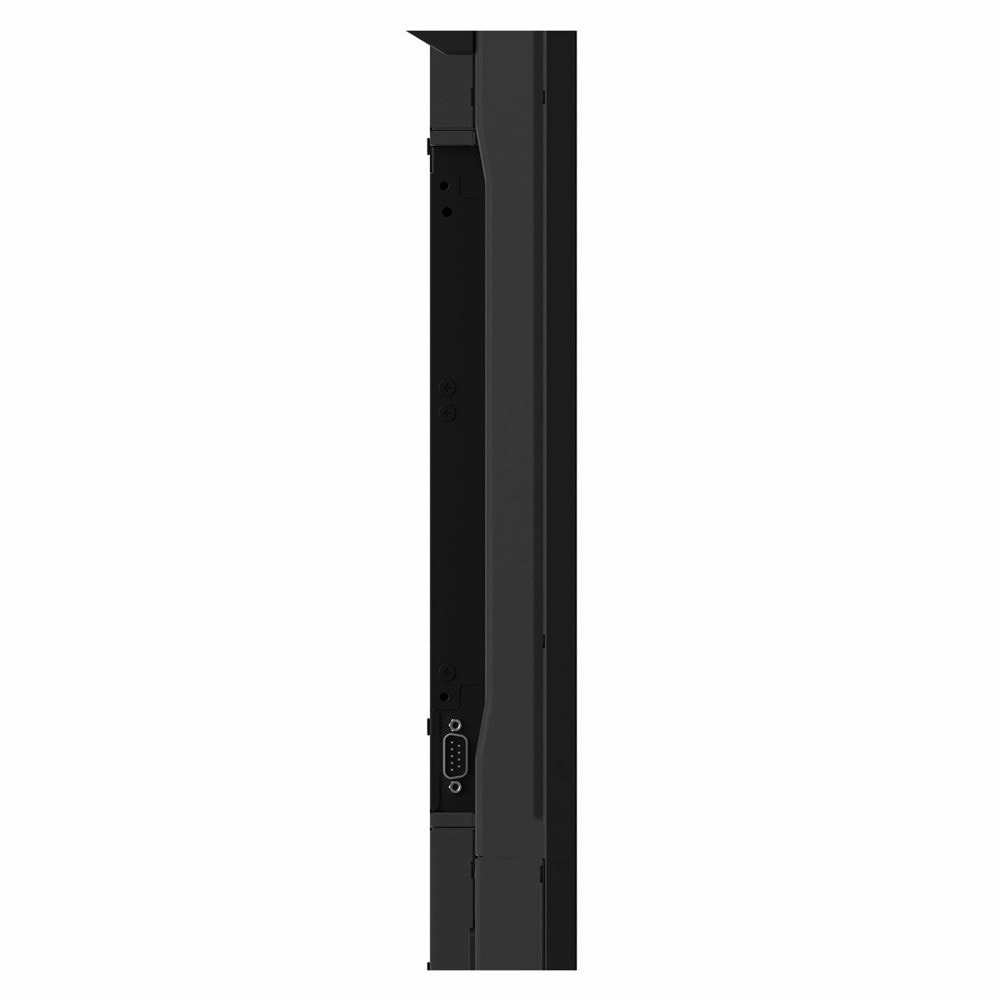

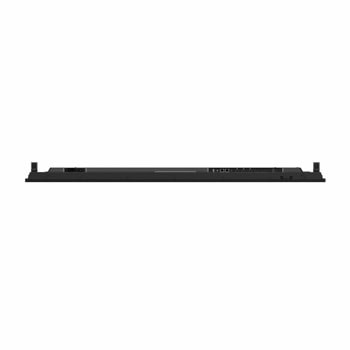

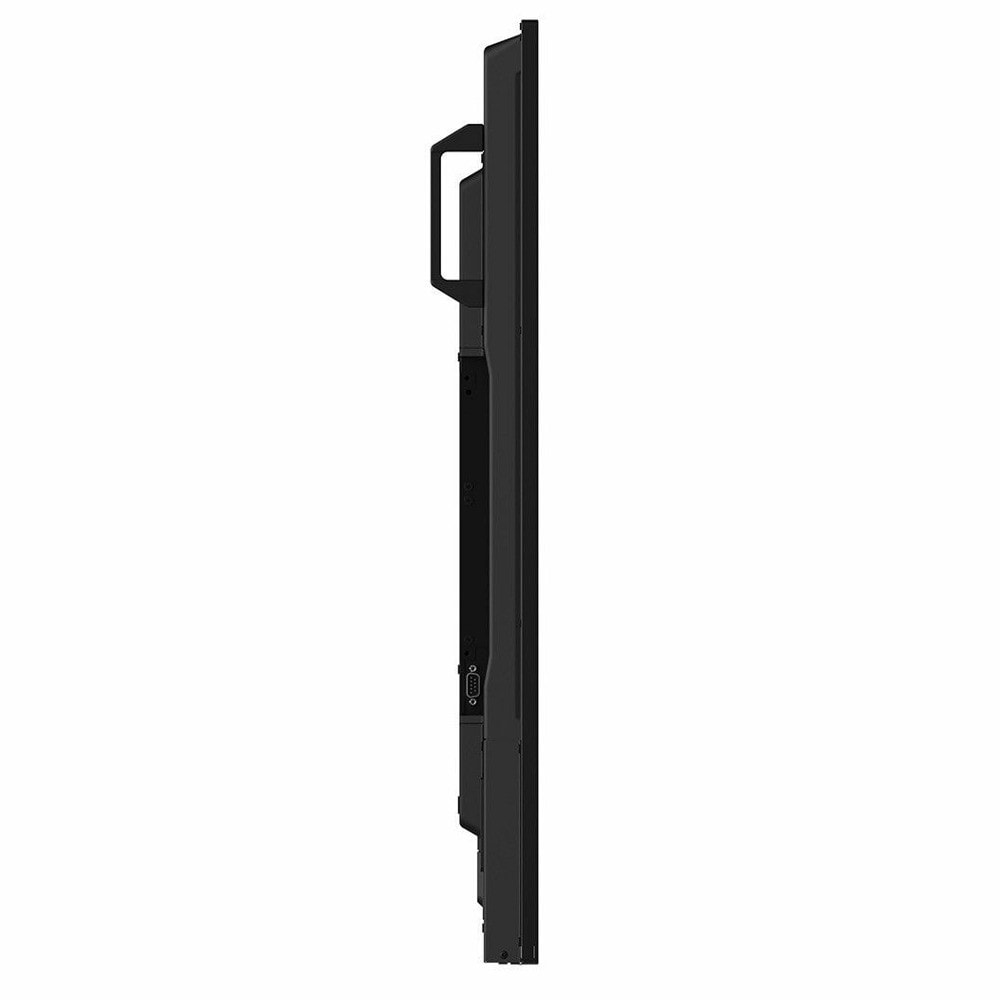

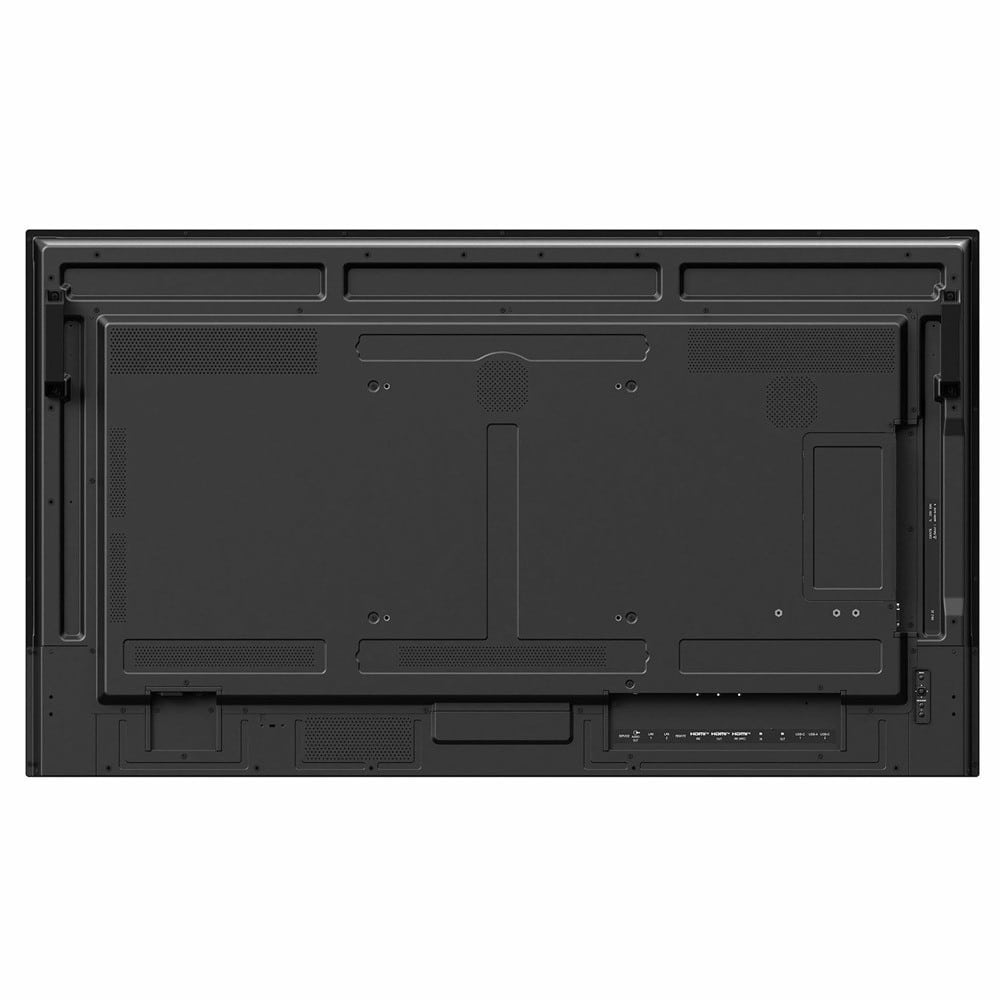

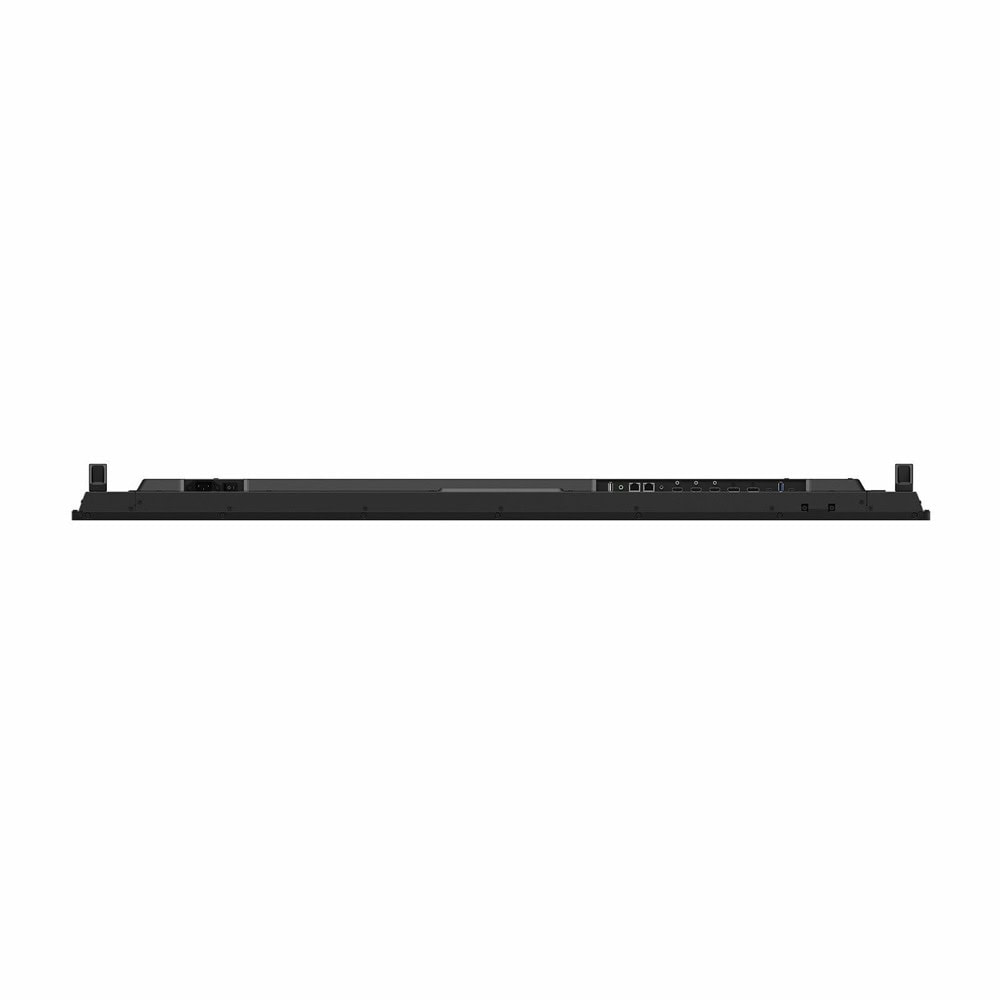

Sharp 60006055 M552

Built to perform, designed to last

The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98")  is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.

As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.

Benefits

  • Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
  • Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
  • Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
  • Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
  • Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.



SpecificationValue
Display Panel TechnologyIPS with Direct LED backlights
Active Screen Area (W × H)1,209.6 × 680.4 mm
Screen Size55 inch / 138.8 cm
Aspect Ratio16:9
Pixel Pitch0.315 mm
Brightness550 cd/m²
Contrast Ratio≥ 8000:1
Viewing Angle178° horizontal / 178° vertical (typ. at CR 10:1)
Colour Depth1.073 bn colors (10-bit)
Colour Gamut72% NTSC
Response Time (typ.)8 ms
Panel Refresh Rate60 Hz
Haze LevelPro (25%)

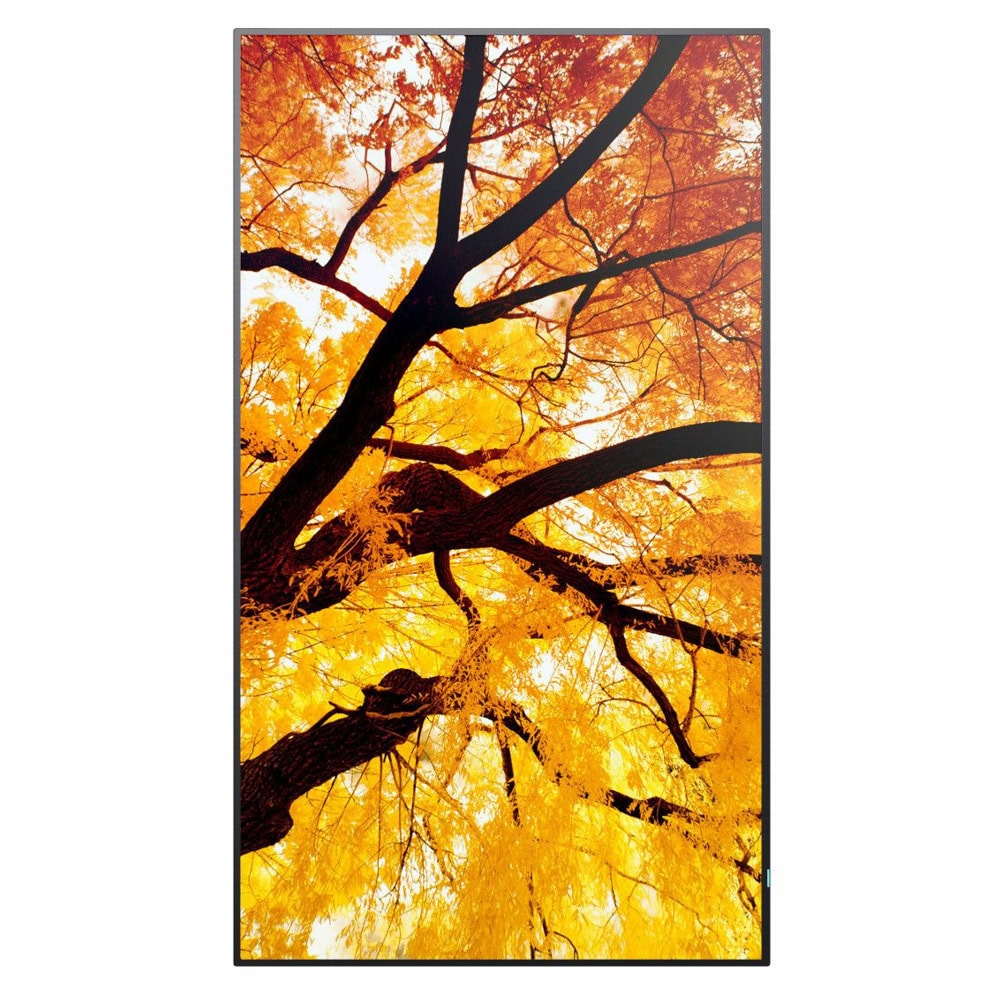

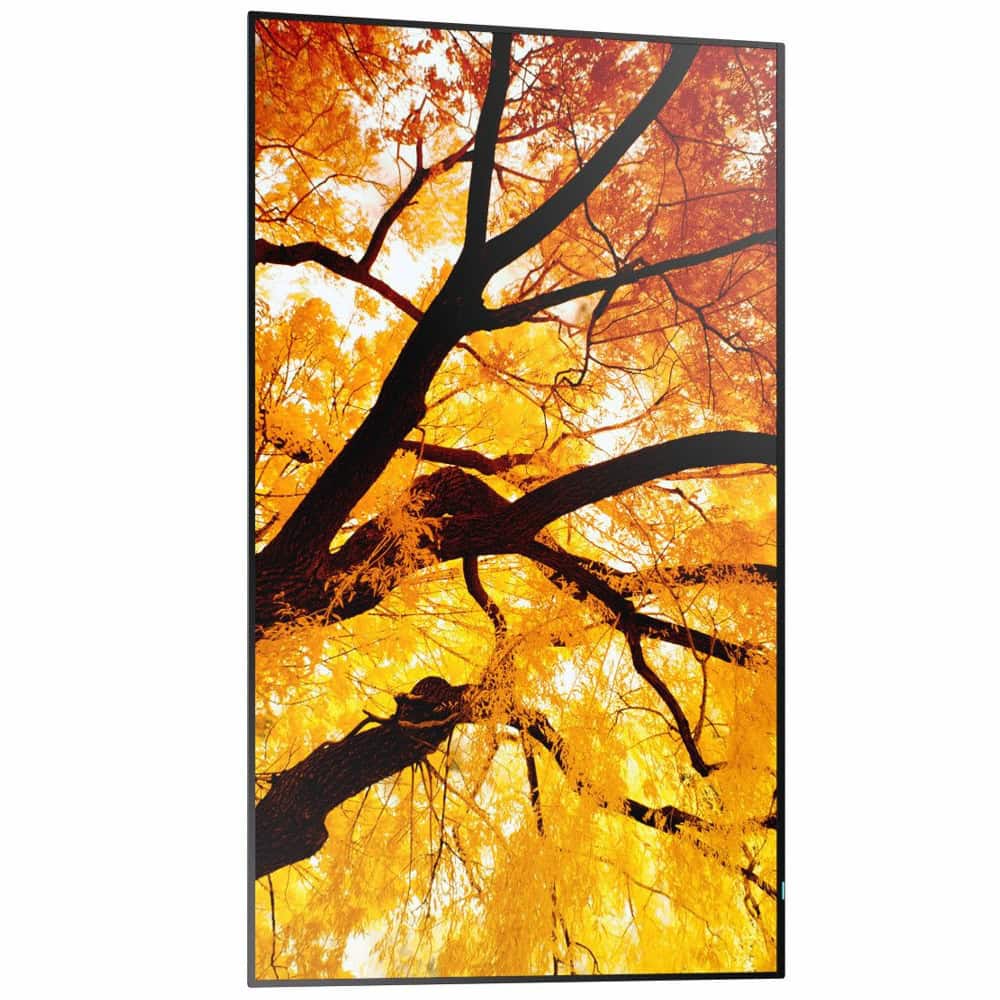

Supported OrientationFace Up; Landscape; Portrait
Native Resolution3840 × 2160 (UHD)
Supported Resolutions640×480; 720×400; 720×480; 720×576; 800×600; 1024×768; 1270×720; 1280×720; 1280×800; 1280×1024; 1360×768; 1366×768; 1400×1050; 1440×900; 1600×1200; 1680×1050; 1920×1080; 1920×1200; 1920×2160; 3840×2160; 4096×2160
Horizontal Frequency15 – 135 kHz
Vertical Frequency23 – 76 Hz

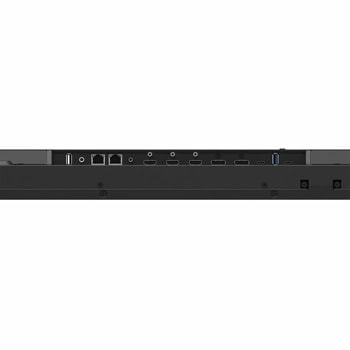

HDMI IN 1UHD 60 Hz; HDCP 2.2; Audio In; ARC; CEC
HDMI IN 2UHD 60 Hz; HDCP 2.2; Audio In; CEC
HDMI OUTUHD 60 Hz; HDCP 2.2; Audio Out; Loop Through (HDMI IN 2, Option, Compute Module)
DisplayPort INUHD 60 Hz; DP 1.2; HDCP 2.2; Audio In
DisplayPort OUTUHD 60 Hz; DP 1.2; HDCP 2.2; Audio Out; Loop Through
USB-A 1USB 2.0 / 3.2; 4.5 W; Peripherals; Storage
USB-A (Service)2.5 W; Service
USB-C 1Video In UHD 60 Hz; DP Alt 1.2; HDCP 2.2; Audio In; USB 2.0 / 3.2; 65 W
USB-C 2USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
Audio Output3.5 mm Line Out
LAN 1100 Mbit/s
LAN 2Loop Through (LAN, RS-232C, IR); 100 Mbit/s
RS-232C9600 bps
Remote In3.5 mm
Eco Sensor SupportIR-Extender; Ambient & Presence
Input DetectCustom; Last; First
PiP / PbP2-Split; Scalable picture size
Factory CalibrationGamma; Intensity; RGB; Uniformity; White Point
Software CalibrationCorner Uniformity; Gamma; RGB; White Point; Update Factory Calibration
Calibration SoftwareDisplay Wall Calibrator
Open Modular IntelligenceIntel® SDM (Large & Small up to 66 W)
Compute Module SlotMPi4 / MPi5 Kit (Raspberry Pi powered)
Ambient Light SensorIntegrated; programmable actions
Human SensorOptional via Eco Sensor (KTES1)
Temperature SensorsIntegrated; 3 sensors; programmable
Power Consumption105 W (shipping)
Power Saving Mode< 0.5 W; < 2 W (Networked Standby)
Power ManagementVESA DPMS
Power Supply100–240 V AC; 50/60 Hz; internal
Operating Temperature0 to +40 °C
Operating Humidity20 – 80 %
Storage Temperature−20 to +60 °C
Storage Humidity10 – 80 %
Dimensions (W × H × D)1,235.6 × 709.3 × 59.5 mm
Weight20.5 kg
Bezel Width11 mm (L/R/Top); 13.9 mm (Bottom)
VESA Mount300 × 300 mm; 4 holes; M6
Ingress ProtectionIP5x (Front); IP2x (Back)
Packaging Dimensions1,390 × 850 × 160 mm
Packaging Weight27 kg
MaterialMetal
Available AccessoriesEco Sensor; Feet; Remote Kit; Soundbar; Speaker; Trolley; USB-C Cables; Wall Mounts
Safety & ComplianceCE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL / CSA
Pixel Failure ClassISO 9241-307, Class 1
Fire ResistanceMetal back cover; UL94-5VB certified plastic
Energy Efficiency103 kWh/1000 h; Class G; LED Backlight
Ecological StandardEnergyStar 8.0
3rd-Party CertificationsCrestron CCV2; XiO Cloud




    Виж още Специализирани Монитори Sharp
    Виж всички Специализирани Монитори в категорията
    Документация
    Технически характеристики
    Екран размер:  55" (139.7 cm)
    Тип:  Дисплей
    Енергиен клас:  G
