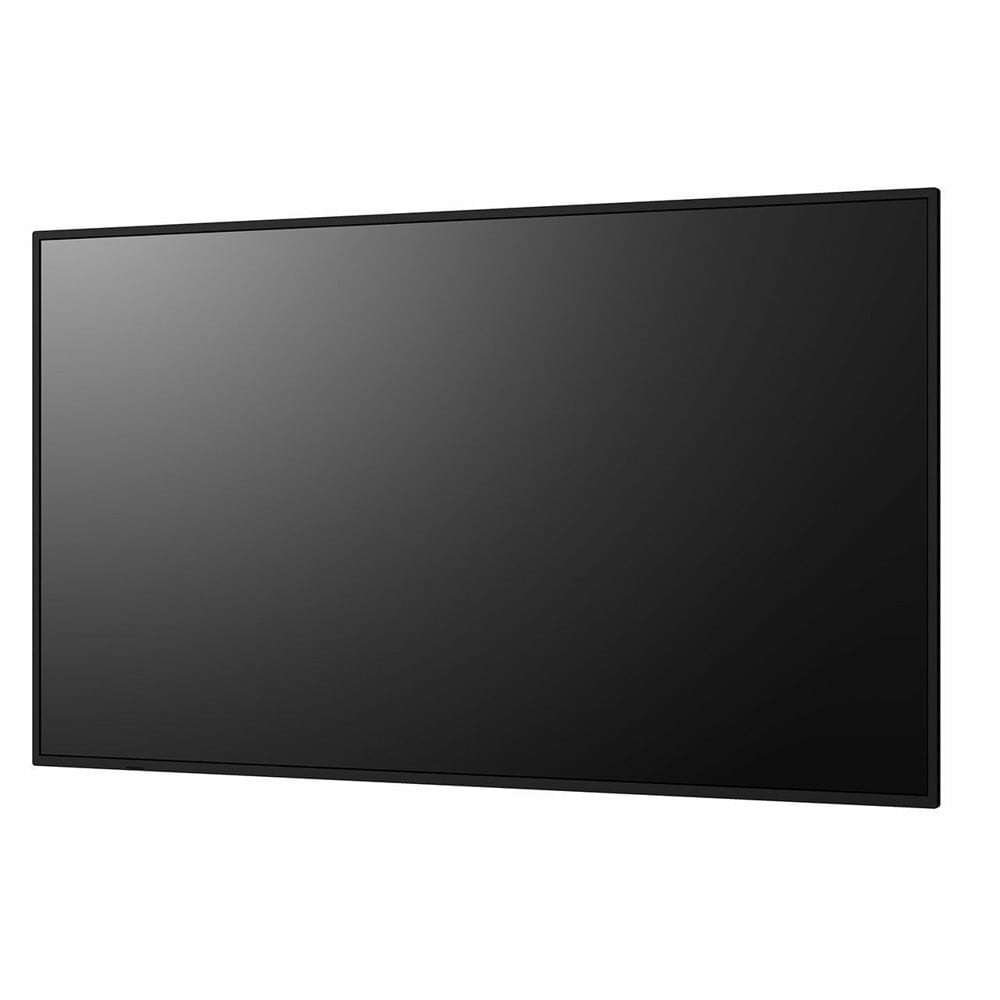

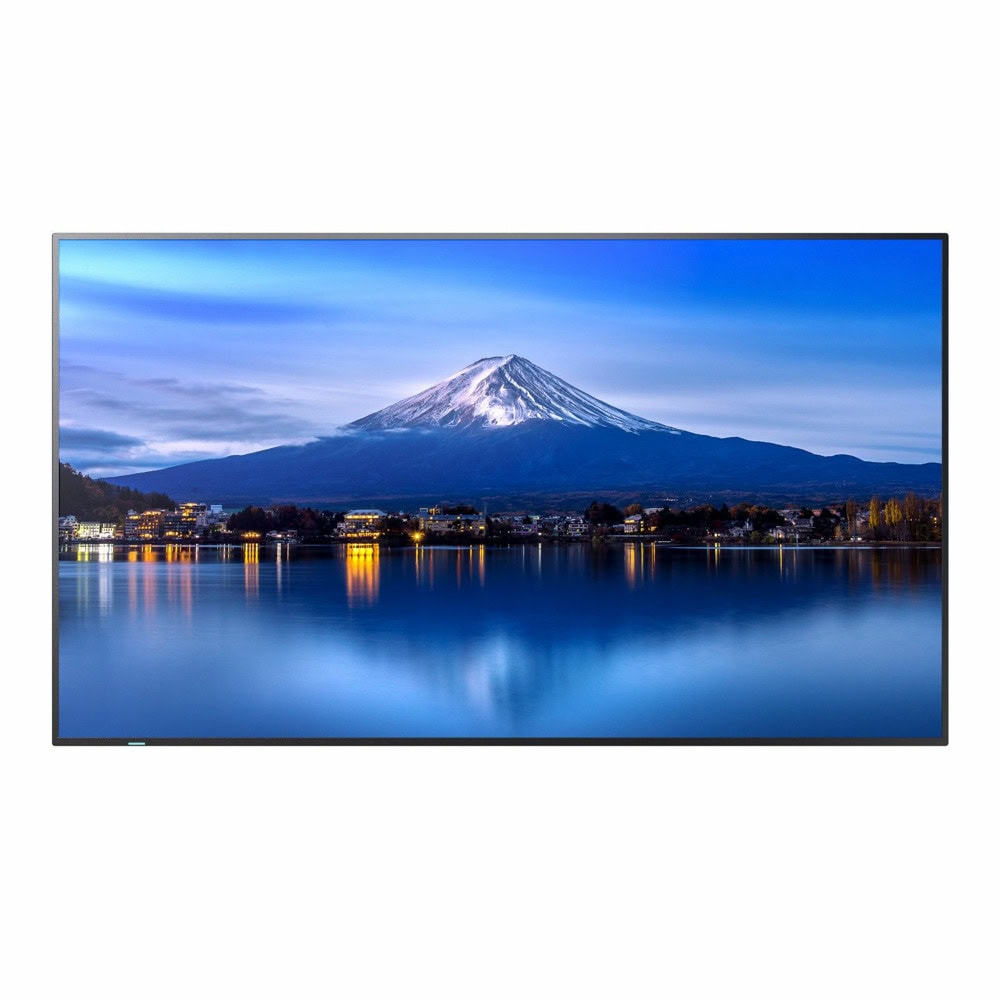

Публичен дисплей Sharp 60005916 P556, 54.6" (138.6 cm) 4K/UHD дисплей, DisplayPort, HDMI, USB, USB-C, RS232, LAN

id 301712 Код: MNSPSHARP60005916
ОписаниеХарактеристикиРевюта / ВъпросиДокументация

Sharp 60005916 P55

Precision performance for critical applications

When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.

Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.

Benefits

  • Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
  • Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
  • Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
  • Mission-critical performance – with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
  • Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.



CategorySpecificationDetails
DisplayPanel TechnologyIPS with Direct LED backlights
 Active Screen Area (W x H) [mm]1,209.6 x 680.4
 Screen Size [inch/cm]54.6 / 138.8
 Aspect Ratio16:9
 Pixel Pitch [mm]0.315
 Brightness [cd/m²]700
 Contrast Ratio≥ 8000:1
 Viewing Angle [°]178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
 Colour Depth [bn]1.073 (10bit)
 Colour Gamut92% of DCI
 Response Time (typ.) [ms]8
 Panel Refresh Rate [Hz]60
 Haze Level [%]Pro (25)

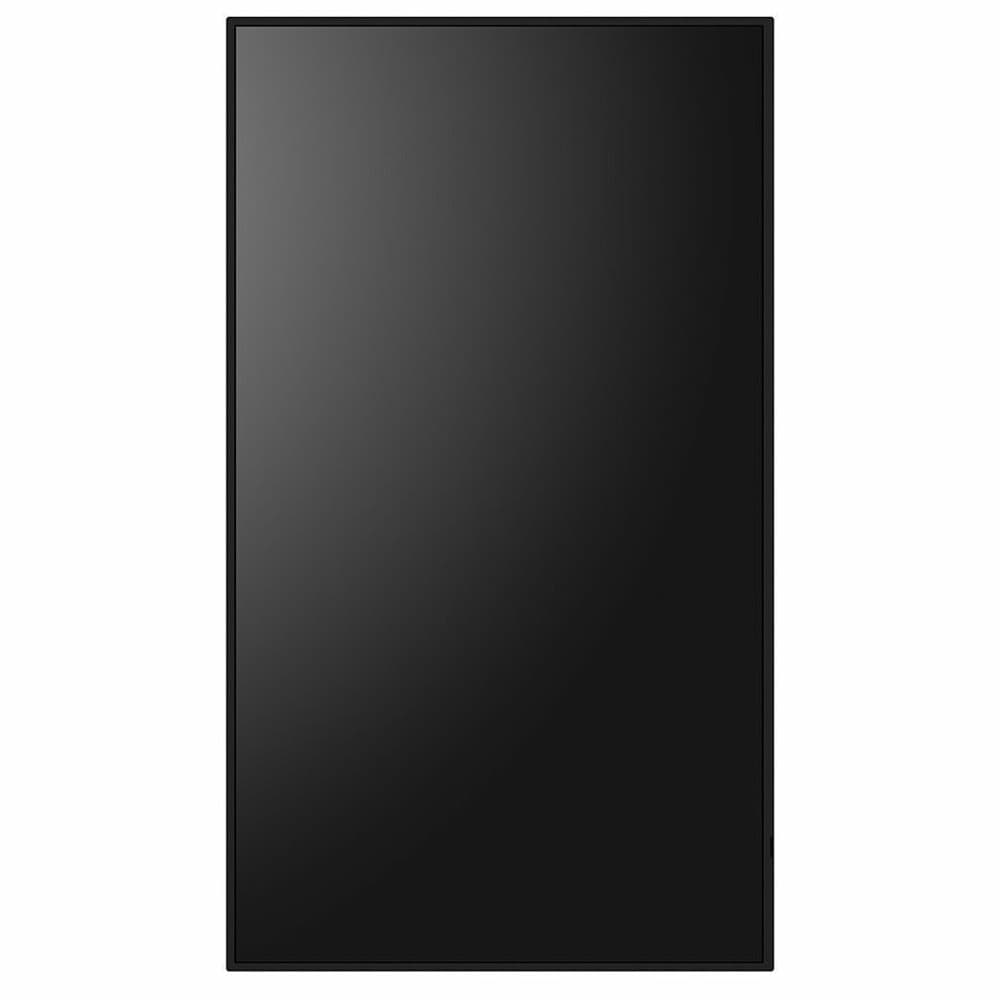

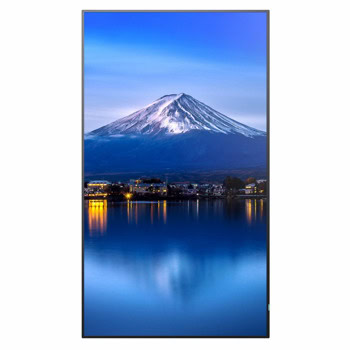

 Supported OrientationFace Down; Face Up; Landscape; Portrait
ResolutionNative Resolution3840 x 2160
 Supported Resolutions1024 x 768; 1270 x 720; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600
Synchronisation RateHorizontal Frequency [kHz]15 - 135
 Vertical Frequency [Hz]23 - 76

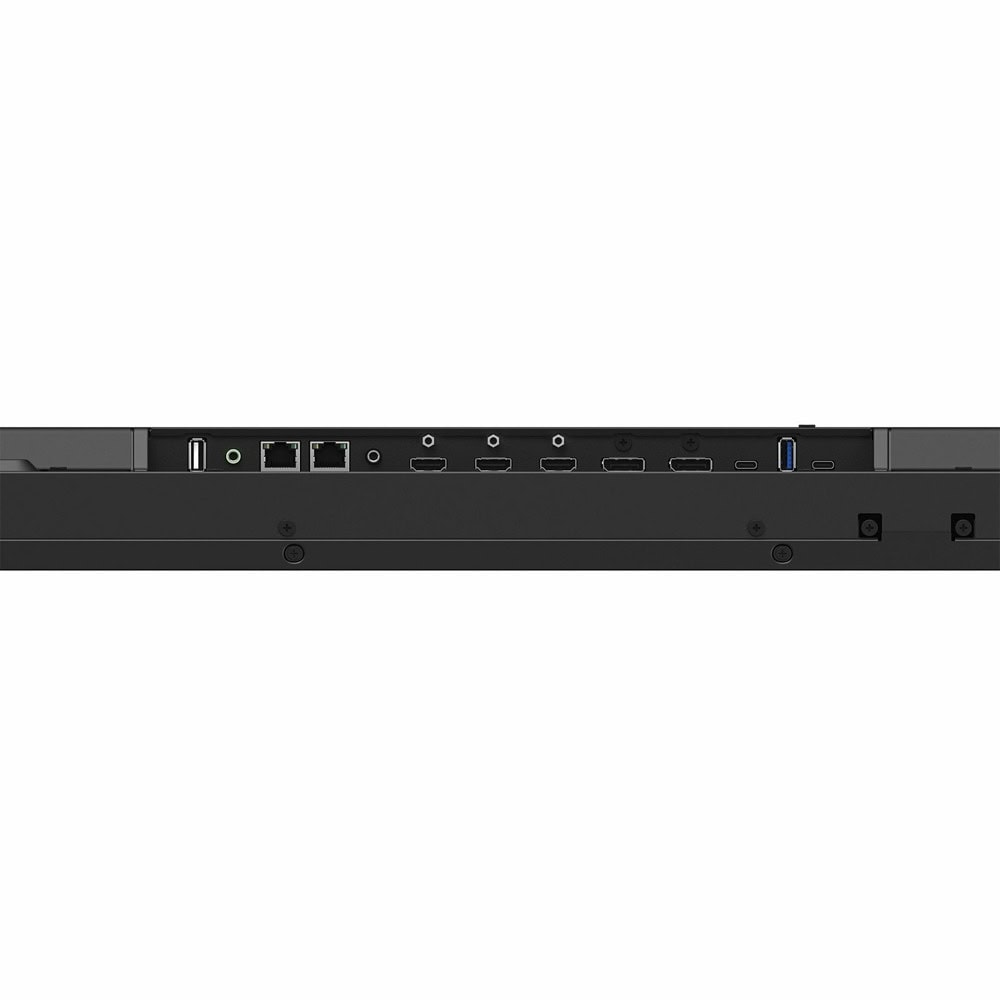

ConnectivityHDMI IN 1Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
 HDMI IN 2Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
 HDMI OUTVideo Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module
 DP IN 1Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
 DP OUTVideo Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2
 USB-A 1USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage
 USB-A (Service)2.5 W; Service
 USB-C 1Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W
 USB-C 2USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
 Audio Output (3.5 mm)Audio Output; Line Out
 LAN 1100 MBit/s
 LAN 2Loop Through: LAN 1, RS-232C, IR; 100 MBit/s
 RS-232C9600 bps
 Remote In (3.5 mm)Eco Sensor (IR-Extender, Ambient and Presence)
 Input DetectCustom; Last; First
 PiP / PbP2-Split; Scalable picture size
CalibrationFactory CalibrationGamma; Intensity; RGB; Uniformity; White Point
 Calibration with SoftwareCorner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
 Calibration SoftwareDisplay Wall Calibrator
Open Modular IntelligenceIntel® SDMAccepts Intel® Smart Display Modules Large and Small up to 66 W
 Compute Module SlotMPi4 and MPi5 Kit (powered by Raspberry Pi)
SensorsAmbient Light SensorIntegrated, triggered actions programmable
 Human SensorOptional via Eco Sensor (KTES1)
 Temperature SensorIntegrated, 3 sensors, triggered actions programmable
ElectricalPower Consumption [W]115 shipping
 Power Savings Mode [W]< 0.5; < 2 (Networked Standby)
 Power ManagementVESA DPMS
 Power Supply100-240 V AC; 50/60 Hz; internal
Environmental ConditionsOperating Temperature [°C]+0 to +40
 Operating Humidity [%]20 to 80
 Storage Humidity [%]10 to 80
 Storage Temperature [°C]-20 to 60
MechanicalDimensions (W x H x D) [mm]1,235.6 x 709.3 x 59.5
 Weight [kg]20.5
 Bezel Width [mm]11 (left, right, top); 13.9 (bottom)
 VESA Mounting [mm]300 x 300 (FDMI); 4 holes; M6
 Ingress ProtectionIP5x (front); IP2x (back)
 Packaging Dimensions (W x H x D) [mm]1,390 x 850 x 160
 Packaging Weight [kg]27
 MaterialMetal
Available OptionsAccessoriesEco Sensor (KTES1); Feet (ST-43M); Remote control kit (KTRC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04 Tipster, L20PNSR780MEU); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (PDW S 32-65 L, PDW S 32-65 P, L20PNWALL90EU, PDW T XL-2)
RegulatorySafety and ErgonomicsCE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
 Pixel Failure ClassISO 9241-307, Class 1
 Resistance to FireMetal backcover, plastic material certified acc. to UL94-5VB
Green FeaturesEnergy EfficiencyEnergy consumption: 102 kWh/1000 h; Energy efficiency class: G; LED backlight
 Ecological StandardsEnergyStar 8.0
3rd Party CertificationsCrestronCertified for Crestron CCV2 and XiO Cloud
Additional FeaturesSpecial CharacteristicsCEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
 Colour VersionsBlack Front Bezel, Black Back Cabinet
 AudioIntegrated Speakers (10 W + 10 W)
 Shipping Content2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
 Warranty3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
 Operating Hours24/7
 External ControlAMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
 Remote ManagementNaViSet Administrator 2
 SecurityDisable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)
