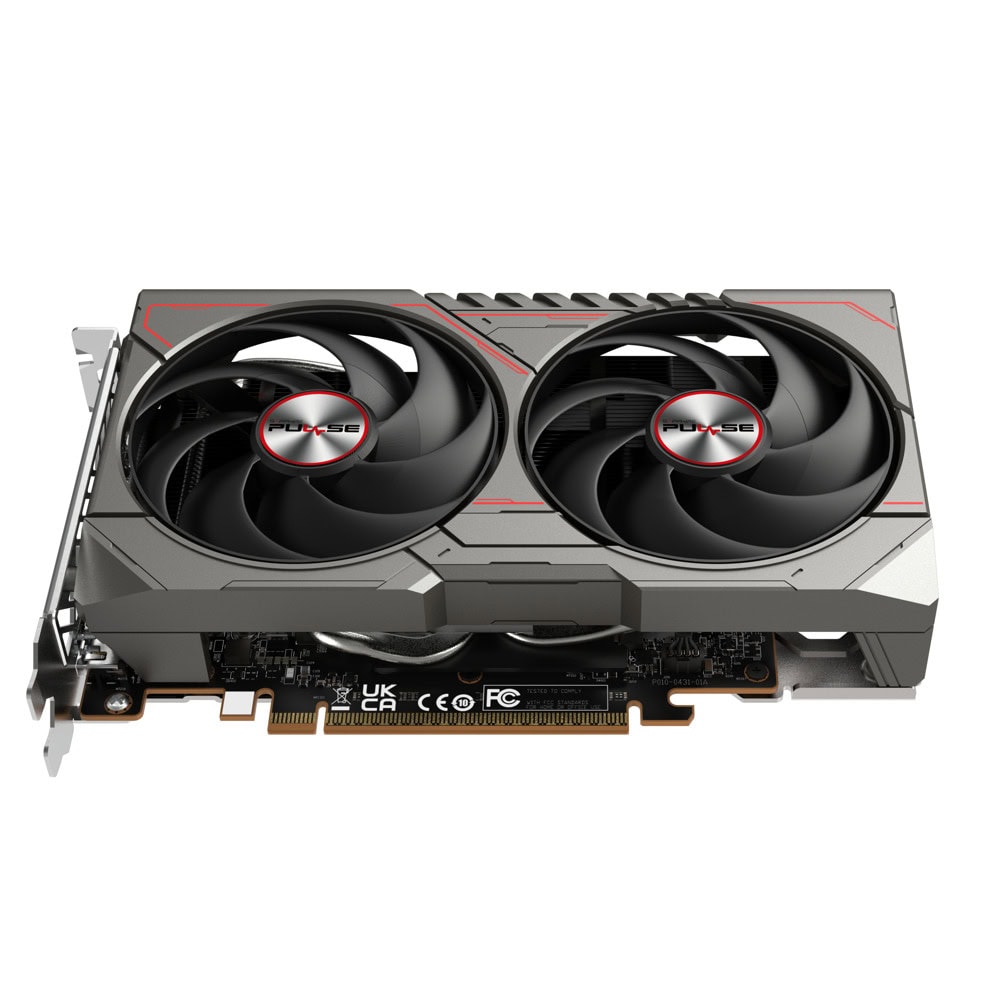

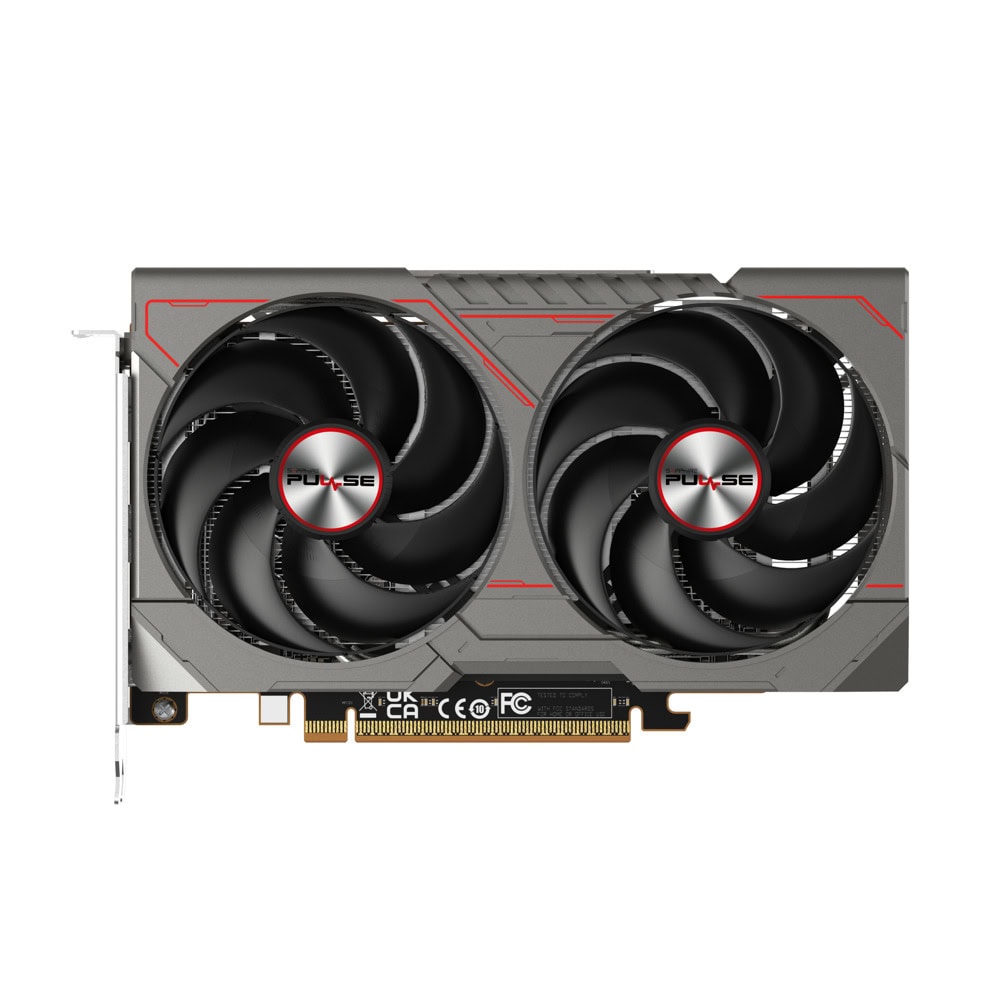

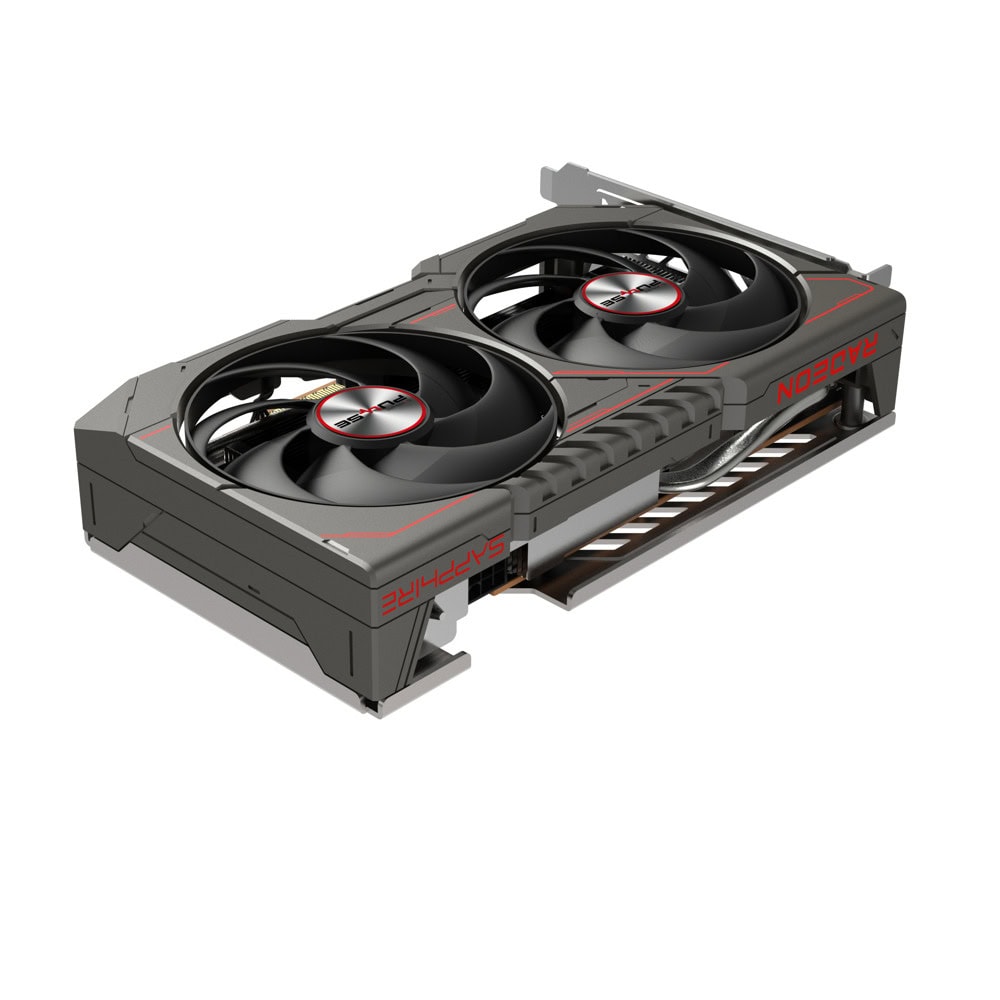

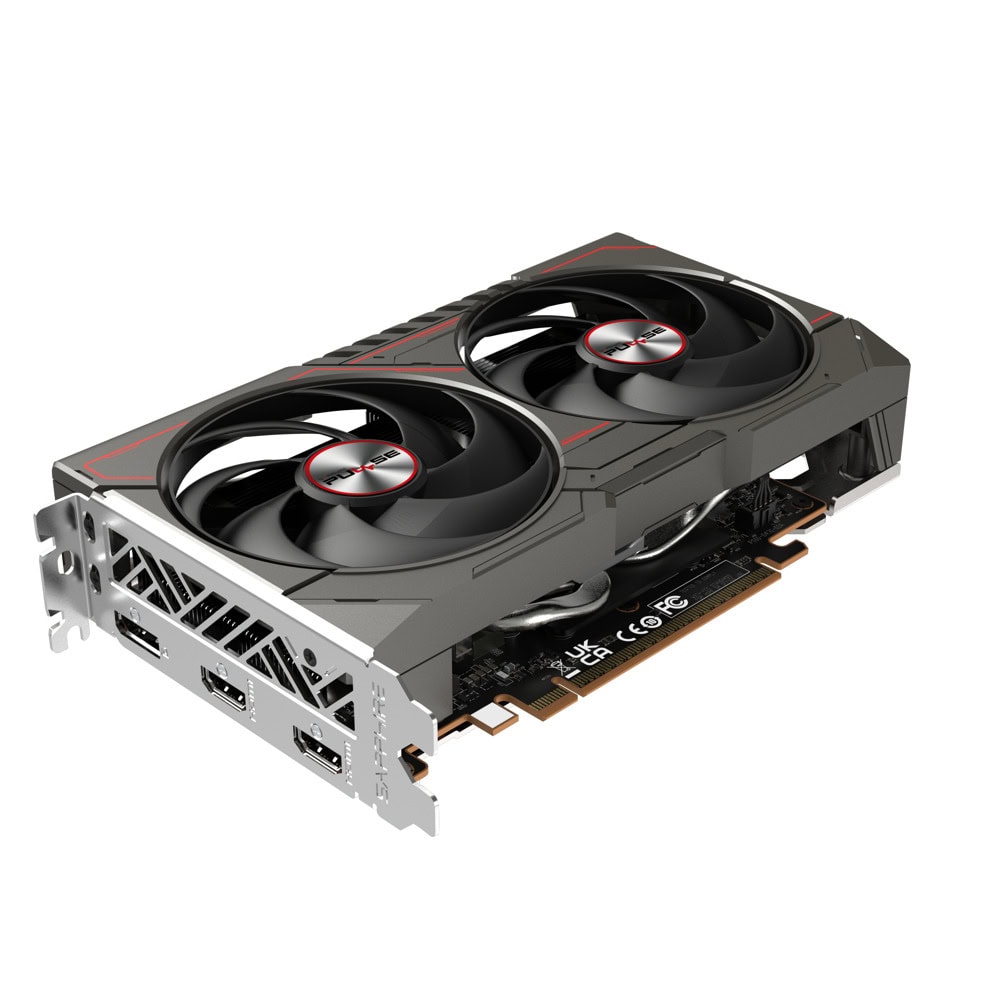

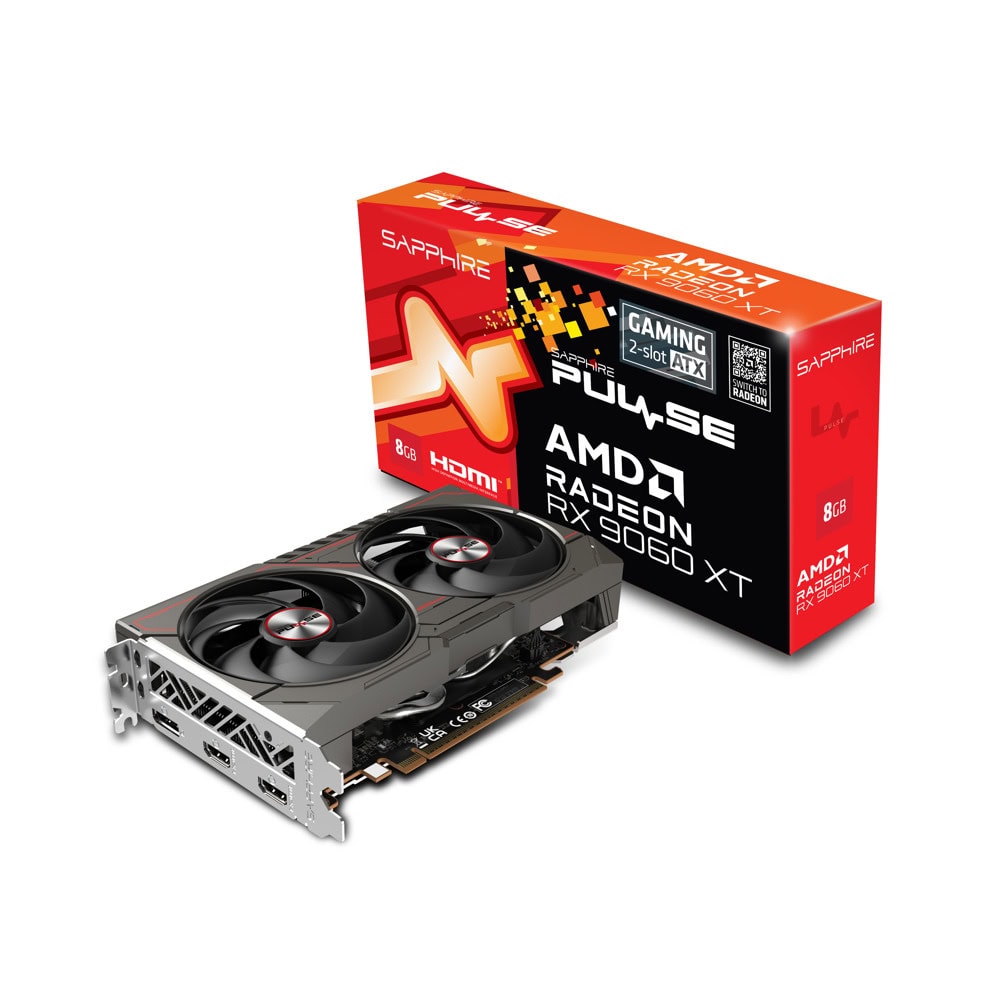

Видео карта AMD Radeon RX 9060 XT, 8GB, Sapphire Pulse, PCI-E 5.0, GDDR6, 128-bit, DisplayPort, HDMI

Fuse Protection:
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

AeroCurve Fan Blade:
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.


Specifications

GPU:
AMD Radeon RX 9060 XT Graphics Card
AMD RDNA 4 Architecture

Engine Clock:
Boost Clock Up to 3130 MHz
Game Clock Up to 2530 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
2048

Compute Units
32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache
32MB

Ray Accelerators
32

AI Accelerator
64

Memory Size
8GB GDDR6

Bus
128 bit

Memory Clock
20 Gbps Effective

Displays
Maximum 3 Displays

Resolution:
HDMI 2.1b - 7680×4320
DisplayPort 2.1a - 7680×4320

Output
2x HDMI
1x DisplayPort 2.1a

Interface
PCI-Express 5.0 x16

BIOS Support
UEFI

Game Index
1080P ULTRA

Sapphire Features:
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Dual-X Cooling Technology
Optimized Composite Heatpipes

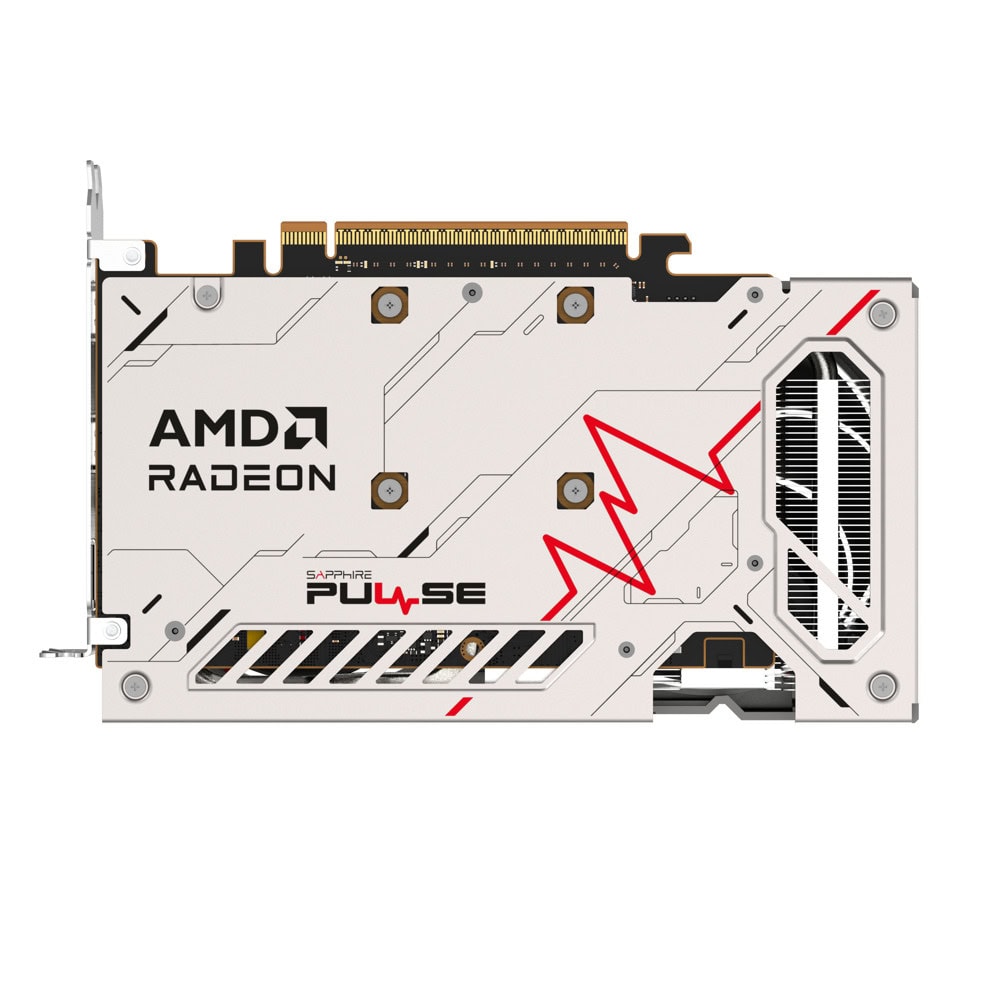

Metal Backplate
9-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
TriXX Boost

AMD Features:
AMD RDNA 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX Super Resolution 4 with AI Upscaling
DisplayPort 2.1a
AMD Radiance Display Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX technologies
Microsoft DirectX 12 Ultimate
AMD Noise Suppression
AMD Freesync technology
AMD Infinity Cache
8 GB of GDDR6 on 128-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application

Cooler Type:
Dual-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
Optimized Composite Heatpipes
Sleeve Bearing

Form Factor
2 slot, ATX

Dimension
200(L) X 122(W) X 40.6(H)mm

Power Consumption
150W Typical Board Power

OS
Linux, Windows 10, and Windows 11. 64-bit operating system required

System Requirement:
Minimum 450 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
