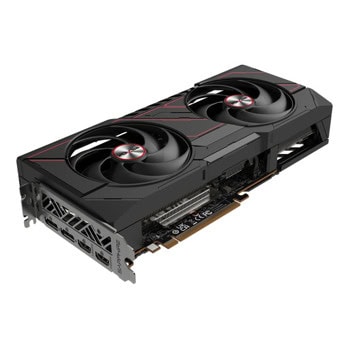

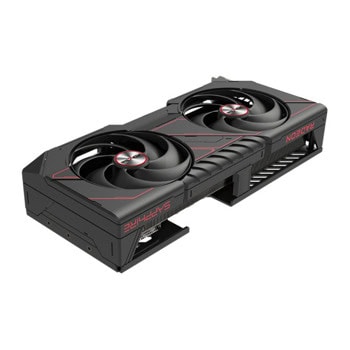

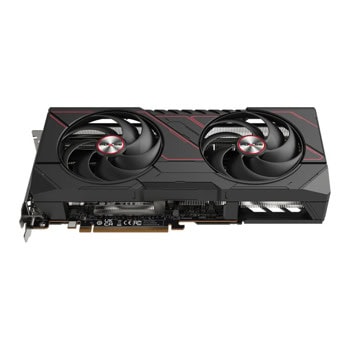

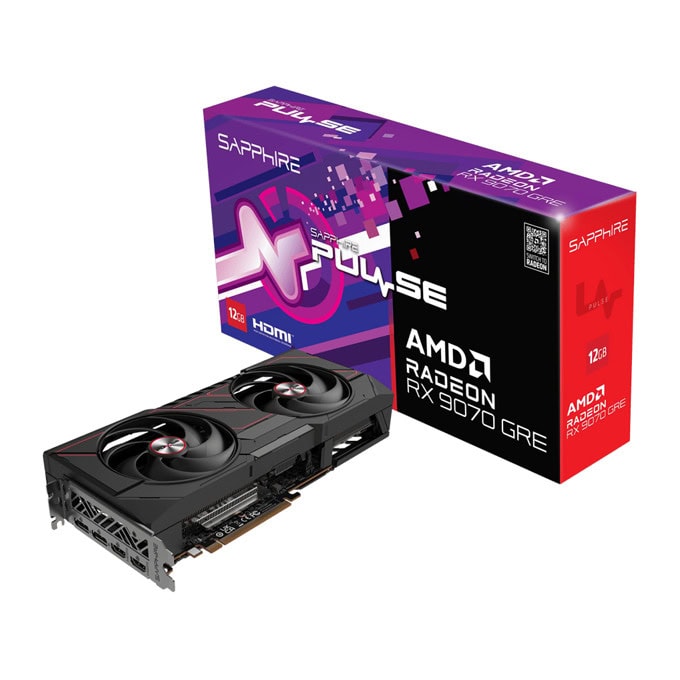

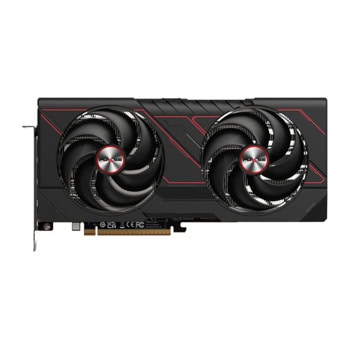

Видео карта AMD Radeon RX 9070 GRE, 12GB, Sapphire PULSE, OC, PCI-E 5.0, GDDR6, 192-bit, DisplayPort, HDMI

Digital Power Design SAPPHIRE PULSE AMD Radeon RX 9070 Series are designed with digital power which provides accurate power control and excellent power efficiency

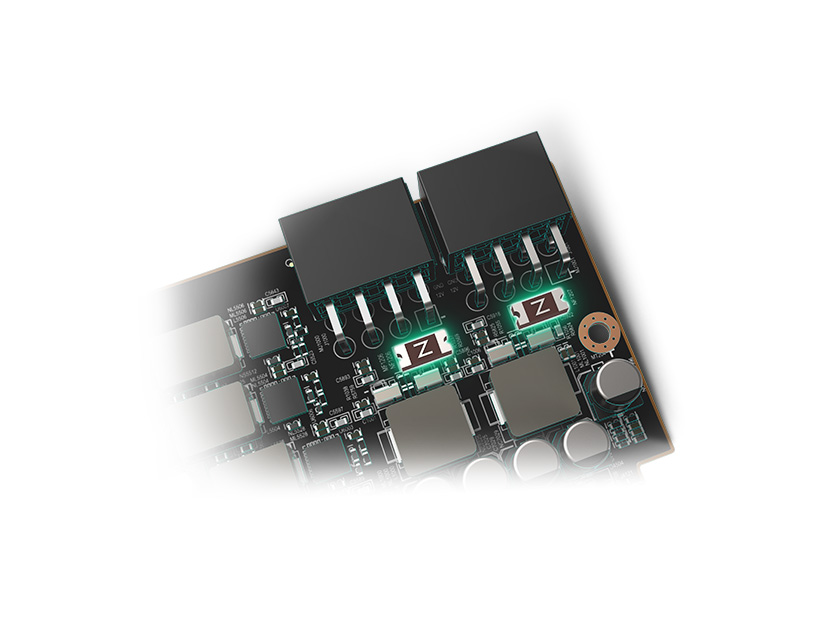

Fuse Protection In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

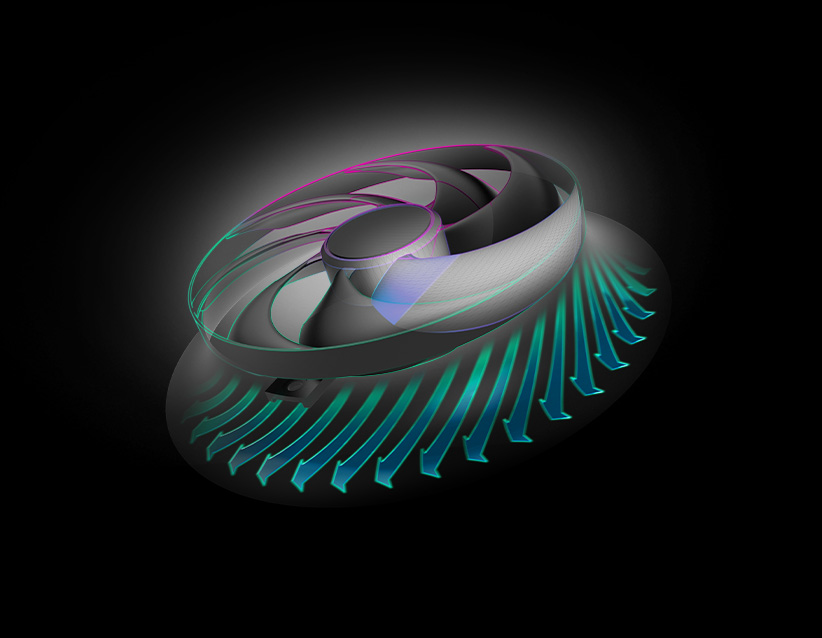

AeroCurve Fan Blade The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

GPU

AMD Radeon RX 9070 GRE Graphics Card
AMD RDNA 4 Architecture

Engine Clock

• Boost Clock: Up to 2920 MHz
• Game Clock: Up to 2340 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3072

Compute Units

48 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

48

AI Accelerator

96

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI 2.1b: 7680×4320
• DisplayPort 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

• 2x HDMI 2.1b
• 2x DisplayPort 2.1a

BIOS Support

• UEFI

Game Index

1440P

Sapphire Features

• Honeywell PTM7950 Thermal Interface Material (TIM)
• AeroCurve Fan Blade
• Free Flow
• FrameDefense
• Integrated Cooling Module
• Dual-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipes

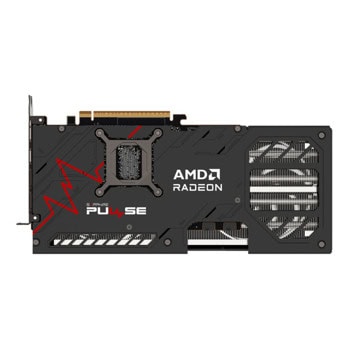

• Metal Backplate
• Two-Ball Bearing Fans
• 14-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• TriXX Boost

AMD Features

• AMD RDNA™ 4 Architecture
• 48 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• 12 GB of GDDR6 on 192-bit Memory Bus
• AMD FSR™ "Redstone"
• AMD Software: Adrenalin Edition™ application

Cooler Type

• Dual-X Cooling
• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Two-Ball Bearing

Form Factor

2.5 slot, ATX
Dimension: 280(L)X 120.25(W)X 51.5 (H)mm

Power Consumption

240W Typical Board Power

OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement

• Minimum 650 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
