Видео карта AMD Radeon RX 9070 XT, 16GB, Sapphire NITRO+ PhantomLink Edition, OC, PCI-E 5.0, GDDR6, 256-bit, DisplayPort, HDMI

GPU

AMD Radeon RX 9070 XT Graphics Card
AMD RDNA 4 Architecture

Engine Clock

• Boost Clock: Up to 3060 MHz
• Game Clock: Up to 2520MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

64

AI Accelerator

128

Memory Size/Bus

16GB/256 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI® 2.1b: 7680×4320
• DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

• 2x HDMI® 2.1b
• 2x DisplayPort™ 2.1a

BIOS Support

• UEFI

Game Index

4K

Sapphire Features

• PhantomLink (GC-HPWR / BTF) Power Connector
• New TriXX Feature: Power Protection
• STEALTH Hidden Power Cable
• 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
• Ultra-Thin Graphene Thermal Pad
• AeroCurve Fan Blade
• Free Flow
• FrameDefense
• Integrated Cooling Module
• Cold Rolled Steel Frame
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipes

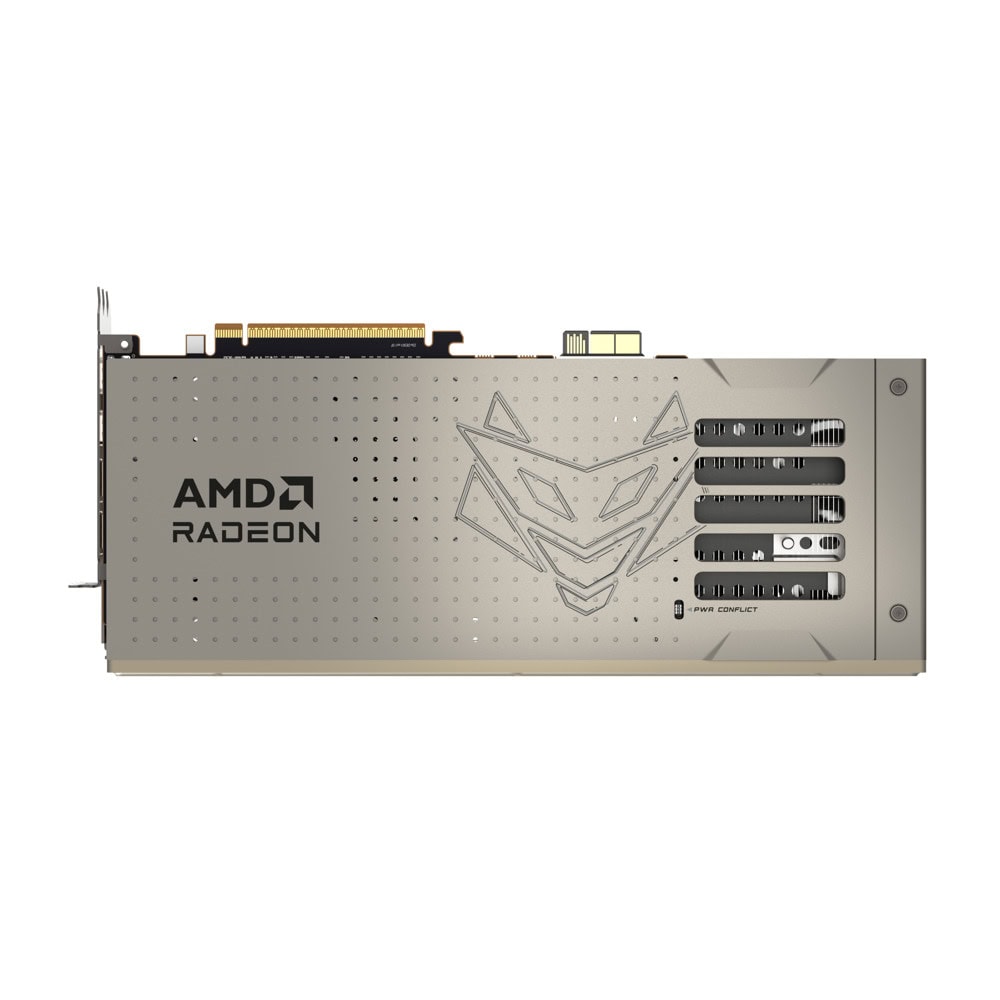

• Metal Backplate
• ARGB Light Bar
• Fan Quick Connect
• Two-Ball Bearing Fans
• Premium 16-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• Performance vs. Efficiency Quicksets
• Glow!
• Fan Check
• TriXX Boost
• External RGB LED MB Synchronization

AMD Features

• AMD RDNA™ 4 Architecture
• 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution Redstone with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• 16 GB of GDDR6 on 256-bit Memory Bus
• AMD smart technologies
• AMD Software: Adrenalin Edition™ application

Cooler Type

• Tri-X Cooling
• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Two-Ball Bearing

Form Factor

3.2 slot, ATX
Dimension: 330.8(L)X 141.25(W)X 65.68 (H)mm

Power Consumption

330W Typical Board Power

OS

Linux, Windows 11. 64-bit  operating system required

System Requirement

• Minimum 850 Watt or greater Power Supply
• To use GC-HPWR as the power source, a motherboard with GC-HPWR power slot is required
• 12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 16GB of system memory. 16GB recommended.
