Дисплей Samsung QMR Series (LH32QMRABGCXEN), 32" (81.28 см), Full HD (1920 x 1080), HDMI, DP, USB, Wi-Fi, Bluetooth, RJ-45

Slim and symmetrical design

The QMR-A series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

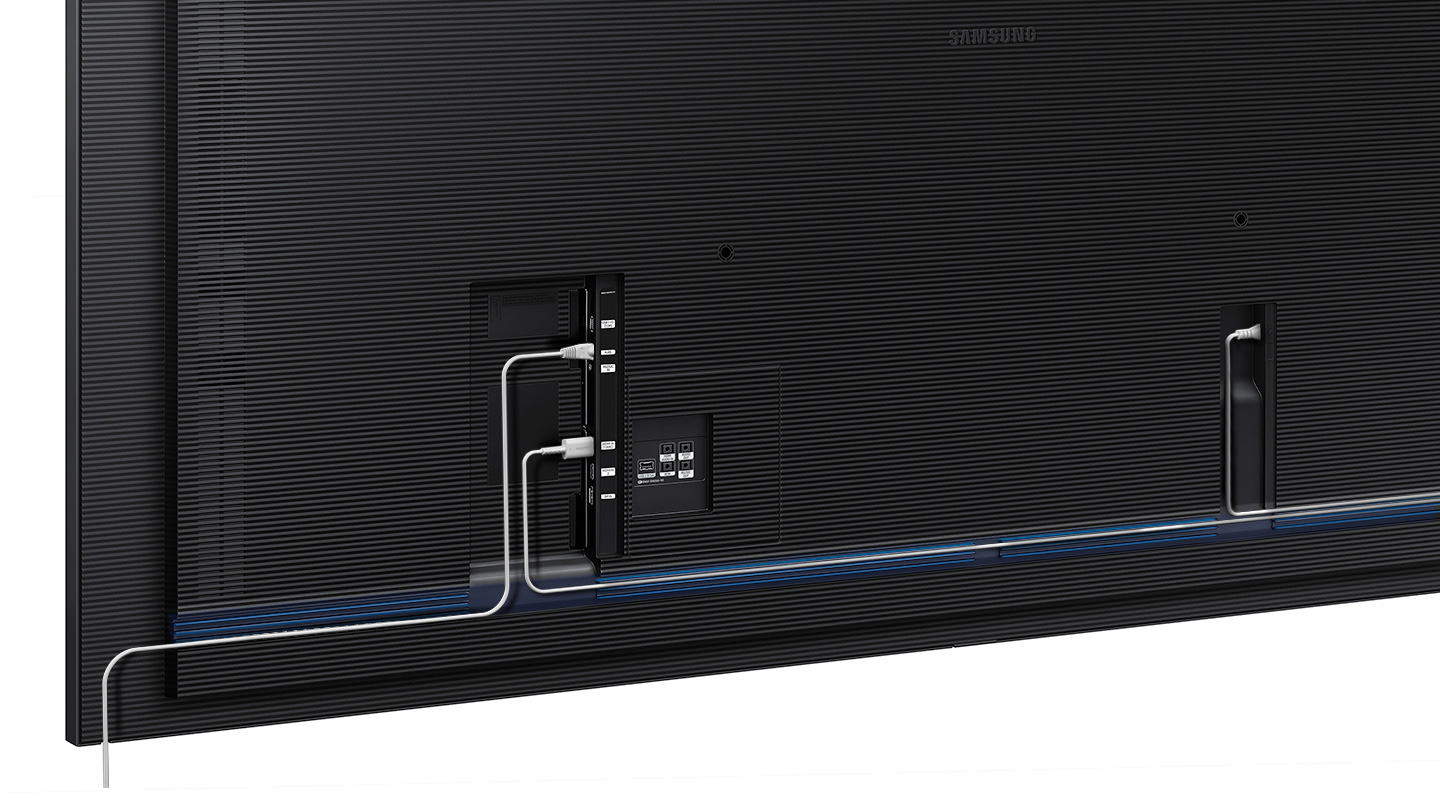

Clean cable management

With QMR-A's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Specifications:

Panel

• Diagonal Size32"
• TypeEdge LED BLU
• Resolution1920*1080 (Full HD)
• Pixel Pitch(mm)0.360(H) x0.360(V)
• Active Display Area(mm)698.4(H) x 392.85(V)
• Brightness(Typ.)400 nit
• Contrast Ratio5000:1
• Viewing Angle(H/V)178/178
• Response Time(G-to-G)8ms(Typ.)
• Display Colors16.7M(True Display)1.07B(Ditherd 10bit)
• Color Gamut72%
• Operation Hour24/7
• Haze2%

Display

• Dynamic C/RMEGA
• H-Scanning Frequency30 ~ 81kHZ
• V-Scanning Frequency48 ~ 75HZ
• Maximum Pixel Frequency594MHz

Sound

• Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input

• RGBDisplay Port 1.2 (1)
• VideoHDMI 2.0 (2)
• HDCPHDCP2.2
• AudioStereo Mini Jack, HDMI/Audio(Common)
• USBUSB 2.0 x 2

Output

• AudioStereo mini Jack
• External ControlRS232C(in/out) thru stereo jack, RJ45
• External SensorIR

Power

• TypeInternal
• Power SupplyAC 100 - 240 V, 50/60 Hz

Power Consumption

• Max[W/h]72.0
• Typical[W/h]44.0
• Rating[W/h]65.0
• BTU(Max)245.7
• Sleep mode0.5

Mechanical Specification

Dimension (mm)

• Set725.1 x 419.6 x 34.6
• Package812 x 513 x 120

Weight (kg)

• Set5.7
• Package8.0
• VESA Mount (mm)200 X 200
• Stand TypeFoot Stand (Optional)
• Bezel Width (mm)8.8mm(U/L/R/B)

Operation

• Operating Temperature0  ℃  ~   40   ℃
• Humidity10.0  %  ~   80.0   %

Feature

• Key FeaturesFHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
• OrientationLandscape / Portrait
• Remote ControlN/A
• Special FeaturesH/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT SW : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

• ProcessorCortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed1.7GHz
• Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit
• GraphicsGraphic resolution : 1920x1080 Output resolution : 1920x1080 (Scale up from graphic processing result.)
• Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
• Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
• IO PortsUSB 2.0
• Operating SystemTizen 4.0 (VDLinux)
