Name: Суич Ruijie RG-NBS3300-8MG2XS-P, 10000Mbps, 10 порта, 8x 10/100/1000/2500Mbps RJ45 (PoE+), 2x 10Gbs SFP+
Brand: Ruijie
SKU: NTLHRUIJIERGNBS33008MG2XSP
Price: 383.40 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

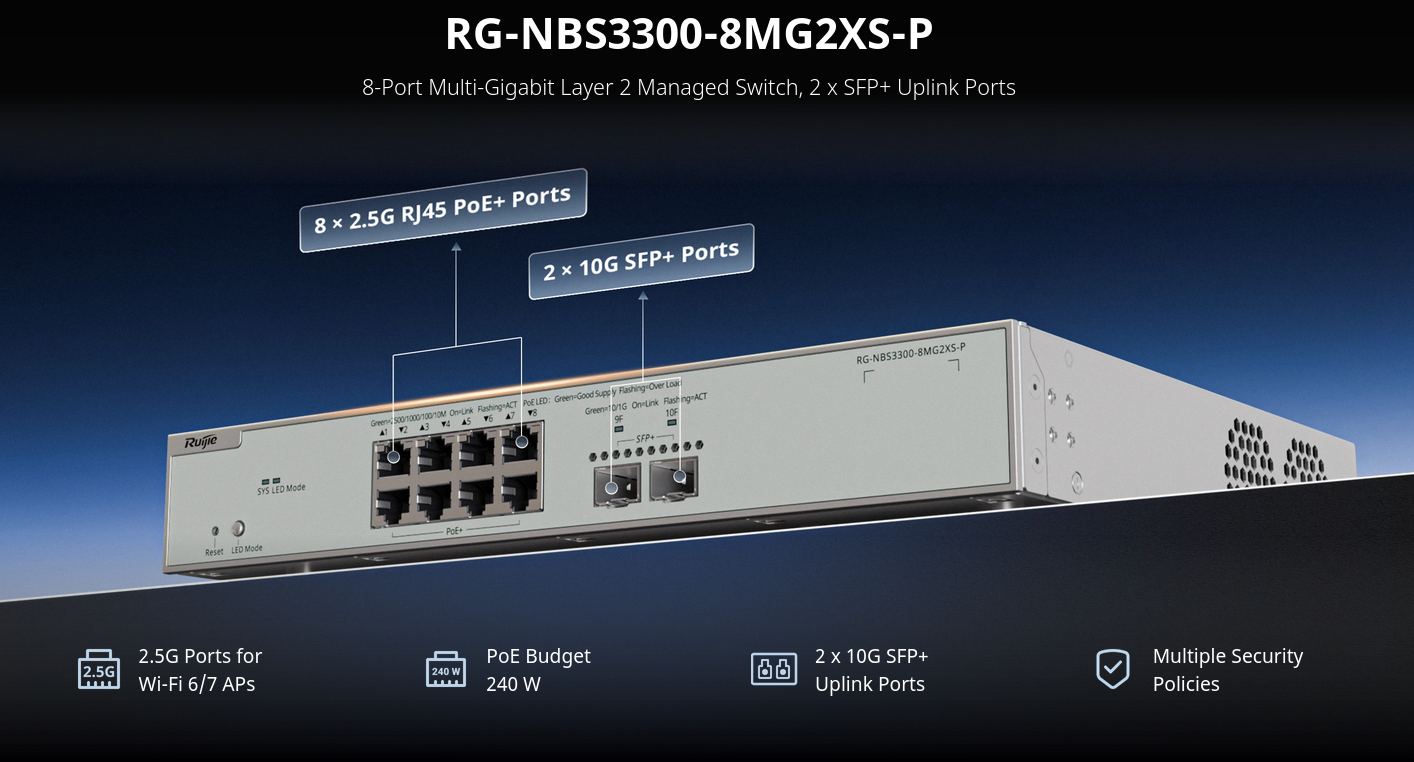

Ruijie RG-NBS3300-8MG2XS-P

Integration with Wi-Fi 6/7 APs,
Boosting Network Performance and Efficiency

Cloud, Make Your Business Easy

SON, Zero-Touch Provisioning on Ruijie Cloud

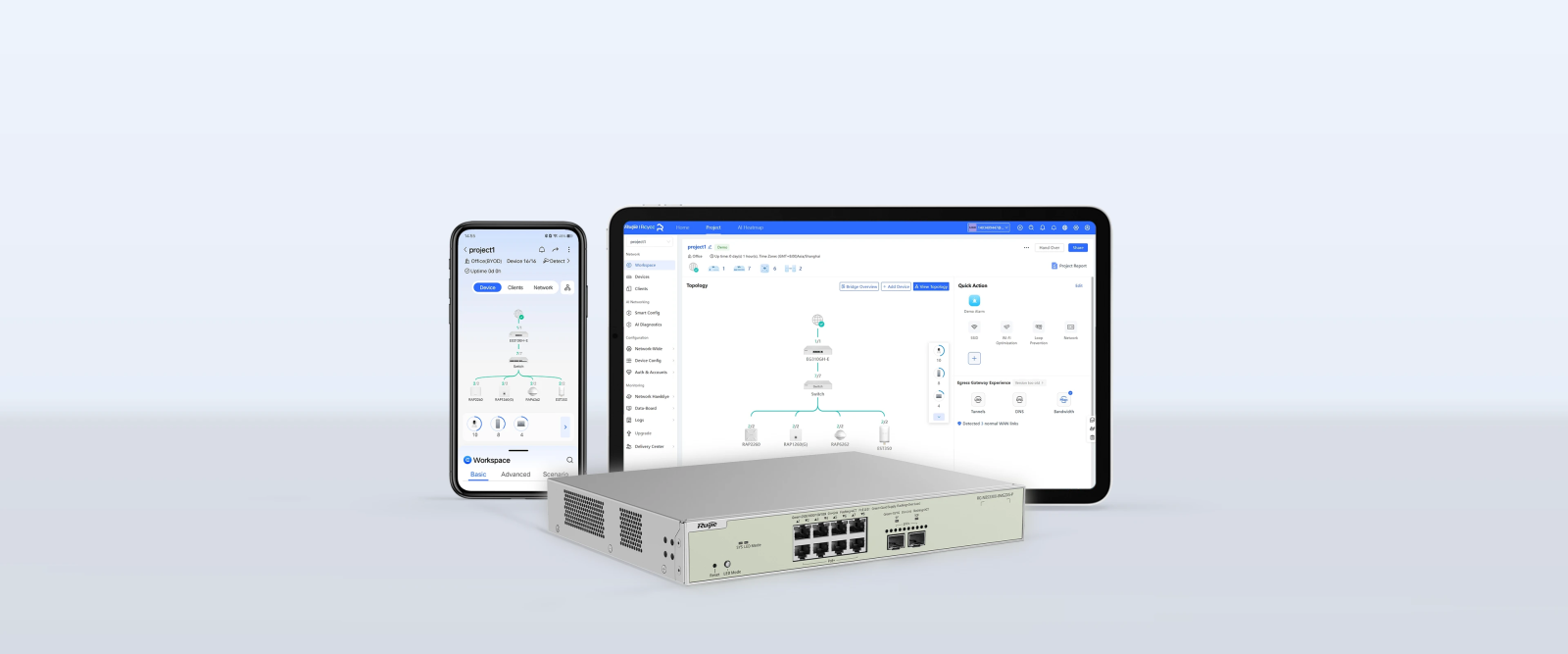

Configure VLANs Using Ruijie Reyee App
Monitor Switch Statistics Anytime, Anywhere
Simplify Maintenance to Save Onsite Time and Costs

Specifications

Hardware Specifications

Specification	RG-NBS3300-8MG2XS-P
Number of 10/100/1000/2500BASE-T Ports	8
Number of 10 Gbps Optical Ports (SFP+)	2
Number of PoE/PoE+ Ports	8
Number of PoE/PoE+/PoE++ Ports	N/A
Number of Fans	2
Power Supply Options	Single fixed power supply
Forwarding Rate	58.72 Mpps
Switching Capacity	80 Gbps
MAC Address Table Size	16000
ARP Table Size	1000
Number of ACEs	Inbound: 1900 Outbound: 0
Dimensions (W x D x H)	300 mm x 233 mm x 43.6 mm (11.81 in. x 9.17 in. x 1.72 in.)
Power Supply	Rated voltage range: 100–240 V Maximum voltage range: 90–264 V Frequency: 50/60 Hz Rated current: 4.5 A
Power Consumption	No PoE load: < 27 W Full PoE load: < 278 W
Max. PoE Power Budget	240 W
Output Power	54 V/5.4 A, P = 290 W
Airflow	Left to right
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	–40°C to +70°C (–40°F to +158°F)
Operating Humidity	10% to 90% RH (non-condensing)
Storage Humidity	5% to 95% RH (non-condensing)
Port Surge Protection	Common mode: 6 kV
Power Supply Surge Protection	Common mode: 6 kV Differential mode: 6 kV
Net Weight	2.64 kg (5.82 lbs)
Gross Weight	3.45 kg (7.61 lbs)
Certification	CE; FCC

Software Specifications

Software Specifications		RG-NBS3300-8MG2XS-P
Multicast	IGMP	IGMP Filtering
Multicast	IGMP	IGMP Fast Leave
ACL and QoS	ACL	IP Standard ACL
		MAC Extended ACL
		IP Extended ACL
		IPv6 ACL
	QoS	Port-Level Rate Limiting (Ingress/Egress)
Security	802.1X	IEEE 802.1X Authentication
		Port-based Authentication
		MAC-based Authentication
		Global IEEE 802.1X Authentication Control
		Force Authorized
		Force Unauthorized
		Port-based Single-Host Mode
		PEAP Authentication for Windows 7/8/10/11 Clients
		PEAP Authentication for macOS Clients
		PEAP Authentication for Linux OS Clients
	Management via Web Interface	Web Authentication
		HTTP
		HTTPS
	IP-MAC-Port Binding	IP-MAC-Port Binding
	ARP Anti-Spoofing	ARP Anti-Spoofing
	IP Source Guard	IP Source Guard
	CPU Protection Policy (CPP)	Hardware CPP
Reliability	RLDP	RLDP
NMS and Maintenance	SPAN	SPAN
	NTP	NTP Client
	SNMP	SNMP v1
		SNMP v2c
		SNMP v3
	MQTT	MQTT
	Self-Organizing Network	Self-Organizing Network
	Network Management	Management via Ruijie Cloud
	Ruijie Cloud	View Device Details on Ruijie Cloud
