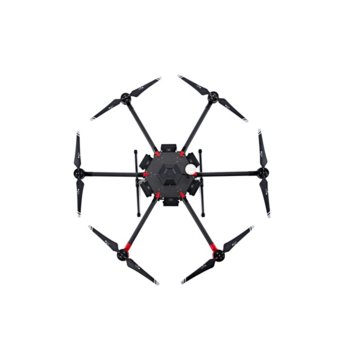

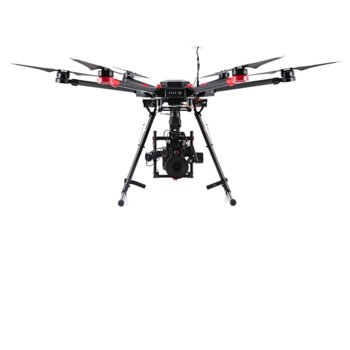

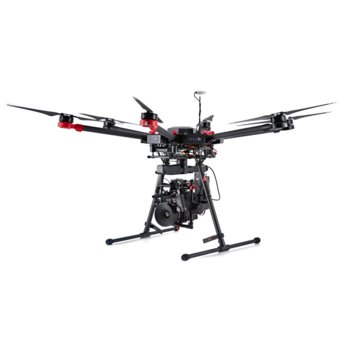

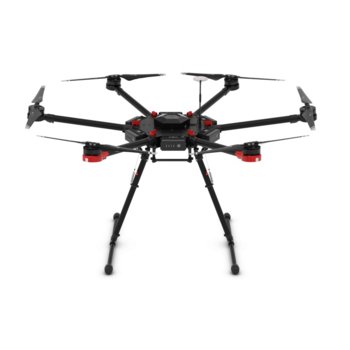

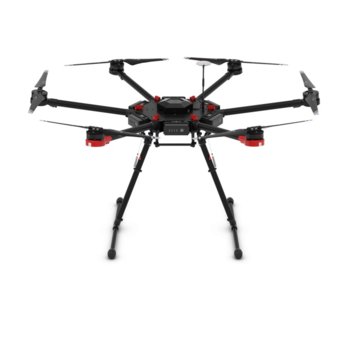

DJI Matrice 600, предпоръчка, хексакоптер, 40 минути, 6кг товароносимост, черен

AIRCRAFT

STRUCTURE

Diagonal Wheelbase 1133 mm
Aircraft Dimensions
1668 mm x 1518 mm x 759 mm (Propellers, frame arms and GPS mount unfolded)
640 mm x 582 mm x 623 mm (Frame arms and GPS mount folded)
Package Dimensions 620 mm x 320 mm x 505 mm
Intelligent Flight Battery Quantity 6
Weight (with six TB47S batteries) 9.1 kg
Weight (with six TB48S batteries) 9.6 kg
Max Takeoff Weight 15.1 kg
PROPULSION SYSTEM

Motor Model DJI 6010
Propeller Model DJI 2170
OTHER

Supported DJI Gimbals Zenmuse X3; Zenmuse X5 series; Zenmuse XT; Ronin-MX; Zenmuse Z15 series HD gimbals: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Retractable Landing Gear Standard
Operating Temperature 14° to 104° F (-10° to 40° C)
CHARGER

Model A14-100P1A
Voltage Output 26.3 V
Power Rating 100 W
BATTERY (OPTIONAL)

Model TB48S
Capacity 5700 mAh
Voltage 22.8 V
Type LiPo 6S
Energy 129.96 Wh
Net Weight 680 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature 41° to 104° F (5° to 40° C)
Max Charging Power 180 W
PERFORMANCE

Hovering Accuracy (P-Mode, with GPS) Vertical: ±0.5 m, Horizontal: ±1.5 m
Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle 25°
Max Speed of Ascent 5 m/s
Max Speed of Descent 3 m/s
Max Wind Resistance 8 m/s
Max Flight Altitude above Sea Level 2500 m
Max Speed 18 m/s (No wind)
Hovering Time (with six TB47S batteries)* No payload: 35 min, 6 kg payload: 16 min
Hovering Time (with six TB48S batteries)* No payload: 40 min, 5.5 kg payload: 18 min
* The hovering time is based on flying at 10 m above sea level in a no-wind environment and landing with 10% battery level.
FLIGHT CONTROL SYSTEM

Model A3
REMOTE CONTROLLER

Operating Frequency
920.6 MHz to 928 MHz (Japan)
5.725 GHz to 5.825 GHz
2.400 GHz to 2.483 GHz
Max Transmission Distance (unobstructed, free of interference)
FCC Compliant: 3.1 miles (5 km)
CE Compliant: 2.1 miles (3.5 km)
EIRP
10 dBm @ 900 M/li>
13 dBm @ 5.8 G
20 dBm @ 2.4 G
Video Output Port HDMI, SDI, USB
Dual Users Capability Master-and-Slave control
Mobile Device Holder Supports smartphones and tablets
Output Power 9 W
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature 32° to 104° F (0° to 40° C)
Built-in Battery 6000 mAh, 2S LiPo
Max Tablet Width 170 mm
BATTERY (STANDARD)

Model TB47S
Capacity 4500 mAh
Voltage 22.2 V
Type LiPo 6S
Energy 99.9 Wh
Net Weight 595 g
Operating Temperature 14° to 104° F (-10° to 40° C)
Storage Temperature
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature 41° to 104° F (5° to 40° C)
Max Charging Power 180 W
