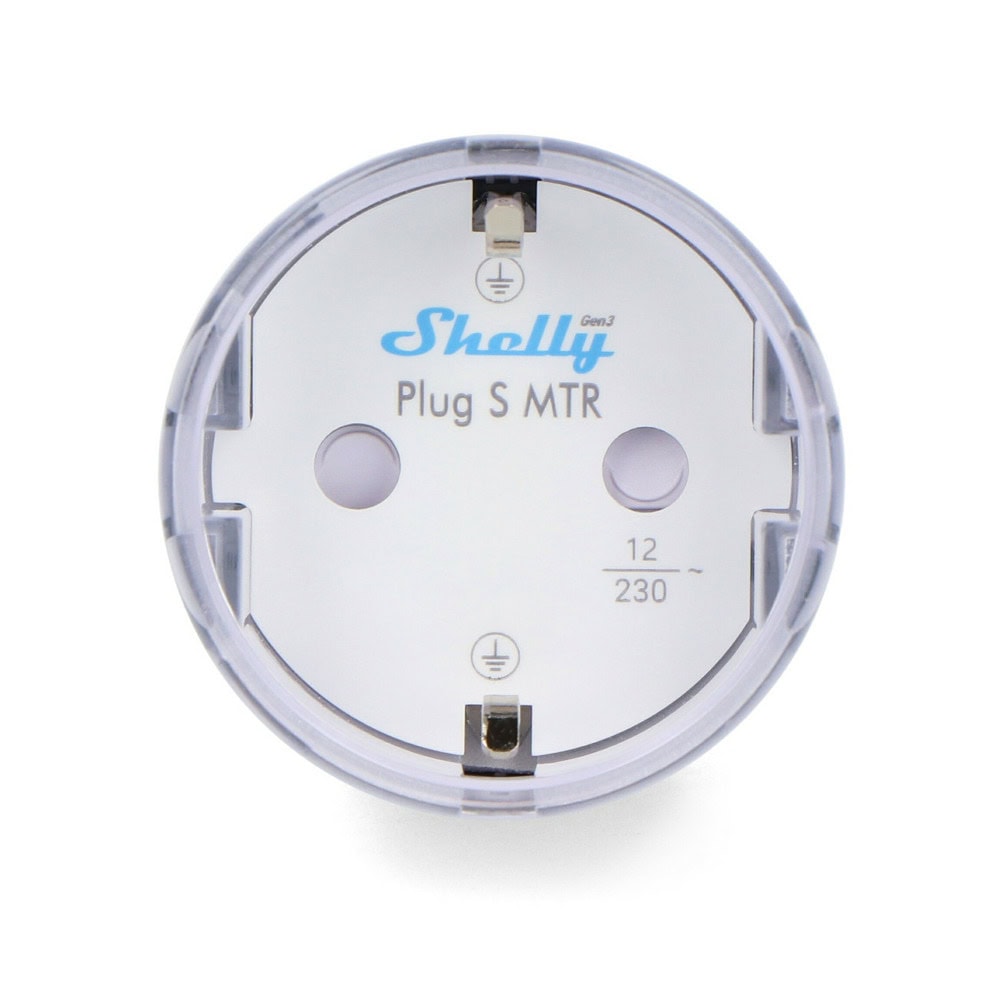

Смарт контакт Shelly Plug S Gen3, волтметър, амперметър, макс. натоварване 2500W, Bluetooth v4.2, Wi-Fi, бял

Control and Monitor Your Home Appliances from Anywhere:
Shelly Plug S Gen3 is a small, yet powerful Wi-Fi smart plug that monitors and controls lighting, heating, or any other connected electrical appliance, no matter where you are. Designed for easy setup with no wiring, it’s a quick addition to any smart home system that supports Matter. Simplify your daily routines and instantly make your home more efficient!

On the Road to Matter:
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
*Dependent on the extent of Matter's functionalities support.

Local control:
All Matter-certified devices will work smoothly even if your home goes offline. Once set up, Matter devices can communicate and be controlled directly on your local network.


Main features
Matter support
Next-generation Wi-Fi smart plug with multicolor LED indication
Scripting (only supported when Matter is not enabled)
Wi-Fi range extender
BLE gateway
Power metering
Schedules
Wide compatibility with 3rd party home automation systems
Local actions
Shelly Cloud/Shelly Smart Control app support (optional)
Virtual Components


Specifications

Size (HxWxD):
44x44x70 ±0.5 mm / 1.73x1.73x2.75 ±0.02 in

Weight:
60 ±1 g / 2.08 ±0.04 oz

Compatible sockets:
CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E)

Compatible plugs:
CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17

Shell material:
Plastic

Ambient temperature:
-20 °C to 40 °C / -5 °F to 105 °F

Humidity
30 % to 70 % RH

Max. altitude
2000 m / 6562 ft

Glow-wire temperature:
750°C

Pollution degree:
2

Required forced cooling:
No

Power supply:
220 - 230 V~ 50/60 Hz

Power consumption:
< 1 W

Rated impulse-withstand voltage:
2500 V

Max. switching voltage:
230 V~

Max. switching current:
12 A

Max. output power:
2500 W (resistive load only)

Number of switching cycles:
10000

Overvoltage category:
II

Duty-type:
S1

Switch type:
One-way

Switch configuration:
SPNO (single-pole, normally-open)

Type of circuit disconnection:
Micro

Internal-temperature sensor:
Yes

Voltmeter (AC):
Yes

Ammeter (AC):
Yes

Power and energy meters:
Yes

Protocol:
802.11 b/g/n

RF band:
2401-2473 MHz

Max. RF power:
<10 dBm

Wi-Fi Range:
Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions)

Bluetooth
Protocol:
4.2

RF band:
2402 - 2480 MHz

Max. RF power:
< 4 dBm

Range:
Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)

CPU:
ESP-Shelly-C38F

Flash:
8 MB

Webhooks (URL actions):
20 with 5 URLs per hook

Scripting:
Yes

MQTT:
Yes

CoAP:
No
