Name: Wi-Fi релета Shelly 2PM Gen3, 2 канала, 16A, волтметър, амперметър, сензор за вътрешна температура, Bluetooth, 2 броя, черни
Brand: Shelly
SKU: HOAUSHELLY3800235261910
Price: 60.00 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

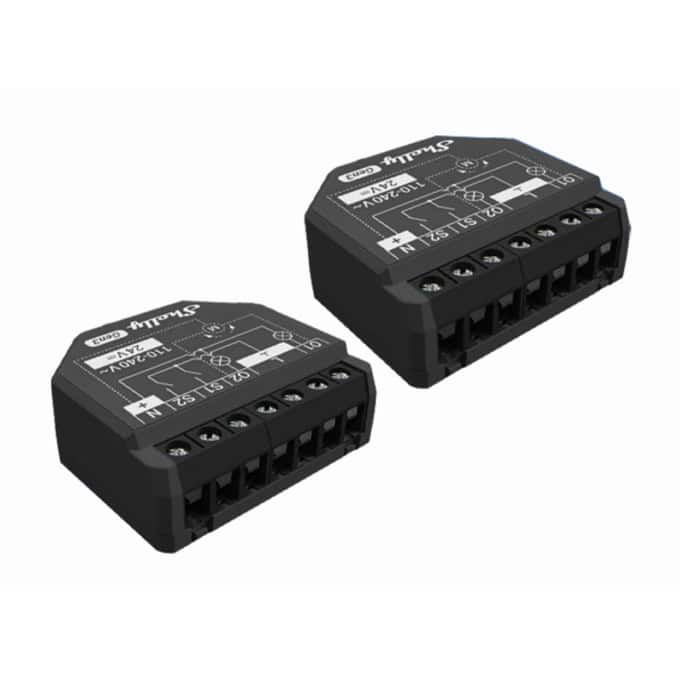

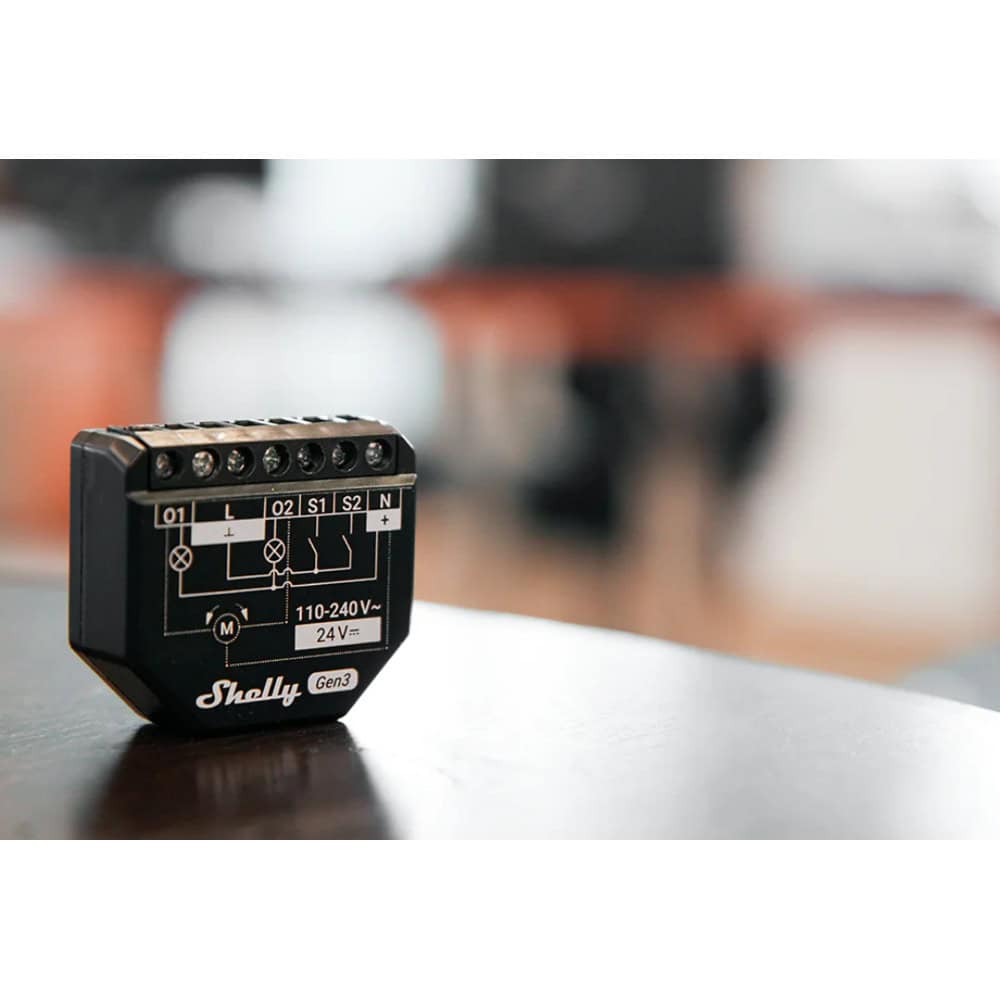

Shelly 2PM Gen3

Shelly 2PM Gen3 is a small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor. The device supports Venetian blinds.

Shelly 2PM Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 2PM Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Specifications

General

Size (HxWxD):	37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight:	30 g / 1.06 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic
Shell color:	Black
Terminals color:	Black

Environmental

Ambient working temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30% to 70% RH
Max. altitude:	2000 m / 6562 ft

Electrical

Power supply:	110 - 240 V~ / 24 V⎓ ±10%
Power consumption:	< 1.4 W
External protection:	Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3

Output circuits ratings

Max. switching voltage:	240 V~ 30 V⎓
Max. switching current AC:	10 A (per channel), 16 A (total), 18 A (total peak)
Max. switching current DC:	10 A

Sensors, meters

Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Internal-temperature sensor:	Yes

Radio

Wi-Fi

Protocol:	802.11 b/g/n
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:	4.2
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Microcontroller unit

CPU:	ESP-Shelly-C38F
Flash:	8MB

Firmware capabilities

Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

Виж още Смарт автоматизация Shelly
Виж всички Смарт автоматизация в категорията

Технически характеристики

Тип:	Реле
Вид:	Включващо устройство
Приложение:	Захранване

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Вземи на изплащане

Какво пазаруват другите
Най-продавани продукти
Промоционални продукти

Свързани продукти и тагове:

Евтини Смарт домашна автоматизация цени до 60 лв (187)

Виж повече

Automated Bedroom Curtains or Shutters Set Shelly 2PM Gen3 to open your bedroom curtains or shutters at a specific time each morning using “Schedules”. Wake up naturally with gradual light as the curtains open to your desired position, starting your day with ease.
Control Two Lights with One Device Shelly 2PM Gen3 lets you control and monitor two different lights on the same phase using a single device. Each light's power consumption is tracked separately, making your lighting setup more efficient. Use the manual switch, app, preferred home automation system, or your voice!

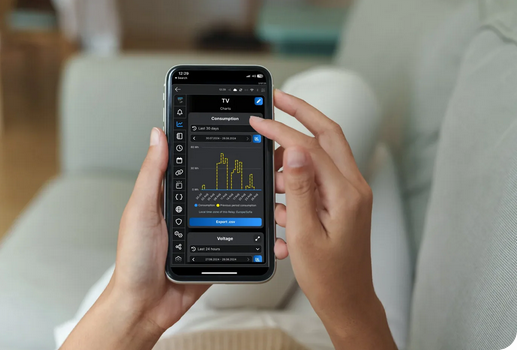

Energy Management Take charge of your energy usage with the power metering feature on each channel. Monitor and analyze the power consumption of connected devices in real-time, and use this data to make informed decisions to reduce energy costs.
Smart Blinds Integrate Shelly 2PM Gen3 with your blinds for an energy-efficient home. Automatically adjust the blinds based on the time of day or the weather conditions. For instance, close the blinds during the hottest part of the day to keep your home cool, and open them in the morning to let in natural light and reduce the need for artificial lighting.
