Name: WiFi реле Shelly 1PM Mini Gen4, за контакт, сензор за вътрешна температура, Bluetooth, червено
Brand: Shelly
SKU: HOAUSHELLYS4SW001P8EUSINGLE
Price: 44.22 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси

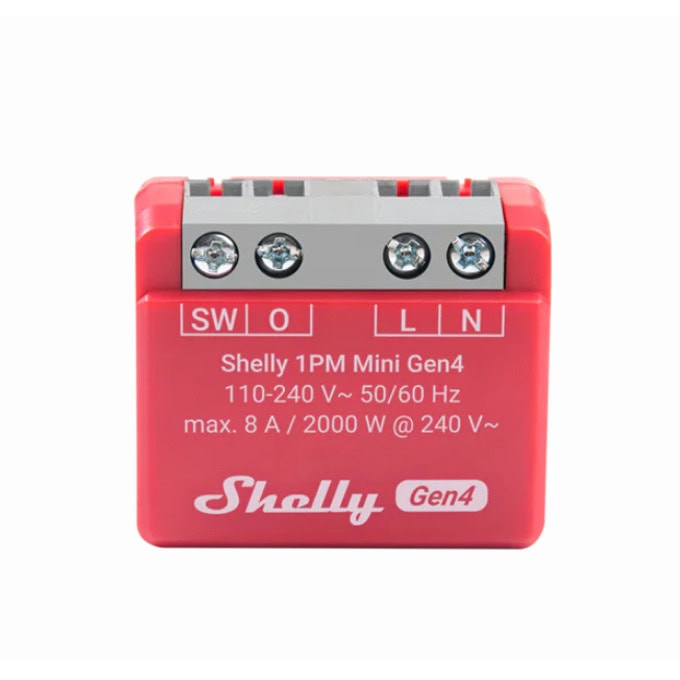

Shelly 1PM Mini Gen4

Track your power consumption and save money

Tailored for measuring the power consumption of appliances up to 8 A, Shelly 1PM Mini Gen4 is perfectly suited for monitoring smaller devices, including personal electronics, fans, lighting fixtures, and kitchen gadgets. By using it to monitor power consumption, you can manage energy usage and make informed adjustments to reduce electricity costs. Shelly 1PM Mini Gen4 offers free data storage, providing access to historical data for analysis and comparison, which can also help you identify devices consuming excessive power or working unnecessarily.

Make any small electrical appliance smart

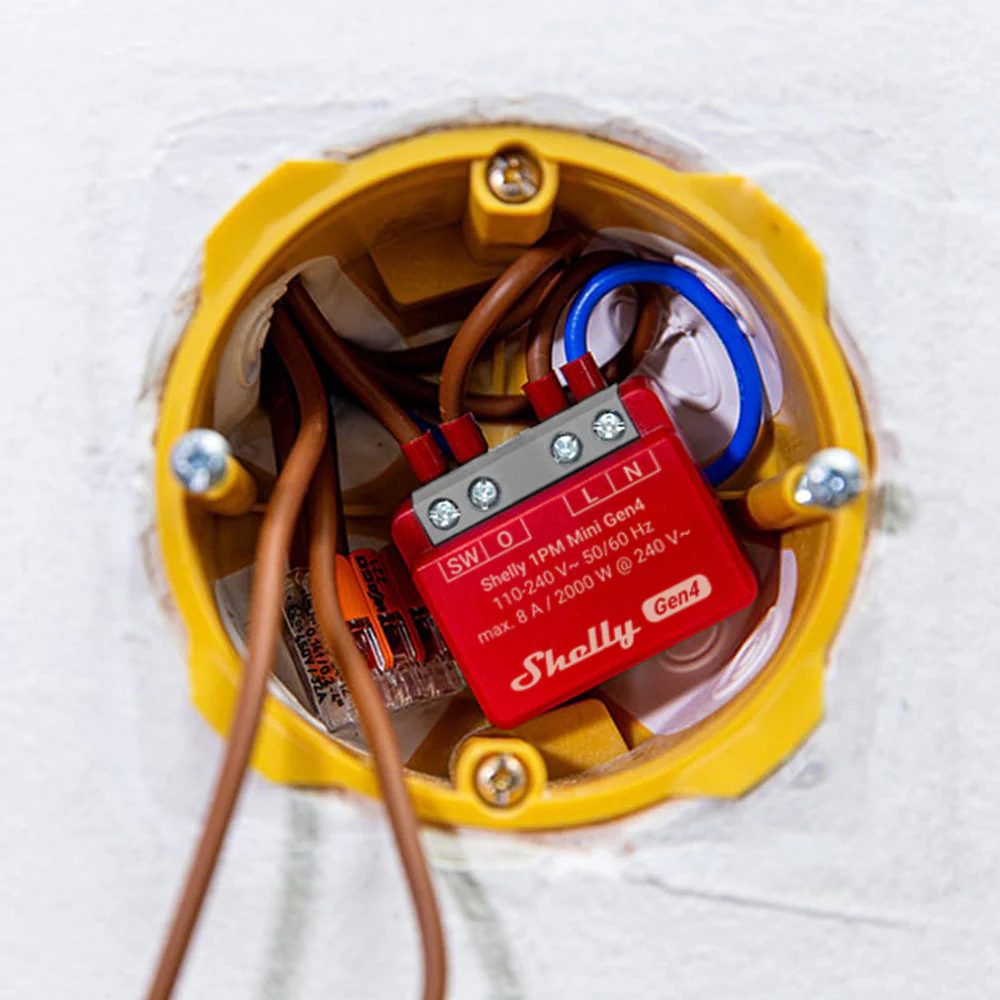

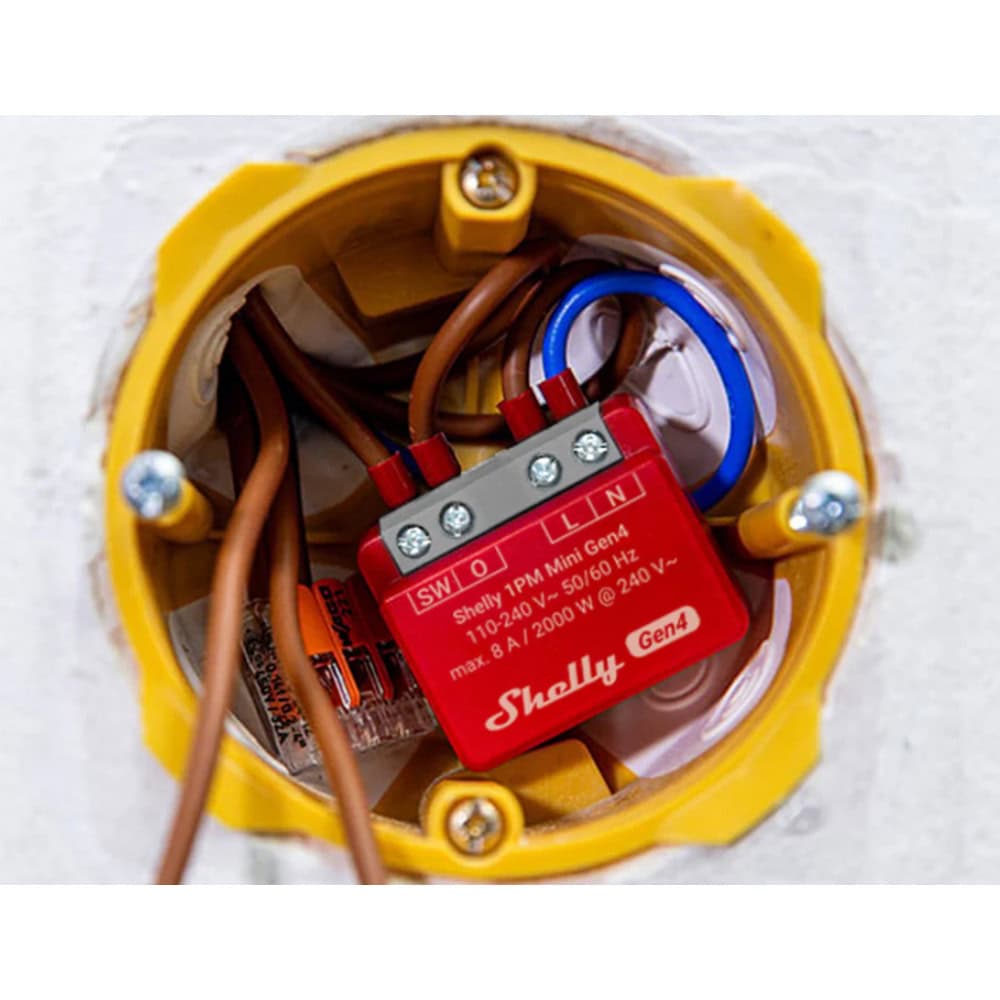

Transform old electrical appliances, like small heaters or kitchen gadgets into smart devices with Shelly 1PM Mini Gen4. It provides precise power monitoring, allowing you to track energy consumption in real-time, and gives you remote control over appliances, no matter where you are. You can wire it behind your socket or even inside the appliance's casting. Create custom schedules for your appliances based on your daily routine to save energy and set smart scenes to be prepared for any unexpected occurrences in your home!

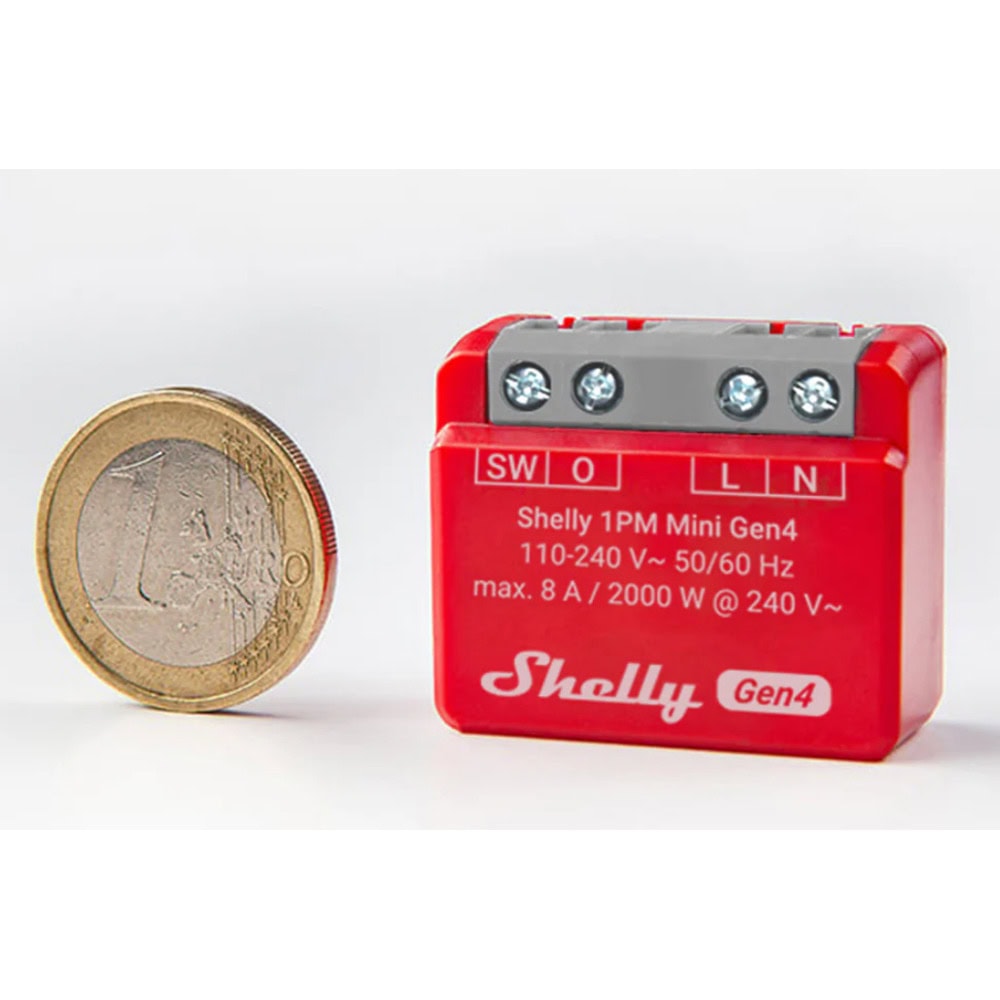

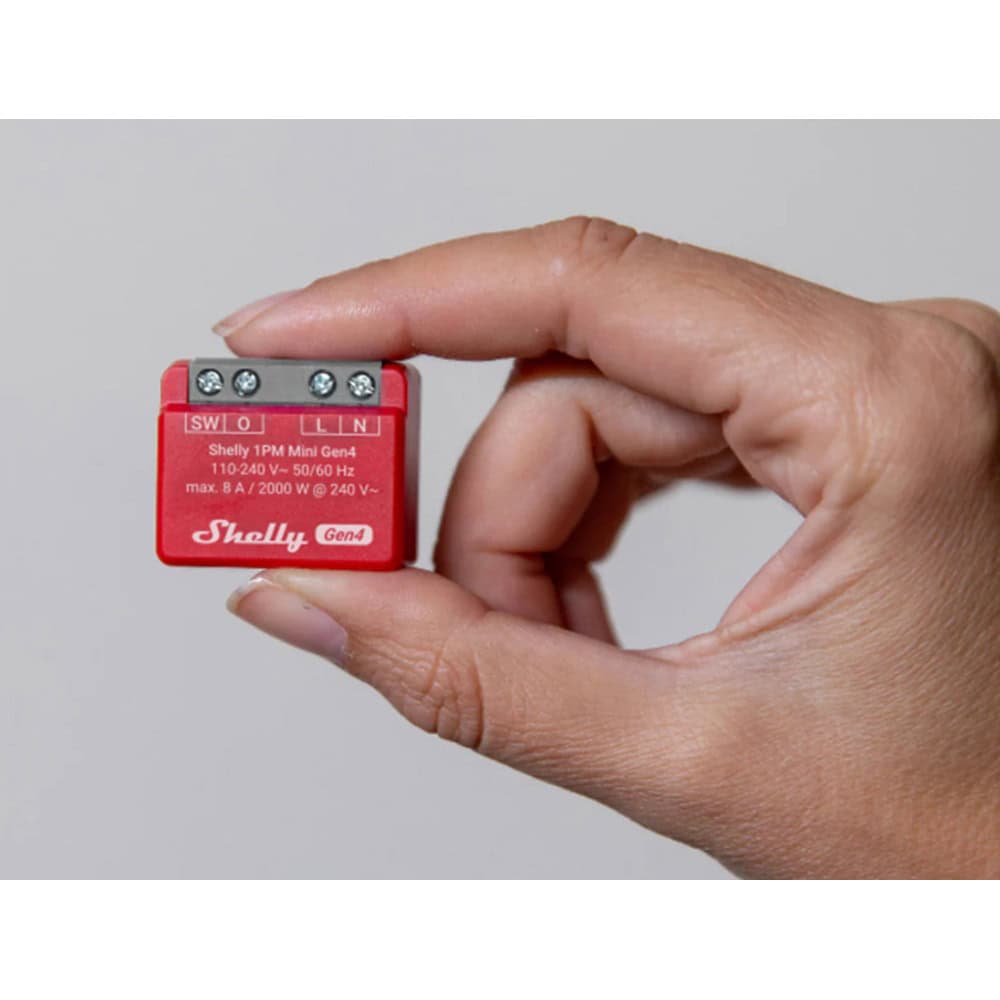

Small size, big impact!

Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.

With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.

Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.

Multiprotocol connectivity

Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth

Matter certified

Integrates into any Matter ecosystem

Power Monitoring

The device provides precise monitoring of power consumption.

Smart schedules

Set custom schedules based on your daily agenda

Smart scenes

Set custom scenes by combining Shelly 1PM Mini Gen4 with your other devices

Scripting

Shelly 1PM Mini Gen4 fully supports mjS scripting, allowing you to create custom features and functionalities

Specifications

Environmental

Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic

Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft

Electrical

Power supply:	110 - 240 V~
Relay:	NO contact, 1-pole, µ contact
External protection:	Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3

Output circuits ratings

Max. switching voltage:	240 V~
Max. switching current:	8A/240 V~
Power measurement:	Yes
Voltage protection / Cutoff:	Yes
Current protection / Cutoff:	Yes
Max power protection / Cutoff:	Yes

Sensors, meters

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:	802.11 b/g/n/ax
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:	5.0
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Zigbee

Protocol:	802.15.4
RF bands:	2400 to 2483.5 MHz
Max. RF power:	< 20 dBm
Range:	Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)

Microcontroller unit
