Смарт превключвател Shelly Pro 4PM, 4 канала, волтметър, амперметър, сензор за температура, 30 % до 70 % RH влажност, Bluetooth v4.2, Wi-Fi, черен

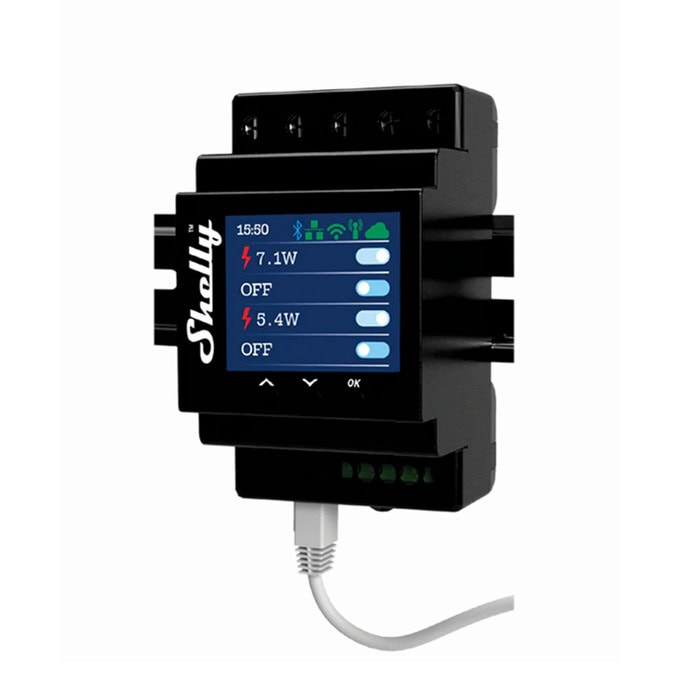

Shelly Pro 4PM

Appliances control and monitoring Predict monthly costs and plan your spending better! Automate the electrical appliances in the restaurant and track their energy consumption wherever you are. Shelly Pro 4PM will inform you in case an appliance is forgotten and left working outside of restaurant working hours, notifying you to switch it off to avoid electricity consumption waste. Additionally, you can set smart schedules and have Shelly cut off the power to all unused electrical appliances during the night and turn them back on right before the kitchen opens.
Temperature control for better productivity Research shows that employees' productivity decreases when there are temperature fluctuations in the office. The cooling and heating systems in the building should follow the dynamic changes in the temperatures during the different seasons. Connect Shelly Pro 4PM to the motorized electrical valves in your water distribution box and control your heating and cooling efficiently. Smart schedules combined with temperature & humidity sensors and precise weather data will provide dynamic control of the heating system for an optimal office indoor climate.
Automation of the common spaces for efficient energy usage Reduce unnecessary monthly costs with Shelly smart lighting solutions. Shelly Pro 4PM can measure and control four separate light circuits and give you full control over common spaces such as halls, garages, and storage rooms, which usually have their lights constantly switched on. Now you can make them energy efficient using Shelly Pro 4PM's built-in scheduling and scripting functionalities. To fully automate your premises, add Shelly Motion2 to switch on the lights automatically when someone enters, and its pre-set smart timer will switch the lights off once the premises are empty.
Load shedding Keep track of how much energy your solar panels and wind turbines are generating and save effortlessly by controlling your consumption with Shelly Pro 4PM. Connect Shelly Pro 4PM to your appliances and use Shelly 3EM's real-time information on how much energy has been generated and consumed. When you need to save energy, Shelly Pro 4PM can automatically switch-off non-essential connected appliances in your home.

Shelly Pro Series:

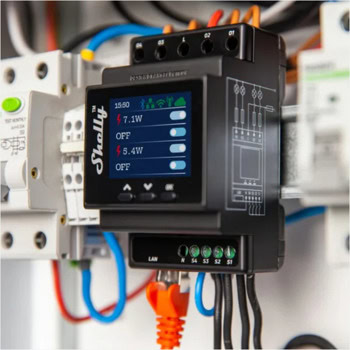

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

Overheating protection:
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.

Overpower protection:
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices

Overvoltage protection:
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.

Flame Retardant (V-0):
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.

Power monitoring:
Shelly Pro 4PM provides precise monitoring of the power consumption.

Enhanced safety & security:
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.

4 channels, 16A each:
Shelly Pro 4PM has a total device output of 40A.

Wide range of voltage support:
Use it to control a wide range of devices and appliances.

Specifications

Size (HxWxD):
96x53x59 ±0.02 mm / 3.78x2.01x2.32 ±0.02 in

Mounting:
DIN rail

Screw terminals max torque:
0.4 Nm / 3.5 lbin (green connectors)

Conductor cross section:
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)

Conductor stripped length:
6 to 7 mm / 0.24 to 0.28 in (green connectors)

Shell material:
Plastic

Ambient temperature:
-20 °C to 40 °C / -5 °F to 105 °F

Humidity
30 % to 70 % RH

Max. altitude
2000 m / 6562 ft

Power supply voltage AC:
110 - 240 V

Power supply voltage DC:
N/A

Power consumption:
< 4 W

Neutral not needed:
No

Max switching voltage AC:
240 V

Max switching voltage DC:
N/A

Max switching current AC:
16 A per channel, 40 A total

Max switching current DC:
N/A

Voltmeter (AC)
Yes

Ammeter (AC)
Yes

Internal-temperature sensor:
Yes

RF band:
2400 - 2495 MHz

Max. RF power:
<20 dBm

Wi-Fi protocol:
802.11 b/g/n

Wi-Fi Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth Protocol:
4.2

Bluetooth Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

CPU:
ESP32-D0WDQ6

Flash:
8 MB

Schedules:
20

Webhooks (URL actions):
20 with 5 URLs per hook

Scripting:
Yes

MQTT:
Yes

CoAP:
No
