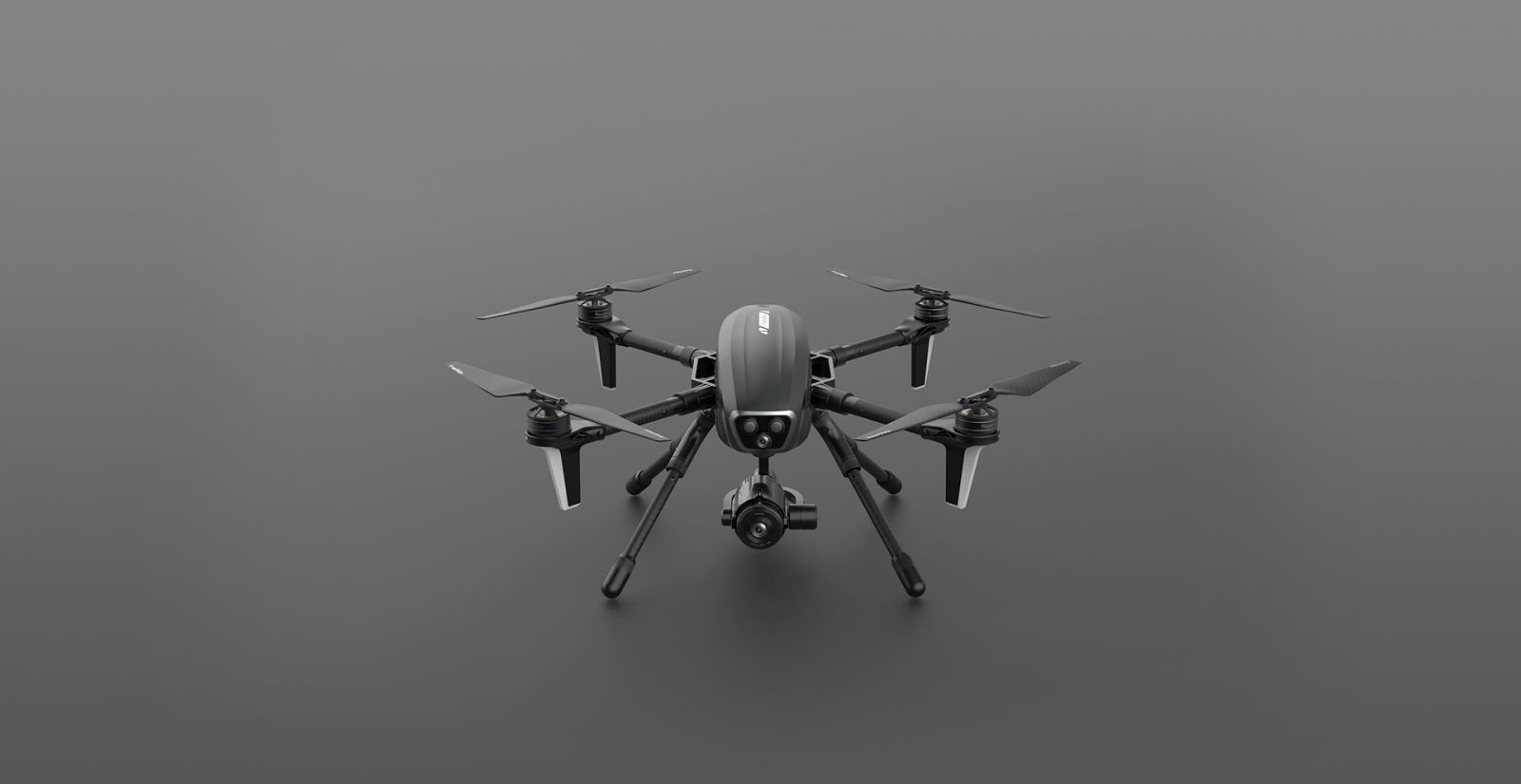

Дрон PowerVision PowerEye, 4К камера, 30 мин. летежно време, до 5 км. обхват, 3950 г, черен





PowerEye

A revolution in productivity









29.5 minute flight time

Class-leading flight time of up to 29.5 minutes









3.1 miles image transmission distance Up to 3.1 miles control range and real-time HD video transmission

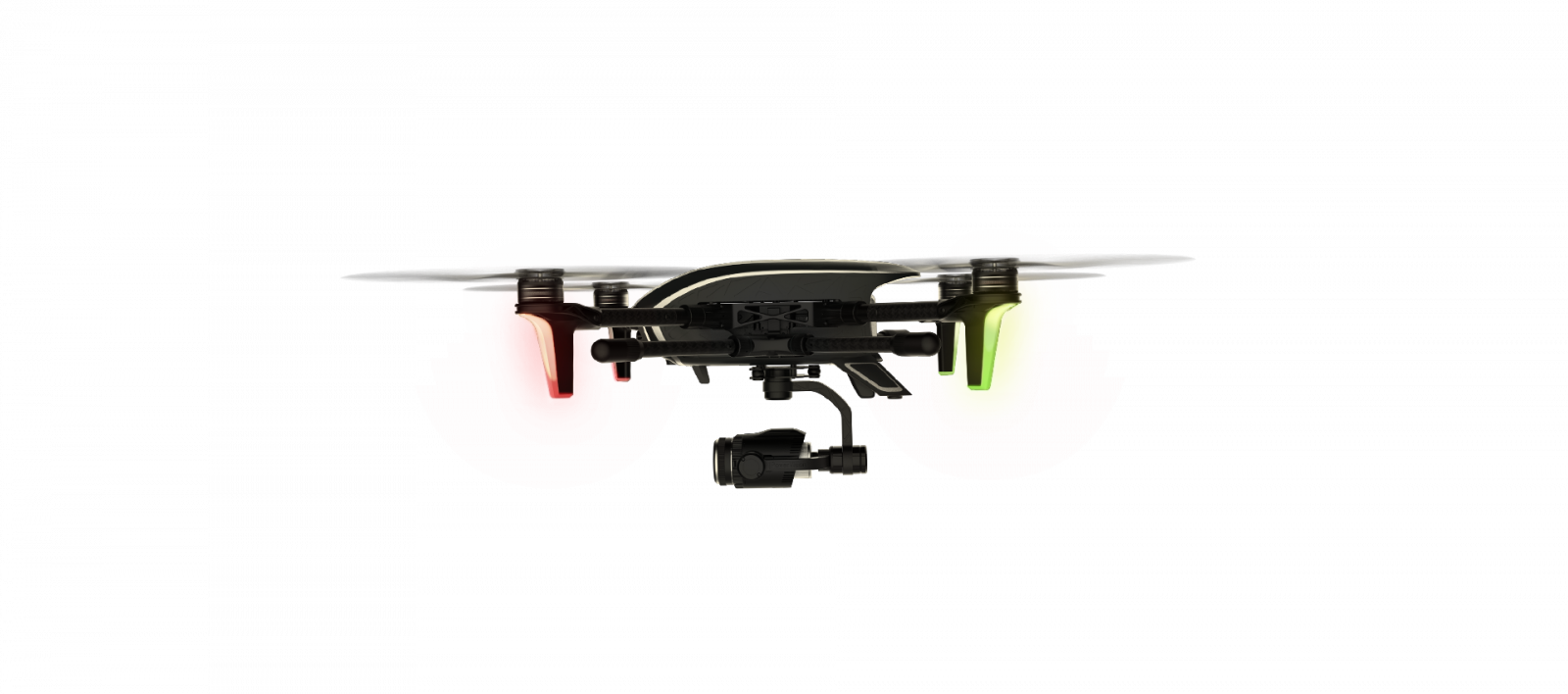

33 ft. obstacle detection If an obstacle is within 33 ft., the sensor will trigger the alarm

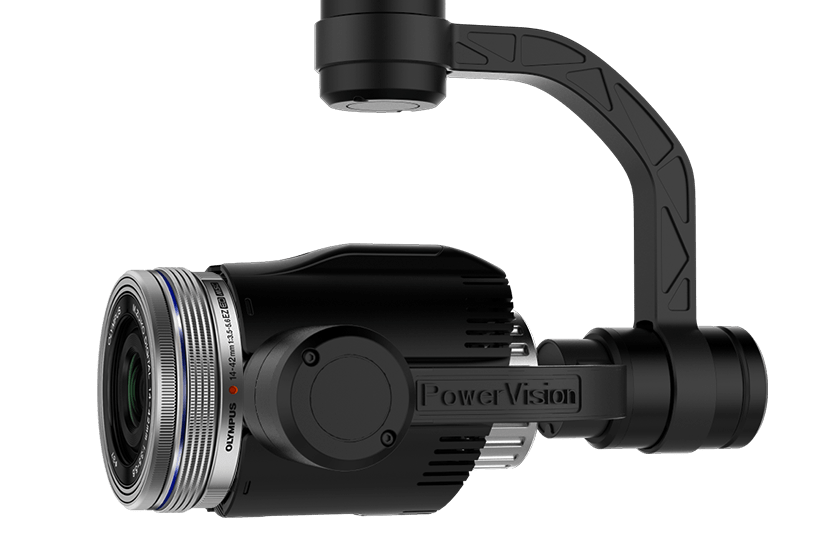

Mounted 4K aerial camera with replaceable lens Unique replaceable lens design, compatible with a variety of micro 4/3 standard lenses









Mount 3x zoom lens

Supports 3x zoom lens mode, compatible with 14-42mm lenses





AIRCRAFT

Weight:  3950 g(Battery and propellers included)

Diagonal Size:  650 mm

(Excluding Propellers)

Physical Dimension:  340 mm x 285 mm x 296mm(Close)
513mm x 513 mm x 310mm (Flight)

Max Ascent Speed:  5 m/s (Professional mode)

Max Descent Speed:  2 m/s (Professional mode)

Hover Accuracy:  2 m/s (Professional mode)Vertical: +/- 0.1 m (When Vision Positioning is active, 0.2 – 4 m); +/- 1 m Horizontal: +/- 0.2 m (Surface with clear pattern and adequate lighting); +/- 1.5 m

Max Flight Speed:  18 m/s (Professional mode)

Operating Frequency:  2.4 GHz

Propellers Size:  15.5 inch

Power:  400 W (Hover) 800W (Max)

Max Flight Time:  Approx. 29.5 min

Max Attitude:  35 degrees

Max Service Ceiling:  4,000 m

Above Sea Level

Operating:  -10 – 40°C

Temperature:  -10 – 40°C

GPS Mode:  GPS and BeiDou

Wind Resistance:  < =5 level

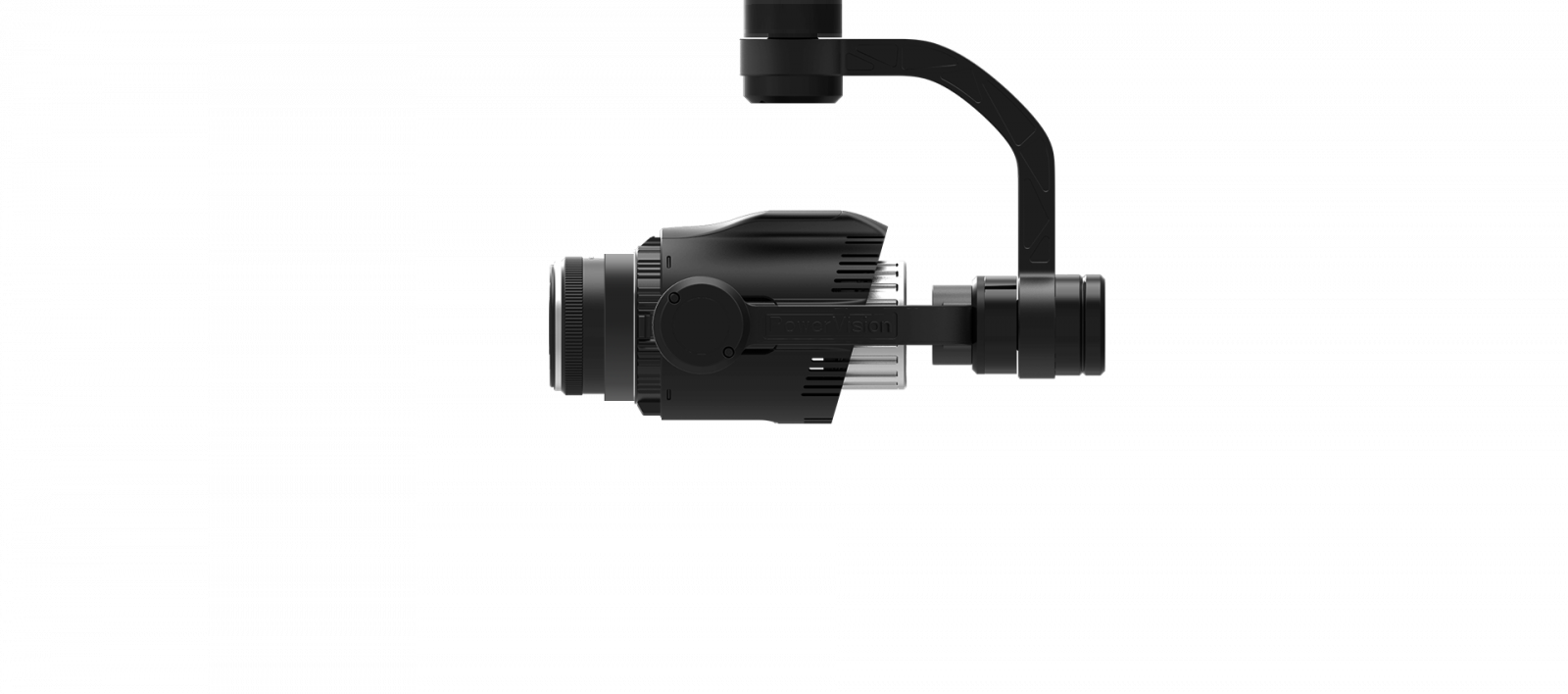

GIMBAL

Controllable Pitch:  0 – 90°

Controllable Yaw:  -180° – +180°

Stabilization:  3-axis (Pitch, roll, yaw)

Controllable:  0.05°

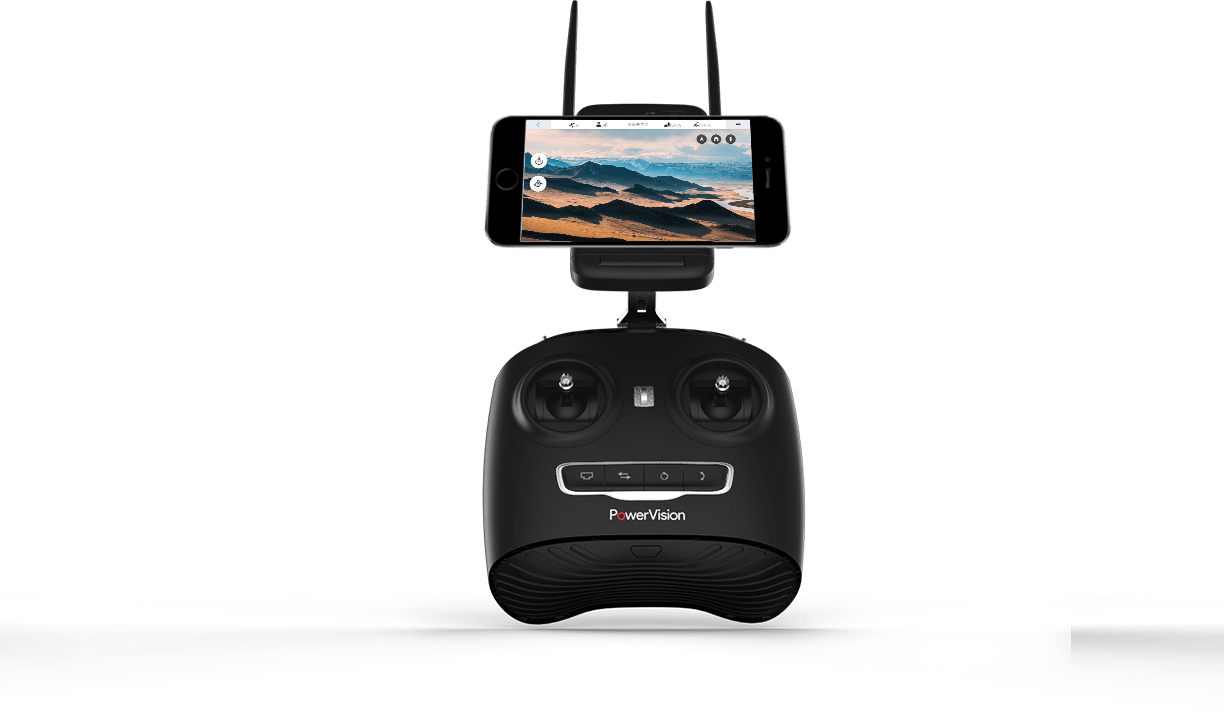

STANDARD REMOTE CONTROLLER

Operating:  0° – 40°C

Battery:  5000 mAh LiPo 1S

Operating Voltage:  120 mA / 3.7 V

Operating Life:  35 hours

Charging Time:  5 hours



OPTICAL POSITIONING

Velocity Range:  ≤ 4 m/s (2 m above ground)

Altitude Range:  0.2 – 3.5 m (0.66 – 13.12 ft)

Operating:  Surface with clear pattern and adequate

Environmentlighting (Lux > 15)



CHARGER

Input:  AC 90 – 264 V

Frequency:  47-63 Hz

Output Port:  125.5V ± 0.1 V

Output Port:  25 V ± 0.1 V

Operating:  -10° – 45°C (14° – 113°F)

Rated Power:  138.5 W

outline size:  105*120*90mm

weight:  537g

power Supply12V/5V/3.3V

control signalUART/SPI/I2C/CAN

endurance time0.5kg 21.5m

bearing weight0-2kg

one click throwsupport

downward FPVsupport

forward FPVsupport

packaging methodIndependent packaging or containerizing



CAMERA

Sensor:  4/3" CMOS

Lens:  Panasonic Lumix G 14mm F2.5 ASPH (Standard)
Olympus M.Zuiko 17mm f/1.8
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ(zoom)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8

ISO Range:  100 – 6,400 (Photo); 100 – 1,600 (Video)

Shutter Speed:  1/360s

Image Max Size:  4000X3000

Still Photography Modes:  Single shot

Video Recording Modes:  4K 4096×2160
UHD 3840×2160

Supported SD Card:  Micro-SD card

Types:  Max capacity: 64 GB. Class 10 or UHS-1
rating required

Max Video Bitrate:  60 Mbps

Supported File Formats:  FAT32/exFAT
JPEG
MP4, MOV

Operating Temperature:  -10° – 40°C



BASE STATION

Operating:  Aircraft to Base Station: 2.400 – 2.483 GHz

Frequency:  Base Station to other devices: 5.745 GHz – 5.825 GHz

Max Transmission:  5 km (3.1 miles) (Subject to regulation and local

Distanceoperating conditions).Distance will be shorter for CE.

Operating:  0° – 40°C (32° – 104°F)

Battery:  2,300 mAh LiPo 1S

Transmitter Power:  20 dbm @ CE, 28 dbm @ FCC

Operating Voltage:  800 mA / 3.7 V

Operating Life:  1.5 hours

Charging Time:  3 hours

Latency:  300 ms



POWEREYE SMART BATTERY

Capacity:  9000mAH

Voltage:  22.2V

Battery Type:  LiPo

Energy:  99.9WH X 2

Net Weight:  1230 g

Operating Temperature:  -10° – 40°C

Charging Current:  ≤2C
