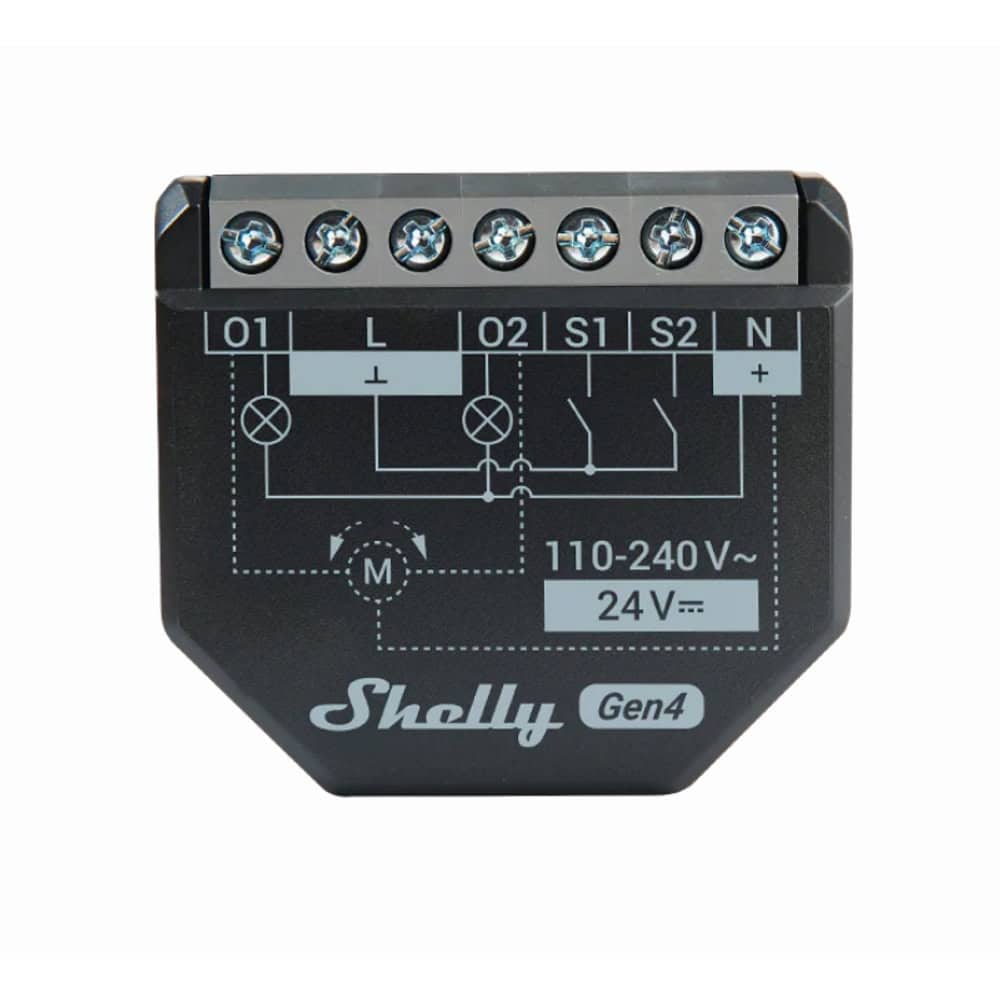

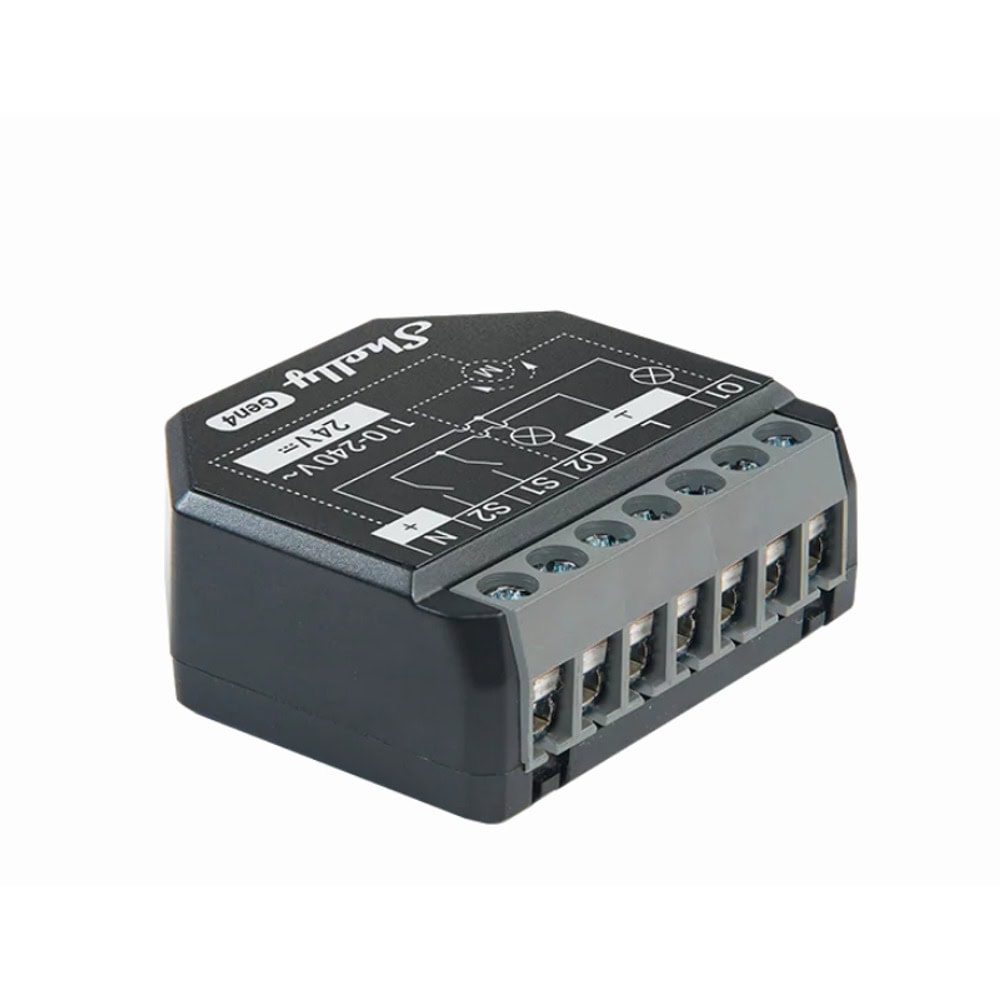

Wi-Fi реле Shelly 2PM Gen4, 2 канала, 16A, волтметър, амперметър, сензор за вътрешна температура, до 100m обхват, Bluetooth, черно

One device, Different possibilities:
A versatile dual-channel smart switch that lets you automate and manage roller shutters, curtains, awnings, pool covers, and bi-directional AC motors. With new multiprotocol connectivity, you can choose the protocol that best suits your home network - Wi-Fi, Bluetooth or Zigbee. Shelly 2PM Gen4 includes integrated power monitoring, allowing you to track real-time energy consumption. Optimize energy usage, lower electricity bills, and improve efficiency.

Multiprotocol connectivity:
Highly compatible! Choose the best protocol for your smart home - Wi-Fi, Bluetooth or Zigbee

Cover (roller) control:
Control bi-directional AC motors and set your desired position.

Slats angle control​​​​:
Use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.

Power monitoring:
Shelly 2PM Gen4 provides precise monitoring of power consumption and free data storage.

Matter certified:
Integrates into any Matter ecosystem

Smart schedules and scenes:
Set custom schedules or scenes based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.


Specifications


Physical
Conductor cross section:
0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:
6 to 7 mm / 0.24 to 0.28 in

Mounting:
Wall box

Shell material:
Plastic


Environmental
Ambient working temperature:
-20°C to 40°C / -5°F to 105°F

Humidity:
30% to 70% RH

Max. altitude:
2000 m / 6562 ft


Electrical
Power supply:
110 - 240 V~ / 24 VDC ±10%

Power consumption:
< 1.4 W

External protection:
Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3


Output circuits ratings
Max. switching voltage:
240 V~
30 V⎓

Max. switching current AC:
10 A (per channel), 16 A (total), 18 A (total peak)

Max. switching current DC:
10 A


Sensors, meters
Voltmeter (AC):
Yes

Ammeter (AC):
Yes

Internal-temperature sensor:
Yes


Radio
Wi-Fi
Protocol:
802.11 b/g/n/ax

RF band:
2412 - 2472 МHz

Max. RF power:
< 20 dBm

Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)


Bluetooth
Protocol:
5.0

RF band:
2402 - 2480 MHz

Max. RF power:
< 4 dBm

Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)


Zigbee
Protocol:
802.15.4

RF bands:
2400 to 2483.5 MHz

Max. RF power:
< 20 dBm

Range:
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)


Microcontroller unit

CPU:
ESP-Shelly-C68F

Flash:
8MB


Firmware capabilities
Schedules:
20

Webhooks (URL actions):
20 with 5 URLs per hook

Scripting:
Yes

MQTT:
Yes
