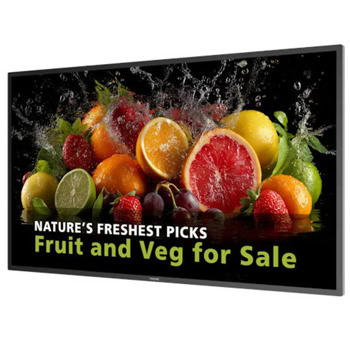

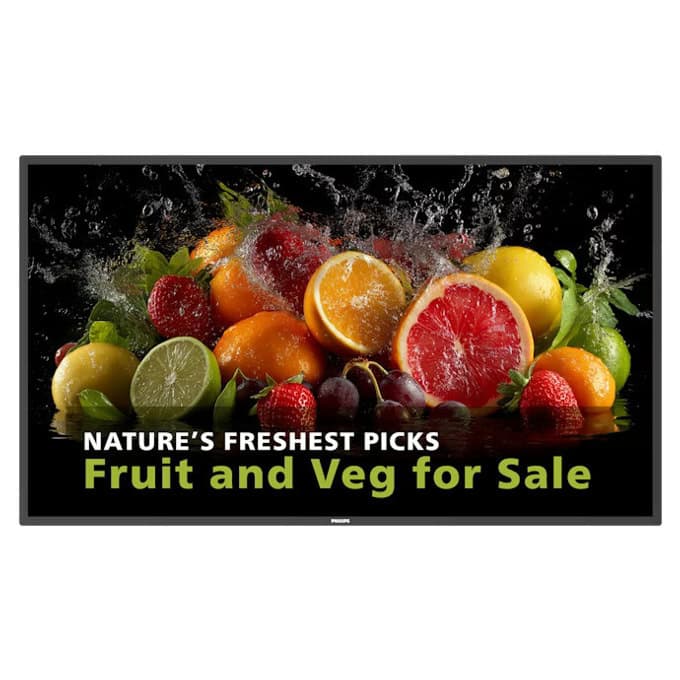

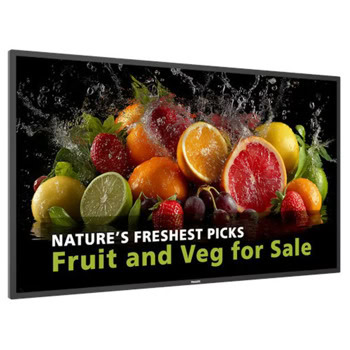

Philips 43BDL5050D/00

Philips Signage 5000 Series

Go beyond the ordinary. Captivate audiences and elevate their experience with the Philips Signage 5000. Powered by Android 14 for smooth integrations, this versatile 24/7 display steps up to deliver exceptional performance in any setting.

Smart and modular – high performance 24/7

• 43"
• Powered by Android
• 600 cd/m2

24/7 – working for your content around the clock.

With 600 cd/m2 brightness for better visibility under bright lights or even in sunlight, the Philips Signage 5000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more.

Install in portrait or landscape orientations.

Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, plus a firm focus on sustainability, with reduced WEEE disposal.

Android 14 professional System on Chip.

Powered by Android 14, your Philips Signage 5050 display is designed on a professional platform with trusted connectivity and security built in. Optimised for native Android apps, it enables you to install web apps and software directly onto the display, eliminating the need for an external media player.

Integrated HTML5 Chromium-based browser.

Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait. Simply connect to the Internet via an RJ45 cable.

Philips Wave ready for remote device management.

Unlock the power, versatility and intelligence inside your Philips Signage 5000 displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules, saving you time, energy and environmental impact.

Technical Specifications

• Picture/Display

  Diagonal screen size (metric)

  108.0  cm

  Diagonal screen size (inch)

  42.5  inch

  Aspect ratio

  16:9

  Panel resolution

  3840 x 2160

  Pixel pitch

  0.2451 x 2451 mm

  Optimum resolution

  3840 x 2160 @ 60 Hz

  Brightness

  600  cd/m²

  Display colours

  1.07 Billion

  Contrast ratio (typical)

  1200:1

  Dynamic contrast ratio

  500,000:1

  Response time (typical)

  8  ms

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

  Picture enhancement

  • 3/2 - 2/2 motion pull down
  • Motion compens. deinterlacing
  • Dynamic contrast enhancement
  • Progressive scan

  Panel technology

  ADS

  Operating system

  Android 14

  Haze

  25%

• Connectivity

  Audio output

  3.5 mm jack

  Video input

  • DisplayPort 1.4 (x 1)
  • HDMI 2.0 (x 2)
  • USB-C (4.5 W)

  Other connections

  • 4G/LTE antenna connectors
  • Micro USB (x 1) (OTG)
  • USB 3.0 (x 2)

  Video output

  HDMI 2.0

  External control

  • RJ45
  • RS232C (in/out) 2.5 mm jack
  • IR (in/out) 3.5 mm jack
  • Wi-Fi 6
  • Bluetooth 5.2 (via CRD32)

• Convenience

  Placement

  • Landscape (24/7)
  • Portrait (24/7)

  Tiled Matrix

  Up to 10 x 15

  Screen-saving functions

  Pixel Shift

  Keyboard control

  • Hidden
  • Lockable

  Signal loop through

  • RS232
  • IR Loop through
  • HDMI1
  • HDMI 2
  • Android SoC

  Energy-saving functions

  Smart Power

  Network controllable

  • RS232
  • External 4G mPCIe slot
  • RJ45

• Sound

  Built-in speakers

  2 x 10 W RMS

• Power

  Mains power

  100 ~ 240 VAC, 50 ~ 60 Hz

  Standby power consumption

  <0.5 W

  Energy Label Class

  F

  Consumption

  EEI lot5 50 W

• Supported Display Resolution

  Computer formats

  • 1024 x 768, 60 Hz
  • 1280 x 1024, 60 Hz
  • 1280 x 720, 60 Hz
  • 1440 x 900, 60 Hz
  • 1600 x 900, 60 Hz
  • 1680 x 1050, 60 Hz
  • 1920 x 1080, 60 Hz
  • 640 x 480, 60 Hz
  • 800 x 600, 60 Hz

  Video formats

  • 1080p, 50, 60 Hz
  • 1080i, 50, 60 Hz
  • 480p, 60 Hz
  • 576i, 50 Hz
  • 576p, 50 Hz
  • 720p, 50,60 Hz
  • 480i, 60 Hz

• Dimensions

  Set Width

  973.0  mm

  Product weight

  10.71  kg

  Set Height

  561.2  mm

  Set Depth

  63.5  mm

  Set Width (inch)

  38.31  inch

  Set Height (inch)

  22.09  inch

  Wall Mount

  200 (H) x 200 (V) mm, M6

  Set Depth (inch)

  2.50  inch

  Bezel width

  13.9 mm (Even bezel)

  Product weight (lb)

  23.61  lb

• Operating conditions

  Altitude

  0 ~ 3000 m

  Temperature range (operation)

  0 ~ 40  °C

  MTBF

  50,000  hour(s)

  Temperature range (storage)

  -20 ~ 60  °C

  Humidity range (operation)[RH]

  20–80% RH (No condensation)

  Humidity range (storage) [RH]

  5–95% RH (No condensation)

  Ingress protection

  IP5X

• Multimedia Applications

  USB Playback Video

  • MPEG
  • H.263
  • H.264
  • H.265
  • AVI
  • MP4
  • MPEG4
  • VP8
  • VP9
  • WEBM

  USB Playback Picture

  • BMP
  • JPEG
  • PNG

  USB Playback Audio

  • AAC
  • HEAAC
  • MPEG

• Internal Player

  CPU

  4 x A72 + 4 x A53 RK3576 + MT9800

  GPU

  ARM Mali G52 MC3

  Memory

  4 GB RAM

  Storage

  32 GB
