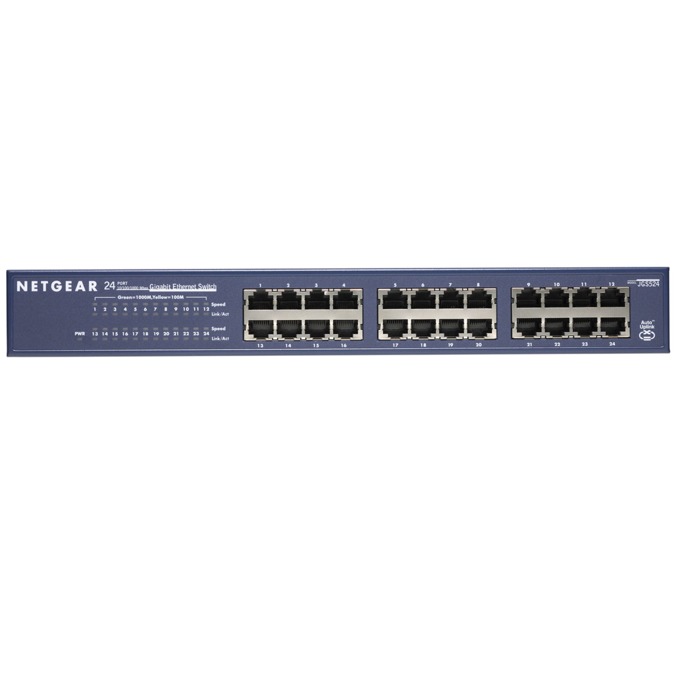

Netgear JGS524 V2
!!! Внимание, продуктът се предлага без опаковка !!!
Technical Specifications
Network Ports: : 24 10/100/1000Mbps Ethernet RJ-45 ports
Performance Specifications
Switching bandwidth
- JGS524: 48Gbps
Forwarding Rate
- 10 Mbps port: 14,880 frames/sec
- 100 Mbps port: 148,800 frames/sec
- 1000 Mbps port: 1,488,000 frames/sec
Latency (using 64 byte packets)
- 10Mbps: 35μs (max)
- 100Mbps: 30μs (max)
- 1000Mbps: 15μs (max)
RAM buffer
- 256KB
MAC address database
- 8K
Mean time between failures (MTBF)
- JGS524: 238,872 hour
Power Consumption
- Power cord: 100-240V; 50-60Hz; plug is localized to country of sale
- 17.9W max
Standards Compliance
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3x fl ow control
- IEEE 802.3 CAMA/CD
- IEEE 802.3az Energy Efficient Ethernet
- Jumbo frame support (up to 9KB)
Status LEDs
Unit
- Power
Per network port:
- Link, activity, speed
Physical Specifications
Dimensions (w x d x h): 328 x 169 x 43 mm
Weight: 1.65kg
Environmental Specifications
Operating temperature: 32° to 122°F (0° to 50°C)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage temperature: -4° to 158ºF (-20° to 70°C)
Storage humidity: 10 to 95% relative humidit
