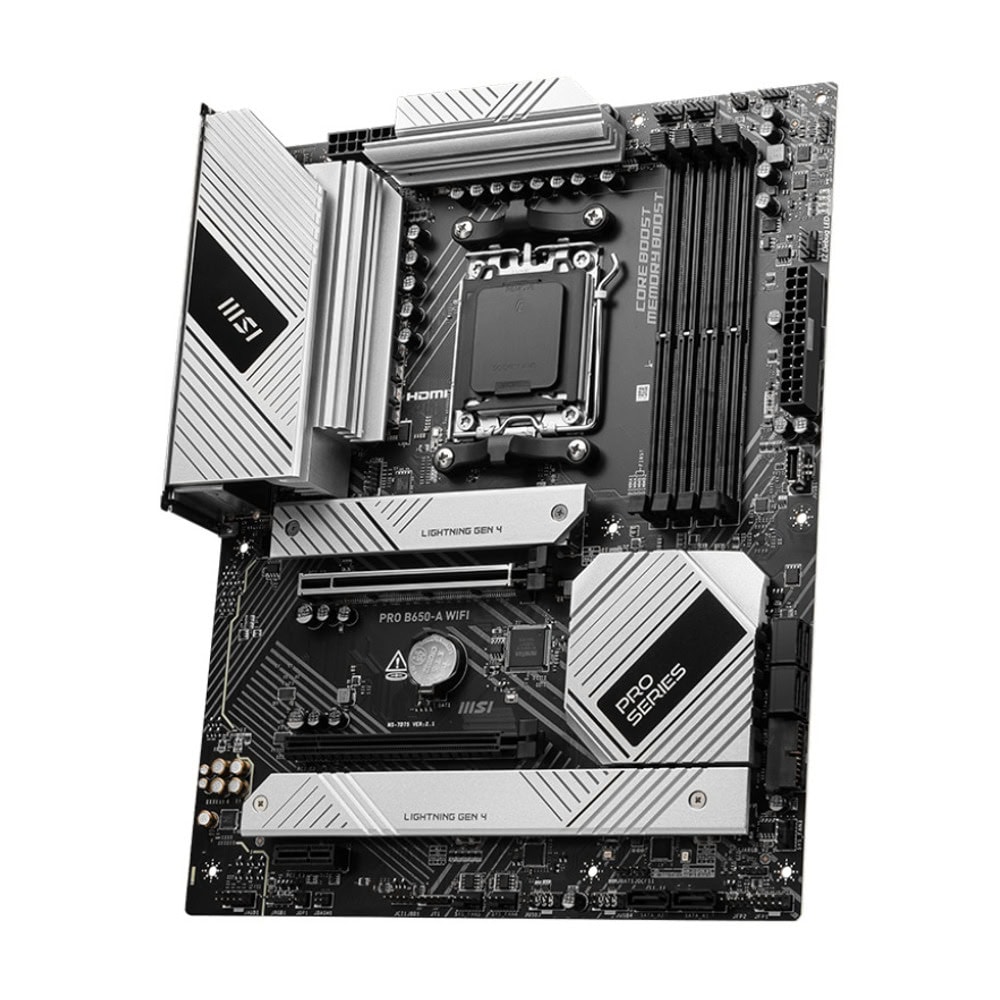

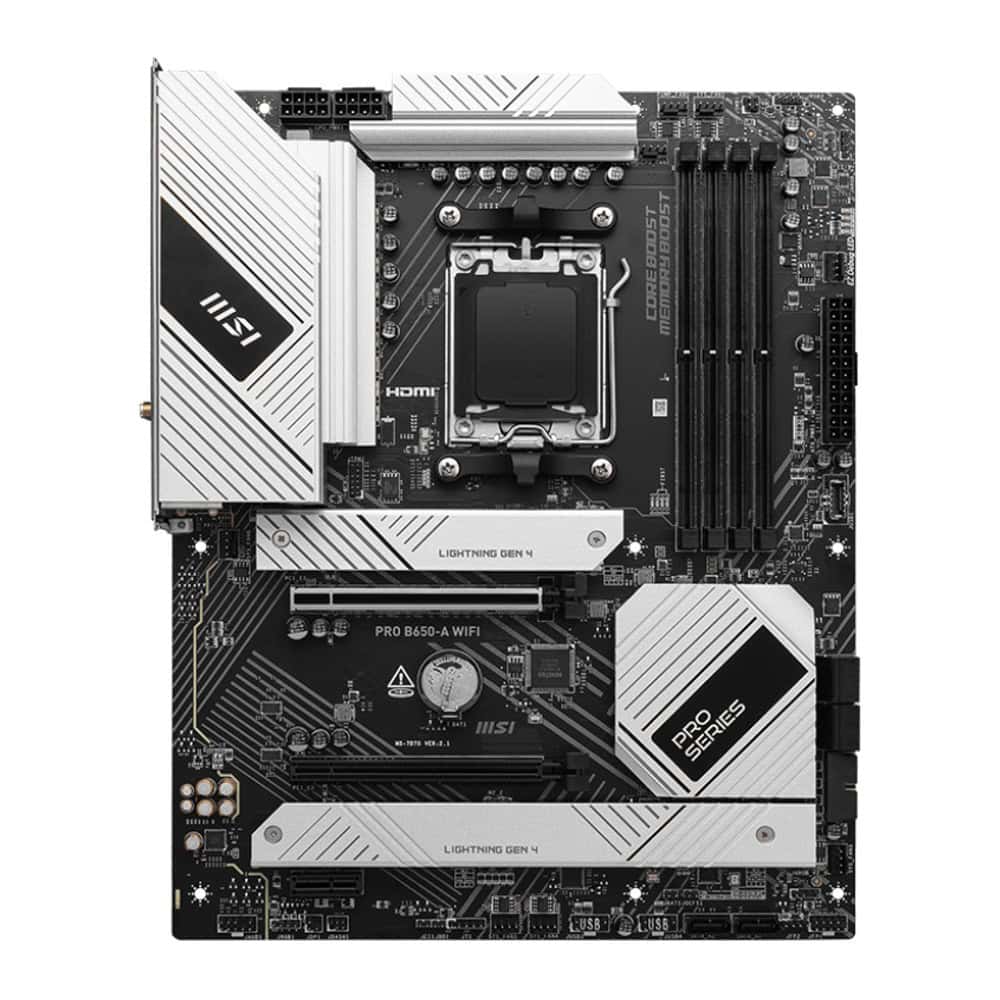

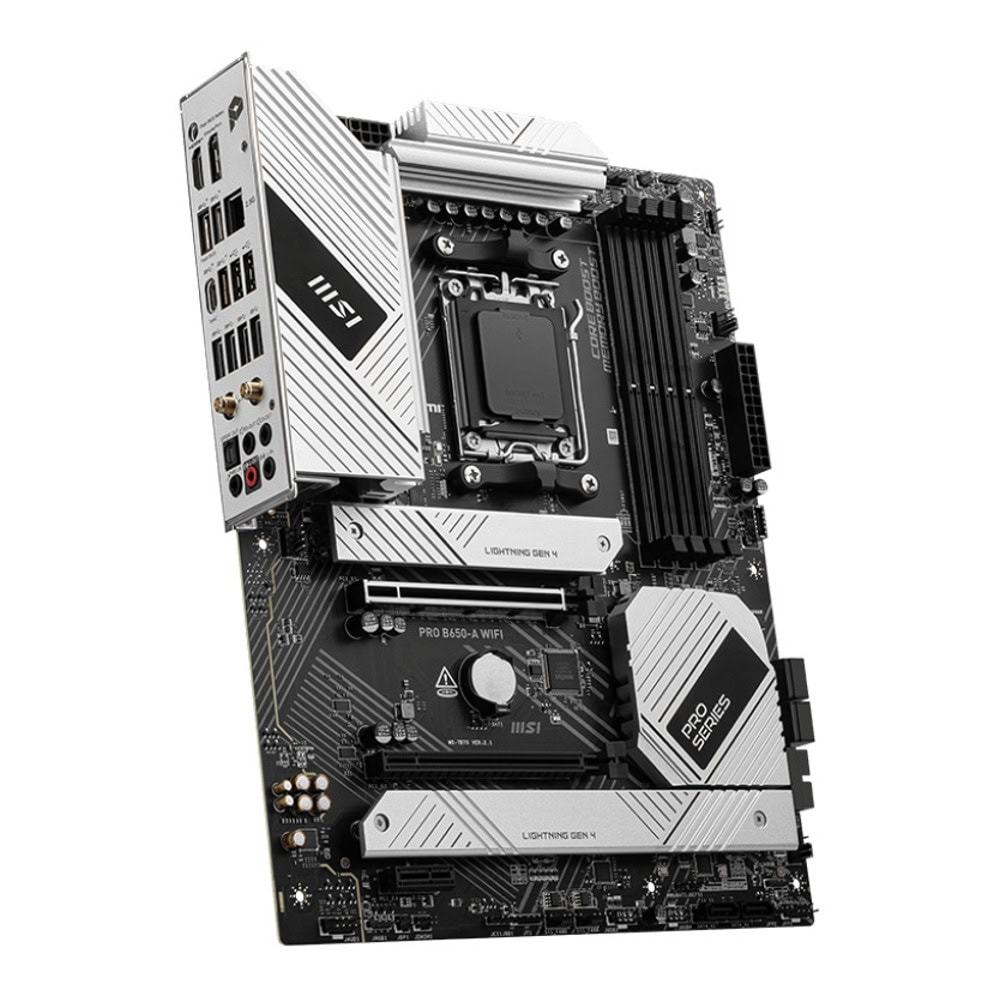

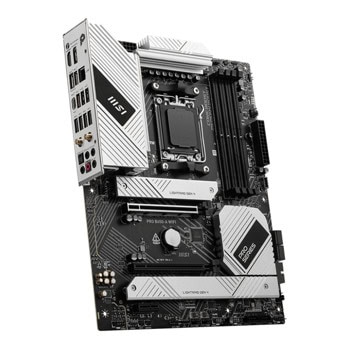

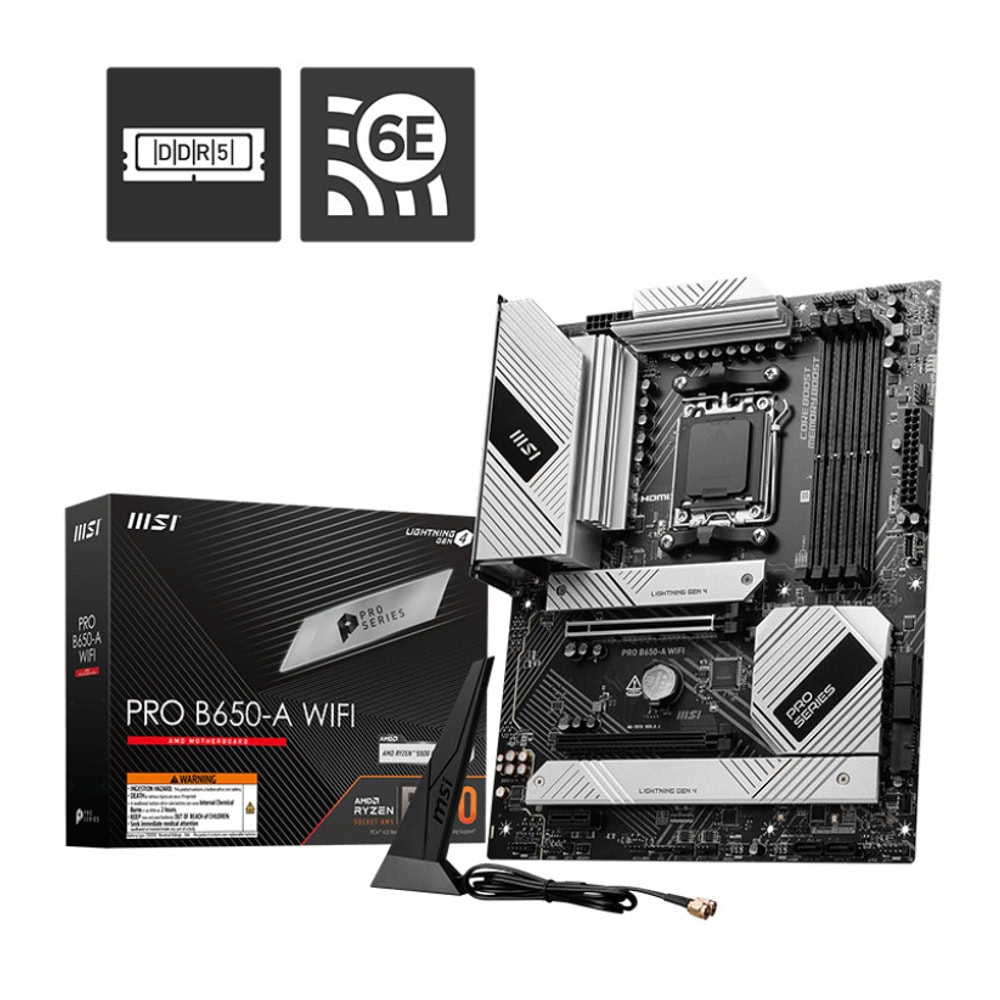

Дънна платка MSI Pro B650-A WiFi, B650, AM5, DDR5, PCI-E 4.0 (DP&HDMI), 6x SATA 6Gb/s, 3x M.2 slots, 1x USB 3.2 Gen 2 Type-C, Wi-Fi 6E, Bluetooth 5.3, ATX

Lightning Gen4 Solution:
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

Extended Heatsink Design:
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.


Specifications

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
AM5

Chipset
AMD B650

Expansion Slots
2x PCIe 4.0 x16 slots
1x PCIe 3.0 x1 slot

Display Interface
Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 – Requires Processor Graphics

Memory Support
4 DIMMs, Dual Channel DDR5-7600+ MHz (OC)

Storage
3x M.2 Gen4 x4 64Gbps slots
6x SATA 6Gbps ports

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1 & SATA_A2 do not support RAID function.

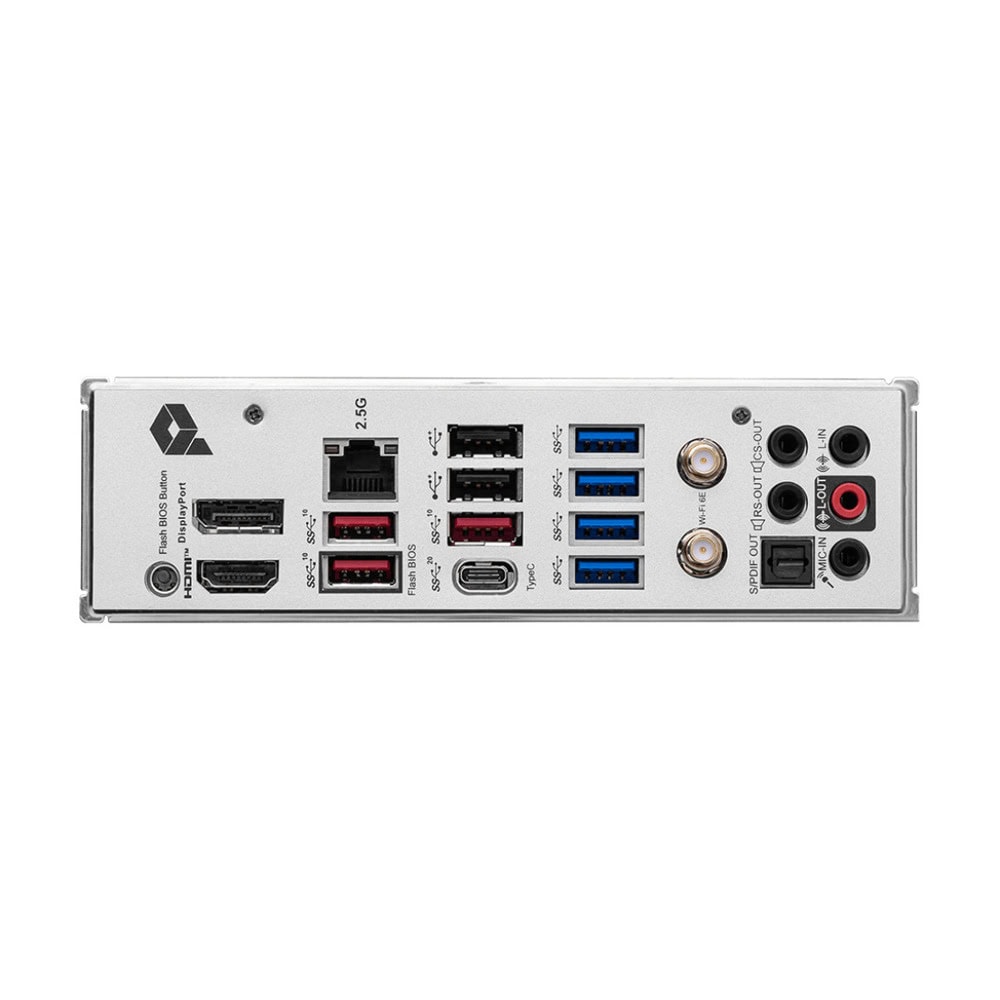

USB ports
1x USB 20Gbps (1 Type-C)
4x USB 10Gbps (3 Type-A + 1 Type-C)
6x USB 5Gbps (6 Type-A)
6x USB 2.0

LAN
Realtek 8125BG 2.5G LAN

Wireless / Bluetooth
AMD Wi-Fi 6E, Bluetooth 5.3

Audio
8-Channel (7.1) HD Audio with Audio Boost

PCB Info
ATX
243.84mmx304.8mm
