Дънна платка Sapphire A520M-E A520, AM4, DDR4, PCI-E 3.0 (HDMI/VGA), 4x SATA 6Gb/s, 1x M.2, 1x USB 3.2 Gen 2, Micro ATX

SAPPHIRE A520M-E

• AMD AM4 CPU SUPPORT

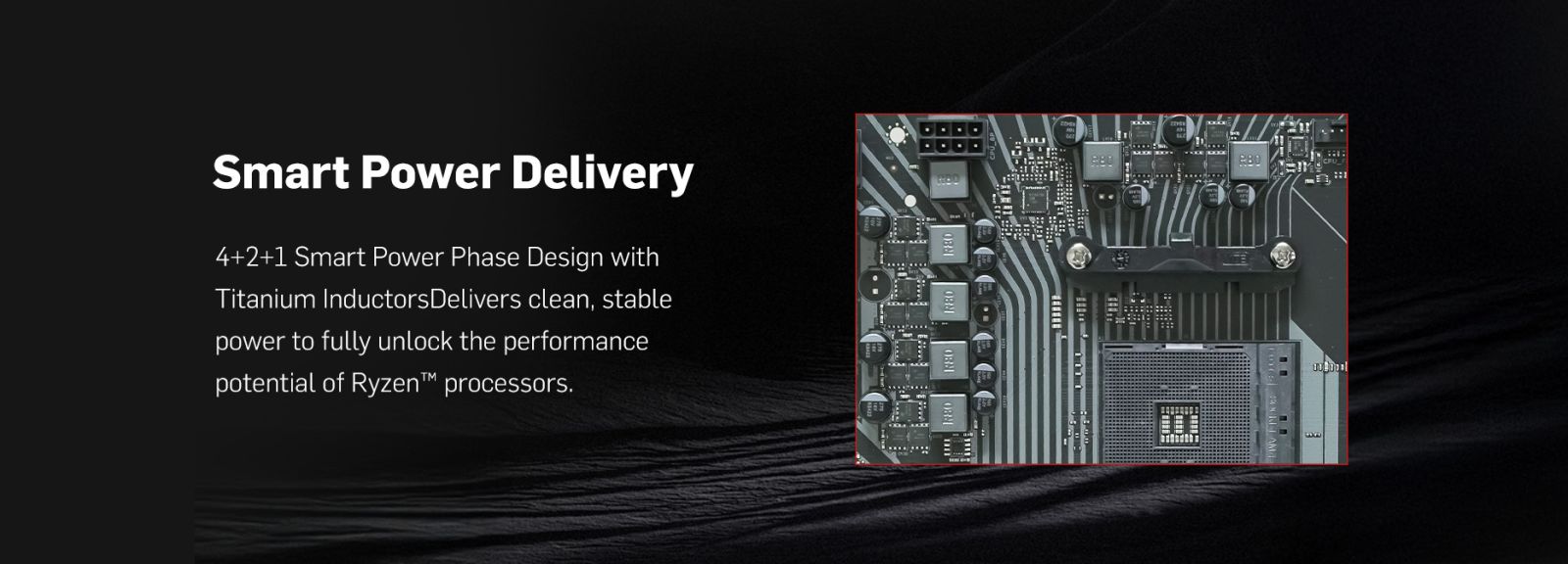

• 4+2+1 Phase CPU Power, 50A Per Phase
• PCI Express 3.0 x16
• PCIe 3.0 M.2 Support

Chipset

AMD® A520

CPU Support

Supports AMD Socket AM4 Processors including Ryzen™ 5000 / 4000 / 3000 Series Desktop Processors

Memory Support

2x DIMMS, Dual Channel DDR4, Maximum Memory Capacity 64GB (2x 32GB)

PCI-E Expansion Slots

1x PCIe 3.0 x16, 1x PCIe 3.0 x1

Display Connector

HDMI, D-Sub

Audio

Realtek® ALC897 HD Audio, 5.1 Channel

Network

Realtek® RTL8111M Gigabit Ethernet

Front USB Headers

1x USB 3.2 Gen1 (2 x Type-A)
1x USB 2.0 (2 x Type-A)

Rear Ports

1× HDMI™, 1× VGA, 1× PS/2
2× USB 2.0, 4× USB 3.2 Gen 1 Type-A
1× LAN ( RJ45), 3× Audio Jacks

Storage

1x PCIe 3.0 M.2, 4x SATA

Dimensions

Micro-ATX, 230x197mm

Debug LED

DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
