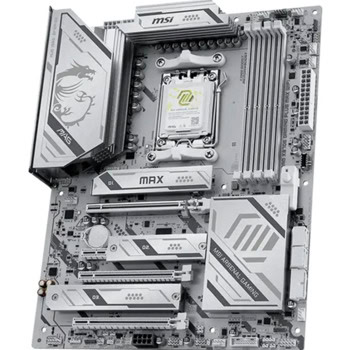

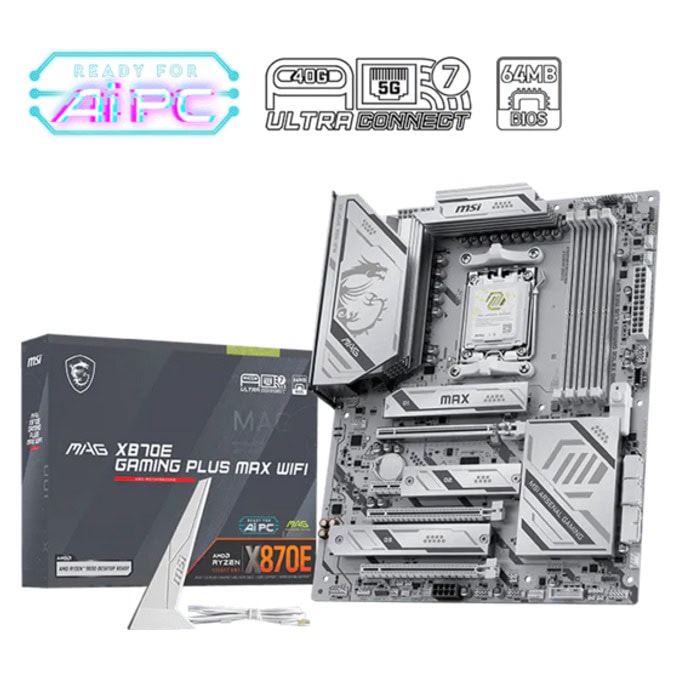

Дънна платка MSI MAG X870E GAMING PLUS MAX WIFI, X870E, AM5, DDR5, PCI-E 5.0 (HDMI), 4x SATA 6Gb/s, 3x M.2 slots, 1x USB 4.0 Type-C, 5GbE LAN, Wi-Fi 7, Bluetooth 5.4, ATX

Specifications

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
AMD Socket AM5

Chipset
AMD X870E Chipset

Graphics Interface
1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots

Display Interface
1 x USB4 port supports USB Type-C display output, Support 4K@60Hz as specified in HDMI 2.1 – Requires Processor Graphics

Memory
Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports

RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen 9000 series processors.

USB ports
1 x USB 40Gbps (1 Type-C)
1 x USB 20Gbps (1 Type-C)
3 x USB 10Gbps (2 Type-A + 1 Type-C)
6 x USB 5Gbps (6 Type-A)
10 x USB 2.0

LAN
Realtek 5G LAN

Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost

PCB Info
ATX
243.84mmx304.8mm
<div style="word-wrap:break-word; word-break:break-word;">MSI X870E GAMING PLUS WIFI, ATX, Socket AM5, 4x DDR5 Dual Channel DDR5 up to 8200(OC)MHz, 3x PCIe x16 slot, 3x M.2 slot, 4x USB 2.0, 2x USB 5Gbps, 2x USB 10Gbps, 1x 20Gbps Type-C, 1x 40Gbps Type-C, HDMI, 7.1 HD Audio, 5G LAN, WiFI 7, BT, 3Y</div>
