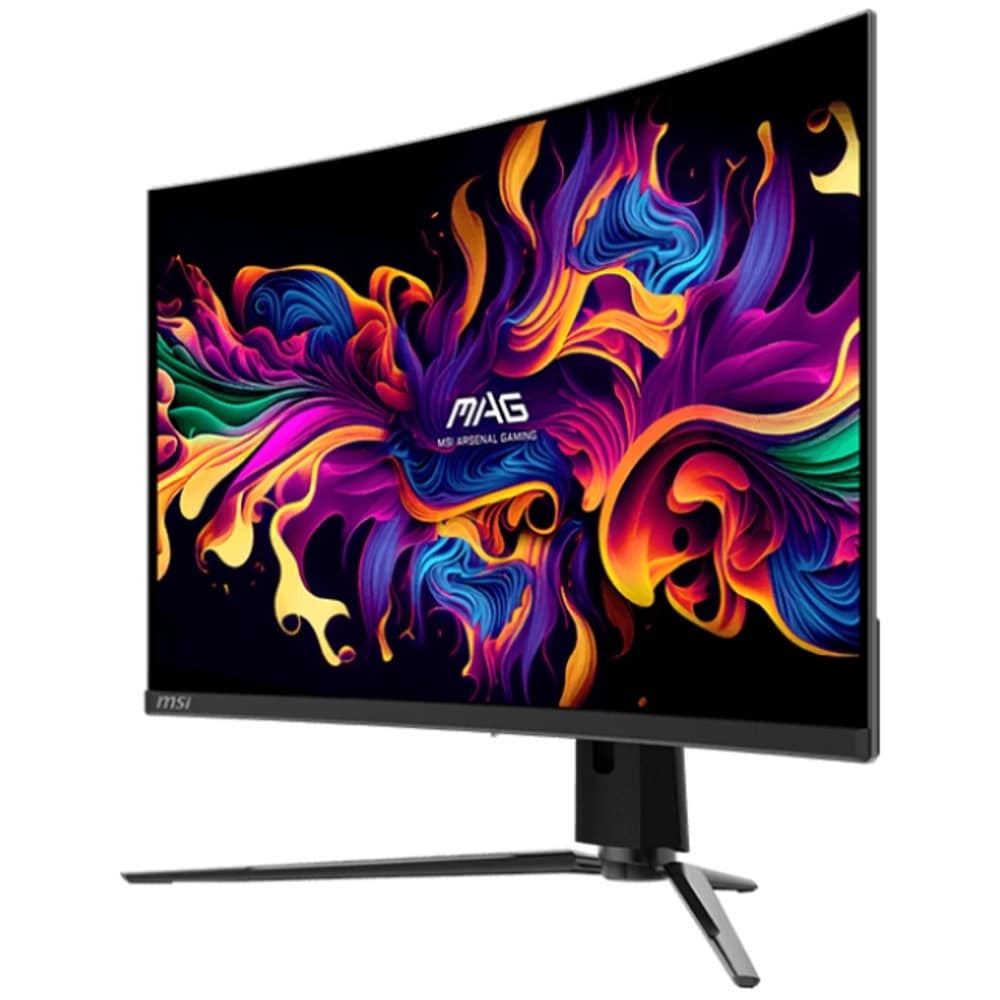

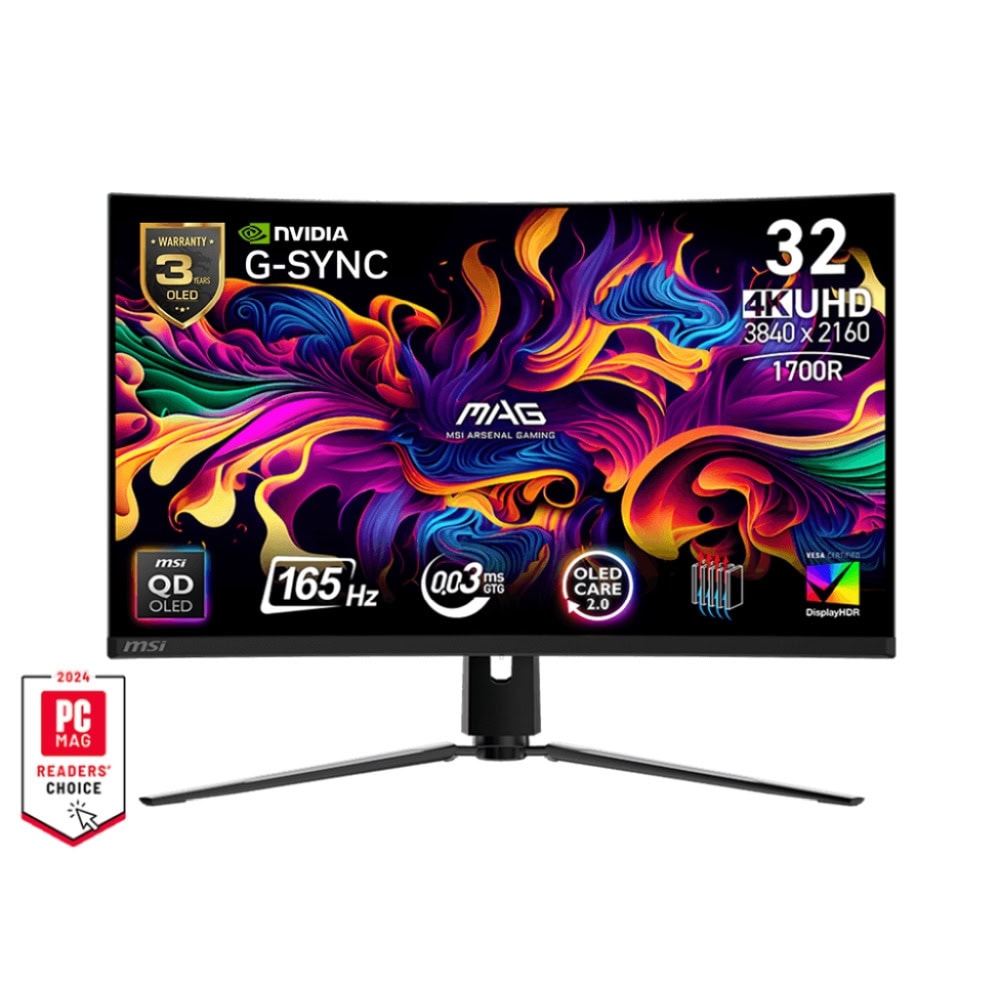

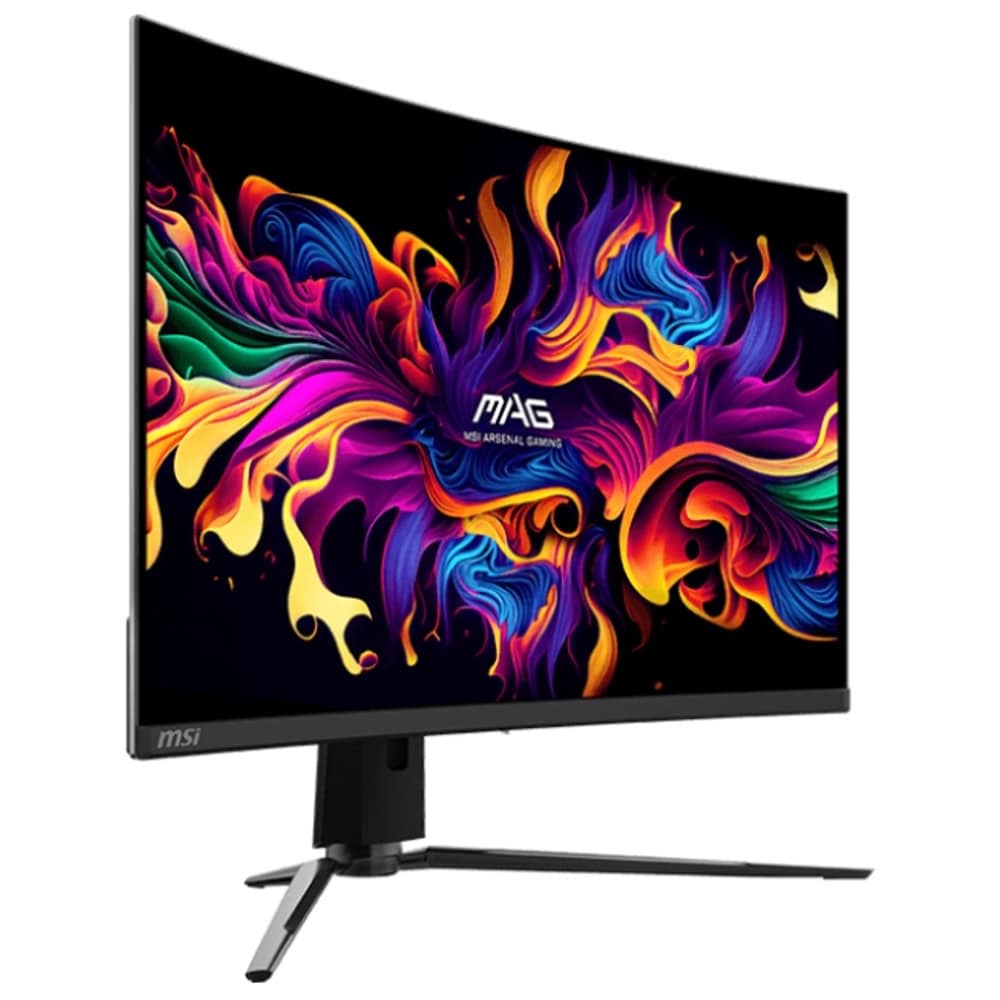

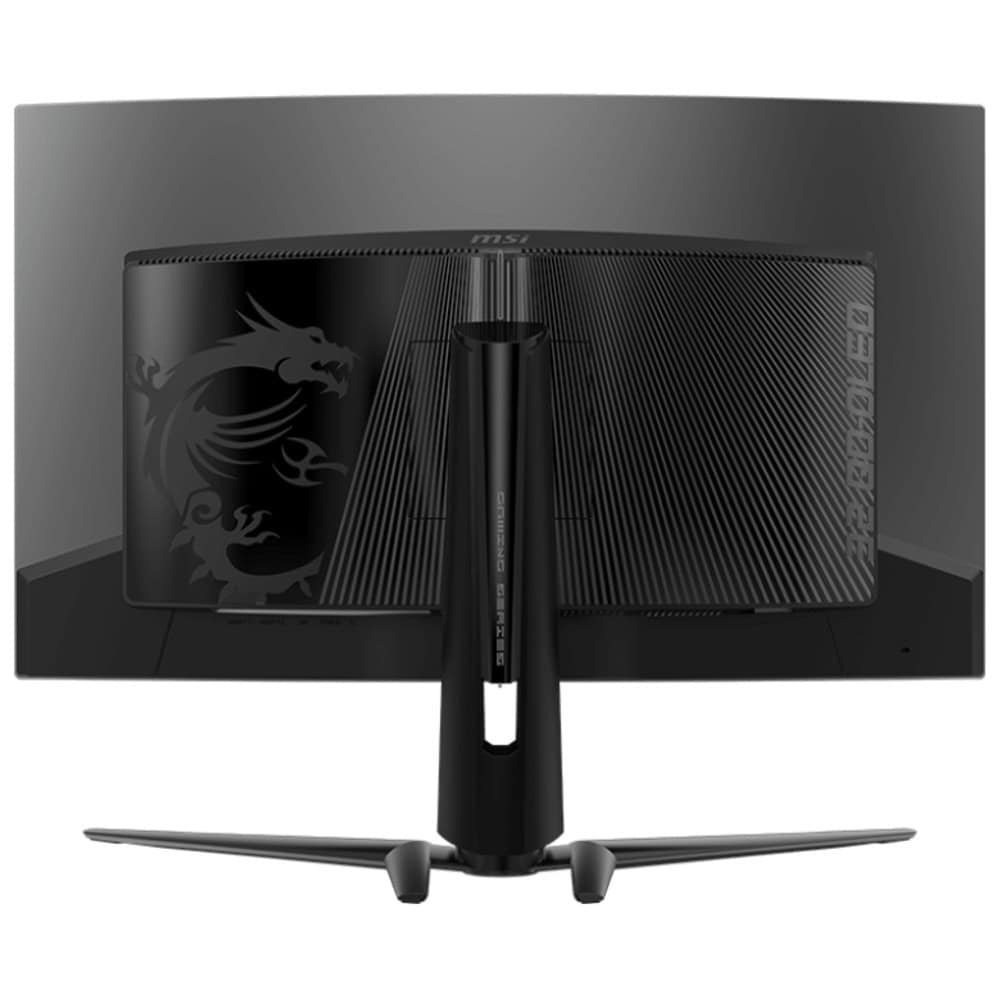

MSI MAG 321CUP QD-OLED (9S6-3DD54T-001)

3rd Gen QD-OLED Panel – With stunning image quality and fast response time.
Fastest 0.03ms GtG response time and 165Hz refresh rate.
QD Premium Color – Ensures the color meets the market standard – Delta E≤2.
Incredible HDR visual – VESA DisplayHDR True Black 400.
MSI OLED Care 2.0 – Reduced the risk of OLED image sticking / burn-in.
Console Mode – Provide HDMI™ 2.1 with a full 48 Gbps bandwidth.

Visualize your victory with the MAG 321CUP QD-OLED gaming monitor. It boasts a 3840x2160 (UHD) next-gen QD-OLED panel, 165Hz refresh rate, and rapid 0.03ms(GtG) response time. VESA certification for ClearMR 9000 and DisplayHDR True Black 400 ensures exceptionally vivid images and mitigates motion blur. OLED Care 2.0 reduces OLED burn-in risks. For console gamers, the MAG 321CUP QD-OLED provide HDMI 2.1 ports with 48Gbps bandwidth, 120Hz support, VRR, and ALLM.

The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.

However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.

OLED Care 2.0

MSI understands your concerns, which is why we offer MSI OLED Care. This solution provides a range of screen protection optimization mechanisms, it containes three parts (Pixel Shift, Panel Protect, Static Screen Detection). Now, MSI developed a more advanced version to provide several care services and significantly reduce the chances of OLED screen burn-in.

UX Friendly

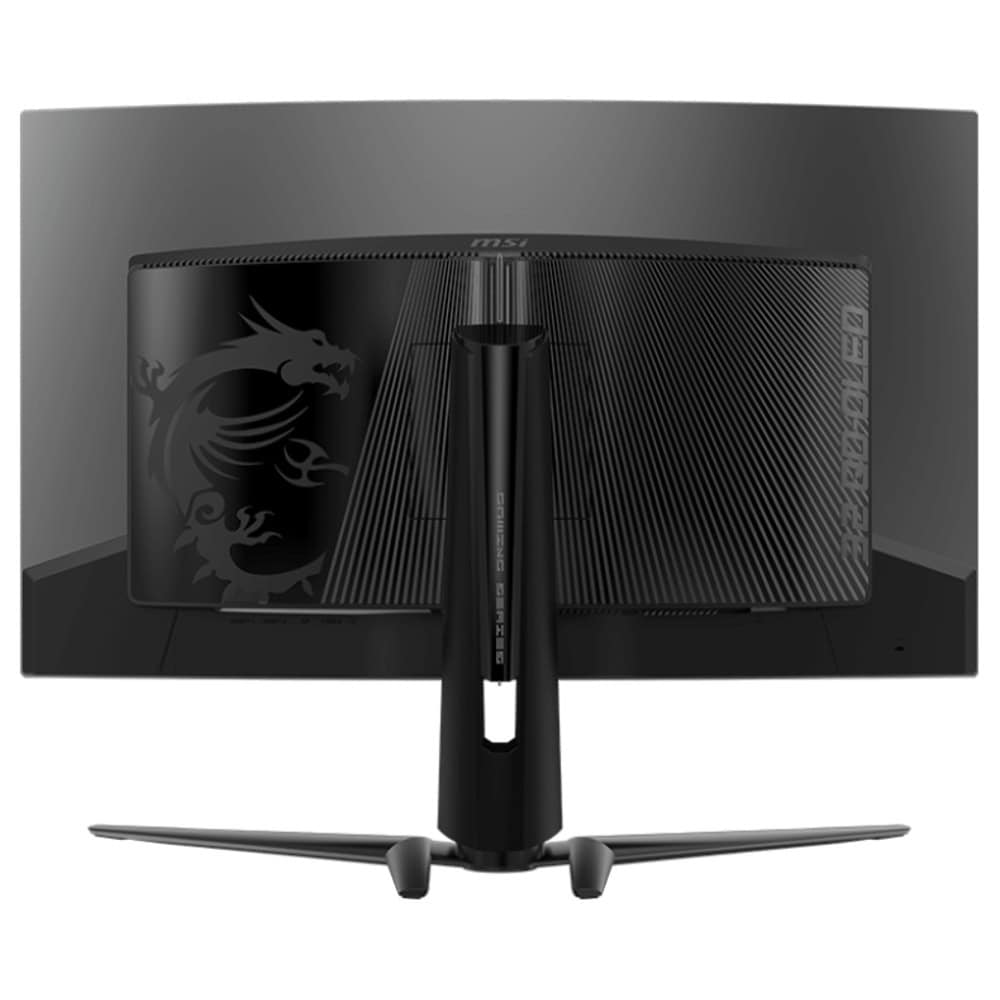

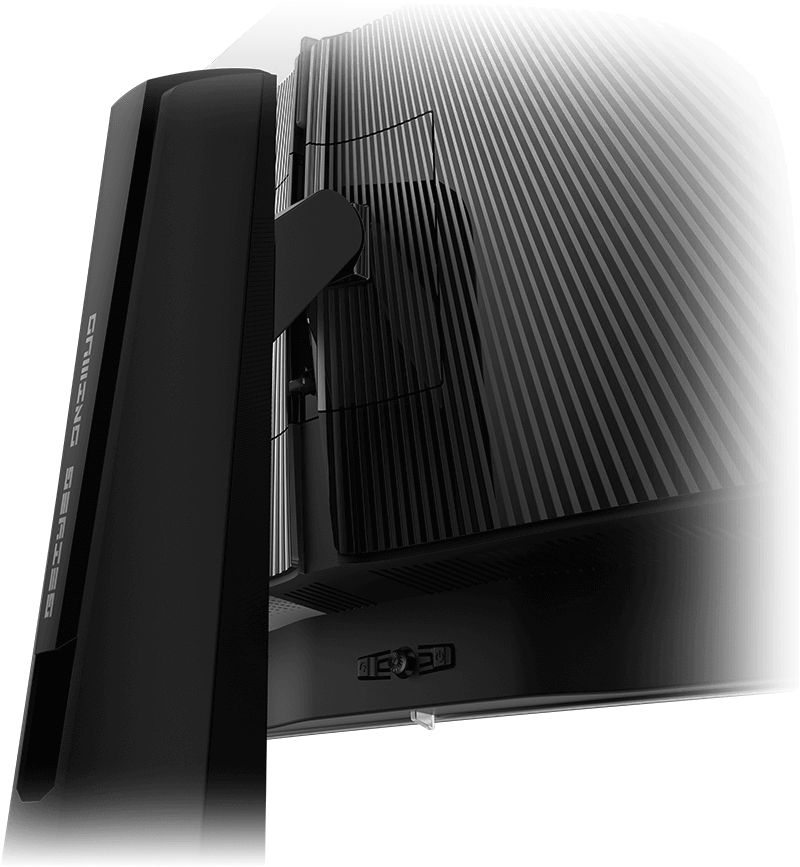

Crafted with a user-centric approach and a commitment to ergonomics, MAG 321CUP QD-OLED have relocated the 5-way Joystick Navigator to the bottom center of the back of the screen, providing users with a more comfortable and ergonomic experience.

Specification	Details
Panel Size	31.5"
Active Display Area (mm)	699.48 (H) × 394.73 (V)
Curvature	Curve 1700R
Panel Type	QD-OLED
Panel Resolution	3840 × 2160 (UHD)
Pixel Pitch (H × V)	0.1814 × 0.1814 mm
Aspect Ratio	16:9
Brightness (nits)	SDR: 250 / HDR: 450 (Typ.) (True Black 400 with 10% APL) / 1000 (Typ.) (Peak 1000 with 3% APL)
Contrast Ratio	1,500,000:1 (Typ.)
Signal Frequency	30~390 KHz (H) / 48~165 Hz (V)
ACTIVATED RANGE	48 ~ 165 Hz
Refresh Rate	165 Hz
Response Time	0.03 ms (GTG)
Dynamic Refresh Rate Technology	G-Sync Compatible
HDR Support	DisplayHDR True Black 400
Video Ports	1× HDMI™ 2.1 (UHD@165Hz), 1× DisplayPort 1.4a, 1× Type-C (DP alt.) w/ 15W PD
Audio Ports	1× Headphone-out
Viewing Angle	178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB Coverage	98% / 99% / 138% (CIE1976 Standard)
Surface Treatment	Anti-Reflection
Display Colors	1.07B, 10-bit
Frameless Design	Yes
Power Type	100–240V, 50/60Hz
Power Input Frequency Range	30~566KHz (H) / 48~240Hz (V)
Adjustment (Tilt)	-5° ~ +15°
Adjustment (Swivel)	±30°
Adjustment (Height)	0 ~ 100 mm
Kensington Lock	Yes
VESA Mounting	100 × 100 mm
Dimension with Stand (W × D × H)	714 × 318 × 473 mm (28.1 × 12.5 × 18.6 inch)
Dimension without Stand (W × D × H)	714 × 123 × 423 mm (28.1 × 4.8 × 16.7 inch)
Weight (Net / Gross)	8.0 kg (17.6 lbs) / 11.3 kg (24.9 lbs)
Carton Dimension (W × D × H)	975 × 185 × 513 mm (38.4 × 7.2 × 20.2 inch)
Note	HDMI™: 3840×2160 (Up to 165Hz) / DisplayPort: 3840×2160 (Up to 165Hz) / Type-C: 3840×2160 (Up to 165Hz) / Support: HDMI™ CEC, PIP/PBP; Not Supported: KVM

Виж още Монитори MSI
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Да
USB Type-А:	Не
VGA (D-Sub):	Не

Гама:	Gaming
Екран размер:	31.5" (80.01 cm)
Разделителна способност (max):	3840 x 2160
Аспект изображение:	16:9
Тип матрица:	QD-OLED
Честота на опресняване:	165 Hz
Време за реакция:	0.03 ms
Яркост:	250 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Извит:	Да
Преносим:	Не
