Дънна платка MSI B450M PRO-VDH MAX, B450, AM4, DDR4, PCIe 3.0 (HDMI&DVI-D&VGA), 4x SATA 6Gb/s, 1x M.2, 2 x USB 3.2 Gen1, m-ATX

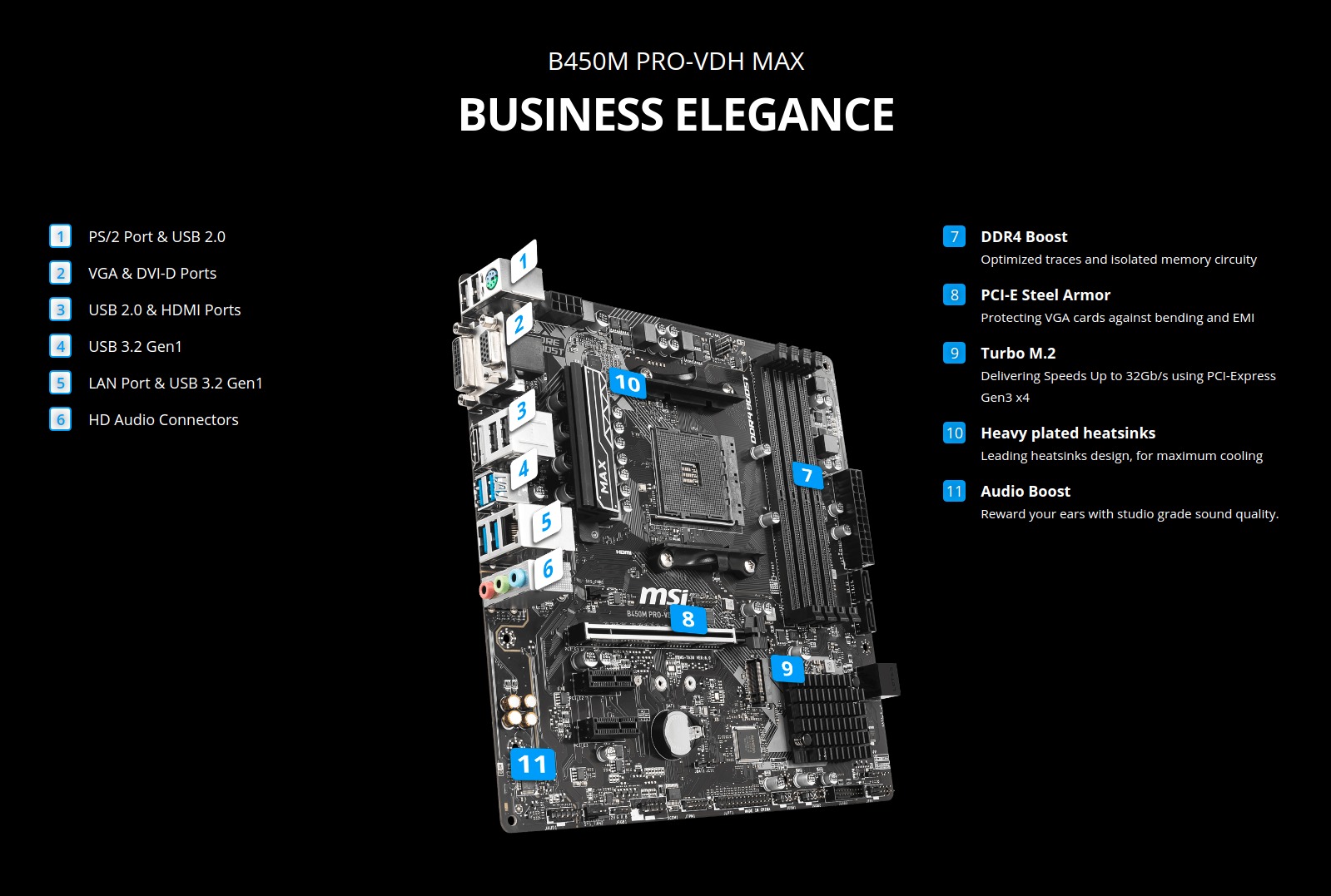

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 3466+(OC) MHz

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

• Audio Boost: Reward your ears with studio grade sound quality.

• EZ Debug LED: Easiest way to troubleshoot

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

• PCI-E Steel Armor: Protecting VGA cards against bending and EMI

​

Specifications

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

CHIPSET
AMD® B450 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB1
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
For AMD Other Processors
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory

SLOTS
1 x PCIe 3.0 x16 slot
1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode
2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2<
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2<
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2<
Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

STORAGE
AMD® B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices

USB
AMD® B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper

BACK PANEL PORTS
PS/2
VGA Port
USB 2.0 Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
DVI-D Port
HDMI Port
MSI
B450M PRO-VDH MAX back panel ports

DIMENSIONS
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor

MOUNTING
8 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
