Дънна платка MSI 990FXA GAMING, AMD® SB950, AM3+, DDR3, 6x SATA 6Gb/s, 2x USB3.1, ATX

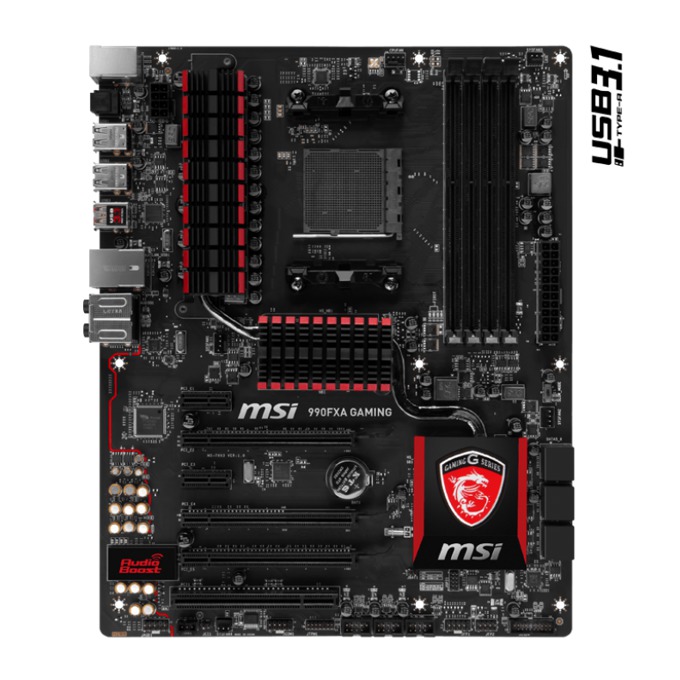

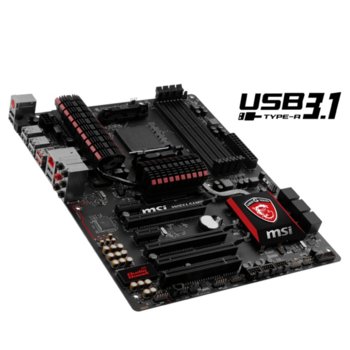

MSI 990FXA GAMING

Let the games begin

MSI® GAMING motherboards are designed to provide gamers with best-in-class features and technology. Backed by the imposing looks of MSI's Dragon, each motherboard is an engineering masterpiece tailored to gaming perfection.
The best gaming weapons at hand

Amazing sound with Audio Boost 2, powered by Creative Sound Blaster Cinema 2
The highest frag and the lowest lag with Killer™ E2200 Game Networking
Military Class 4 components
Specialized production lines just for GAMING motherboards
OC Genie 4
Gaming Device Port
Click BIOS 4 (click here to visit our dedicated BIOS page)
Optimized for multiple graphics cards (CrossFire certified)
Take control with Command Center & Live Update 6

CPU

• Supports AMD® FX™/ Phenom™ II/ Athlon™ II and Sempron™ processors for the AM3/ AM3+ socket

Chipset

• AMD® 990FX & SB950

Main Memory

- 4x DDR3 memory slots supporting up to 32GB
- Supports DDR3 2133(OC)/ 1866/ 1600/ 1333/ 1066 MHz
- Dual channel memory architecture

Slots

• 3x PCIe 2.0 x16 slots
- PCI_E2, PCI_E5 support up to PCIe 2.0 x16 speed
- PCI_E4 supports up to PCIe 2.0 x4 speed
• 2x PCIe 2.0 x1 slots
• 1 x PCI slot

On-Board SATA

• AMD® SB950 Chipset
- 6x SATA 6Gb/s ports

• RAID
- Supports RAID 0, RAID1, RAID5 and RAID 10

USB :

• AMD® SB950 Chipset
- 14x USB 2.0 ports (8 ports on the back panel, 6 ports available through the internal USB 2.0 connectors)

• VIA® VL806 Chipset
- 2x USB 3.0 ports available through the internal USB 3.0 connector*

• Asmedia® 1142 Chipset
- 2x USB 3.1 ports on the back panel
* These USB 3.0 ports do not support M-Flash recovery function.

Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

• Killer E2205 Gigabit LAN controller*
- 1 x LAN port on the backpanel
* The Killer Network Manager is only available for Windows 7 and Windows 8/ 8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
- 1 x USB 3.0 connector
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 2 x 3-pin system fan connectors
- 1 x Front panel audio connector
- 2x Front panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1x S/PDIF-Out connector
- 1x Clear CMOS jumper
- 1x Slow mode booting switch

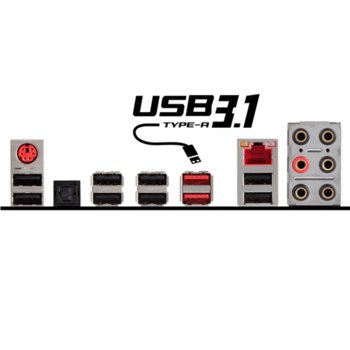

Back Panel I/O Ports

- 1x PS/2 keyboard/ mouse combo port
- 8x USB 2.0 ports
- 2x USB 3.1 ports
- 1x Optical S/PDIF-Out connector
- 1x LAN (RJ45) port
- 6x OFC audio jacks

Multi-GPU Support

• Supports 3-Way AMD® CrossFireTM Technology*
• Supports 2-Way NVIDIA® SLITM Technology
* Supports Windows 7 and Windows 8/ 8.1.

Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor

Mounting

• 9 mounting holes
