MikroTik S53UG+5HaxD2HaxD-TC&RG650E

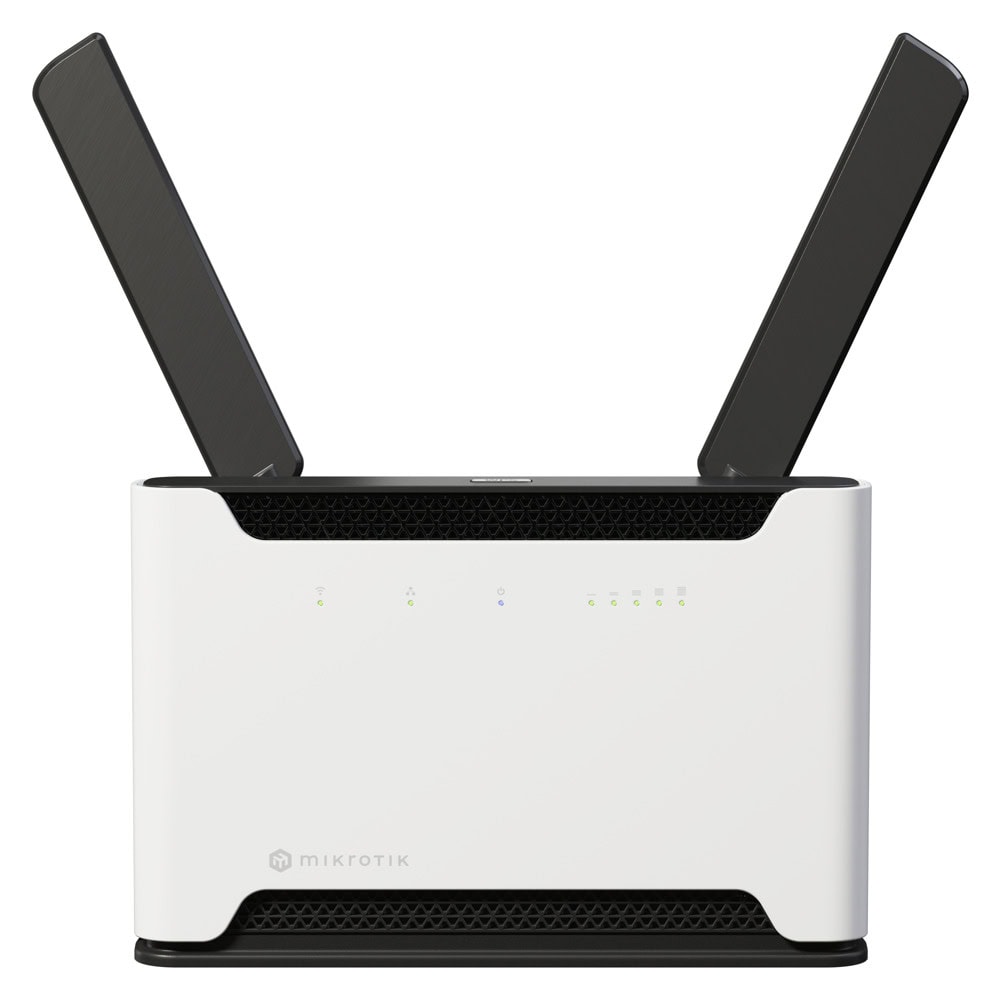

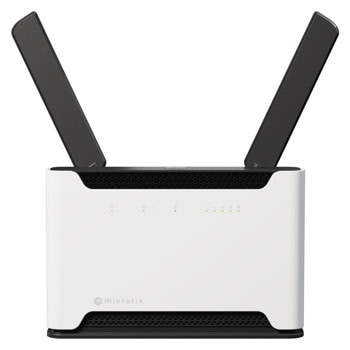

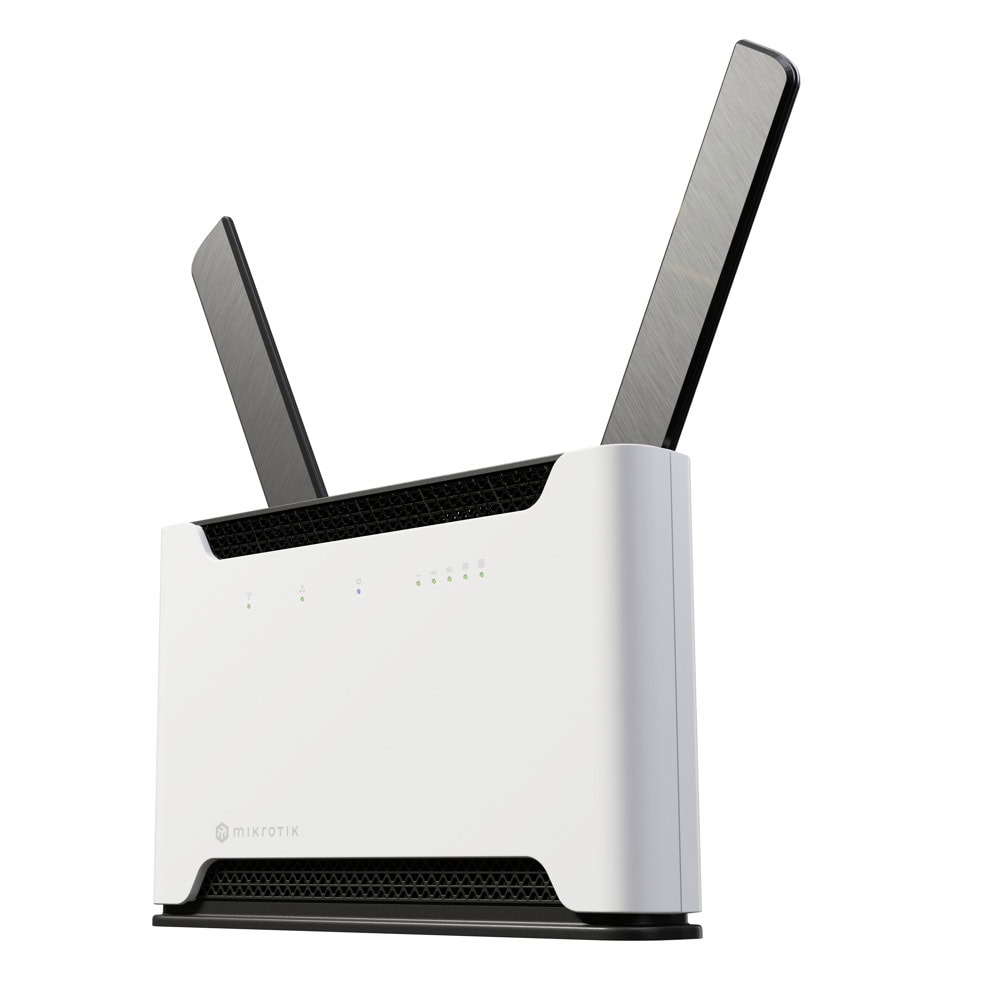

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.
Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.
Your network, your rules: eSIM or microSIM
Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:
• MikroTik Connectivity
(pre-activated data plans)
• Third-party eSIMs
(Mobile operator eSIM profiles)
• Multiple eSIM profiles
(easily added, switched, or stored)
With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:
• Smart aggregation with wide regional FDD + TDD band support;
• Extra strong signal pickup thanks to 4x4 MIMO;
• Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.
Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!
Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.
Category | Details |
---|---|
Product Code | S53UG+5HaxD2HaxD-TC&RG650E-EU |
Architecture | ARM 64bit |
CPU | IPQ-6010 |
CPU Core Count | 4 |
CPU Frequency | 864–1800 MHz |
Switch Chip Model | IPQ-6010 |
RouterOS License | 4 |
Operating System | RouterOS v7 |
RAM | 1 GB |
Storage | 128 MB NAND |
MTBF | ~200,000 hours @ 25°C |
Tested Ambient Temperature | -40°C to 70°C |
IPsec Hardware Acceleration | Yes |
DC Inputs | 1 (DC jack) |
Input Voltage | 12–28 V |
Max Power Consumption | 27 W |
Power w/o Attachments | 18 W |
Cooling Type | Passive |
3G Category | R8 (42.2 Mbps DL / 5.76 Mbps UL) |
3G Bands | 1 (2100 MHz) / 5 (850 MHz) / 8 (900 MHz) |
LTE Category | Cat 20 (2.0 Gbps DL / 211 Mbps UL) |
MIMO (DL/UL) | 4x4 DL / 1x1 UL (5G SA UL 2x2) |
LTE FDD Bands | 1 / 3 / 5 / 7 / 8 / 20 / 28 / 32 |
LTE TDD Bands | 38 / 40 / 41 / 42 / 43 |
5G NSA FDD Bands | 1 / 3 / 5 / 7 / 8 / 20 / 26 / 28 / 67 / 75 / 76 |
5G NSA TDD Bands | 38 / 40 / 41 / 77 / 78 |
5G SA FDD Bands | 1 / 3 / 5 / 7 / 8 / 20 / 26 / 28 / 67 / 75 / 76 |
5G SA TDD Bands | 38 / 40 / 41 / 77 / 78 |
TAC | 86896506 |
2.4 GHz Max Data Rate | 574 Mbps |
2.4 GHz Chains | 2 |
2.4 GHz Standards | 802.11b/g/n/ax |
2.4 GHz Antenna Gain | 3 dBi |
2.4 GHz Chip Model | QCN-5022 |
2.4 GHz Wi-Fi Generation | Wi-Fi 6 |
5 GHz Max Data Rate | 1200 Mbps |
5 GHz Chains | 2 |
5 GHz Standards | 802.11a/n/ac/ax |
5 GHz Antenna Gain | 6 dBi |
5 GHz Chip Model | QCN-5052 |
5 GHz Wi-Fi Generation | Wi-Fi 6 |
2.4 GHz TX/RX Performance | 1Mbit/s: 23/-100, 11Mbit/s: 23/-94, 6Mbit/s: 24/-96, 54Mbit/s: 21/-80, MCS0: 24/-96, MCS7: 20/-75, MCS9: 19/-70, MCS11: 17/-67 |
5 GHz TX/RX Performance | 6Mbit/s: 24/-96, 54Mbit/s: 21/-80, MCS0: 24/-96, MCS7: 20/-75, MCS9: 19/-70, MCS11: 17/-67 |

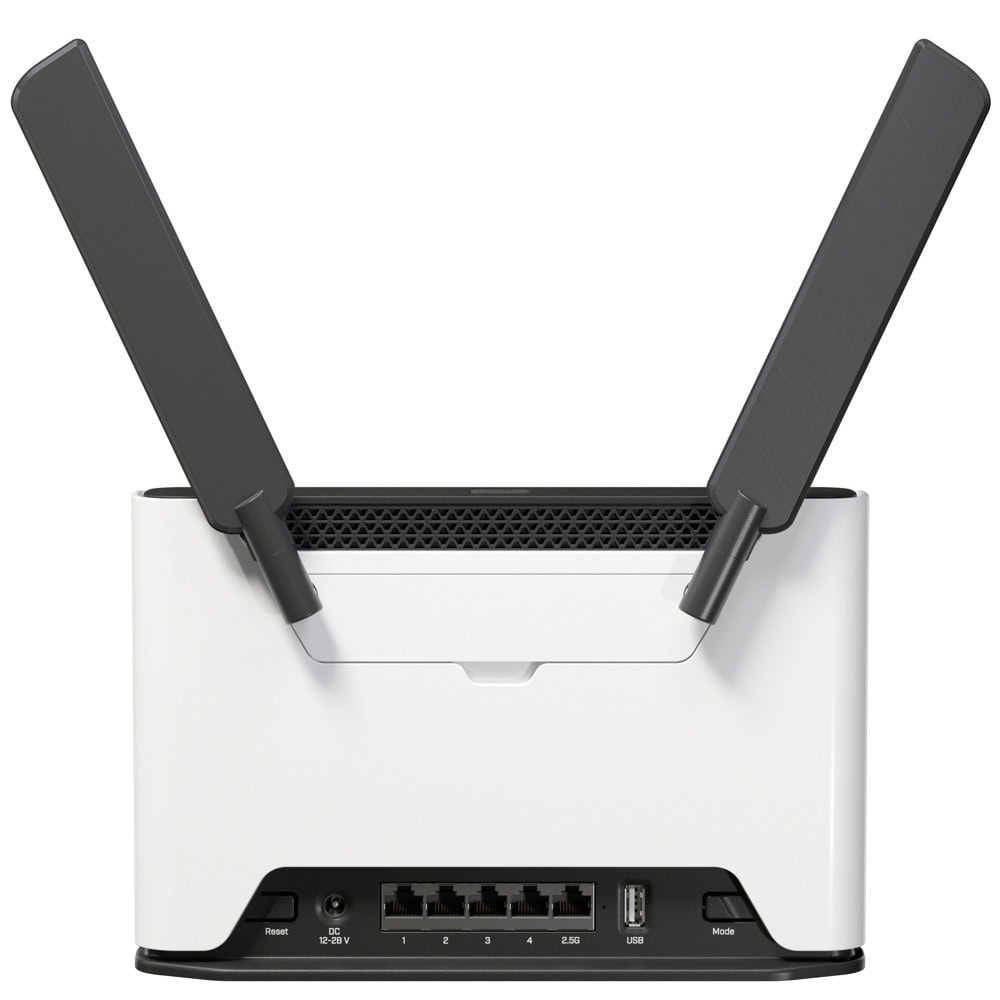

Gigabit Ethernet Ports | 4 (10/100/1000) |
2.5G Ethernet Ports | 1 |
SIM Slots | 1 (Micro SIM) |
USB Ports | 1 (Type A) |
USB Power Reset | Yes |
Max USB Current | 1.5 A |
CPU Temp Monitor | Yes |
PCB Temp Monitor | Yes |
Voltage Monitor | Yes |
Mode Button | Yes |
eSIM | Yes |
Certifications | CE, EAC, ROHS |
IP Rating | IP20 |
12 месеца за юридически, 24 месеца за физически лица
Виж още Рутери Безжични MikroTik
Виж всички Рутери Безжични в категорията
Безжична скорост: | 1800 Mbps |
---|---|
Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
Честота: | 2.4 + 5 GHz |
LAN портове: | 4 x 1000 Mbps |
WAN портове: | Няма Mbps |
Антени: | 2 Външни |
USB портове: | 1 x 3.0 |
3G/4G: | 5G |
Преносим: | Не |
Други: | Слот за SIM карта |
Жична скорост: | 10/100/1000/2500 Mbps |
