TP-Link Omada ER706WP-4G
Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+

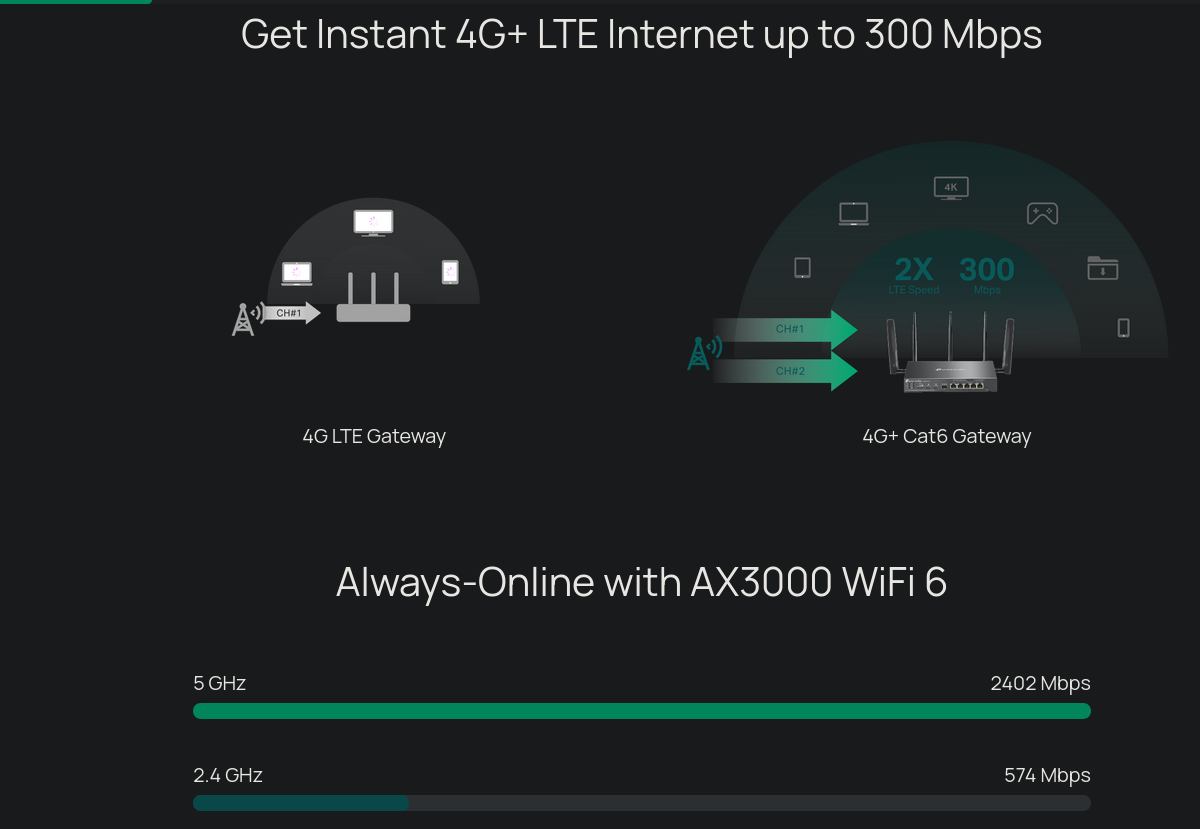

- Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US).
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
- Centralized Management: Cloud access and the Omada app for easy management.
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

.png)
Category | Specification |
---|---|
4G Network Type | LTE Band of EU:• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) |
Carrier Aggregation of EU | B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41 |
SIM Type | 2× Nano SIM Card (4G + Cat6) |
Frequency | • Downlink: 300 Mbps;• Uplink: 50 Mbps |
Security | DPI: Application control via DPI / Updated app libraryIDS/IPS: Signature-based IPS/IDS threat detectionAccess Control: Source/Destination IP Based Access ControlFiltering: Web Group Filtering, URL Filtering, Web SecurityARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC BindingAttack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
Hardware Features | Interface:• 1 Gigabit SFP WAN/LAN Port• 1 Gigabit WAN Port• 4 Gigabit LAN/WAN PortsNetwork Media:• 10BASE-T: UTP cat 3,4,5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP cat 5,5e cable (Max 100 m)• 1000BASE-T: UTP cat 5,5e,6 cable (Max 100 m)Button: Reset ButtonPower: 4 Ports PoE+ Output, 45 W PoE BudgetWi-Fi Frequency & Signal Rate:• 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160)Flash: 256 MB NANDDRAM: 512 MB DDR4LEDs: SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE)Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions excluded)Antenna:• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas• LTE: Two 4.0dBi omnidirectional detachable antennasMounting: Desktop/Wall-Mounting/RackmountMax Power Consumption: 64.9W with PoE Max; 19.8W without PoE |
Performance | IPS Throughput:• TCP: 229 Mbps• UDP: 188 MbpsDPI Throughput:• TCP: 933 Mbps• UDP: 927 MbpsGRE:• Unencrypted: 545.3 Mbps• Encrypted: 282.6 MbpsWireGuard VPN: 387.7 MbpsConcurrent Session: 150,000New Sessions / Second: 5,100NAT (Static IP): 947.1 Mbps / 940.1 MbpsNAT (DHCP): 949.2 Mbps / 941.1 MbpsNAT (PPPoE): 942.6 Mbps / 941.1 MbpsNAT (L2TP): 875.4 Mbps / 892.0 MbpsNAT (PPTP): 881.2 Mbps / 895.8 MbpsIPsec VPN Throughput:• ESP-SHA1-AES256: 652.2 Mbps• ESP-SHA256-AES256: 654.4 Mbps• ESP-SHA384-AES256: 646.5 Mbps• ESP-SHA512-AES256: 670.5 MbpsOpenVPN: 115.5 MbpsL2TP VPN Throughput:• Unencrypted: 990.0 Mbps• Encrypted: 475.0 MbpsPPTP VPN Throughput:• Unencrypted: 1177.9 Mbps• Encrypted: 177.4 MbpsSSL VPN Throughput: 122.5 Mbps66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps1,518 Byte Packet Forwarding Rate: 81,274 pps / 91,275 pps |
Wireless Features | • Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Rate Limit (SSID/Client based)• Airtime Fairness• Wireless Encryption: WPA/WPA2/WPA3 Personal & Enterprise• Multiple SSIDs: 16 total (8 per radio)Guest Network: Supported |
Basic Functions | WAN Connection Type: Static IP, Dynamic IP, PPPoE (supports MRU Config), PPTP, L2TPMAC Clone: Modify WAN AddressDHCP: DHCP Server, DHCPv6 PD Server (Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCPSMS: Receive / Send SMSIPv6: Static IP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address ModeVLAN: 802.1Q VLANIPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
Advanced Features | Access Control: IP/Port/Protocol/Domain Name FilteringAdvanced Routing: Static Routing, Policy Routing, RIP, OSPFBandwidth Control: IP-Based Bandwidth ControlLoad Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online DetectionNAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnPSession Limit: IP-Based Session Limit |
VPN | GRE: Standalone Mode onlySSL VPN: 50 TunnelsIPsec VPN: 100 Tunnels; LAN-to-LAN, Client-to-LAN; Main & Aggressive Negotiation; DES, 3DES, AES128/192/256 Encryption; Failover; IKE v1/v2; MD5, SHA1, SHA2-384/512 Auth; NAT Traversal; Dead Peer Detection; Perfect Forward SecrecyPPTP VPN: Server, Client (10), 50 Tunnels, MPPE EncryptionL2TP VPN: Server, Client (10), 50 Tunnels, L2TP over IPSecOpenVPN: Server, Client (5), 55 Tunnels, Certificate + Account Mode, Full ModeWireGuard VPN: 20 Tunnels |
Authentication | • No Authentication• Simple Password• Hotspot (Local User / Voucher / SMS / Radius)• External Radius Server• External Portal Server• LDAP |
Management Features | Omada App: YesCentralized Management: Omada Cloud Controller, Hardware Controllers (OC300, OC200), Software ControllerCloud Access: YesService: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)Maintenance: Web Management, Remote Management, Export/Import Config, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (Standalone Mode), Syslog SupportZero-Touch Provisioning: Yes, requires Omada Cloud ControllerAdditional Management: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Config, Reboot Schedule, Captive Portal Config |
Others | Certifications: CE, FCC, RoHSPackage Contents: ER706WP-4G, Power Adapter, Quick Installation GuideSystem Requirements: Windows 98SE to 11, MAC OS, NetWare, UNIX, LinuxEnvironment: Operating Temp 0 °C to 40 °C, Storage Temp -40 °C to 70 °C, Operating Humidity 10%–90% non-condensing, Storage Humidity 5%–90% non-condensing |
Виж още Рутери Безжични TP-Link
Виж всички Рутери Безжични в категорията
Технически характеристики
Безжична скорост: | 3000 Mbps |
---|---|
Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
Честота: | 2.4 + 5 GHz |
LAN портове: | 4 x 1000 Mbps |
WAN портове: | 1 x 1000 Mbps |
Антени: | 5 Външни |
USB портове: | Няма |
3G/4G: | 4G |
Преносим: | Не |
Други: | Слот за SIM карта |
Жична скорост: | 10/100/1000 Mbps |
