Суич MikroTik CRS812-8DS-2DQ-2DDQ-RM, 10000 Mbps, 14 порта, 2x 100/1000/10000Mbps RJ-45, 2x 40G/50G/100G/200G QSFP56, 8x 1G/2.5G/5G/10G/25G/50G SFP56, 2x 40G/50G/100G/200G/400G QSFP-DD

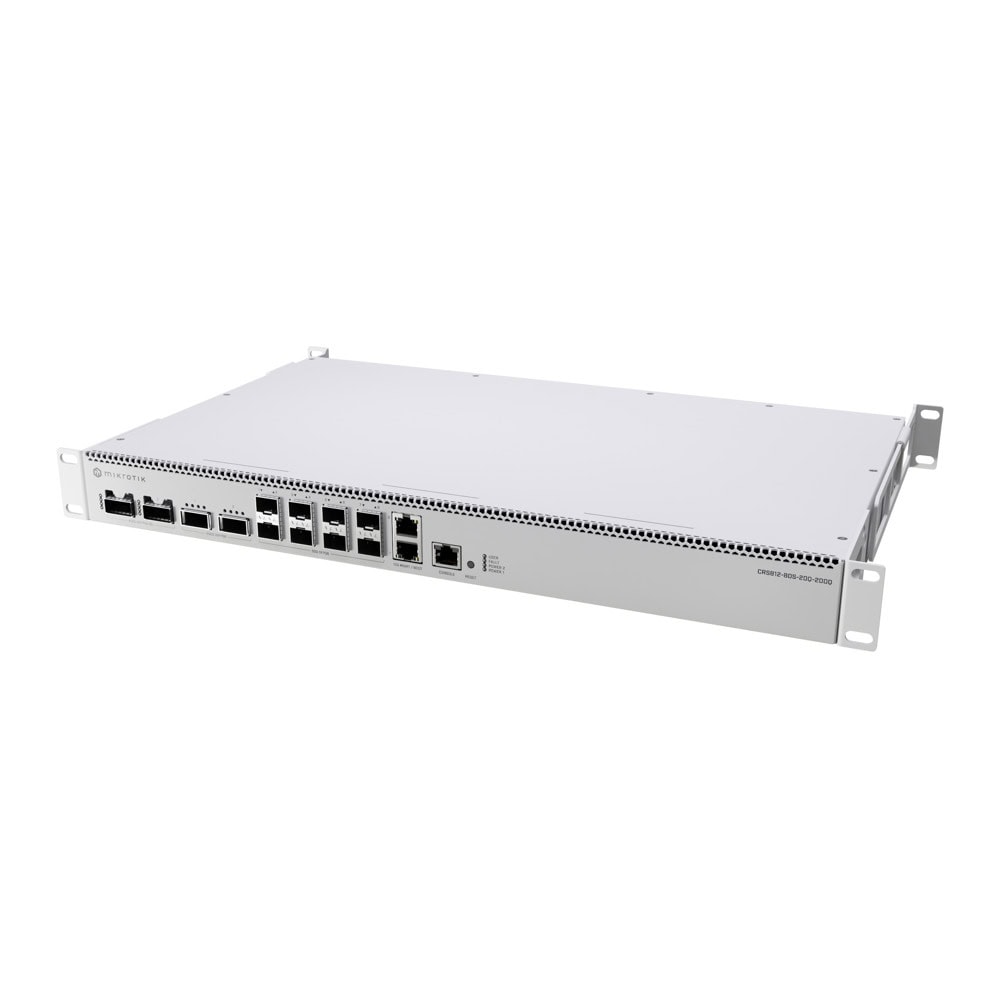

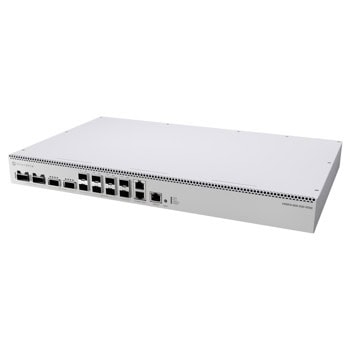

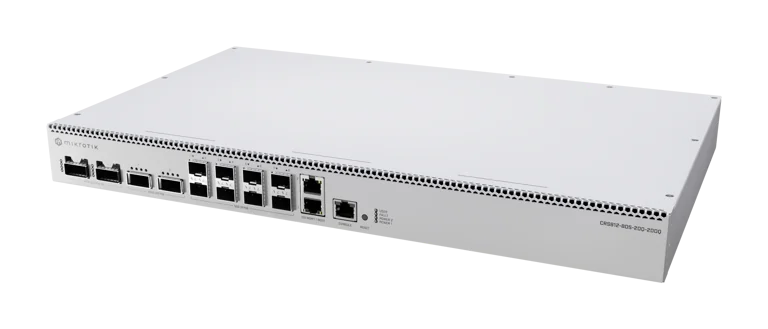

MikroTik CRS812-8DS-2DQ-2DDQ-RM

CRS812 DDQ

This switch is your next leap forward – a powerful, efficient, and cost-effective way to bring 50G, 200G, and 400G into your rack. Quad-core 2 GHz ARM CPU, dual-redundant power supplies and 4x hot-swap cooling fans, 2x 10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, and 2x 400G QSFP56-DD ports.

Specifications

• Architecture ARM 64bit
• CPU AL52400
• CPU core count 4
• CPU nominal frequency 2000 MHz
• CPU Threads count 4
• Switch chip model 98DX7335
• RouterOS license 6
• Operating System RouterOS v7
• Size of RAM 4 GB
• Storage size 512 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -10°C to 50°C

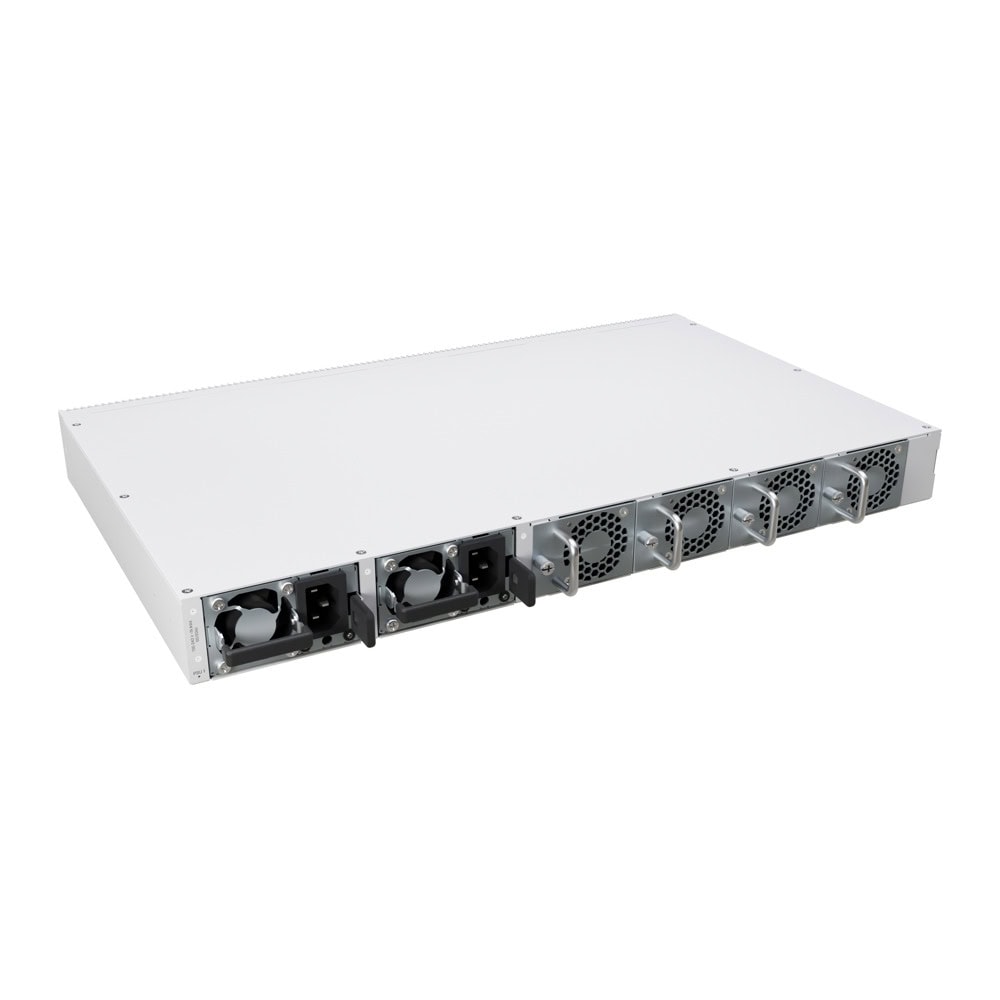

Powering

• Number of AC inputs 2
• AC input range 100-240
• Number of PSU slots 2
• Frequency (Hz) 50-60
• Max power consumption 134 W
• Max power consumption without attachments 81 W
• Cooling type 4 fans

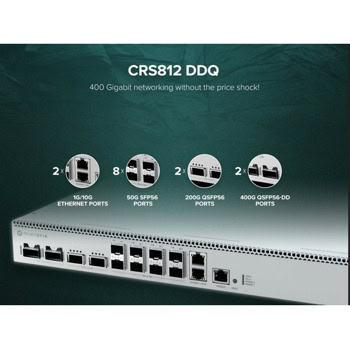

Ethernet

• Number of 1G/2.5G/5G/10G Ethernet ports 2 (supported: 10M/100M/1G/10G)
• Number of 50G SFP56 ports 8
• Number of 200G QSFP56 ports 2
• Number of 400G QSFP56-DD ports 2

Peripherals

• Serial console port RJ45

Other

• CPU temperature monitor Yes
• PCB temperature monitor Yes
• Voltage Monitor Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
