Name: Суич TP-Link Omada SG3452XMPP, 52 порта, 40x 10/100/1000Mbps RJ-45 PoE+, 8x 10/100/1000Mbps RJ-45 PoE++, 4x SFP+
Brand: TP-Link
SKU: NTLHTPLINKSG3452XMPP
Price: 1131.04 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

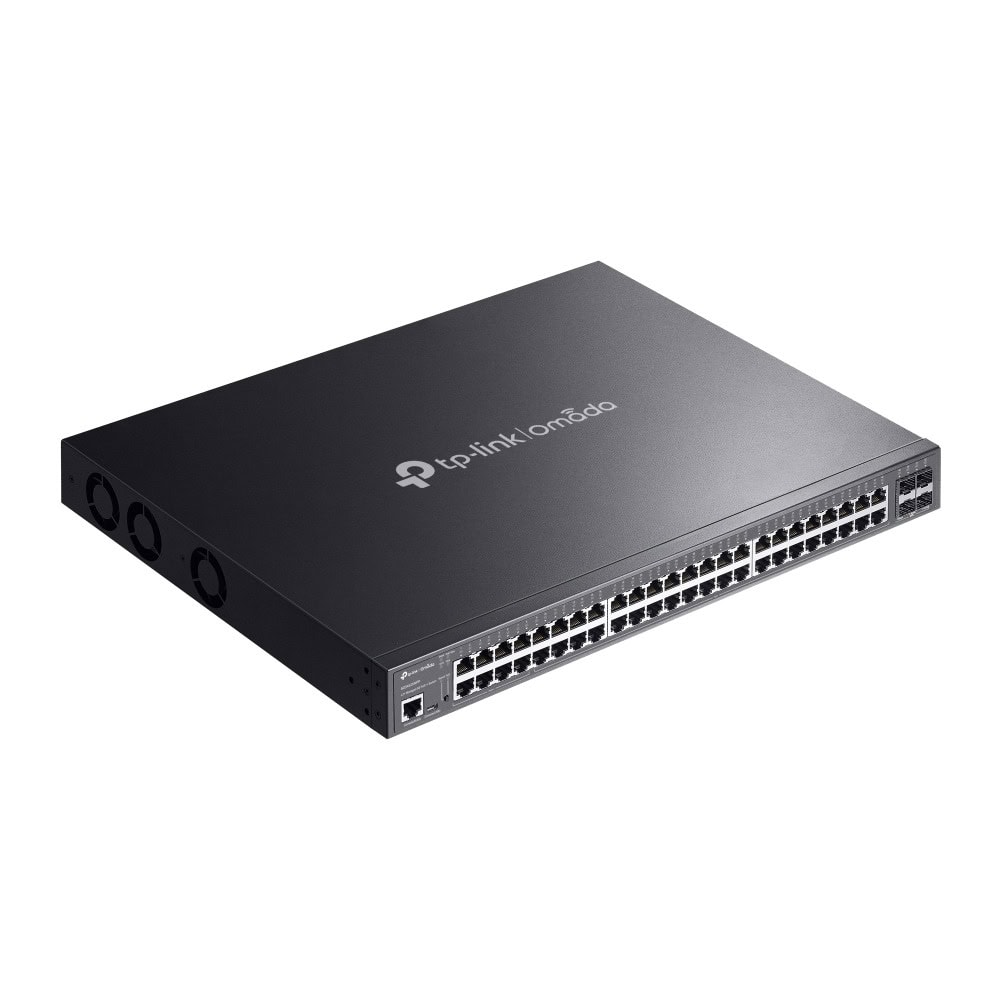

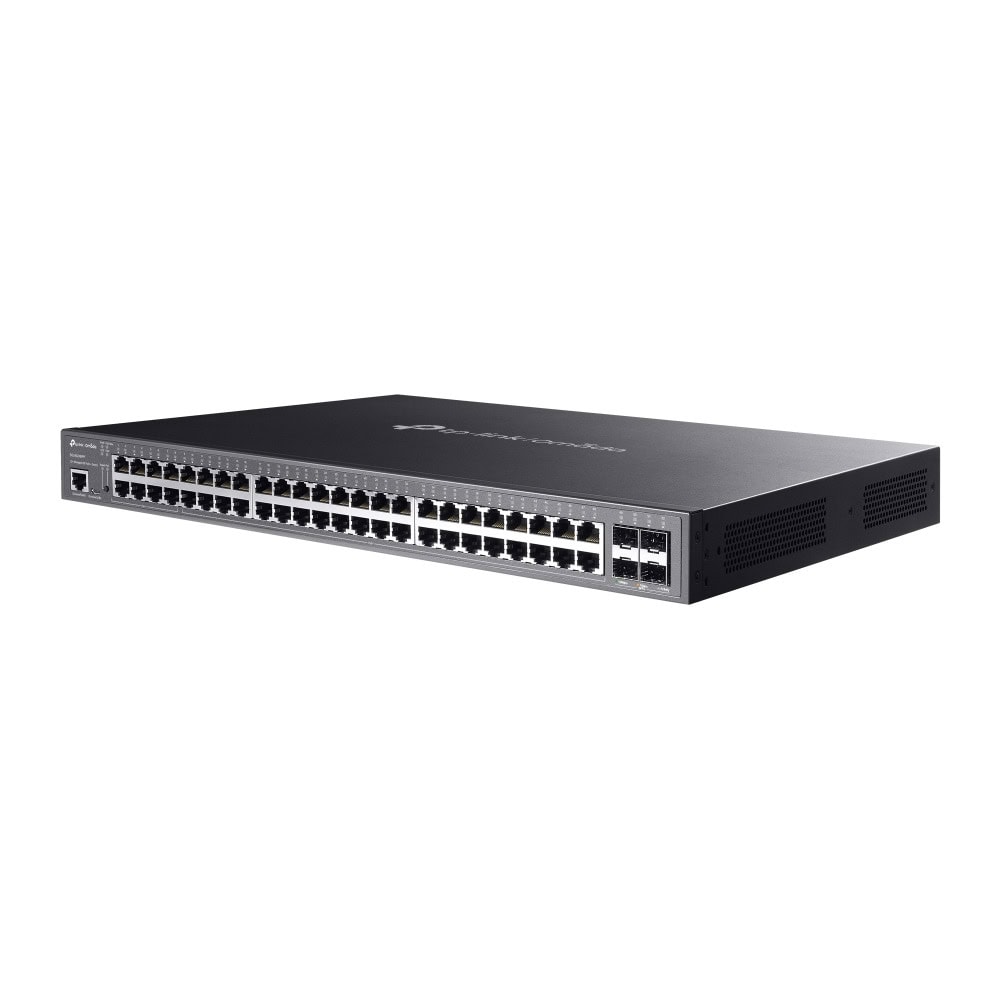

TP-Link Omada SG3452XMPP

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

4× 10 Gbps SFP+ slots

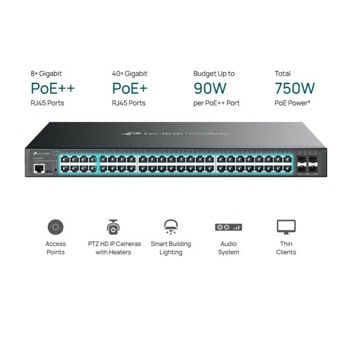

8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
750 W total PoE budget*

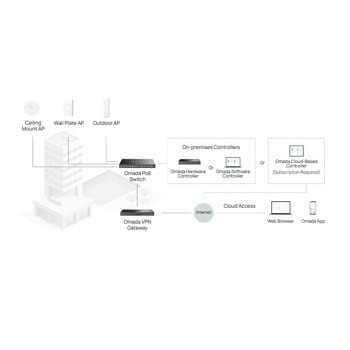

Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Feature	Details
Interface	48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
Fan Quantity	3
Physical Security Lock	Yes (√)

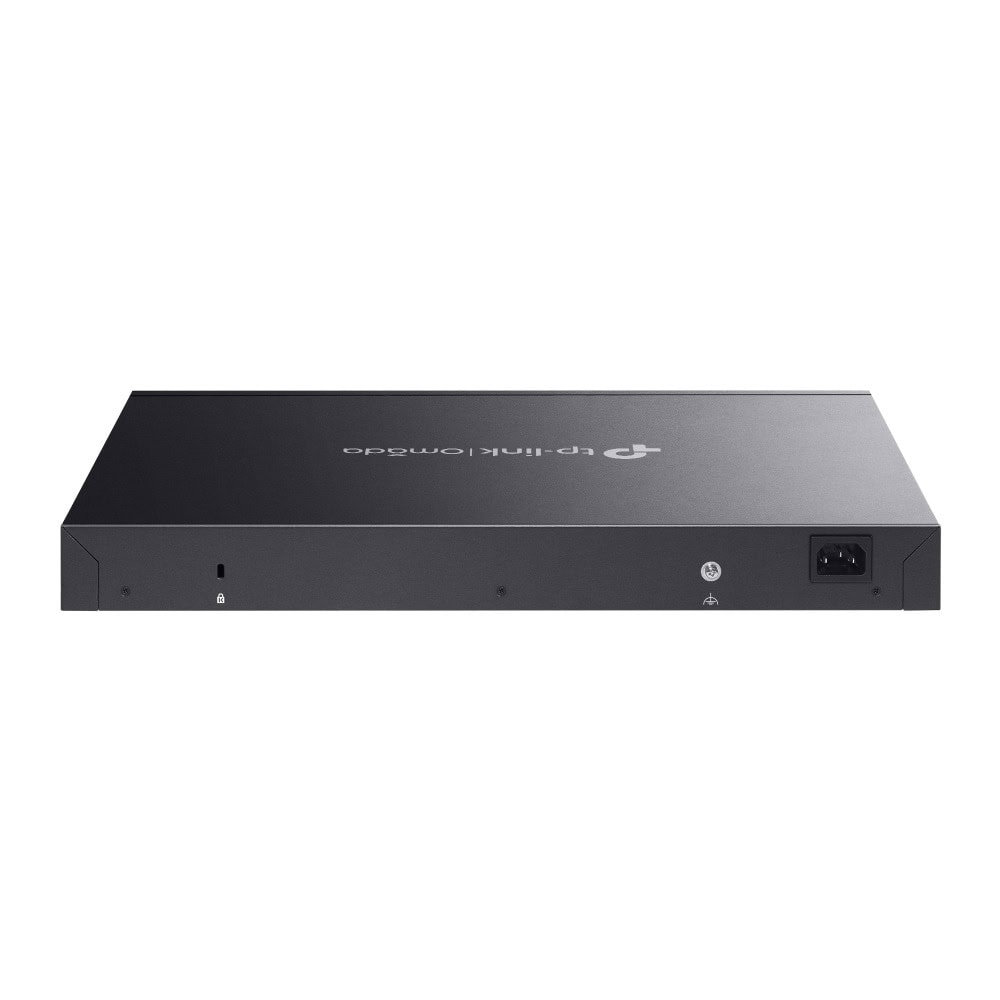

Power Supply	100–240 V AC, 50/60 Hz
PoE Ports (RJ45)	Standard: 802.3at/af/bt compliant; PoE++ Ports: Ports 1–8 (up to 90 W per port); PoE+ Ports: Ports 9–48 (up to 30 W per port); Power Budget: 750 W
Dimensions (W×D×H)	17.3×13.0×1.7 in (440×330×44 mm)
Mounting	Rack Mountable
Max. Power Consumption	913.4 W (110V/60Hz) with 750 W PD connected
Max. Heat Dissipation	3114.69 BTU/hr (110 V/60Hz) with 750 W PD connected
Switching Capacity	176 Gbps
Packet Forwarding Rate	130.9 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
Quality of Service	8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow-based), Smoother Performance, QoS remark (802.1P, DSCP)
L2 and L2+ Features	128 IP Interfaces (IPv4/IPv6), 48 Static Routes, 128 Static ARP Entries, 512 ARP Entries, Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay (Interface/VLAN), DHCP L2 Relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, Mirroring
L2 Multicast	Supports 1000 IGMP groups (IPv4, IPv6), IGMP Snooping, IGMP Authentication, Multicast VLAN Registration (MVR), MLD Snooping, Multicast Filtering (256 profiles, 16 entries/profile)
Advanced Features	Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Intelligent Network Monitoring†, Abnormal Event Warnings†, Unified Configuration†, Reboot Schedule†
ISP Features	L2PT (Layer 2 Protocol Tunneling), Device Link Detect Protocol (DLDP), PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, sFlow
VLAN	Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN: 30 Entries, Protocol VLAN: Template 16, VLAN 16, Private VLAN, GVRP, VLAN VPN (Mapping/Replace), Voice VLAN
Access Control List	Time-based ACL, MAC ACL (Source/Dest MAC, VLAN ID, Priority, Ether Type), IP ACL (Source/Dest IP, Fragment, Protocol, TCP Flag, TCP/UDP Port, DSCP/TOS), Combined ACL, Packet Content ACL, IPv6 ACL, Policy: Mirroring, Redirect, Rate Limit, QoS Remark; Applies to Port/VLAN
Security	IP-MAC-Port Binding (512 entries), DHCP Snooping, ARP Inspection, IPv4 Source Guard (100 entries), IPv6-MAC-Port Binding (512 entries), DHCPv6 Snooping, ND Detection, ND Snooping, IPv6 Source Guard (100 entries), DoS Defend, DHCP Filter, Static/Dynamic Port Security (up to 64 MAC/port), Broadcast/Multicast/Unicast Storm Control, 802.1X (Port/MAC auth, VLAN Assignment, MAB, Guest VLAN, Radius support), AAA (TACACS+), Port Isolation, HTTPS management (SSLv3/TLS 1.2), CLI management (SSHv1/v2), IP/Port/MAC access control
IPv6	Dual IPv4/IPv6, MLD Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, ND, MTU discovery, ICMPv6, TCPv6/UDPv6, IPv6 Apps (DHCPv6 Client, Ping6, Tracert6, Telnet v6, SNMPv6, SSHv6, SSLv6, HTTP/HTTPS, TFTP)
MIBs	MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting/Authentication MIBs (RFC2620, RFC2618), Remote Ping/Traceroute MIB (RFC2925), TP-Link private MIB
Omada App	Yes (requires Omada Hardware, Cloud-Based, or Software Controller)

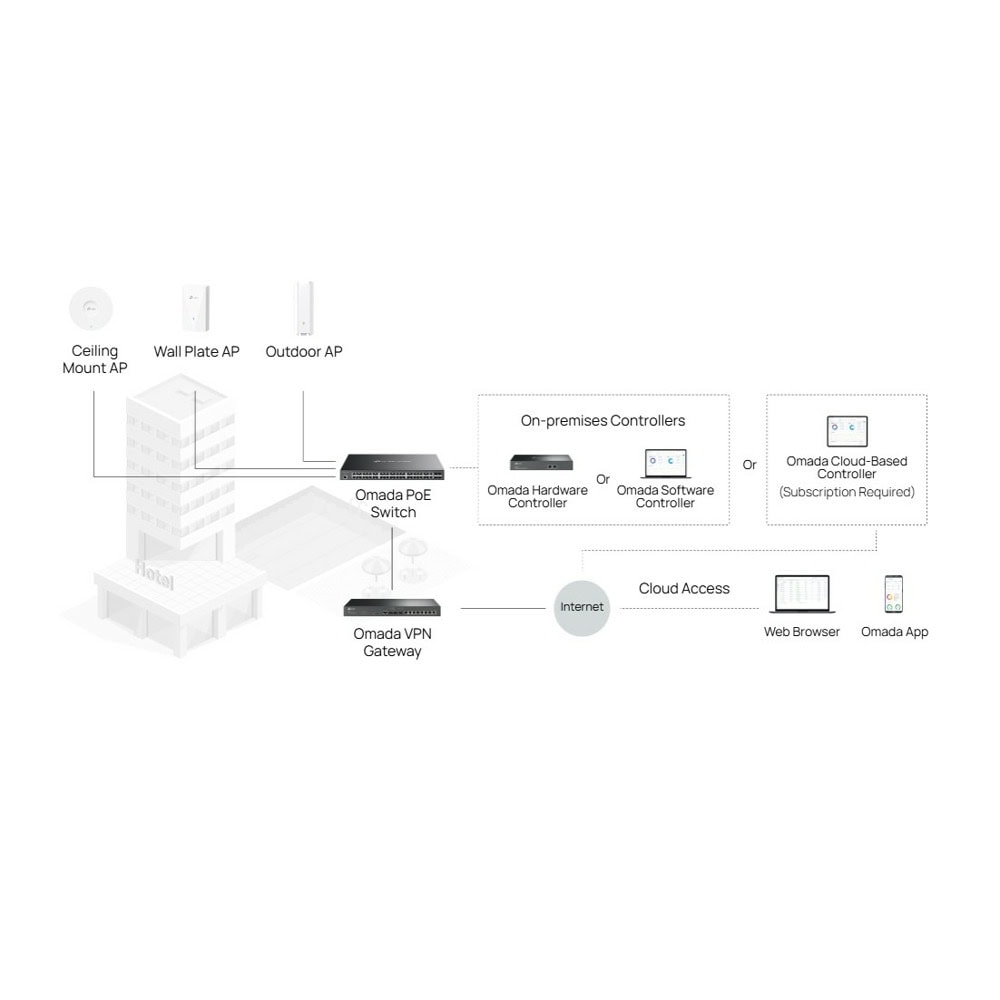

Centralized Management	Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access	Yes (requires Omada Controller)
Zero-Touch Provisioning	Yes (requires Omada Cloud-Based Controller)
Other Management Features	Web GUI, CLI (console/telnet), SNMP v1/v2c/v3 (Trap/Inform, RMON 1/2/3/9), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image/Dual Config, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
