Антена Mikrotik ATL 5G R16 (ATLGM&RG520F-EU), 1x 10/100/1000Mbps RJ45, 1x MicroSIM, 512MB RAM, PoE

ATL 5G R16

Our first outdoor 5G device with built-in eSIM support, powerful directional antennas, and a cutting-edge Release 16 modem – ideal for rural, urban, and IoT deployments. With Gigabit Ethernet, PoE-in, and instant MikroTik connectivity out of the box, it’s the smart, rugged choice for fast and flexible internet anywhere. IP66 certified.

Instant Connectivity, No Strings Attached

Installing an antenna on a rooftop and realizing you forgot a SIM card? Or trying to activate your eSIM, but got stuck in the mobile operator call-center queue, endlessly listening to some classical “Your call is important” melodies over the phone?

MikroTik Connectivity solves both issues! Log in to your MikroTik account, choose a data plan, and you’re online. This pre-activated, self-sufficient eSIM setup bridges the gap between “just installed” and “fully operational.” Ideal for remote locations, failover setups, or any place you need reliable internet right now — without any extra steps.

Power Meets Practicality

With a powerful 16 dBi directional antenna, 4x4 MIMO support, 512 MB of RAM, a modern dual-core ARM CPU, and a wide range of supported bands, ATL 5G is built to perform — whether you’re deep in the countryside or surrounded by signal noise in the city. And with Gigabit Ethernet and PoE-in support, installation is cleaner and simpler — just a single cable for both power and data.

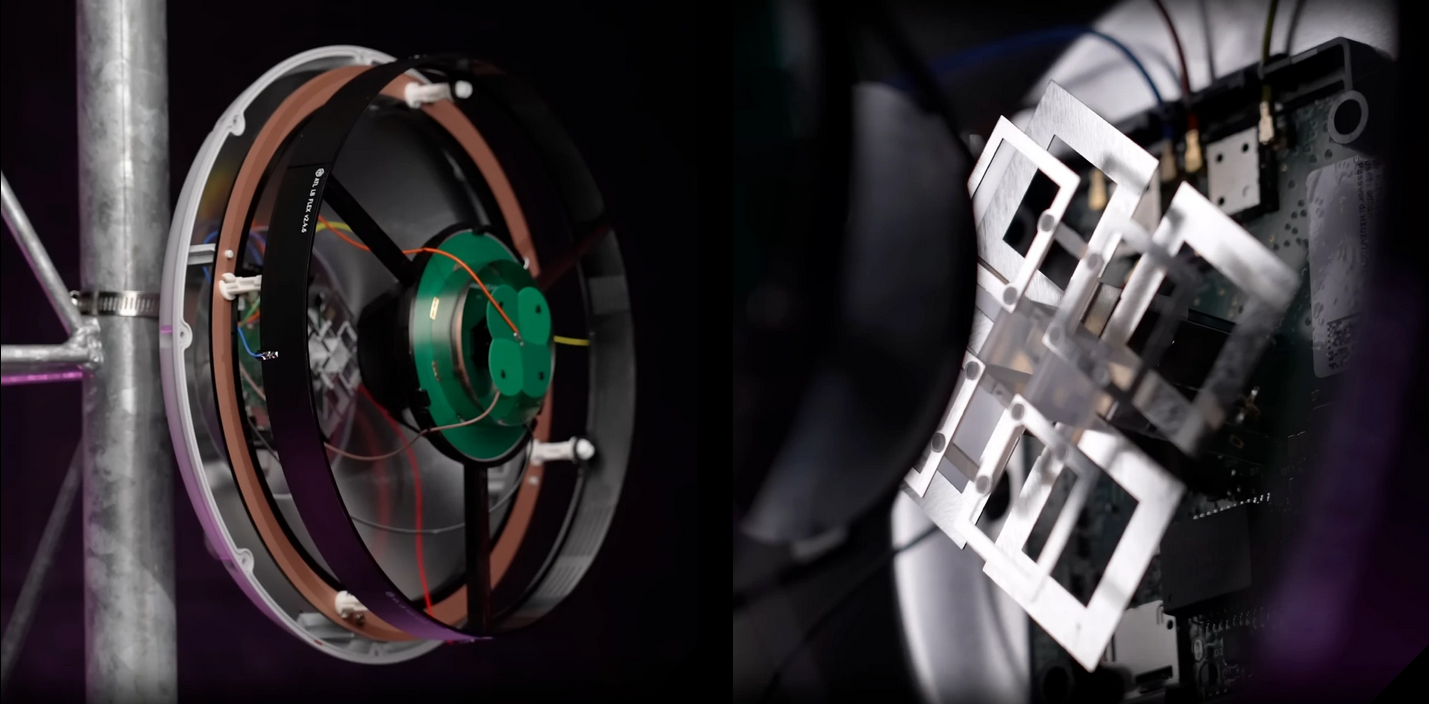

ATL 5G features 4 high-gain middle-band antennas and 4 low-band antennas, including full Band 28 support for both LTE and 5G. That means exceptional coverage in all the frequencies that really matter, including from 700 MHz to 1 GHz — the sweet spot for rural reach and wall-penetrating reliability.

These low-frequency bands are some of the most widely used by mobile operators around the world, and ATL 5G is ready to squeeze every last drop of performance from them — ensuring you stay connected where others struggle to get a bar.

And when you don’t want to rely on a traditional SIM card, you can use the MikroTik eSIM as your main data plan for low-usage setups or IoT deployments like KNOTs. Or simply switch profiles and connect to your favorite mobile operator — flexibility is built in.

Specifications

• Architecture ARM 64bit
• CPU 88F3720
• CPU core count 2
• CPU nominal frequency 800 MHz
• CPU Threads count 2
• RouterOS license 3
• Operating System RouterOS v7
• Size of RAM 512 MB
• Storage size 32 MB
• Storage type FLASH
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 1 (PoE-IN)
• Max power consumption 10 W
• Max power consumption without attachments 10 W
• PoE in 802.3af/at
• Cooling type Passive
• PoE in input Voltage 12-56 V

Mobile

• 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands 1 (2100MHz)
  5 (850MHz)
  8 (900MHz)

• LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
• MIMO DL 4x4
• LTE FDD bands 20 (800MHz)
  28 (700MHz)
  3 (1800MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  1 (2100MHz)
  32 (1500 MHz)

• LTE TDD bands 40 (2300MHz)
  38 (2600MHz)
  41 (2500MHz)
  42 (3500MHz)
  43 (3700 MHz)

• 5G NSA FDD bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)

• 5G NSA TDD bands 40 (2300 MHz)
  41 (2500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
  76 (1500 MHz)
  38 (2600 MHz)
  75 (1500 MHz)

• 5G SA FDD bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)

• 5G SA TDD bands 38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)
  75 (1500 MHz)
  76 (1500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)

• TAC 86945405

Ethernet

• 10/100/1000 Ethernet ports 1
• Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1

Peripherals

• Number of SIM slots 1 Modem (Micro SIM)
• Number of M.2 slots 1

Other

• Mode button Yes
• eSIM Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 66
