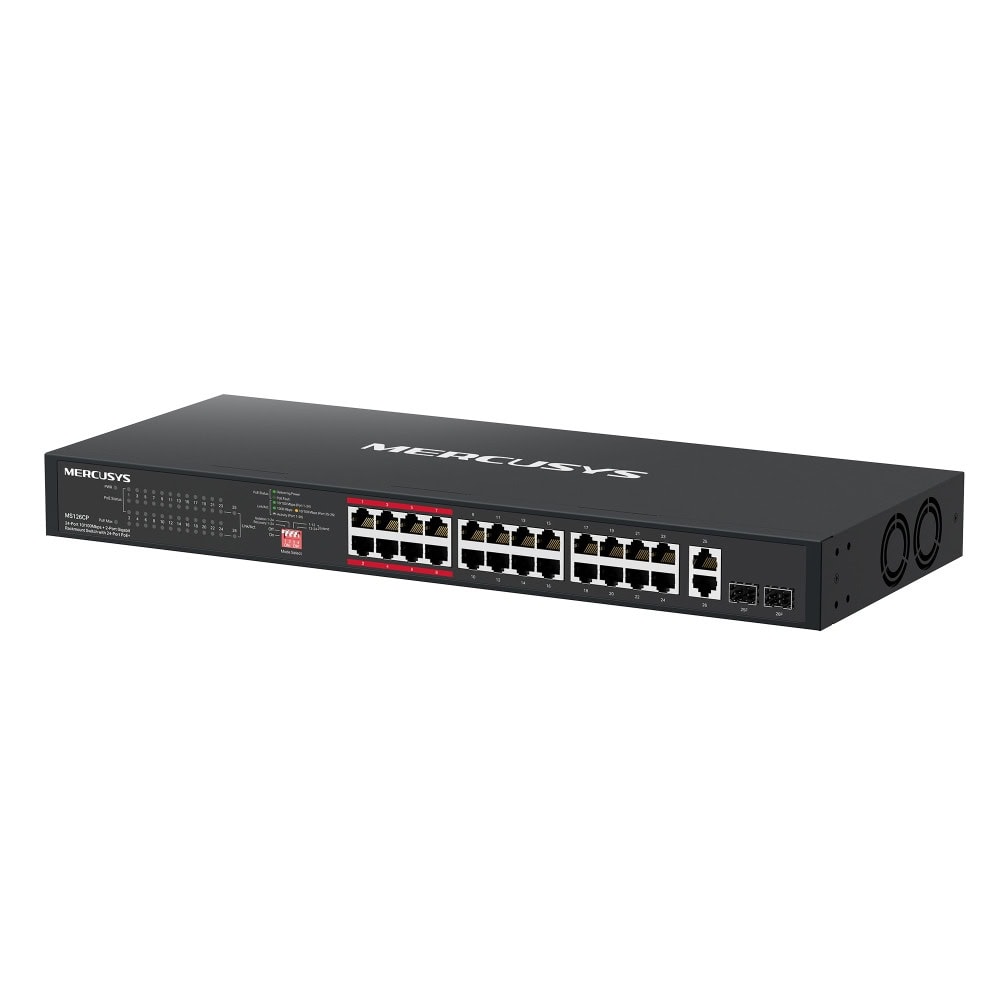

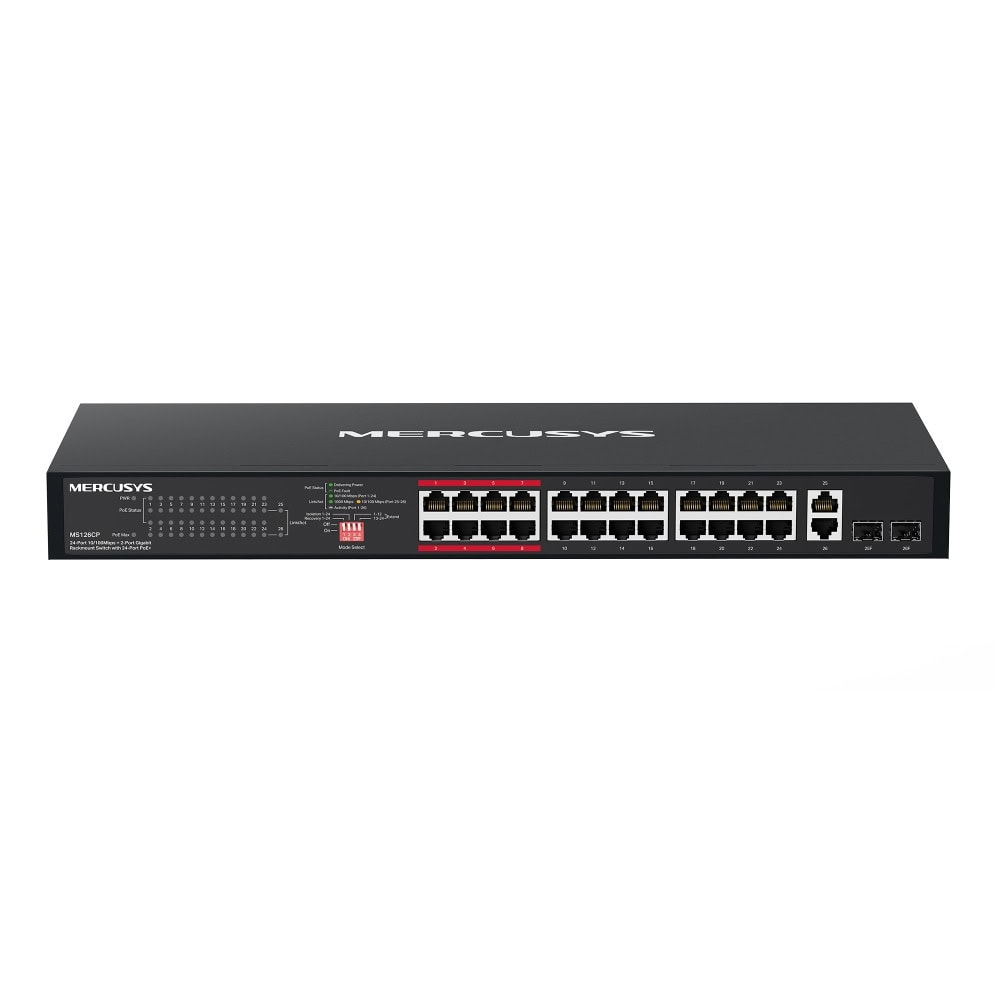

Name: Суич Mercusys MS126CP, 1000 Mbps, 28 порта, 24x 10/100Mbps RJ-45 PoE+, 2x Combo RJ-45, 2x SFP
Brand: Mercusys
SKU: NTLHMERCUSYSMS126CP
Price: 125.47 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

MS126CP

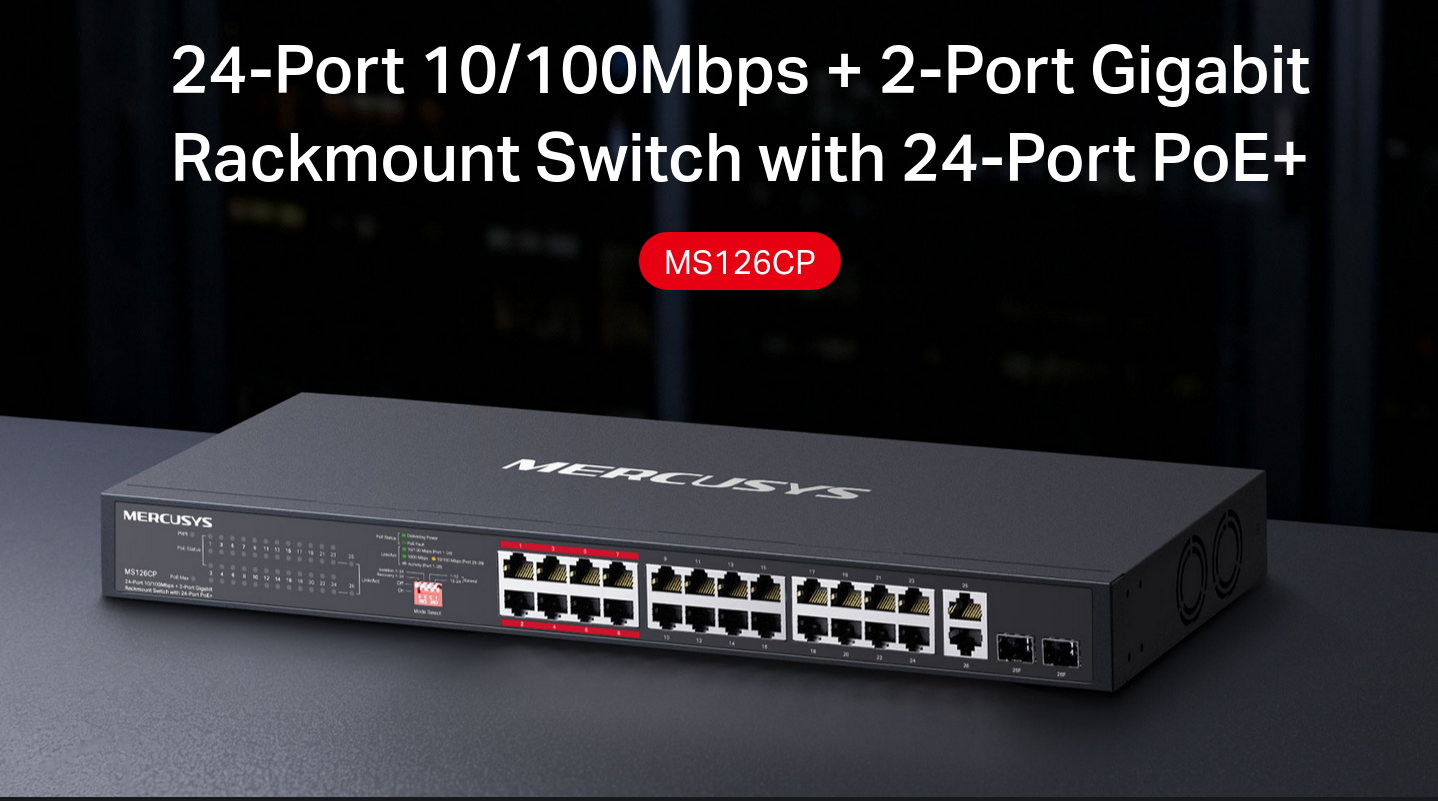

24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

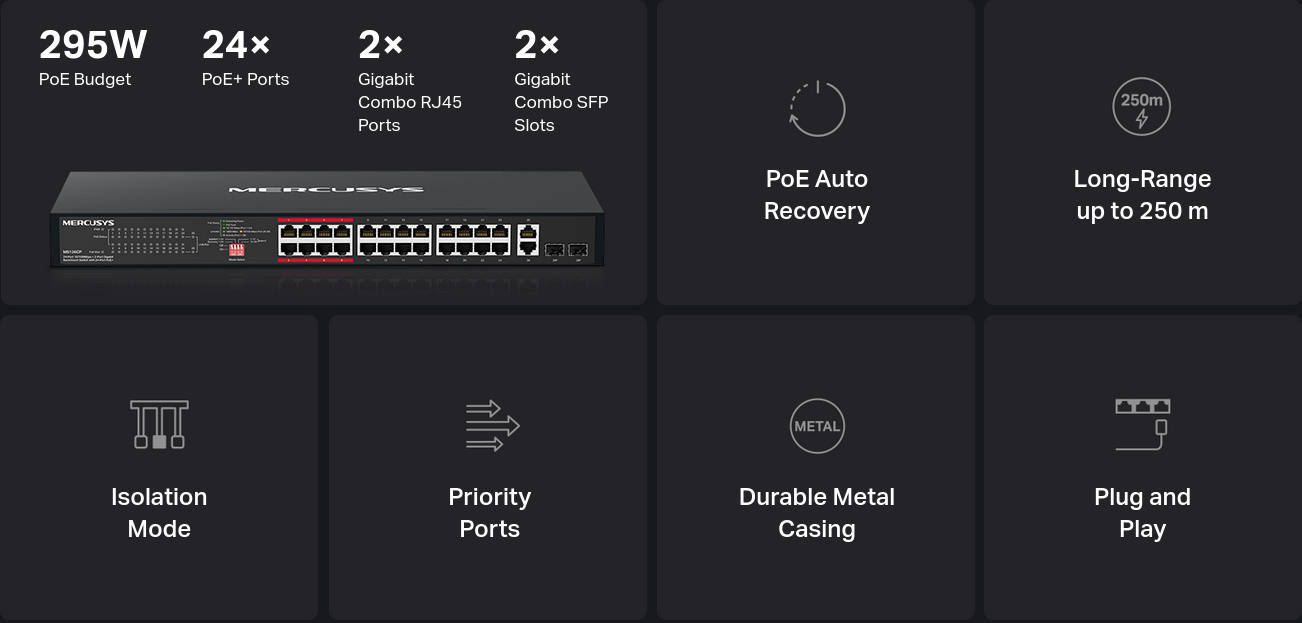

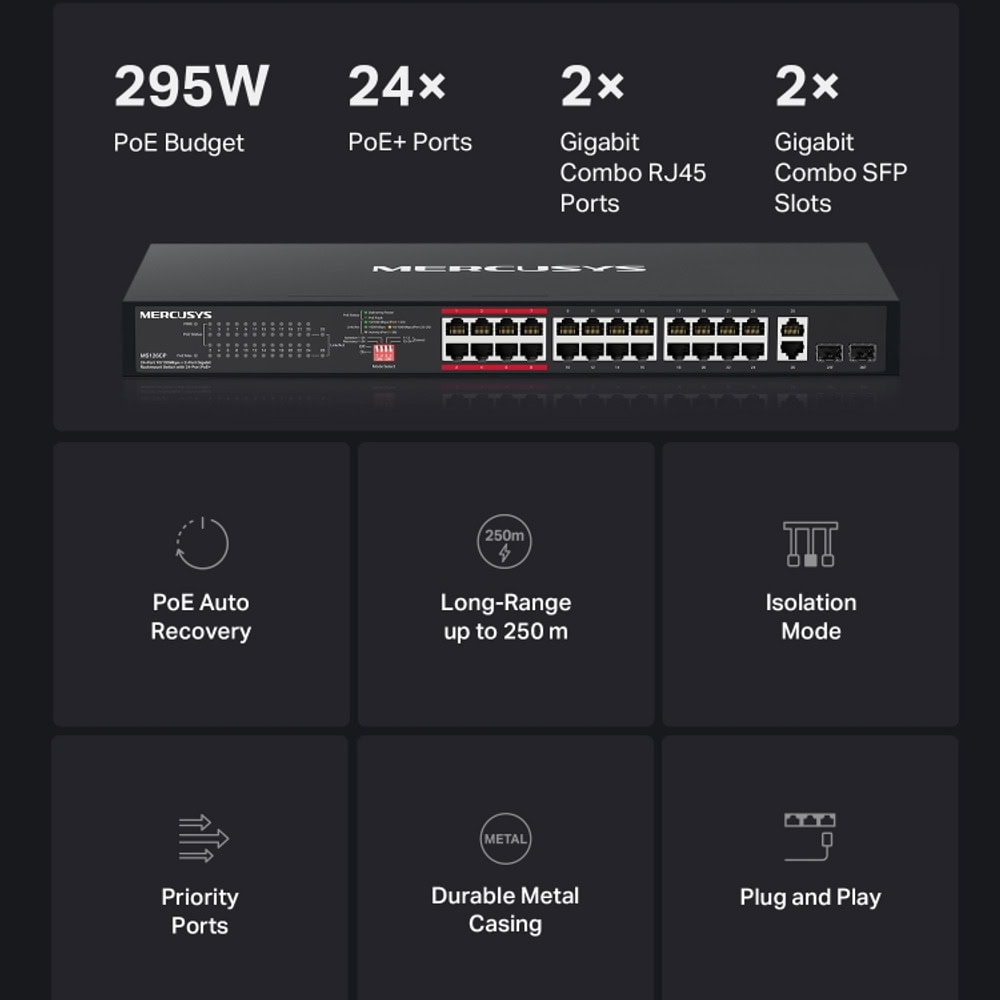

24 PoE+ Ports with 2 Gigabit Combo Uplink: 24× 10/100 Mbps PoE+ RJ45 ports , 2× Gigabit Combo RJ45 ports, and 2× Gigabit Combo SFP Slots
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

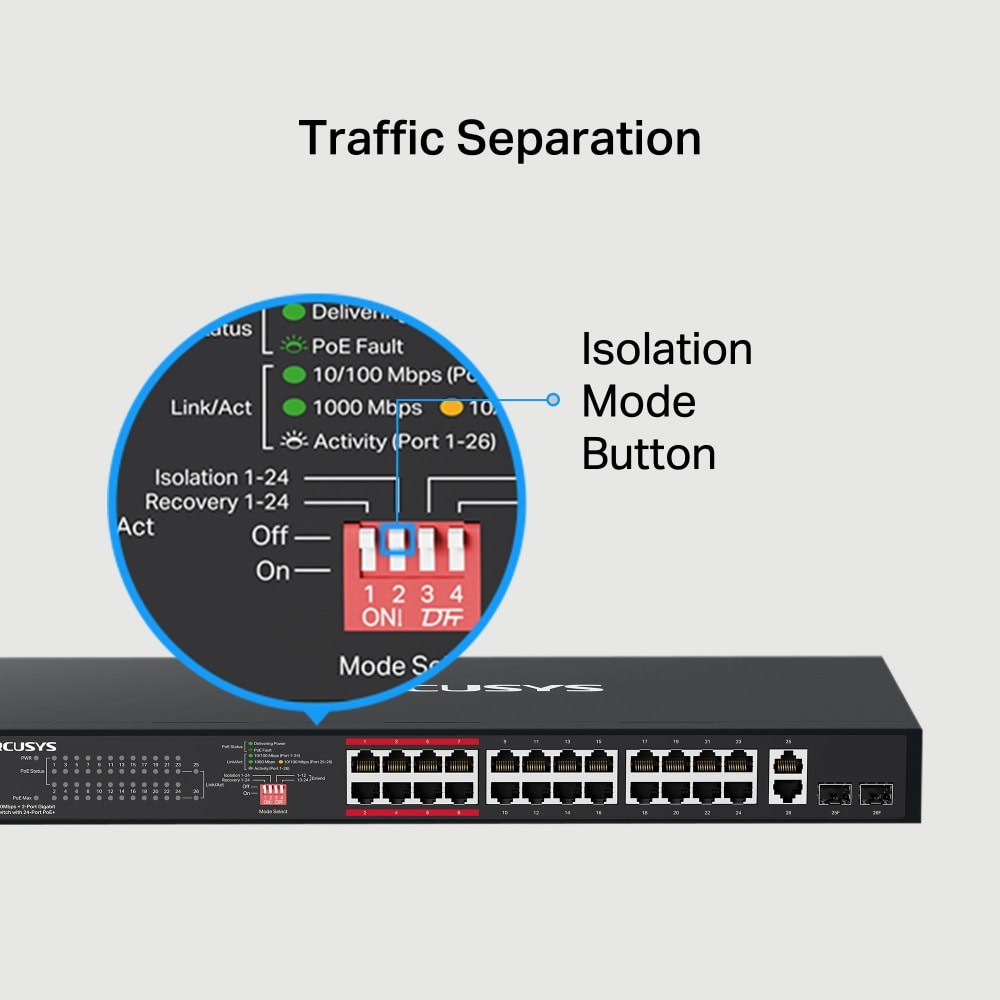

Isolation Mode: One click to divide traffic for specific ports for stability and security

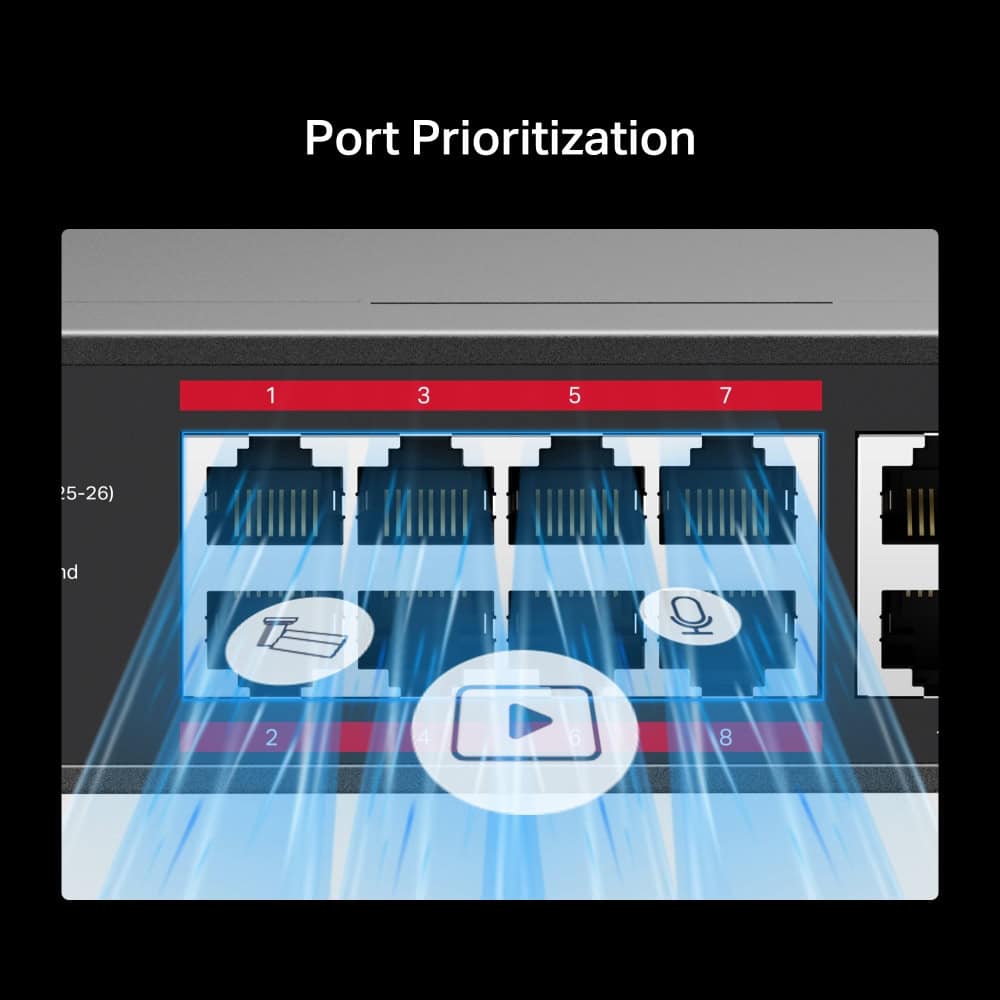

Priority Mode: Guarantees the quality of sensitive applications like video monitor

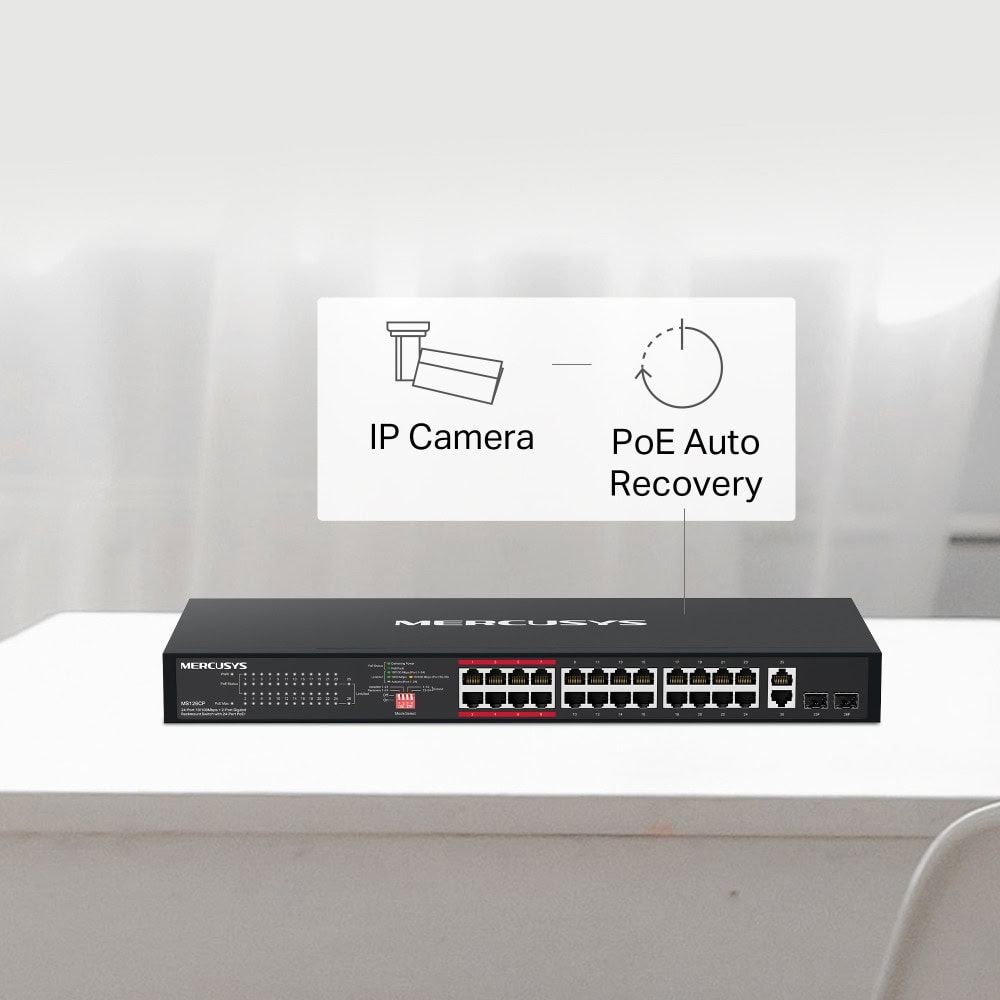

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

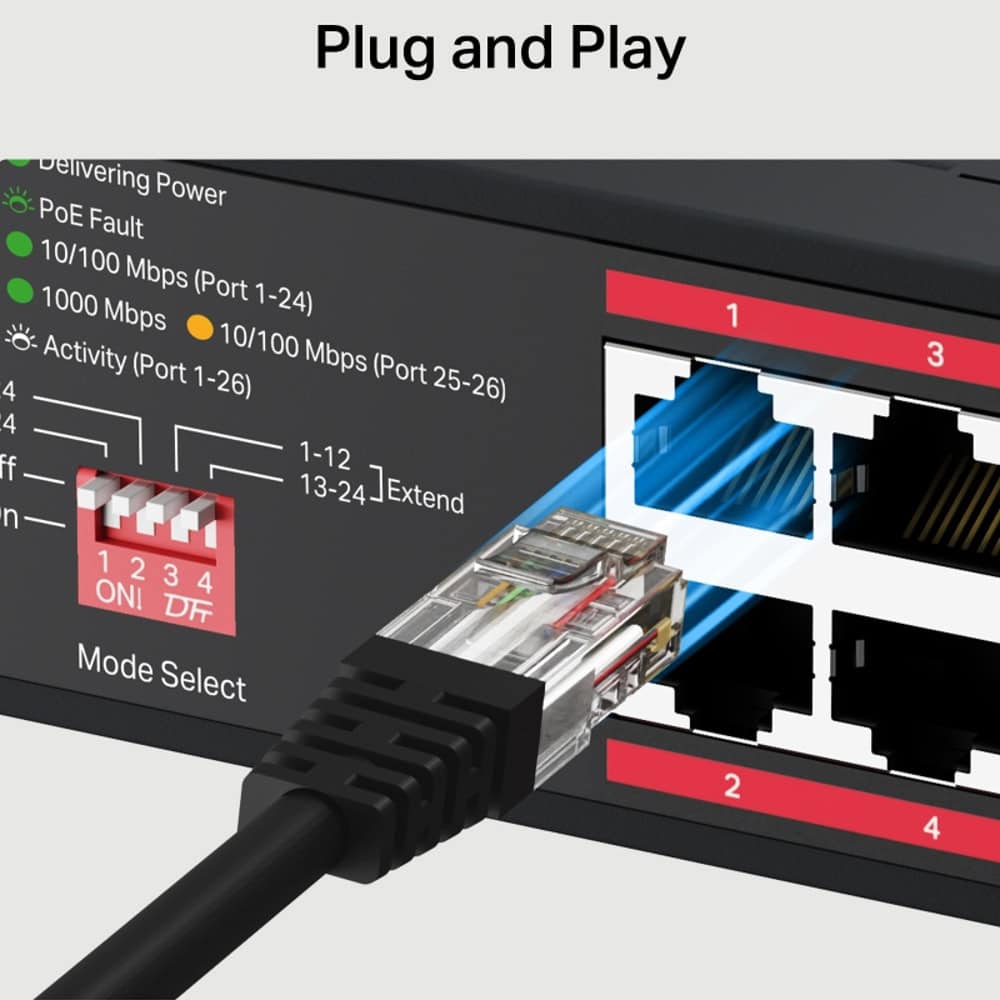

Plug and Play: No configuration or central management required

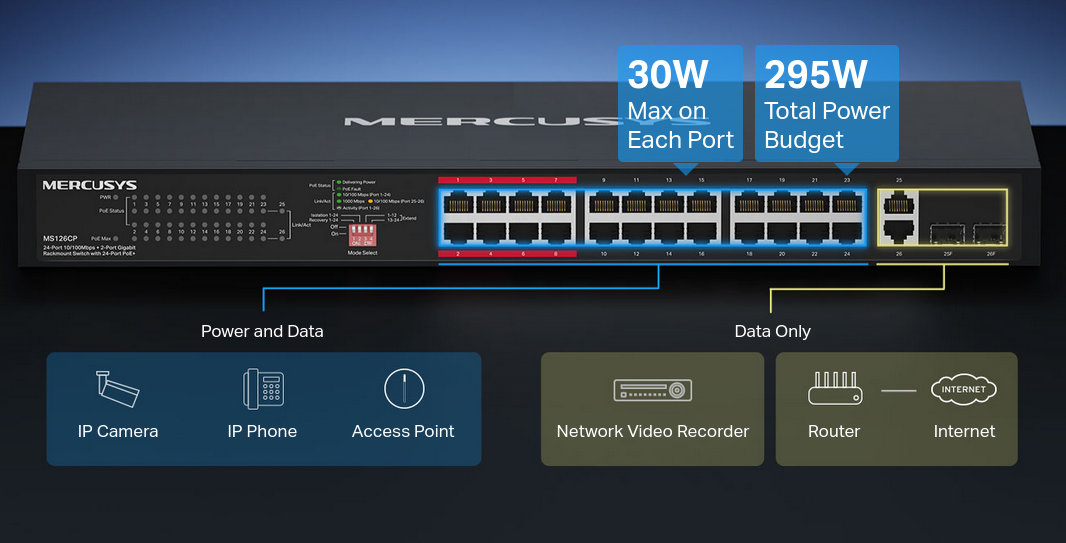

24 PoE+ Ports (295 W Budget) for Network Deployment

Ports 1-24 support PoE+, and each of them supports a maximum of 30 W. MS126CP provides 2 Gigabit combo ports (2 RJ45/2 SFP) for uplink devices. The total 295 W PoE power budget* for the 24× PoE+ ports can be applied in various scenarios, including surveillance, offices, and small businesses, since MS126CP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, network video recorders, etc.

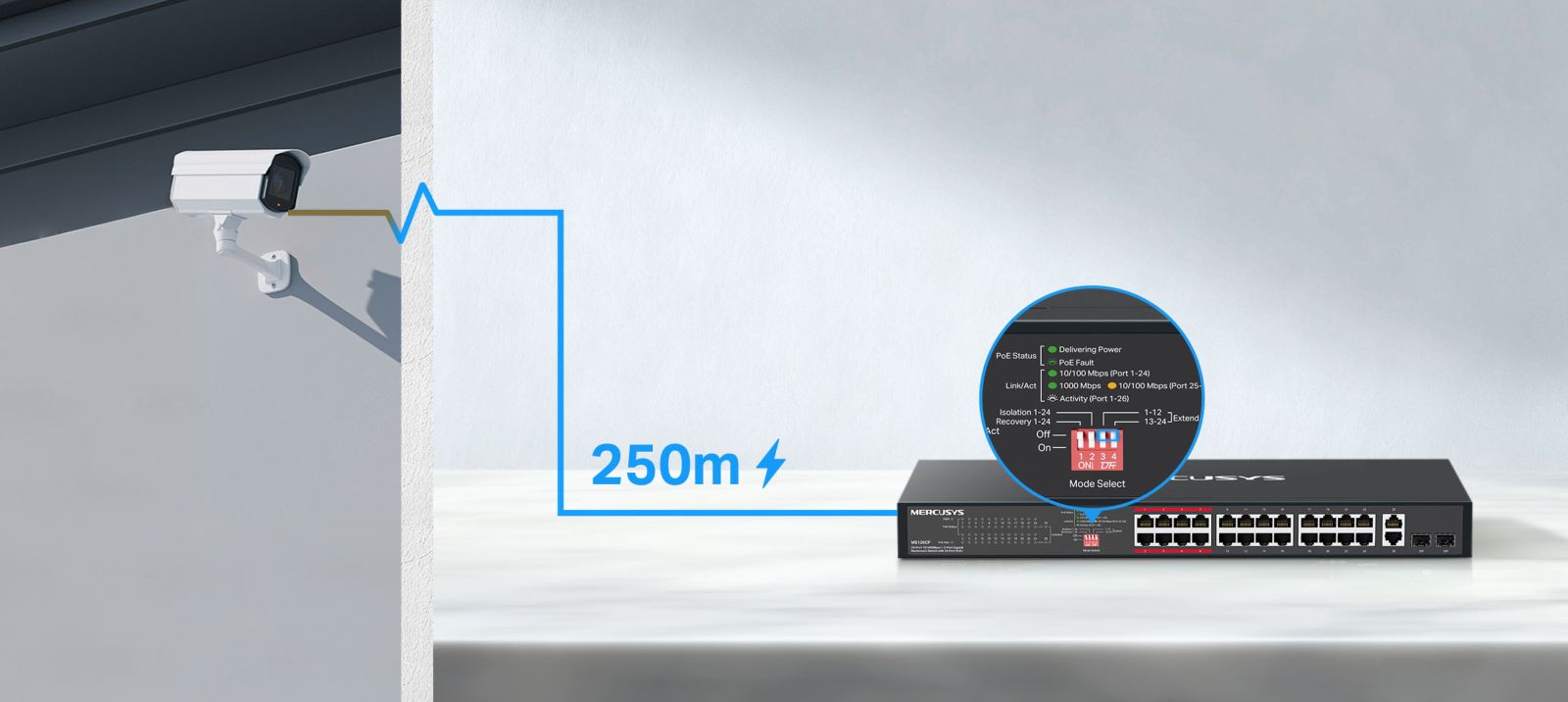

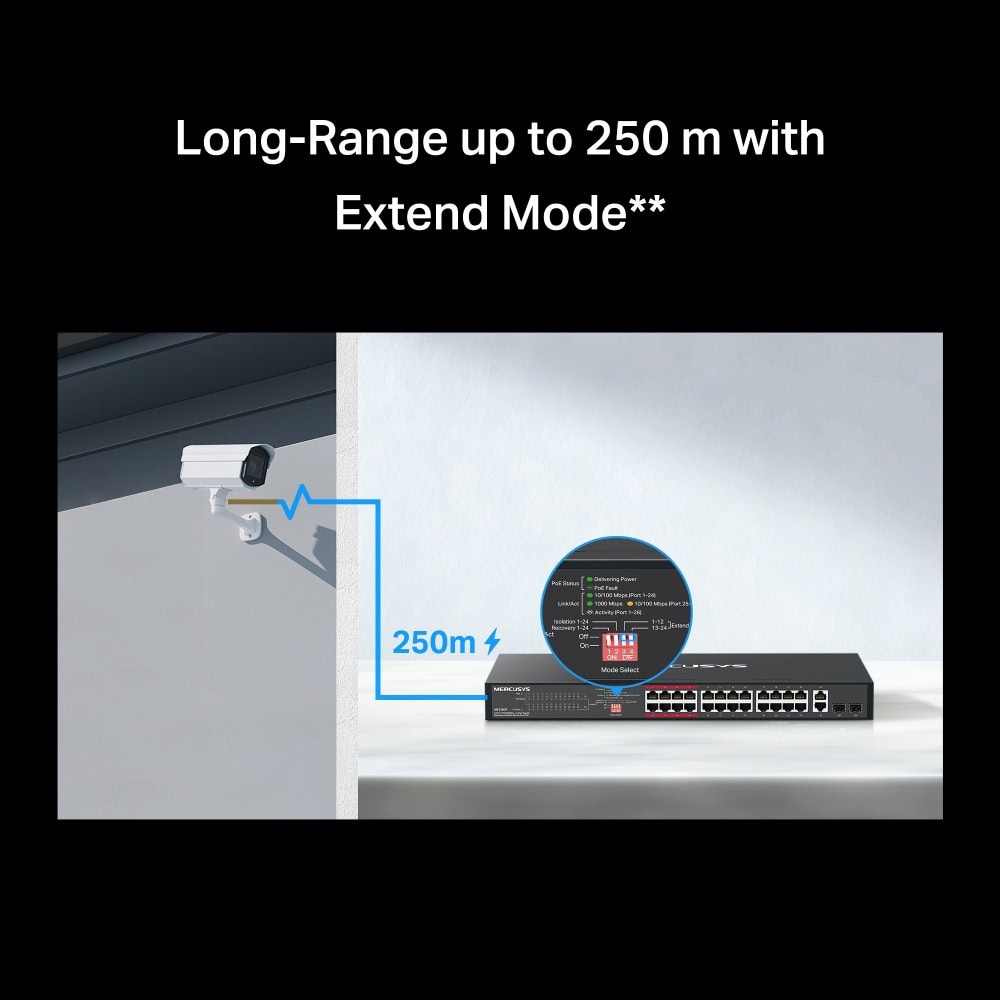

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS126CP has 24 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

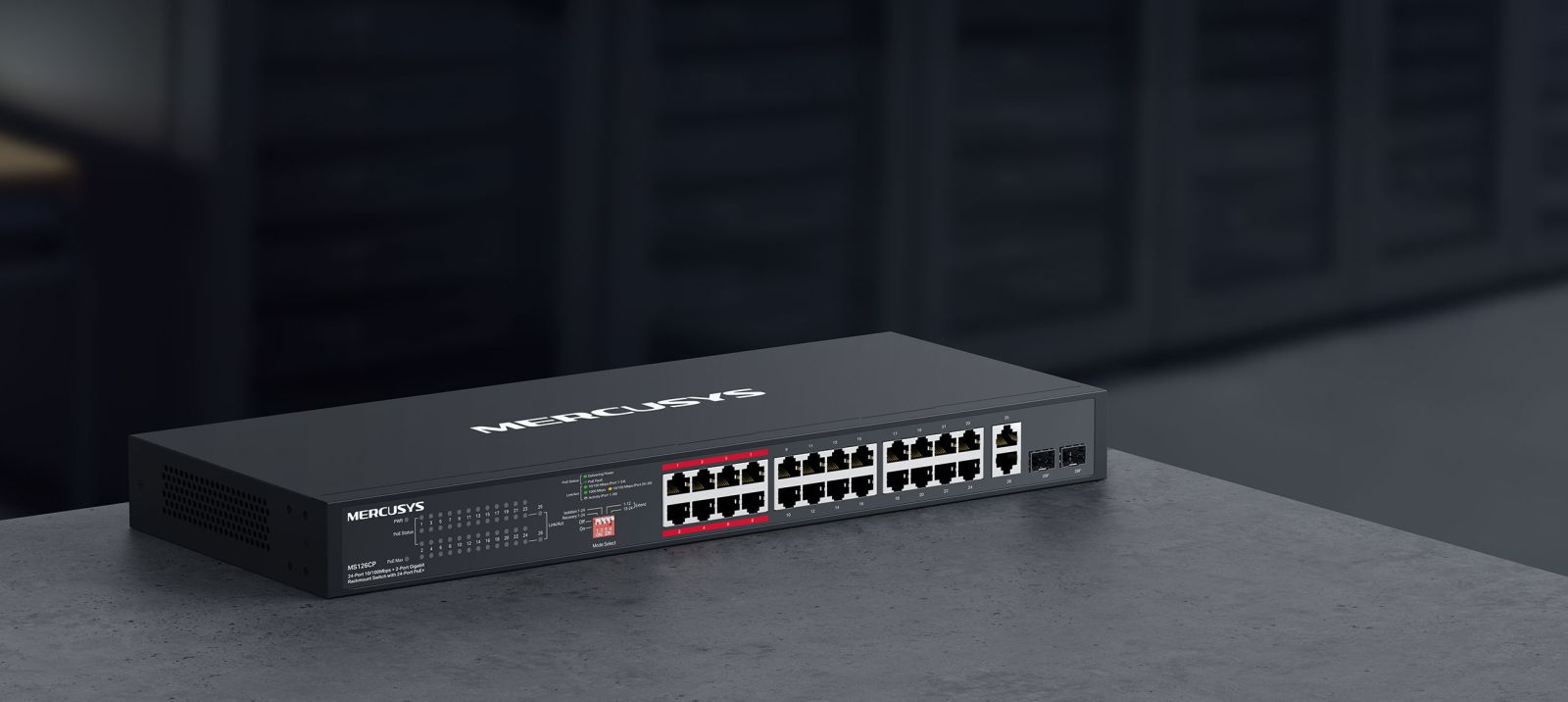

Durable and Flexible

MS126CP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

Метод на трансфер на данни	Store-And-Forward
Advanced Features	• Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Ports1-12 and Ports13-24 up to 250m PoE power supply and data transmission) • Priority Mode (Ports 1-8) • Isolation Mode (Ports 1-24) • PoE Auto Recovery (Ports 1-24) • MAC Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control

Размери (ШxДxВ)	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
PoE Ports	RJ45 • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–24 • PoE Power Budget: 295 W
Интерфейси	• 24× PoE+ 10/100 Mbps RJ45 Ports • 2× Combo Gigabit RJ45 ports • 2× Combo Gigabit SFP Slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable(maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Power Supply	100–240V AC, 50/60 Hz
Брой вентилатори	2 Fans
Physical Security Lock	Yes
Jumbo кадър	16 KB
Комутационен капацитет	8.8 Gbps
Mac Address Table	16 K
Max Power Consumption	• 11.72W（220/50HZ no PD connected） • 326.95W（220/50HZ with 295W PD connected）
Max Heat Dissipation	• 1168.47 BTU/hr (110 V/60 Hz @ 25 °C, with 295 W PD connected) • 1114.9 BTU/hr (220 V/50 Hz @ 25 °C, with 295 W PD connected)
