Name: Суич Mercusys MS110CMP, 1000Mbps, 10 порта, 8x 10/100Mbps RJ-45 PoE, 2x 1000Mbps RJ-45
Brand: Mercusys
SKU: NTLHMERCUSYSMS110CMP
Price: 38.60 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

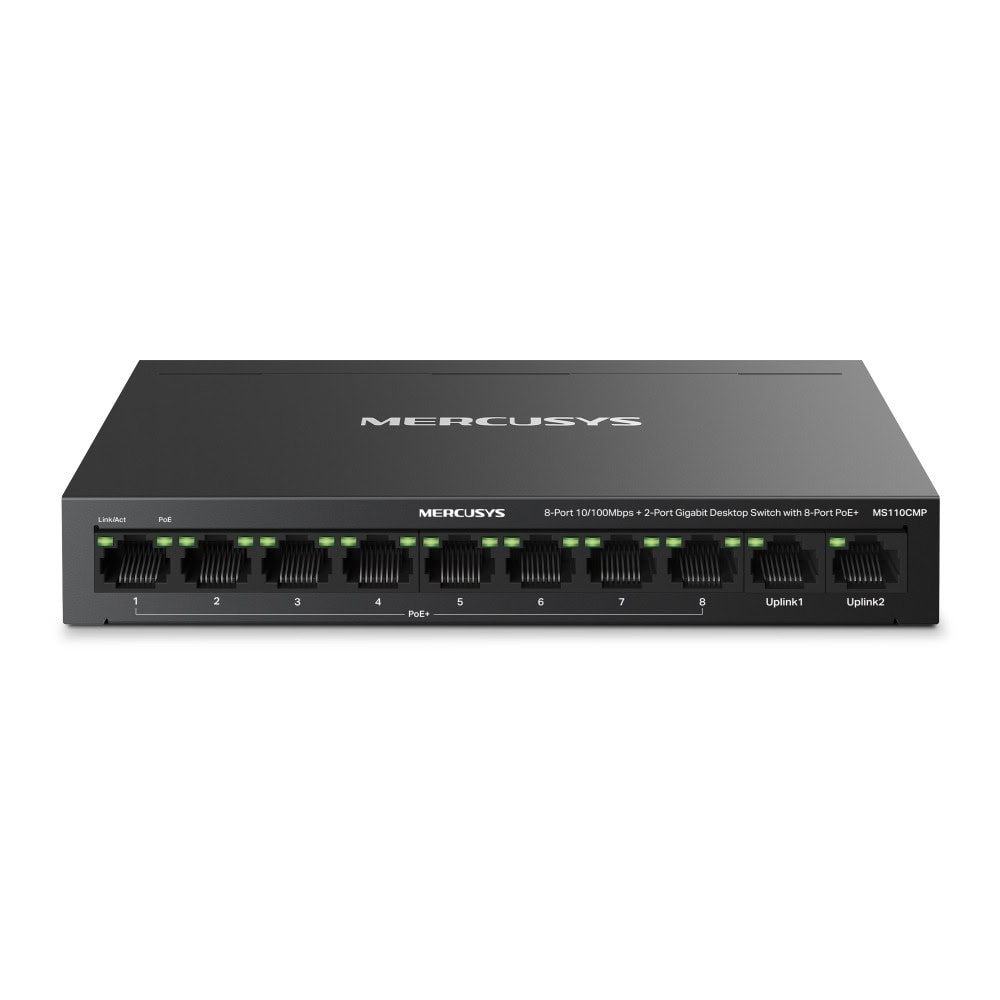

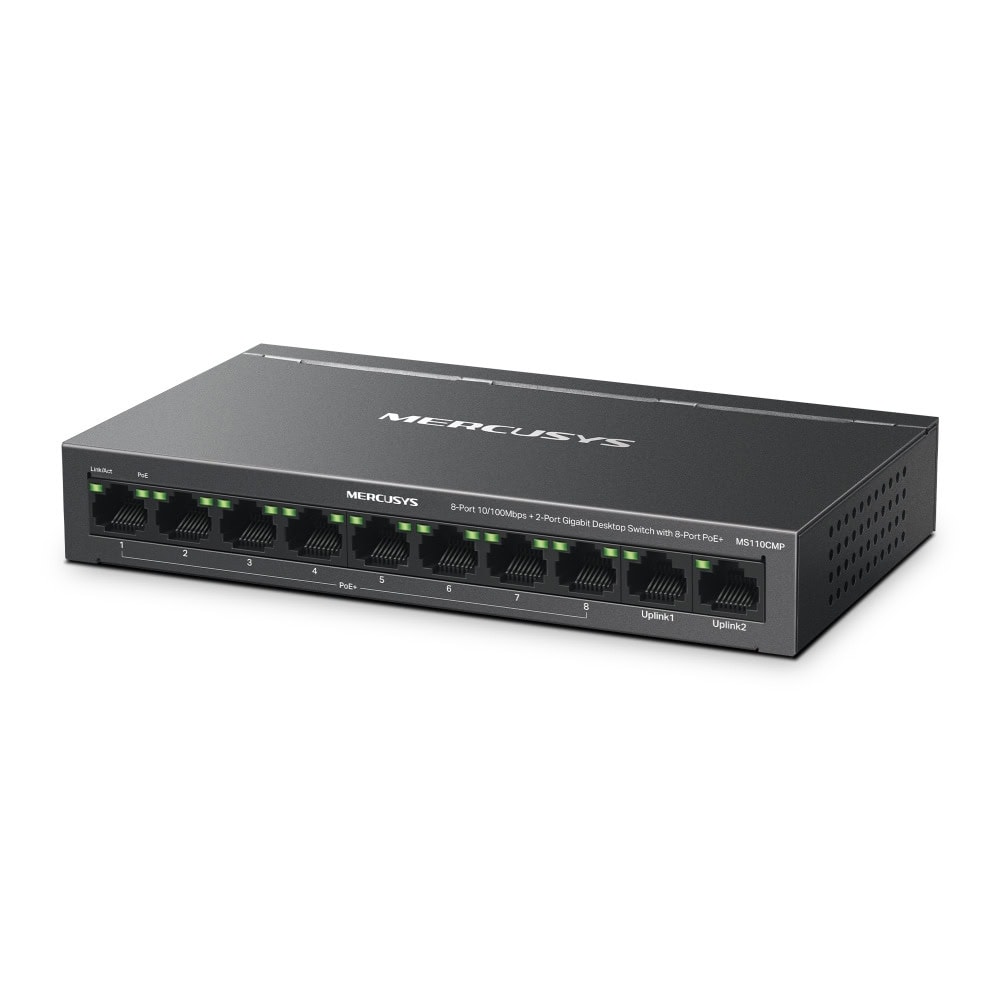

Mercusys MS110CMP

8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

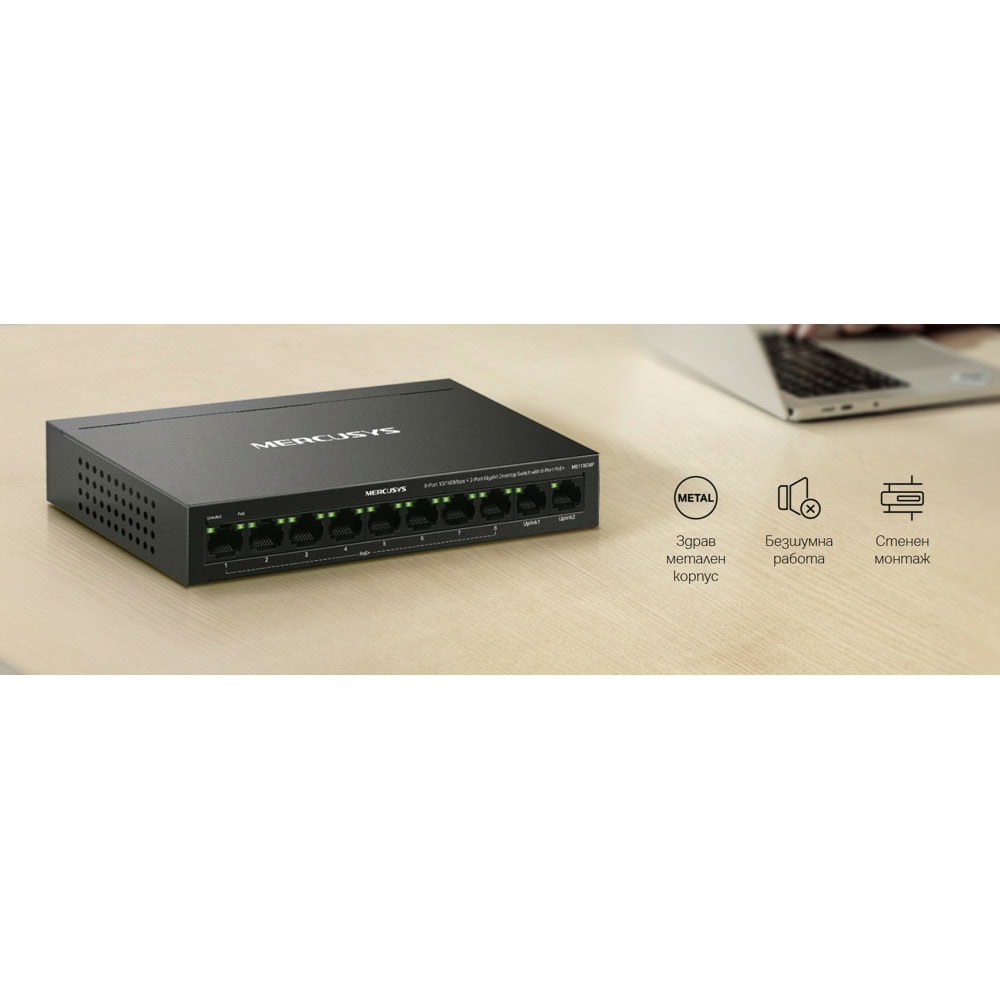

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Category	Specification
Hardware
Standards & Protocols	IEEE 802.3x Flow Control
PoE Ports
Connector Type	RJ45
Standard	Compliant with IEEE 802.3 af/at Powered Devices
PoE Ports	Port 1 – Port 8
PoE Power Budget	115 W
Dimensions	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Interfaces	8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply	External Power Adapter (Output: 54V/2.2A)
Installation	Desktop / Wall Mount
Data Rates	10/100 Mbps at Half Duplex; 20/200 Mbps at Full Duplex
Jumbo Frame	2 KB
Switching Capacity	5.6 Gbps
MAC Address Table	2K
Max Power Consumption	3.79 W (220 V / 50 Hz, no PD connected); 130.49 W (220 V / 50 Hz, with 115W PD connected)
Max Heat Dissipation	12.92 BTU/h (no PD connected); 444.97 BTU/h (with 115W PD connected)
Environment	Operating Temperature: -10℃~40℃ (14℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% RH non-condensingStorage Humidity: 5%~95% RH non-condensing
