Product benefits

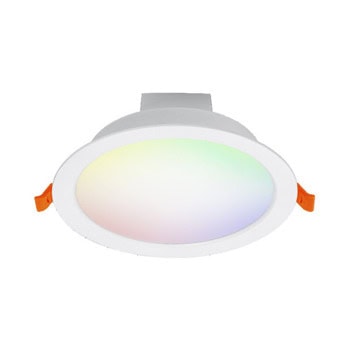

- TW and RGB
- Beam angle 36°, 100°, 110°
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
- Kitchens
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Network protocol: WiFi
- Housing material: plastic
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Technical data
Electrical data
Nominal wattage | 12.00 W |
Nominal voltage | 220…240 V |
Mains frequency | 50…60 Hz |
Nominal current | 85.000 mA |
Inrush current | 20 A |
Inrush current time Th50 | 1500 µs |
Power factor λ | > 0.70 |
Total harmonic distortion | < 20 % |
Protection class | II |
Operating mode | Integrated LED driver |
Photometrical data
Luminous flux | 1000 lm |
Total luminous flux of contained light sources | 1250 lm |
Luminous efficacy | 90 lm/W |
Color temperature | 3000…6500 K |
Light color (designation) | Tunable White |
Color rendering index Ra | ≥80 |
Standard deviation of color matching | ≤6 sdcm |
Photobiological safety group acc. to EN62778 | RG0 |
Photobiological safety group acc. to EN62471 | RG0 |
Beam angle | 110 ° |
Dimensions & Weight
Diameter | 170.00 mm |
Height | 58.00 mm |
Product weight | 168.00 g |
Materials & Colors
Product color | White |
Housing color | White |
Body material | Polyprophylene (PP)|polyamid |
Cover material | Polystyrene (PS) |
Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Mercury content | 0.0 mg |
Application & Mounting
Ambient temperature range | -20…+40 °C |
Temperature range at storage | -20…+70 °C |
Type of connection | Screw terminal |
Type of protection | IP20 |
Protection class IK (shock resistance) | IK03 |
Dimmable | Yes |
Type of dimming | WiFi |
Mounting type | Recessed |
Mounting location | Ceiling |
Application environment | Indoor |
Mounting diameter | 145 mm |
Mounting depth | 70,0 mm |
With light source | Yes |
Lifespan
Lifespan L70/B50 at 25 °C | 25000 h |
Number of switching cycles | 15000 |
Emergency lighting
Luminous flux in maintained operation mode | - |
Certificates & Standards
Standards | CE, UKCA |
Luminaire with limited surface temperature, "D sign" | No |
Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
