Кутия DeepCool CH690 DIGITAL ATX/Mini-ITX/Micro-ATX, 1x USB 3.2 Gen 2 Type-C, 3x 120mm, черна, без захранване

id 294739 Код: CASEPDEEPCOOLRCH690BKNNA0DG1
192.10 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

CH690 DIGITAL

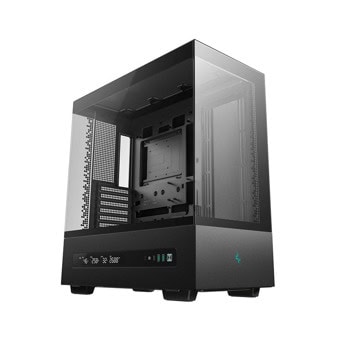

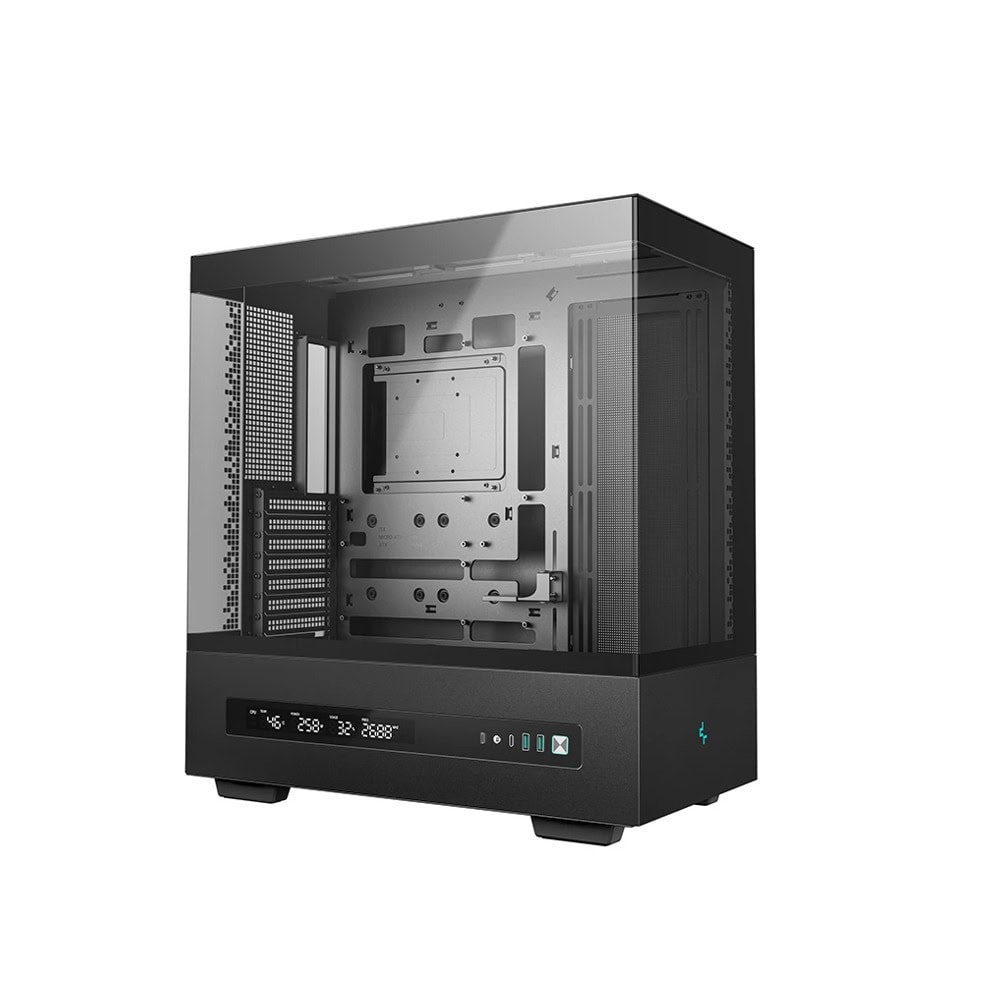

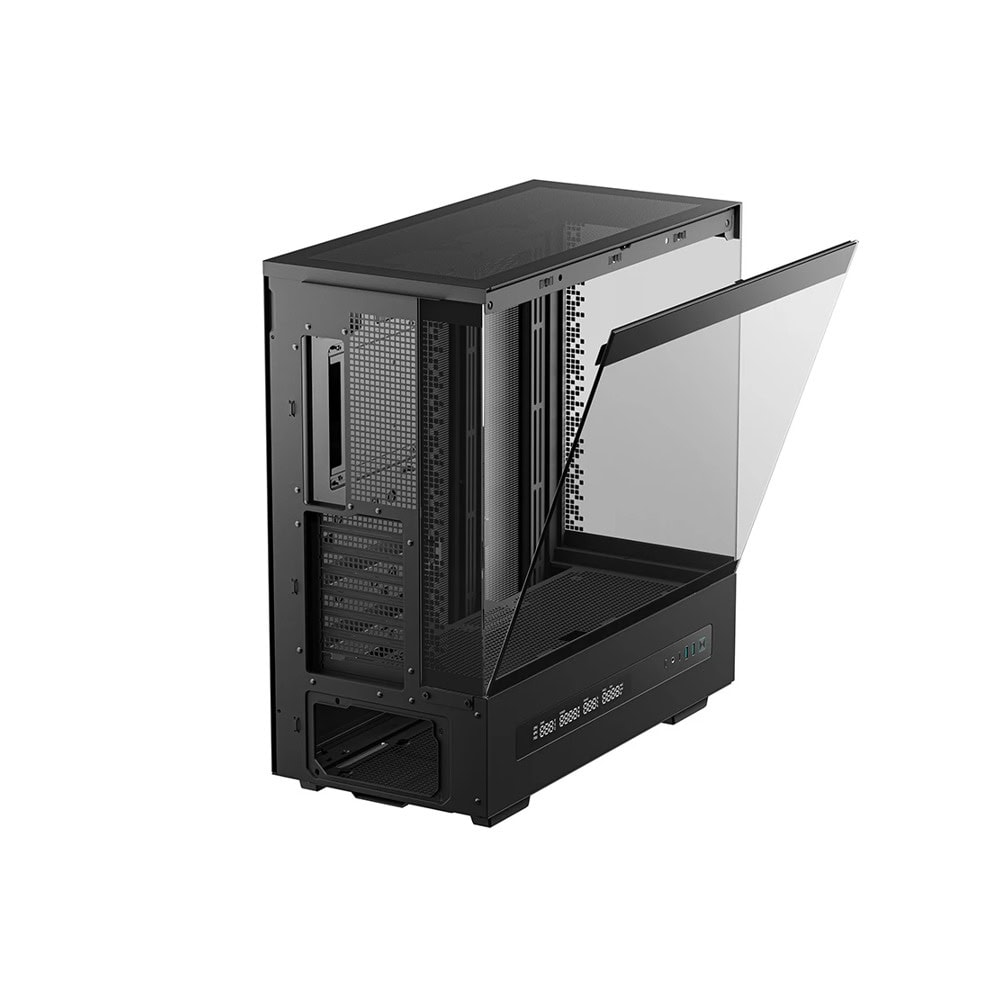

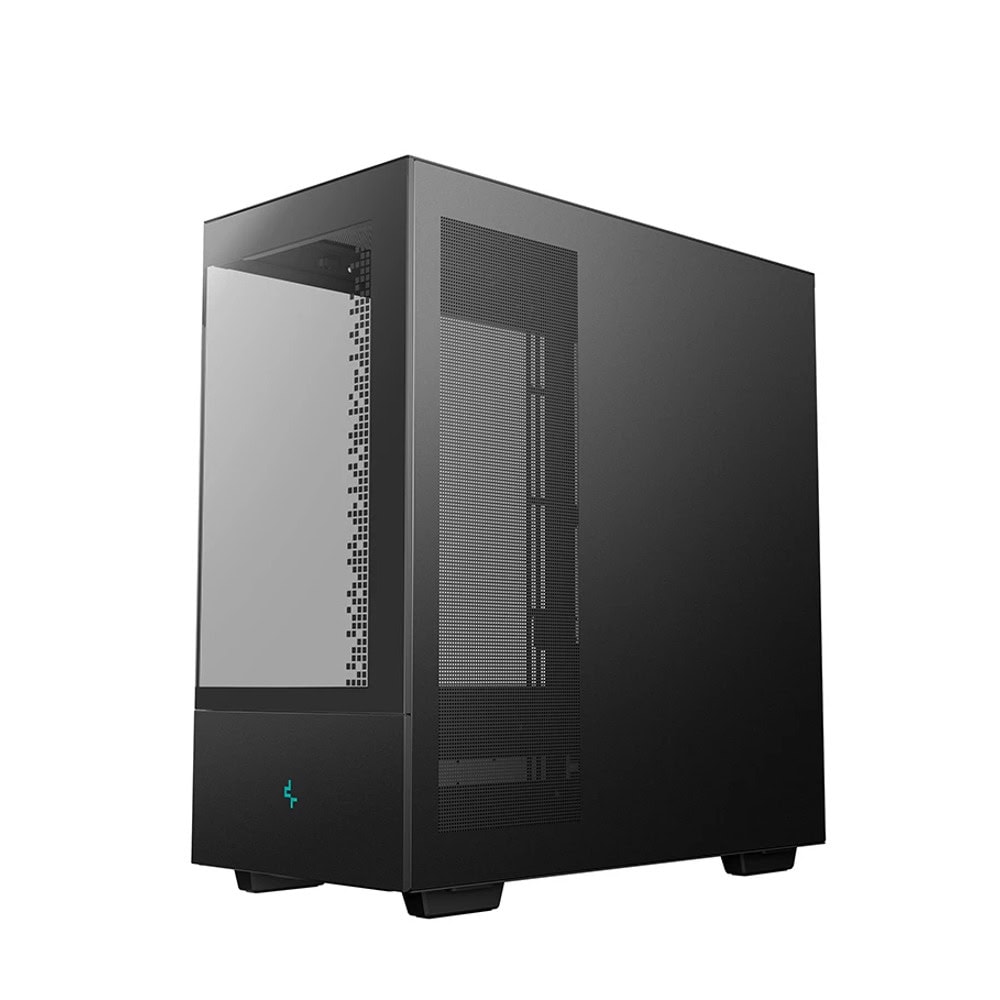

The CH690 DIGITAL is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.



CUSTOMIZABLE ELEGANCE, VERSATILITY AND FUNCTIONALITY

The CH690 DIGITAL is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.



IT FITS

The CH690 DIGITAL is engineered for exceptional versatility, accommodating a 180mm PSU and a 450mm GPU with ease. It features up to 8 individual removable expansion slots, providing flexibility for various configurations. Storage options include 1 x 3.5"" drive bay and 2 x 2.5  drive bays, ensuring ample space for data needs. This case is designed to support a wide range of components, making it an ideal choice for either gaming and professional setups.



DYNAMIC PERFORMANCE AT A GLANCE

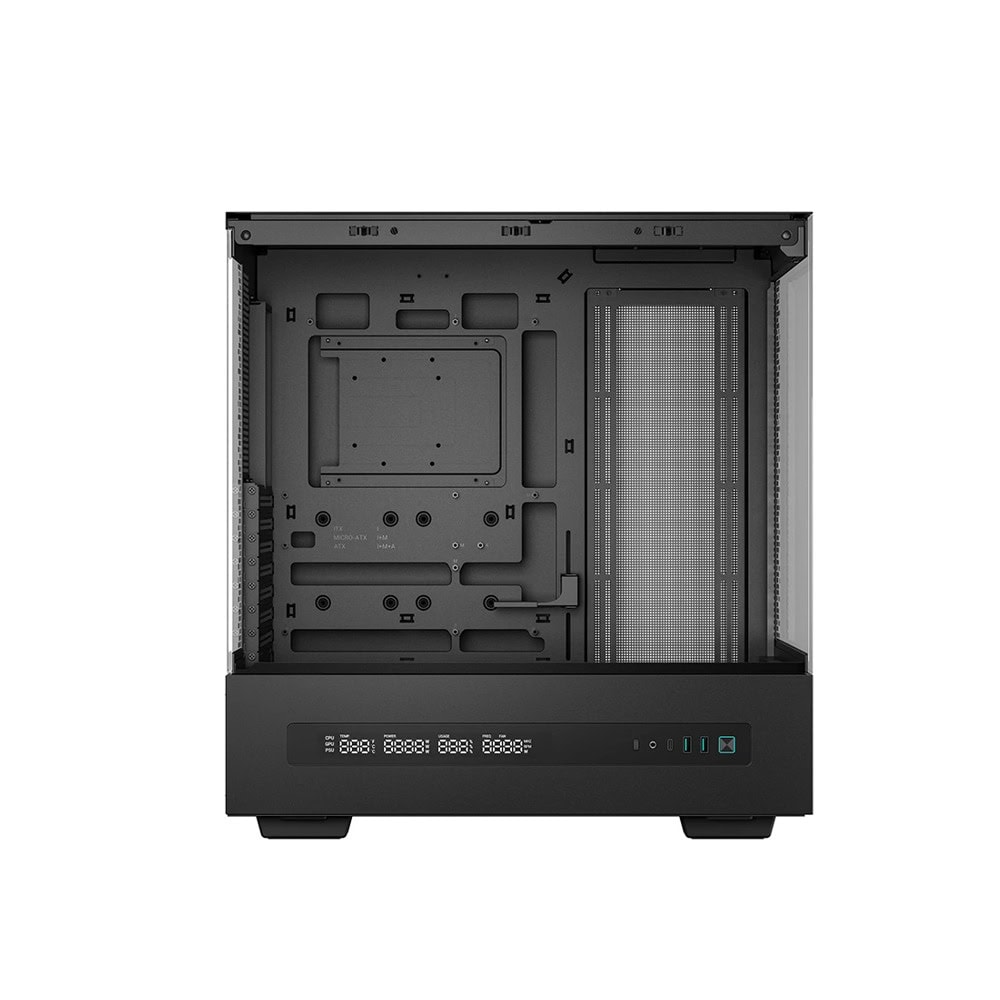

The CH690 DIGITAL case features a cutting-edge digital display that offers real-time monitoring of system's vital statistics. With switchable modes for CPU, GPU, and PSU, effortlessly track temperature in Fahrenheit or Celsius, power consumption, usage, and frequency. The CPU mode also includes fan speed monitoring, while the PSU mode provides additional insights into fan performance. This sophisticated display transforms the system into a high-tech command center, allowing optimal performance and efficiency at a glance.



COOLING VERSATILITY

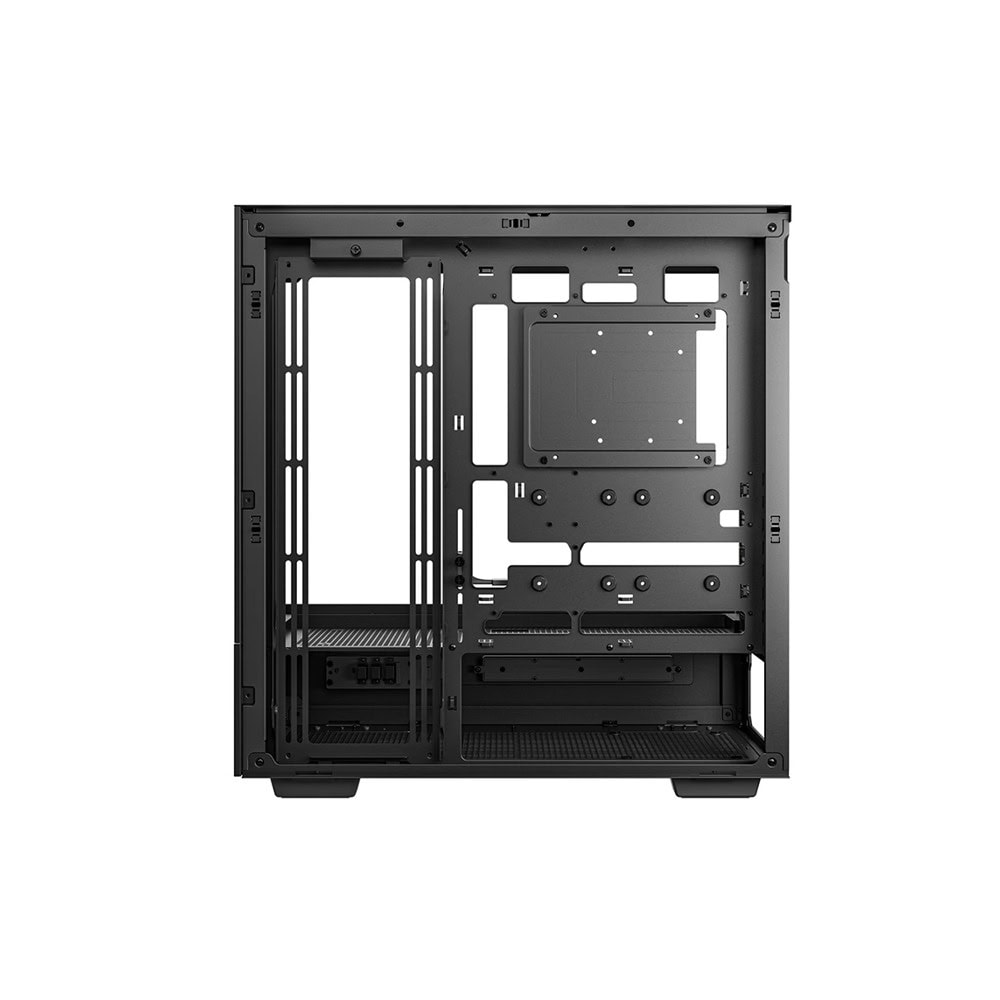

The CH690 DIGITAL is designed to adapt to versatile configurations, ensuring efficient heat dissipation through its innovative mesh-designed PSU shroud that creates a vertical airflow channel. It accommodates a wide range of radiator sizes, including up to 420mm on the top, 280mm on the side, and 360mm within the PSU shroud. Additionally, it supports various fan configurations, allowing for up to 3×140mm fans on the top, side, and PSU shroud, along with a 140mm fan at the rear. With the capability to support CPU coolers up to 182mm in height, the CH690 DIGITAL is engineered to maintain optimal temperatures for high-performance systems.



SpecificationDetails
Product Dimensions481 × 240 × 516 mm (L × W × H)
Net Weight9.8 Kg
MaterialsABS + SPCC + Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Rear Connector SupportATX / Micro-ATX
Front I/O PortsUSB 3.0 × 2, Gen2 Type-C × 1, Audio/Mic × 1
3.5" Drive Bays1
2.5" Drive Bays2 + 1
Expansion Slots8 Slots
Pre-Installed FansNone
Fan Support- Top: 3 × 120mm / 3 × 140mm - Side: 3 × 120mm / 3 × 140mm - PSU Shrouded: 3 × 120mm / 3 × 140mm - Rear: 1 × 120mm / 1 × 140mm
Radiator Support- Top: 120 / 140 / 240 / 280 / 360 / 420 mm - Side: 120 / 140 / 240 / 280 mm - Bottom: 120 / 240 / 360 mm
CPU Cooler Height Limit182 mm
GPU Length Limit450 mm
Power Supply TypeATX PS2 (maximum length: 180 mm)


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Компютърни кутии DeepCool
    Виж всички Компютърни кутии в категорията
    Технически характеристики
    Захранване:  Не
    Прозорец:  Да
    Цвят:  Черен
