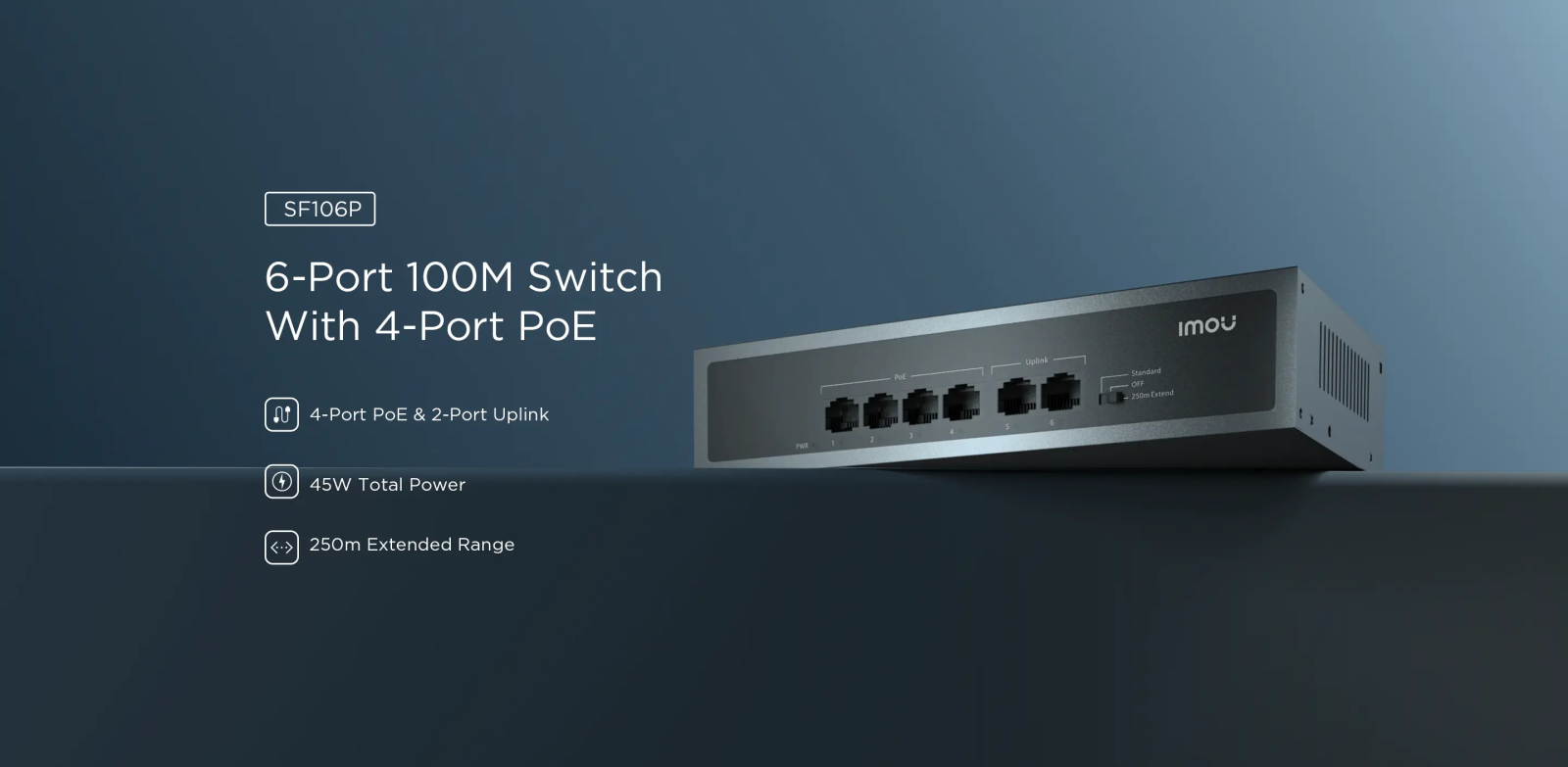

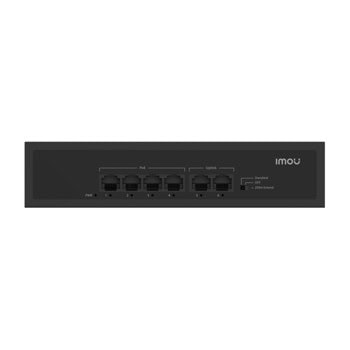

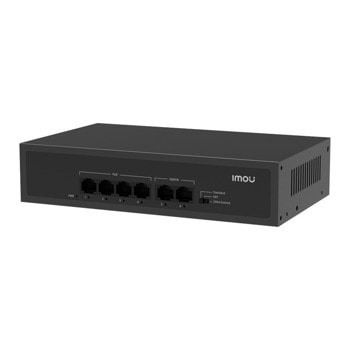

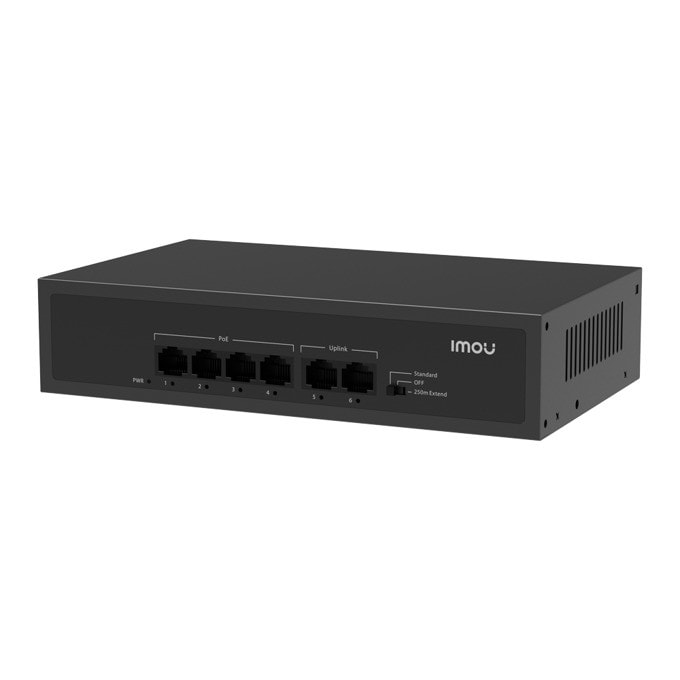

Суич Imou SF106P, 100Mbps, 6 порта, 4x 10/100Mbps RJ45 (PoE), 2x uplink

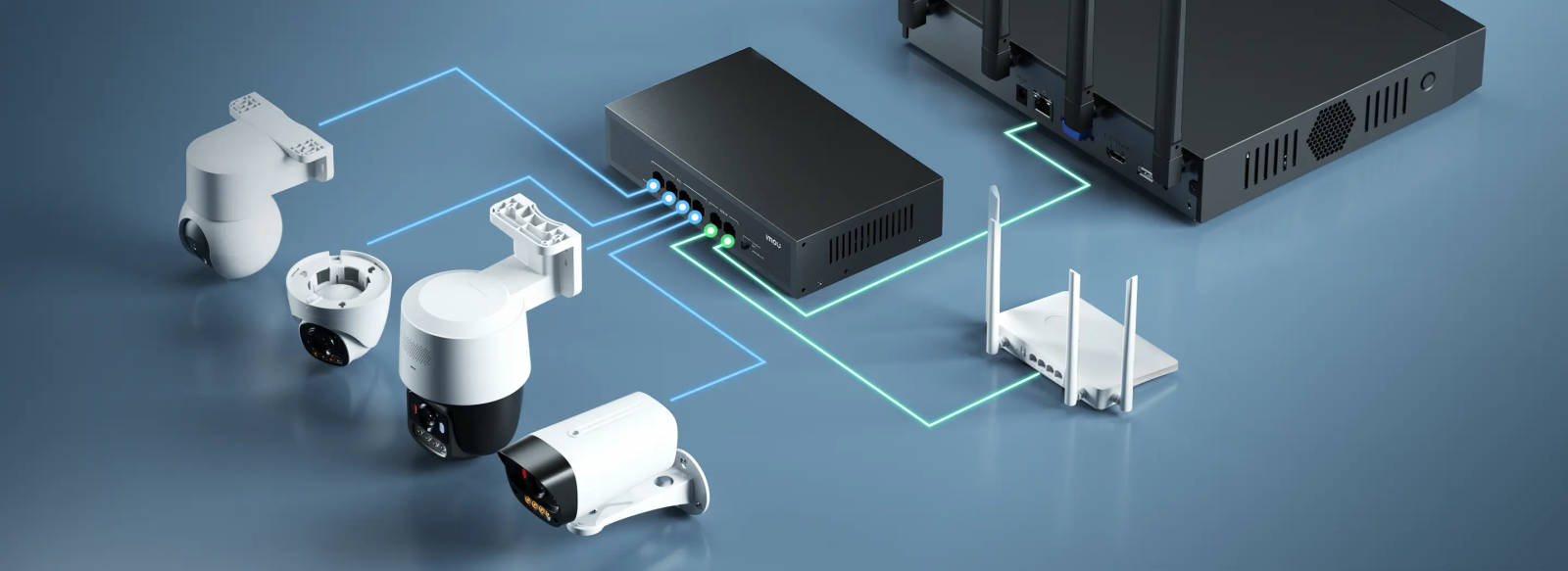

So Easy to Use

The simplicity of plug-and-play meets the intelligence of modern networking.
4 PoE ports deliver power and data seamlessly.

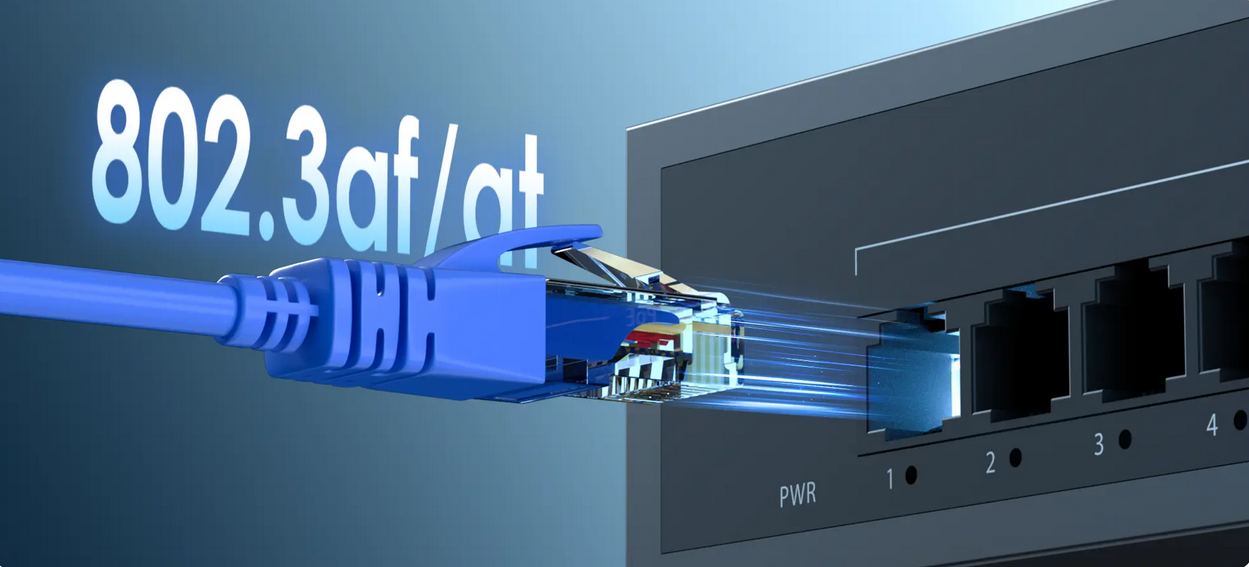

Compliant with 802.3af/at

Empower your devices with Maximum 30W PoE per port, eliminating the need for extra power adapters. The switch automatically detects whether a device needs PoE.

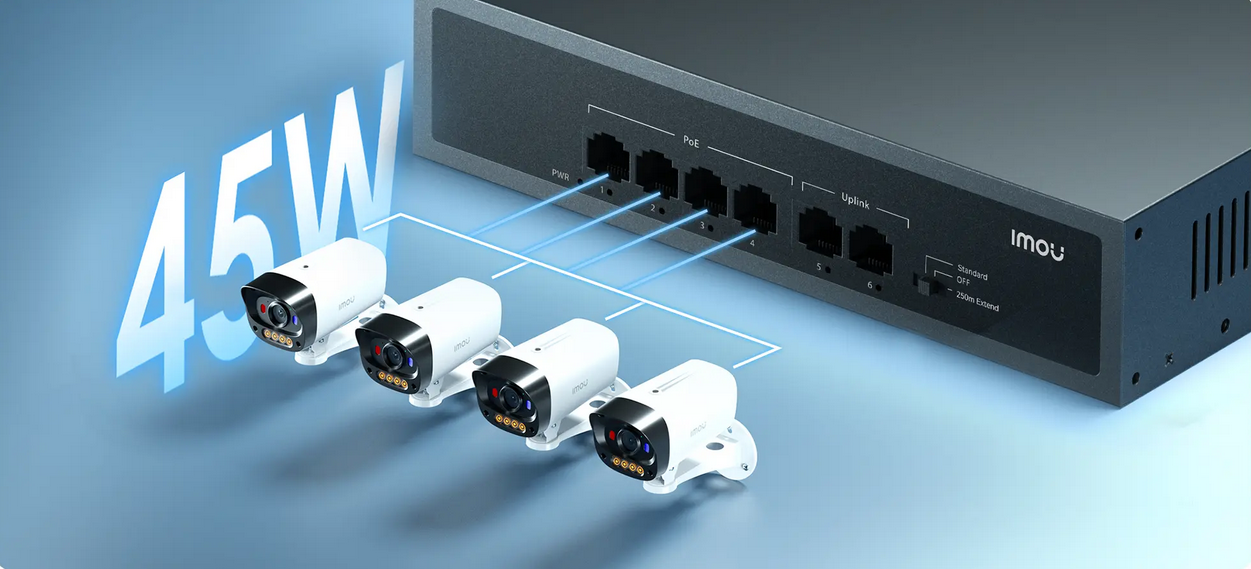

45 Watts. Fully Allocated

With 45W of total PoE budget, the switch intelligently manages power to ensure every connected device gets exactly what it needs.

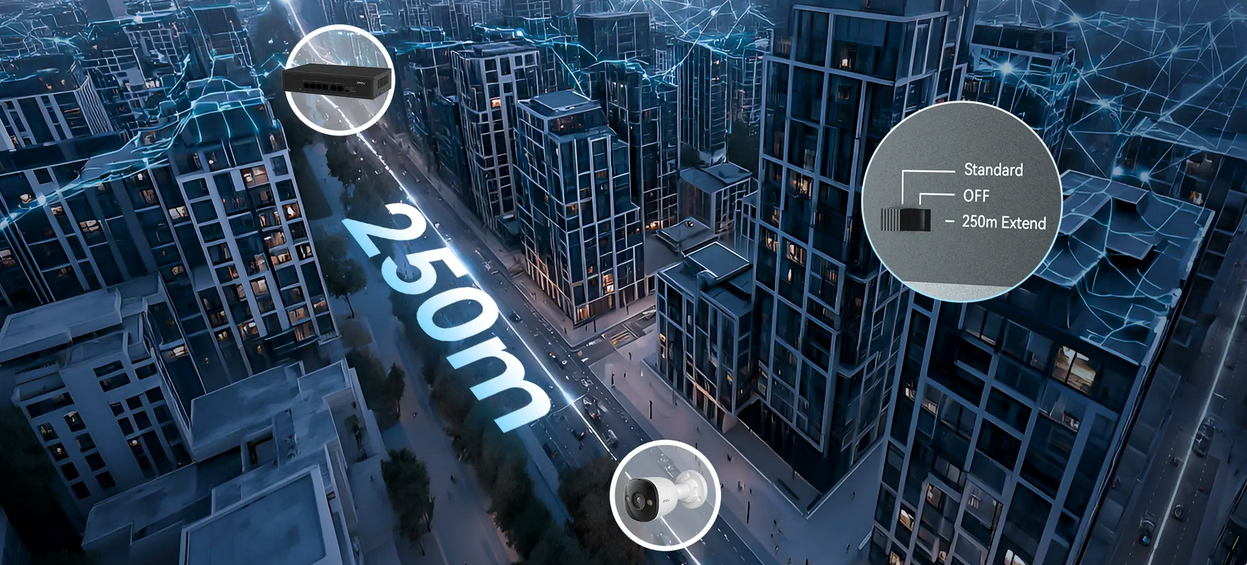

Reach Farther. Extend Mode

One-click mode switching unlocks extended transmission up to 250 meters—perfect for parking lots, outdoor dining areas, or warehouse corners where standard Ethernet falls short.

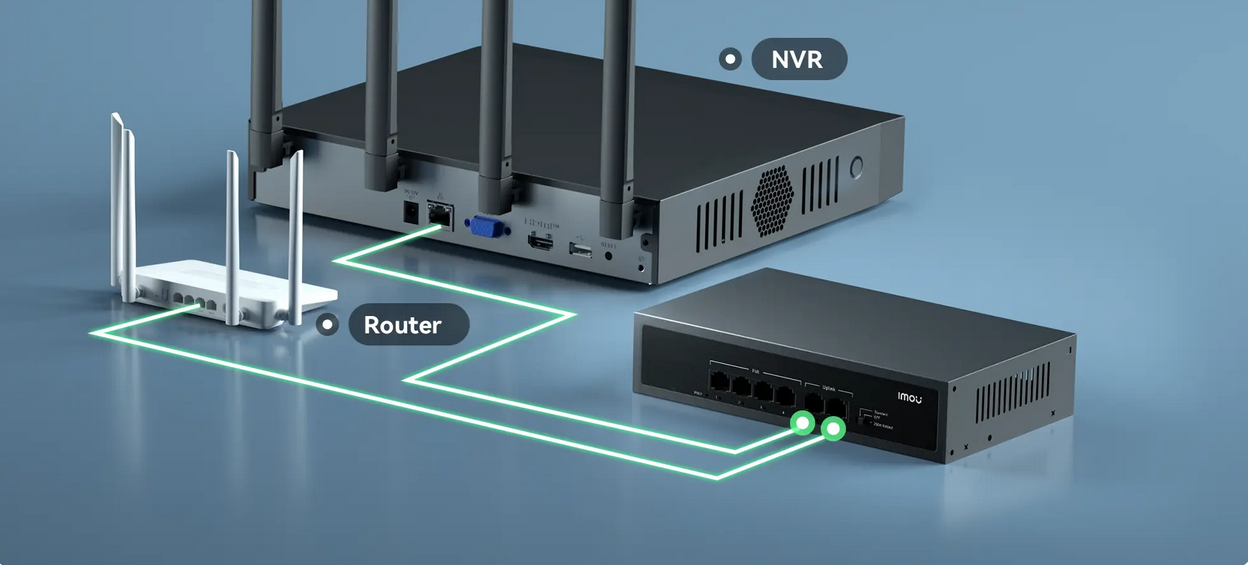

Dual Uplink Ports

Dual uplink ports let you connect to both your NVR and router at the same time. Monitor locally in real-time while streaming to the cloud.

Built to Last. Protected by Design

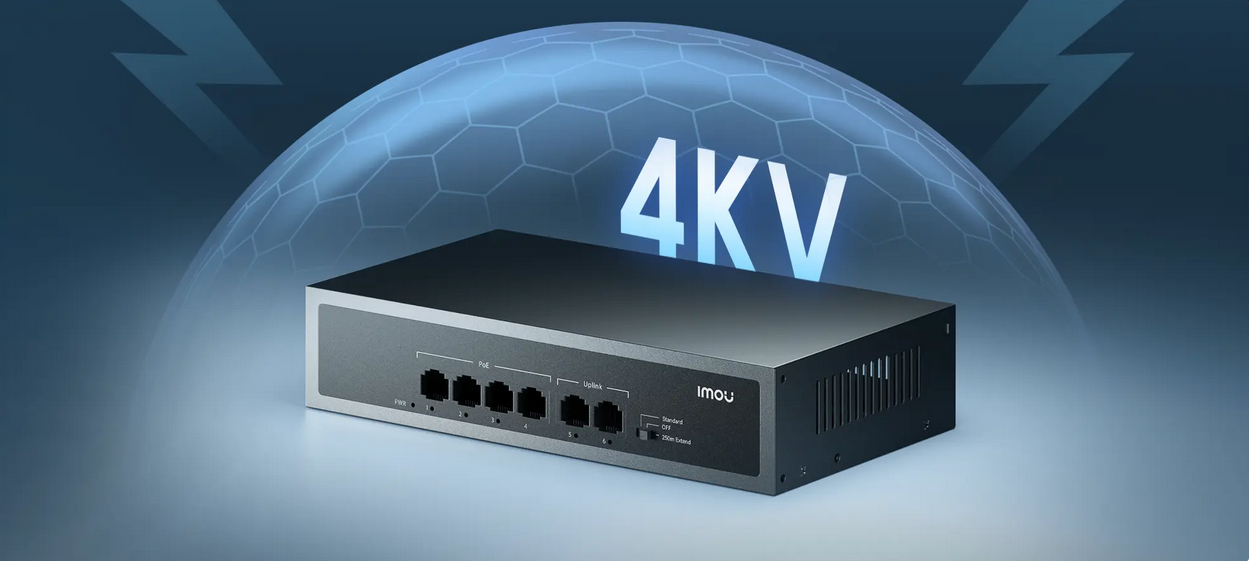

4KV lightning protection shields your network from electrical surges and storms.  The durable metal enclosure dissipates heat efficiently.

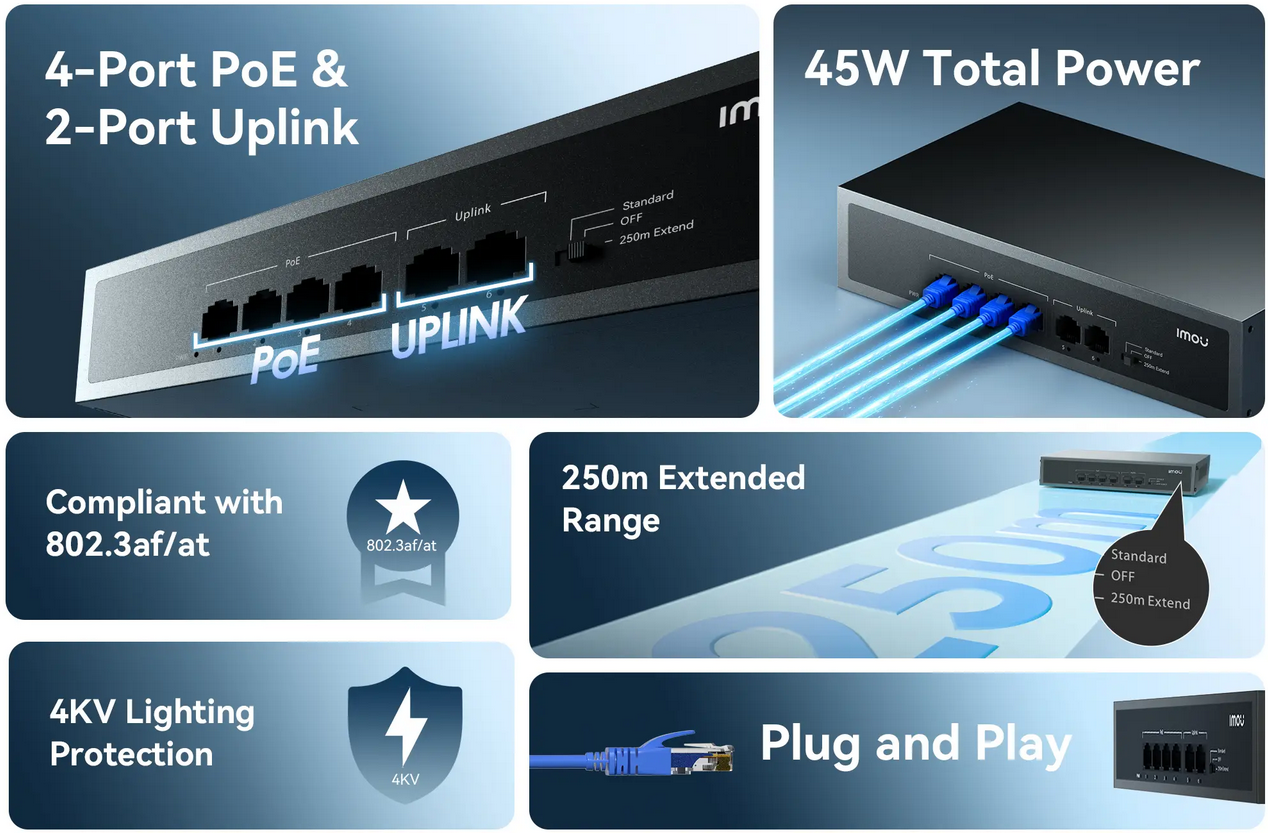

Key Features
4x 10/100 M PoE ports, 2x 10/100M Uplink ports


Power Budget:
Total:≤ 45W
Port 1-4:≤30W

Compliant with standard 802.3af/at
support 250m long distance PoE
Metal Casing
Plug & Play

Specifications
Hardware
Chipset IP178G
Network Port 4x 10/100 M PoE ports, 2x 10/100M Uplink ports
PoE Standard 802.3af/at
Power Budget Total:≤ 45W
Port 1-4:≤30W
Operating temperature -10℃~55℃
Operating Humidity 10~90%
LED Indicator 1x Power

PoE Switch
6x Link/Ack


Performance
Category Unmanaged Switch
Switching Capacity 1.2Gbps
Packet Forwarding Rate 0.89Mbps
MAC Table Size 2K
Surge Protection Common Mode: 4KV
Differential Mode: 2 KV


Others
Power Input: AC100~240V
Output: 52V/0.86A 45W
Material of the casing Metal
Installation method Desktop/wall-mount
Dimention 200×118×44mm
Weight 0.5kg
